Ubiquiti LBE-5AC-Gen2 Manual de usuario

5 GHz airMAX®ac Radio with

InnerFeed®Technology

Model: LBE-5AC-Gen2

Introduction

Thank you for purchasing the Ubiquiti Networks®

LiteBeam®5AC Gen 2 radio. This Quick Start Guide is

designed to guide you through installation and also includes

warrantyterms.

Package Contents

Antenna Feed Center Reflector

Panel

Side Reflector Panels

(Qty. 2)

Feed Receiver Azimuth Mount Elevation Mount Metal Strap

Knob Kit Gigabit PoE (24V, 0.3A)

with Mounting Bracket

Power Cord Quick Start

Guide

Products may be different from pictures and are subject to change without notice.

TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

Installation Requirements

• 7 mm socket wrench or screwdriver

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Application Examples

The LiteBeam AC mounted outdoors with the reflector

installed provides directional outdoor coverage (gain

reflector‑dependent).

The LiteBeam AC mounted outdoors without the reflector

installed provides outdoor‑to‑indoor coverage using the 3 dBi

Antenna Feed only.

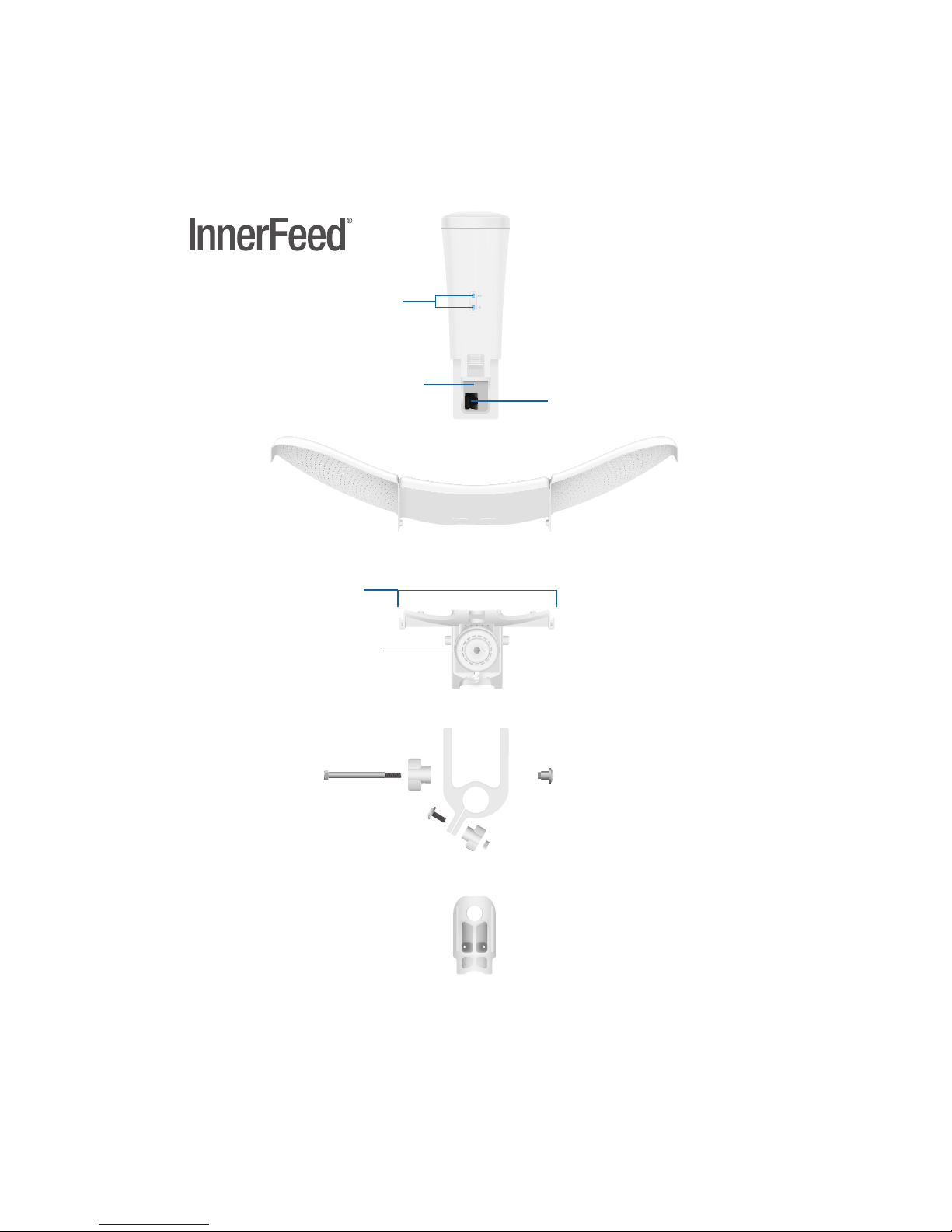

Hardware Overview

Bottom View

Antenna Feed

Reector Assembly

Feed Receiver

Elevation Mount

Azimuth Mount

Technology

Reset Button

Securing Arms

Port Cover

Ethernet Port

LEDs

LEDs

Ethernet The LED will light steady blue when an

active Ethernet connection is made and flash when

there is activity.

Power The LED will light blue when the device is

connected to a power source.

Button

Reset To reset to factory defaults, press and hold the Reset

button for more than 10 seconds while the LiteBeamAC is

poweredon. The LiteBeam AC may also be reset remotely

using the auxiliary Reset button located on the bottom of the

Gigabit PoEadapter.

Port

Ethernet Supports 10/100/1000 connections and passive PoE.

This port should be connected to the LAN and DHCP server.
