Ubiquiti AG-HP-2G20 Manual de usuario

2 GHz High-Performance

Integrated InnerFeed

Antenna

Model: AG-HP-2G20

Introduction

Thank you for purchasing the Ubiquiti Networks™airGrid™ 2GHz

High-Performance Integrated InnerFeed Antenna. This Quick

Start Guide is designed to guide you through the installation, and

show you how to access the airOS™ Configuration Interface. This

Quick Start Guide also includes the warranty terms and is for use

with the airGridM2 HP, model AG-HP-2G20.

Package Contents

Antenna Feed Feed Extender Grid Reflector

Rear Housing L-Bracket Pole Clamp M8 U-Bolt

2GHz High-Performance

IntegratedInnerFeed

Antenna

Model:AG-HP-2G20

M8 Flange Nuts

(Qty. 2)

PoE Adapter

(24V, 0.5A)

Power Cord Quick Start Guide

Grid reflector and mounting hardware packaged separately. Products may be different from

pictures and are subject to change without notice.

cable and earth grounding must be used as conditions of product warranty. TOUGHCable is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

Installation Requirements

• 13 mm or ½" wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from the

most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Application Examples

The airGrid mounted outdoors with the Grid Reflector

installed provides directional outdoor coverage (gain

reflector-dependent).

The airGrid mounted outdoors without the Grid Reflector

installed provides outdoor-to-indoor coverage using the 3 dBi

Antenna Feed only.

LEDs

Signal In airOS, you can modify the wireless signal

strength threshold values for each LED on the

Advanced tab under Signal LED Thresholds. The

default values are shown below:

LED will light green when the wireless signal

strength is above -65 dBm.

LED will light green when the wireless signal

strength is above -73 dBm.

LED will light amber when the wireless signal

strength is above -80 dBm.

LED will light red when the wireless signal

strength is above -94 dBm.

Ethernet The Ethernet LED will light steady green

when an active Ethernet connection is made and

flash when there is activity.

Power The Power LED will light green when the

device is connected to a power source.

Hardware Installation

Assemble the airGrid according to your chosen polarization.

1. Attach the L-Bracket to the Grid Reflector by sliding the tabs

into the slots.

Vertical Polarization Horizontal Polarization

WARNING: The polarization of the airGrid must

match the polarization of its corresponding device

(horizontal to horizontal, vertical to vertical).

2. On the front of the airGrid, ensure the polarization indicator,

Vor H, properly matches your desired polarization.

Vertical Polarization Horizontal Polarization

3. Attach the Rear Housing:

a. Ensure the four alignment holes on the Grid Reflector

and L-Bracket are lined up.

b. Orient the Rear Housing with the locking tab of the

cable feed door facing up.

c. Insert the alignments pins of the Rear Housing into the

alignment holes, and push until the Rear Housing locks

into place with a click.

Vertical Polarization Horizontal Polarization

4. Insert the Feed Extender into the Rear Housing with the

Release Button facing down. Push until it locks into place

with a click.

Release Button

5. Lift the locking tab of the cable feed door and detach the

door from the Rear Housing.

6. Route an Ethernet cable through the Rear Housing and Feed

Extender. Connect the cable to the Ethernet port on the

back of the Antenna Feed.

7. Attach the Antenna Feed:

a. Rotate the Antenna Feed to match the signal

polarization.

b. Insert the Antenna Feed into the Feed Extender, and

push until it locks into place with a click.

Vertical Polarization Horizontal Polarization

8. Lightly pull the Antenna Feed to ensure that the Release

Button is fully engaged and locked into place.

Antenna Feed

Feed Extender

Release Button

Bottom View

Note: If you need to remove the Antenna Feed, you

must depress the Release Button first.

9. The Release Button indicates the Antenna Feed polarization.

Confirm that the polarization indicator, Vor H, on the

Antenna Feed matches the indicator on the Grid Reflector.

WARNING: The polarization indicators must match.

Vertical Polarization Horizontal Polarization

10. Re-attach the cable feed door to the Rear Housing. Ensure

the locking tab securely latches to the Rear Housing.

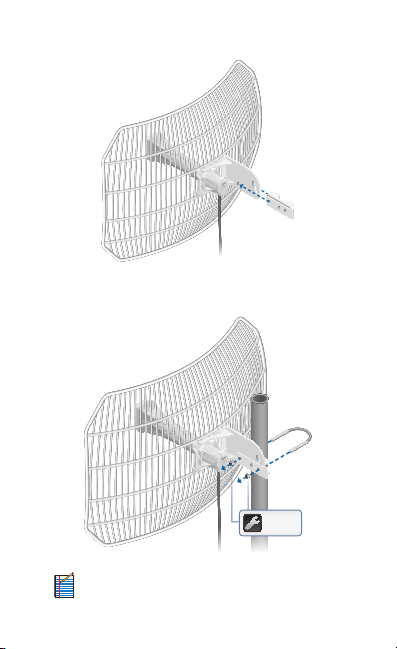

11. Slide the Pole Clamp onto the L-Bracket.

12. Insert the M8 U-Bolt into the Pole Clamp and L-Bracket.

Secure each end of the M8 U-Bolt with a M8 Flange Nut.

9 N-m

(80 lb-in)

Note: The mounting assembly can accommodate a

Ø 1.25" - 2.2" pole.
