U-Line ADA SERIES Manual de instalación

USER GUIDE & SERVICE MANUAL

SAFETY •INSTALLATION & INTEGRATION •OPERATING INSTRUCTIONS •MAINTENANCE •SERVICE

ADA Series •ADA24R •24" Solid Door Refrigerator

RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Installation

Integrated Panel Dimensions

Integrated Panel Installation

Grille / Plinth Installation

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

Integrated Panel Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Panel Dimensions

INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished integrated panel that seamlessly

integrates with surrounding cabinetry.

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some panel installations,

the panel may be visible through the glass while

the door is open.

A full integrated door panel completely covers the door

frame and provides a built-in appearance.

Integrated Panel Preparation

1. Cut the panels to the dimensions listed in the diagram

below.

2. Optional: Stain or Finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE

23-3/4"

(603 mm)

3/4"

(20 mm)

Integrated Panel

30-1/4"

(768 mm)

QUICK START GUIDE

Integrated Panel Installation 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

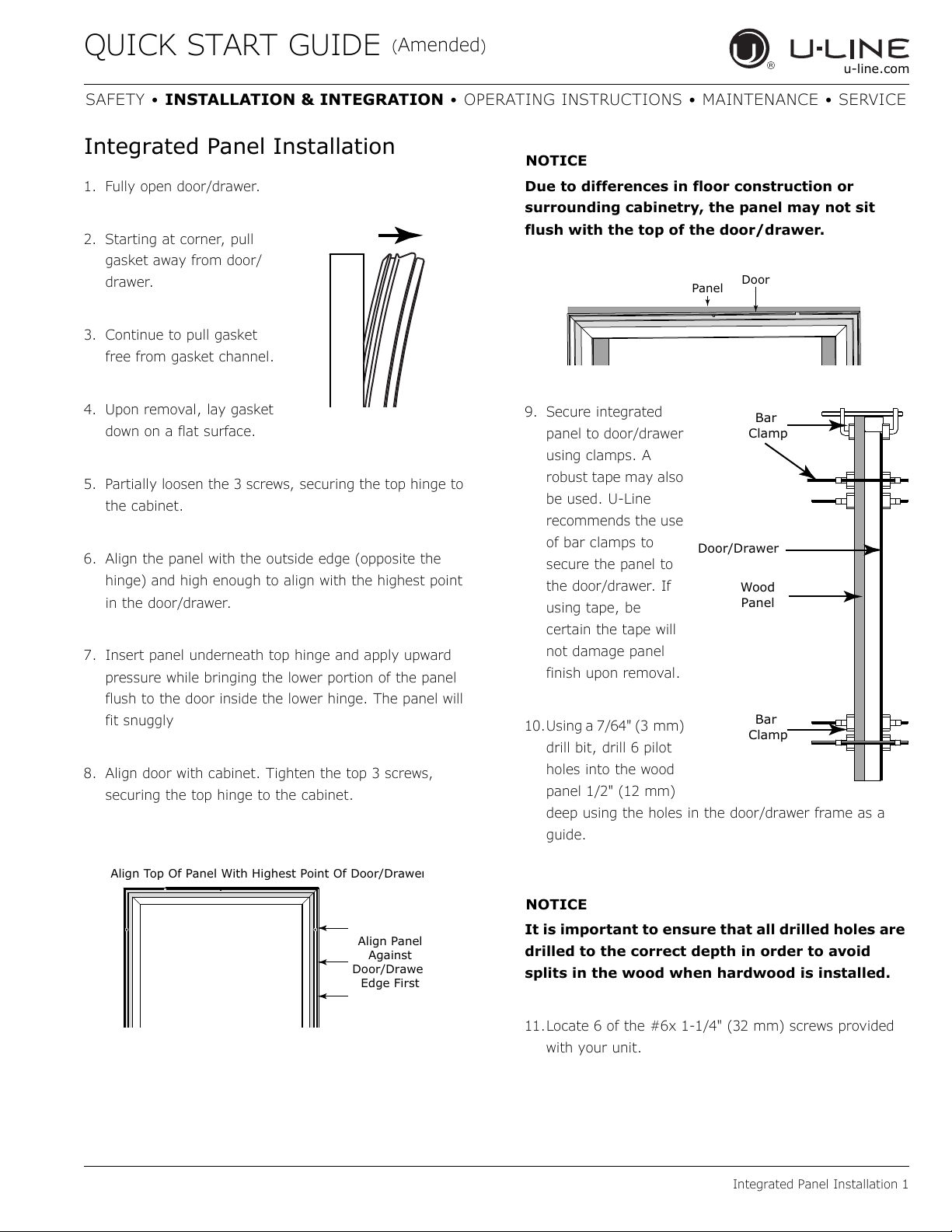

Integrated Panel Installation

1. Fully open door/drawer.

2. Starting at corner, pull

gasket away from door/

drawer.

3. Continue to pull gasket

free from gasket channel.

4. Upon removal, lay gasket

down on a flat surface.

5. Partially loosen the 3 screws, securing the top hinge to

the cabinet.

6. Align the panel with the outside edge (opposite the

hinge) and high enough to align with the highest point

in the door/drawer.

7. Insert panel underneath top hinge and apply upward

pressure while bringing the lower portion of the panel

flush to the door inside the lower hinge. The panel will

fit snuggly

8. Align door with cabinet. Tighten the top 3 screws,

securing the top hinge to the cabinet.

NOTICE

Due to differences in floor construction or

surrounding cabinetry, the panel may not sit

flush with the top of the door/drawer.

9. Secure integrated

panel to door/drawer

using clamps. A

robust tape may also

be used. U-Line

recommends the use

of bar clamps to

secure the panel to

the door/drawer. If

using tape, be

certain the tape will

not damage panel

finish upon removal.

10.Using a 7/64" (3 mm)

drill bit, drill 6 pilot

holes into the wood

panel 1/2" (12 mm)

deep using the holes in the door/drawer frame as a

guide.

NOTICE

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardwood is installed.

11.Locate 6 of the #6x 1-1/4" (32 mm) screws provided

with your unit.

Align Panel

Against

Door/Drawe

Edge First

Align Top Of Panel With Highest Point Of Door/Drawer

Door

Panel

Wood

Panel

Door/Drawer

Bar

Clamp

Bar

Clamp

(Amended)

USER GUIDE

Integrated Panel Installation 2

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

12.Using a Phillips screwdriver, place one screw into each

of the 6 pilot holes and screw down. Do not overtighten

screws.

13.Be sure the screws force their way past the opening on

the gasket channel and sit flush against the bottom of

the channel.

14.Remove clamps from door/drawer.

NOTICE

If panel requires additional adjustment after

removing clamps, slightly loosen each screw and

adjust panel as necessary. Tighten screws upon

completion.

15.Starting at the corners, re-install the gasket into the

gasket channel in the frame. Make sure the gasket is

fully seated. This may take some force.

Integrated Panel

USER GUIDE

Grille - Plinth Installation 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

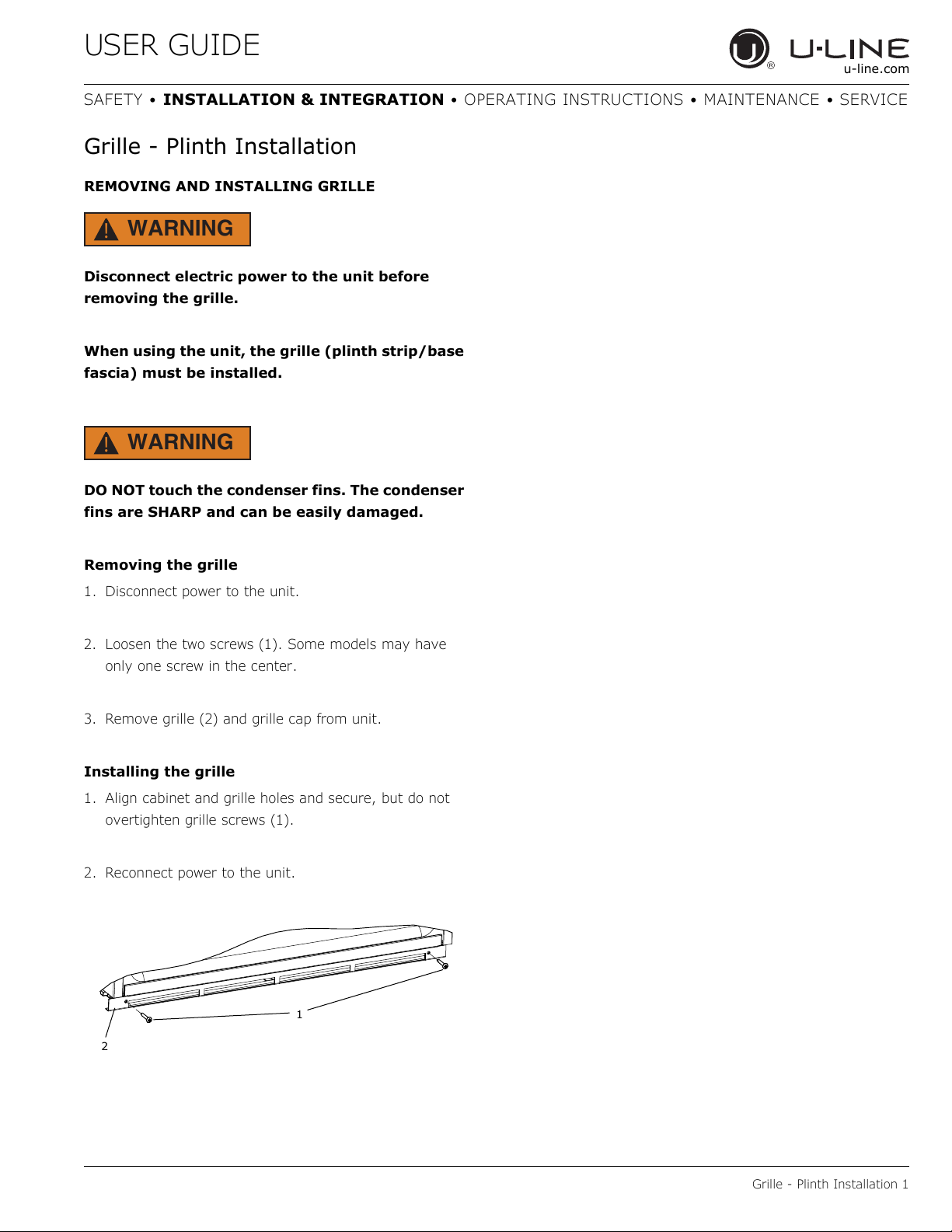

Grille - Plinth Installation

REMOVING AND INSTALLING GRILLE

WARNING

Disconnect electric power to the unit before

removing the grille.

When using the unit, the grille (plinth strip/base

fascia) must be installed.

WARNING

DO NOT touch the condenser fins. The condenser

fins are SHARP and can be easily damaged.

Removing the grille

1. Disconnect power to the unit.

2. Loosen the two screws (1). Some models may have

only one screw in the center.

3. Remove grille (2) and grille cap from unit.

Installing the grille

1. Align cabinet and grille holes and secure, but do not

overtighten grille screws (1).

2. Reconnect power to the unit.
