USER GUIDE & SERVICE MANUAL

5 Class ●UHBV518 ●18” Beverage Center

USER GUIDE

u-line.com

Contents

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Operating Instructions

First Use

Control Operation

Airflow and Product Loading

Interior Adjustments

Wine Guide

Food Preservation Guide

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

Service

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Operation - Service

Thermistor

Defrost

Remove Fan and Cover

Warranty

USER GUIDE

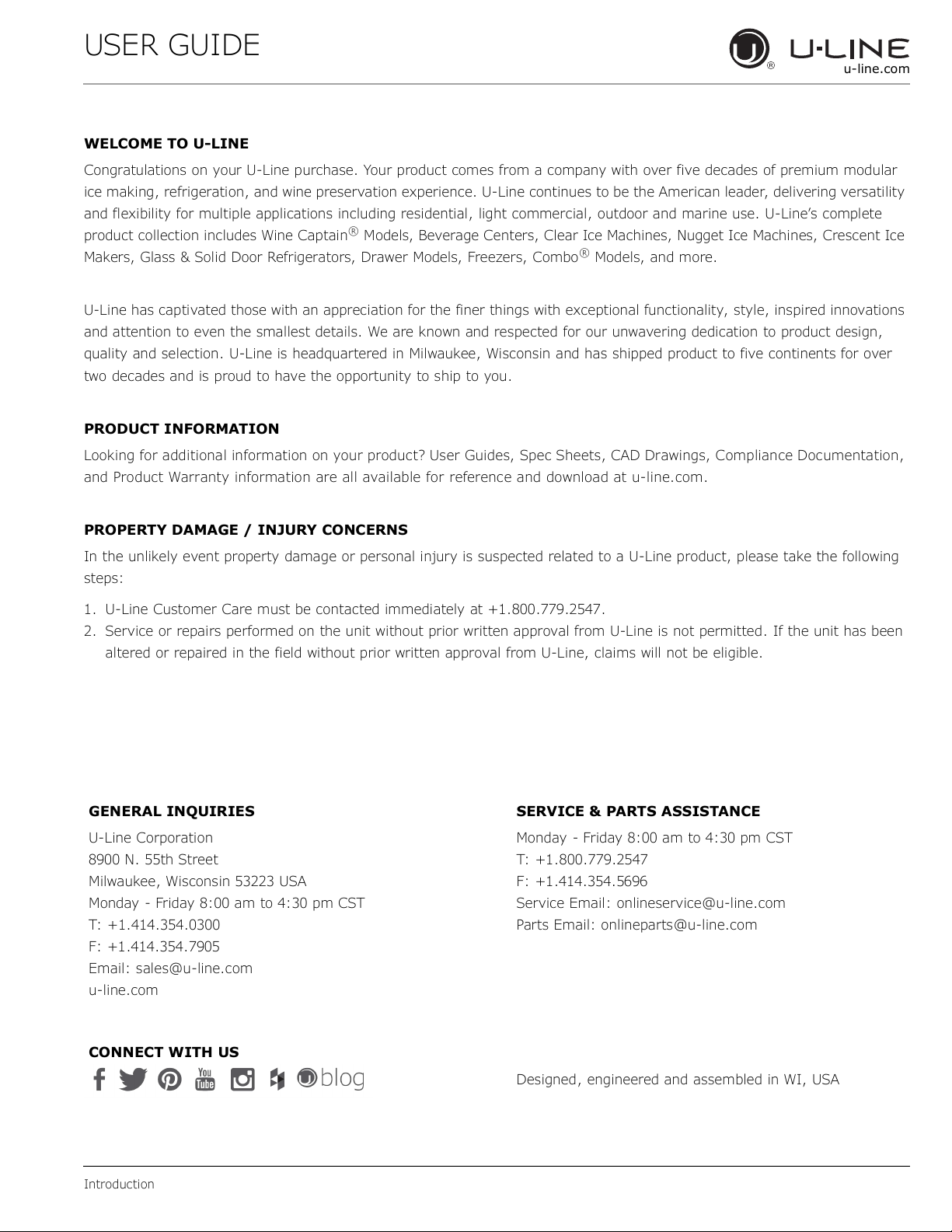

Introduction

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular

ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility

and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete

product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice

Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over

two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

USER GUIDE

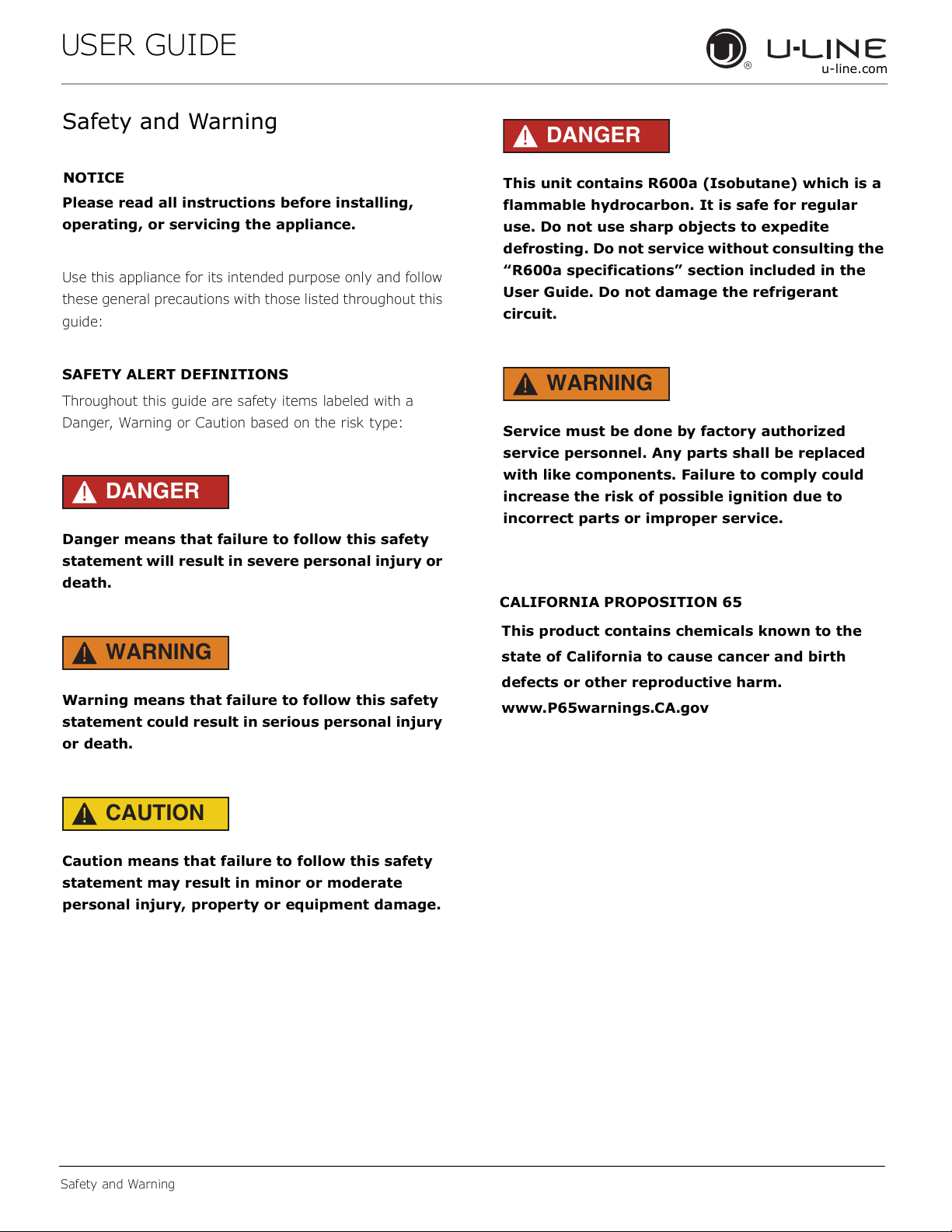

Safety and Warning

u-line.com

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

WARNING

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

USER GUIDE u-line.com

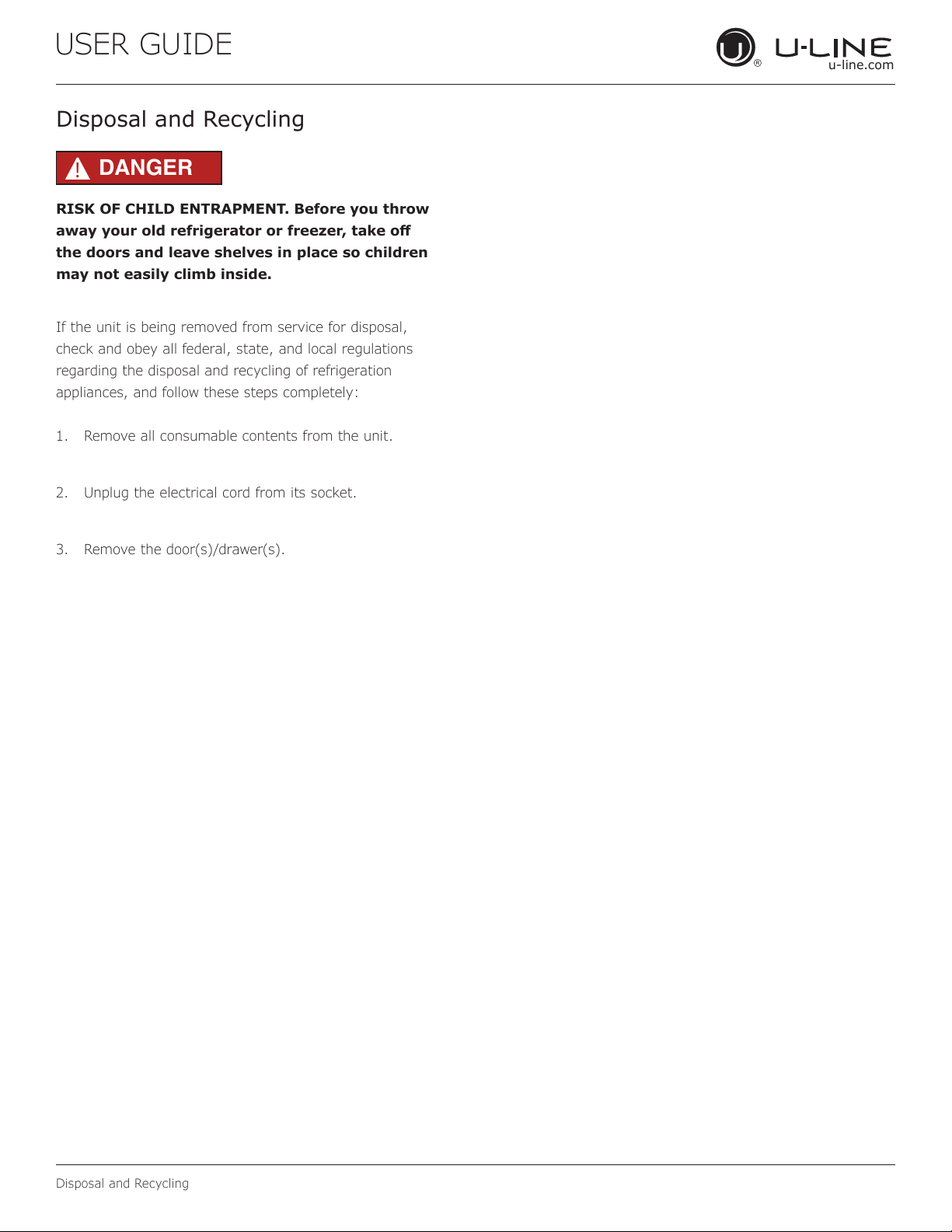

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

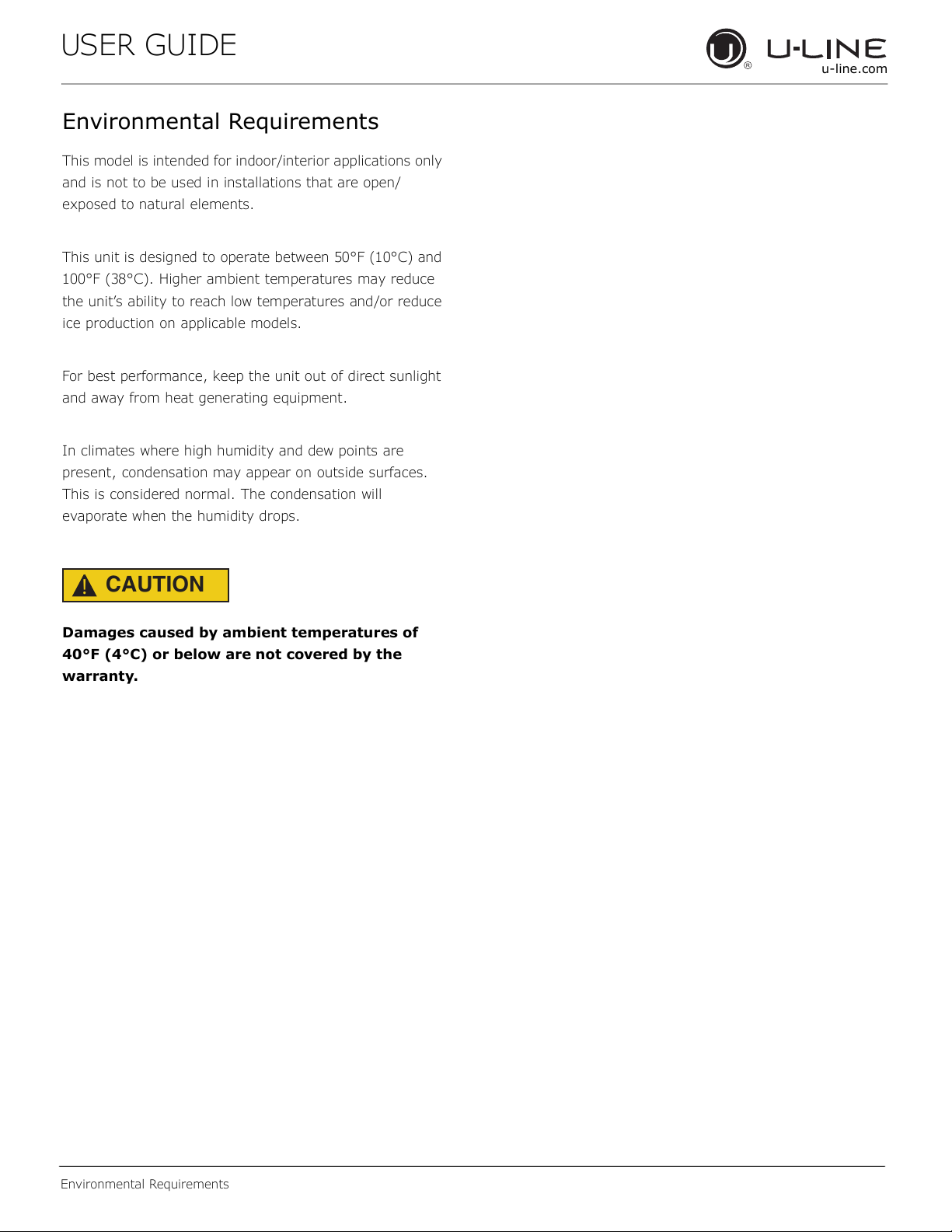

Environmental Requirements

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

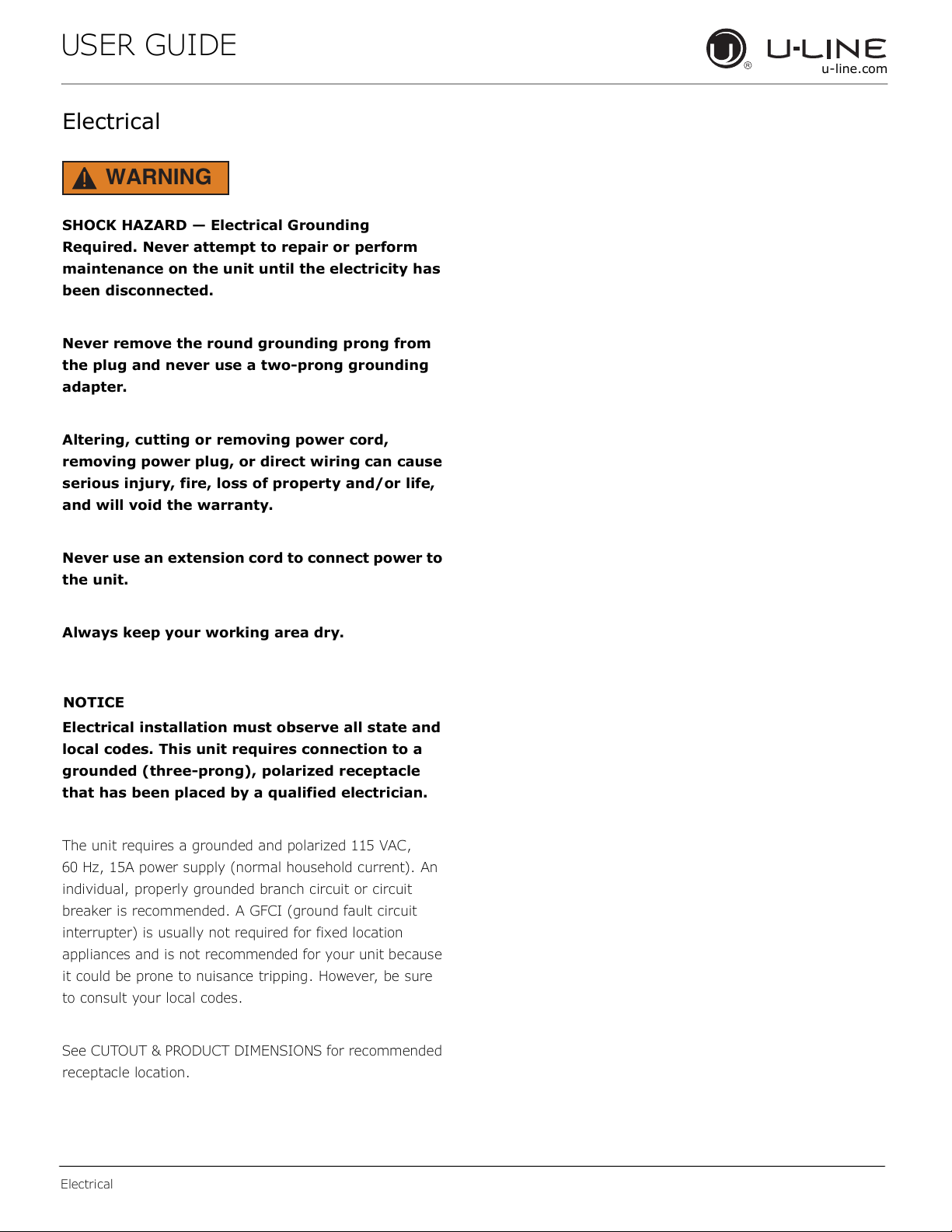

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE u-line.com

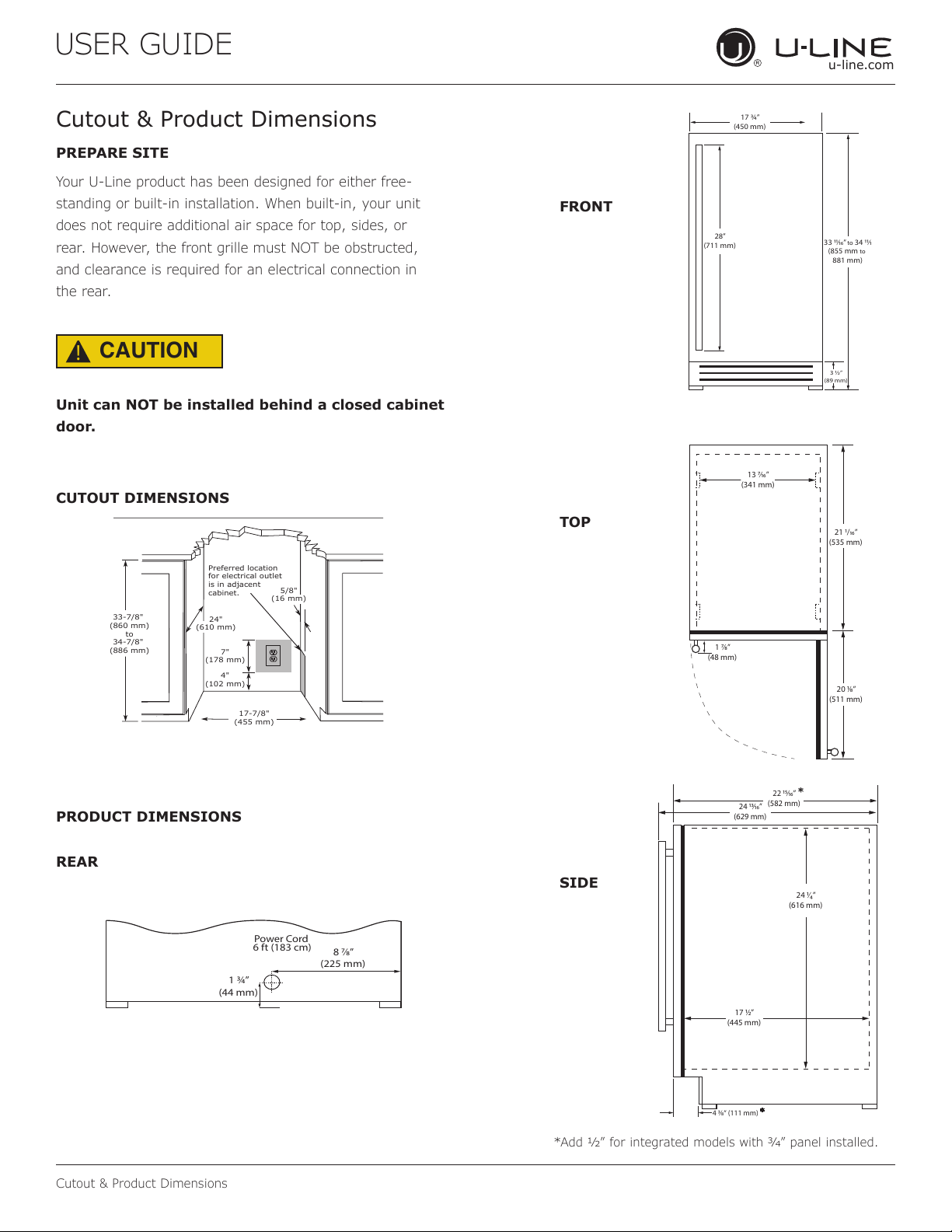

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

(102 mm)

(178 mm)

17-7/8"

(455 mm)

33-7/8"

(860 mm)

34-7/8"

(886 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

24"

(610 mm)

5/8"

(16 mm)

Power Cord

6 ft (183 cm)

Power Cord

6 ft (183 cm)

Power Cord

6 ft (183 cm)

1 ¾”

(44 mm)

6 ⁄”

(159 mm)

1 ¾”

(44 mm)

8 ⁄”

(225 mm)

1 ⁄”

(35 mm)

11 ¾”

(298 mm)

17 ¾”

(450 mm)

3 ½”

(89 mm)

28”

(711 mm) 33 ⁄”

34 ⁄”

(855 mm

881 mm)

1 ⁄”

(48 mm)

13 ⁄”

(341 mm)

20 ⁄”

(511 mm)

21 /”

(535 mm)

17 ⁄”

(445 mm)

24 ⁄”

(616 mm)

22 ⁄”

(582 mm)

24 ⁄”

(629 mm)

4 ⁄“ (111 mm)

*Add 1⁄2” for integrated models with 3⁄4” panel installed.

USER GUIDE

Side-by-Side Installation

u-line.com

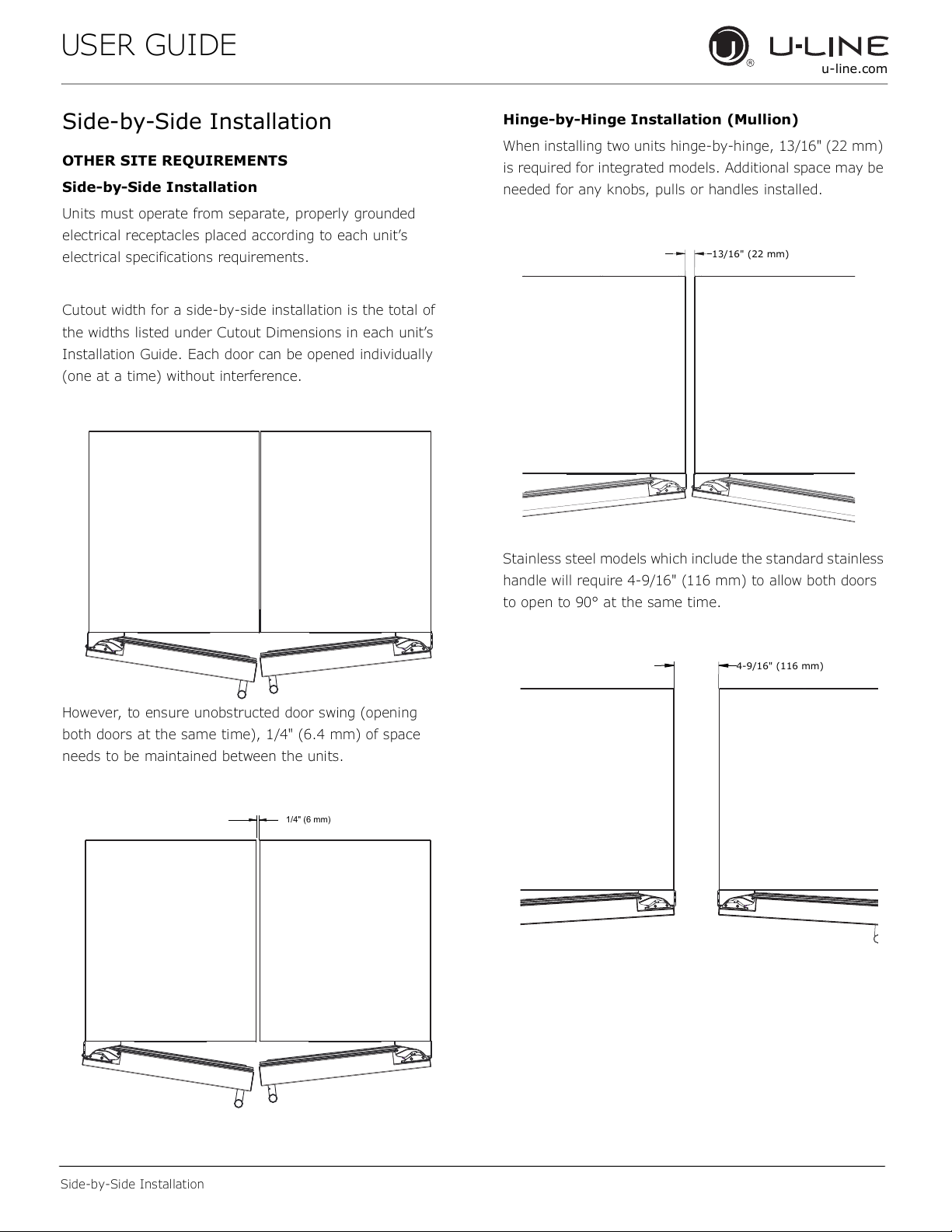

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total of

the widths listed under Cutout Dimensions in each unit’s

Installation Guide. Each door can be opened individually

(one at a time) without interference.

However, to ensure unobstructed door swing (opening

both doors at the same time), 1/4" (6.4 mm) of space

needs to be maintained between the units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors

to open to 90° at the same time.

1/4" (6 mm)

13/16" (22 mm)

4-9/16" (116 mm)

USER GUIDE u-line.com

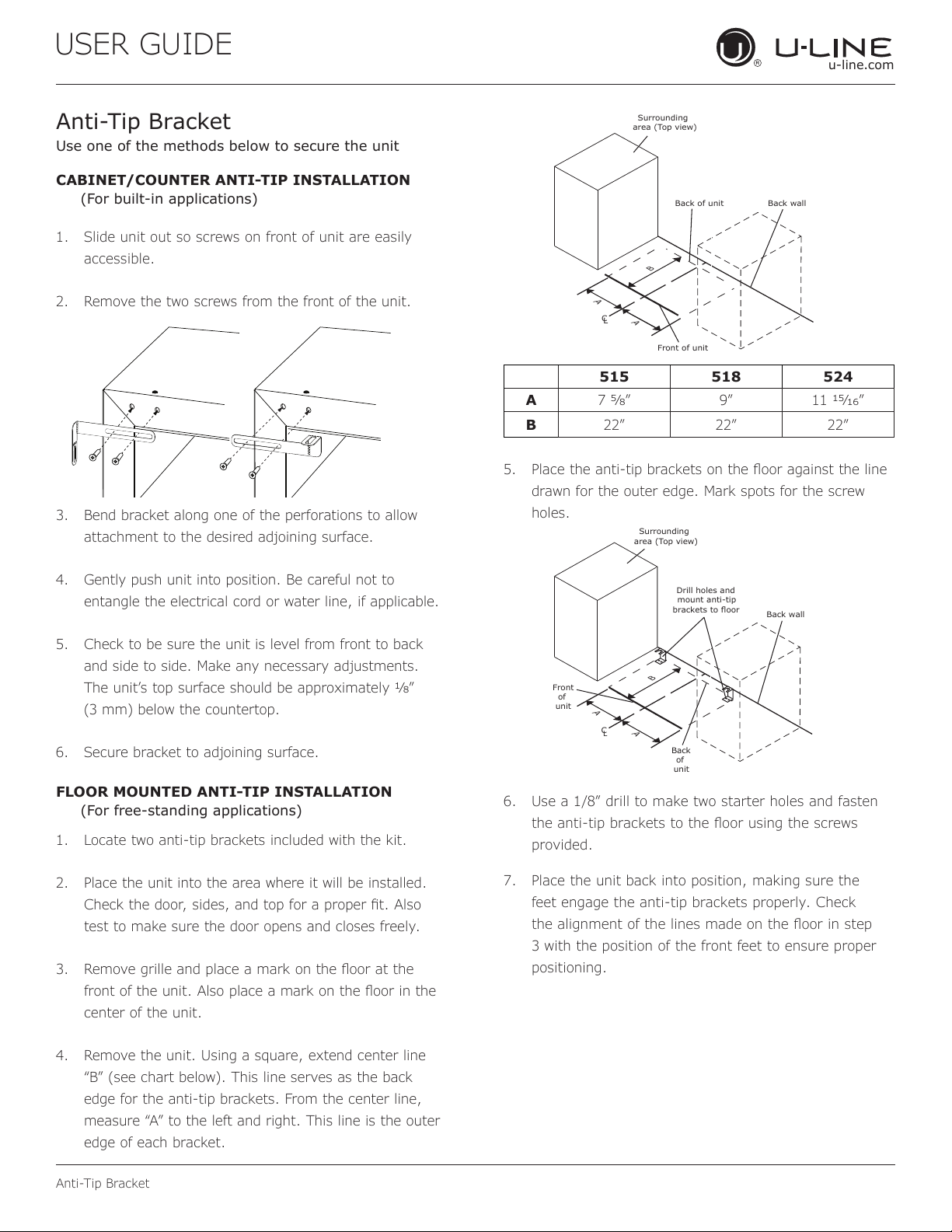

Anti-Tip Bracket

Use one of the methods below to secure the unit

CABINET/COUNTER ANTI-TIP INSTALLATION

(For built-in applications)

1. Slide unit out so screws on front of unit are easily

accessible.

2. Remove the two screws from the front of the unit.

3. Bend bracket along one of the perforations to allow

attachment to the desired adjoining surface.

4. Gently push unit into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Check to be sure the unit is level from front to back

and side to side. Make any necessary adjustments.

The unit’s top surface should be approximately ”

(3 mm) below the countertop.

6. Secure bracket to adjoining surface.

FLOOR MOUNTED ANTI-TIP INSTALLATION

(For free-standing applications)

1. Locate two anti-tip brackets included with the kit.

2. Place the unit into the area where it will be installed.



test to make sure the door opens and closes freely.

3. 



center of the unit.

4. Remove the unit. Using a square, extend center line

“B” (see chart below). This line serves as the back

edge for the anti-tip brackets. From the center line,



edge of each bracket.

Back wall

Back of unit

Front of unit

Surrounding

area (Top view)

515 518 524

A7  9” 11 ”

B22” 22” 22”

5. 

drawn for the outer edge. Mark spots for the screw

holes.

Surrounding

area (Top view)

Drill holes and

mount anti-tip

brackets to ﬂoor Back wall

Front

unit

Back

unit

6. Use a 1/8” drill to make two starter holes and fasten



provided.

7. Place the unit back into position, making sure the

feet engage the anti-tip brackets properly. Check



3 with the position of the front feet to ensure proper

positioning.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Electrodoméstico de cocina de U-Line

U-Line

U-Line U-2224ZWCINT-00A Manual de instalación

U-Line

U-Line Wine Captain UHWC515SG01A Manual de instalación

U-Line

U-Line UHBD524IS01A Manual de instalación

U-Line

U-Line U-29RB-13A Manual de instalación

U-Line

U-Line 1175WC Guía de configuración

U-Line

U-Line U-1215BEVINT-00A Manual de instalación

U-Line

U-Line U-2218WCS-00A Manual de instalación

U-Line

U-Line 1215BEV Manual de instalación

U-Line

U-Line UHWC024 Manual de instalación

U-Line

U-Line Modular 3024RGL Manual de instalación

U-Line

U-Line UHBD524 Manual de instalación

U-Line

U-Line UCWC515SG33A Manual de instalación

U-Line

U-Line Wine Captain 2000 Series Manual de usuario

U-Line

U-Line Wine Captain 2224WC Manual de instalación

U-Line

U-Line U-1215WCB-00B Manual de instalación

U-Line

U-Line Wine Captain 1000 Series Manual de instalación

U-Line

U-Line Wine Captain UHWC524IG01A Manual de instalación

U-Line

U-Line 1224WC Manual de usuario

U-Line

U-Line 2224ZWC Manual de usuario

U-Line

U-Line UCDE224DSS03A Manual de instalación

U-Line

U-Line 2224BEVS-00B Manual de instalación

U-Line

U-Line UHBV024-SG02A Manual de instalación

U-Line

U-Line UHWC124 Manual de instalación

U-Line

U-Line 2000 SERIES Manual de usuario

Manuales populares de Electrodoméstico de cocina de otras marcas

Tayama

Tayama TYG-35AF Manual de usuario

AEG

AEG 43172V-MN Manual de usuario

REBER

REBER Professional 40 Guía del usuario

North American

North American BB12482G / TR-F-04-B-NCT-1 Manual de usuario

Presto

Presto fountain popper Manual de usuario

Westmark

Westmark 1035 2260 Manual de usuario

Zanussi

Zanussi ZCG64396XA Manual de usuario

HOFFEN

HOFFEN SM-9302M Manual de usuario

Philips

Philips HD3133 Manual de usuario

Ronco

Ronco Beef Jerky Manual de usuario

Hendi

Hendi 470411 Manual de usuario

Livoo

Livoo MEN386 Manual de usuario

Vogue

Vogue D446 Manual de usuario

croydon

croydon WR-10313-700 Manual de usuario

ADE

ADE AUTOMATIC-L Manual de usuario

Chefman

Chefman RJ43-SQ Series Manual de usuario

Vacmaster

Vacmaster VP680 Manual de usuario

Jetmaster

Jetmaster 900HG Manual de usuario
