USER GUIDE & SERVICE MANUAL

1 Class ●UHNB115 / UHNP115 ●15” Nugget Ice Machine

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Water Hookup

Drain

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Maintenance

Cleaning

Cleaning Condenser

Operating Instructions

Control Operation

Ice

Airflow and Product Loading

Service

Warranty

USER GUIDE

Introduction

u-line.com

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium modular

ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader, delivering versatility

and flexibility for multiple applications including residential, light commercial, outdoor and marine use. U-Line’s complete

product collection includes Wine Captain® Models, Beverage Centers, Clear Ice Machines, Nugget Ice Machines, Crescent Ice

Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo® Models, and more.

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations

and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,

quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product to five continents for over

two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: sales@u-line.com

u-line.com

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

CONNECT WITH US

Designed, engineered and assembled in WI, USA

USER GUIDE u-line.com

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE u-line.com

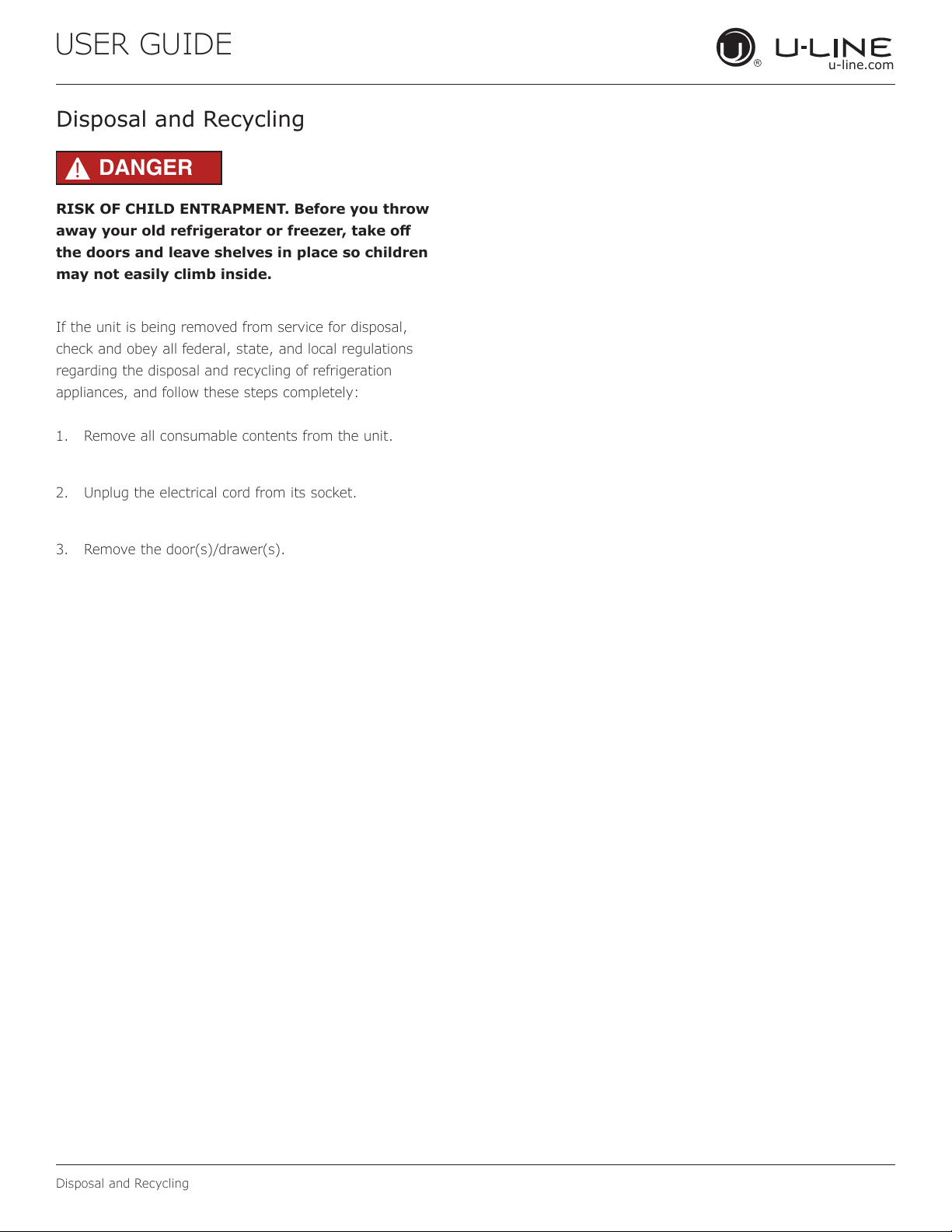

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

Environmental Requirements

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE u-line.com

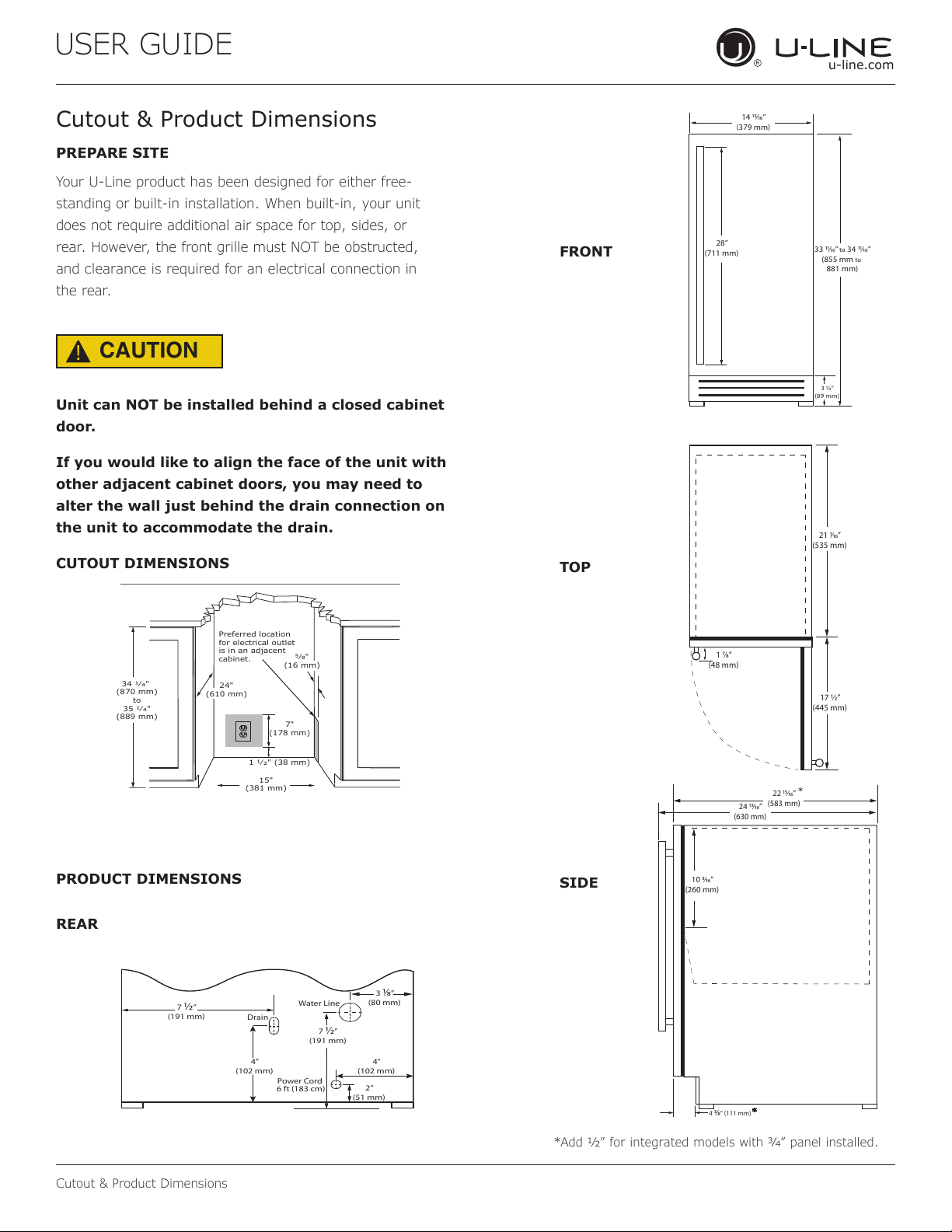

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

If you would like to align the face of the unit with

other adjacent cabinet doors, you may need to

alter the wall just behind the drain connection on

the unit to accommodate the drain.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

1 1⁄₂" (38 mm)

(178 mm)

15"

(381 mm)

34 1⁄₄"

(870 mm)

35 1⁄₄"

(889 mm)

Preferred location

for electrical outlet

is in an adjacent

cabinet.

24"

(610 mm)

5⁄8"

(16 mm)

2”

(51 mm)

4”

(102 mm)

Drain

Water Line

”

(191 mm)

⁄

”

(80 mm)

4”

(102 mm)

”

(191 mm)

Power Cord

6 ft (183 cm)

14 ⁄”

(379 mm)

3 ½”

(89 mm)

28”

(711 mm) 33 ⁄”

34 ⁄”

(855 mm

881 mm)

1 ⁄”

(48 mm)

17 ½”

(445 mm)

21 ⁄”

(535 mm)

10 ⁄”

(260 mm)

22 ⁄”

(583 mm)

24 ⁄”

(630 mm)

⁄

“ (111 mm)

*Add 1⁄2” for integrated models with 3⁄4” panel installed.

USER GUIDE

Side-by-Side Installation

u-line.com

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total of

the widths listed under Cutout Dimensions in each unit’s

Installation Guide. Each door can be opened individually

(one at a time) without interference.

However, to ensure unobstructed door swing (opening

both doors at the same time), 1/4" (6.4 mm) of space

needs to be maintained between the units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22 mm)

is required for integrated models. Additional space may be

needed for any knobs, pulls or handles installed.

Stainless steel models which include the standard stainless

handle will require 4-9/16" (116 mm) to allow both doors

to open to 90° at the same time.

1/4" (6 mm)

13/16" (22 mm)

4-9/16" (116 mm)

USER GUIDE u-line.com

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4” (6.35 mm)

compression tting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes

a 10’ (3 m) braided exible water supply line and a brass

hose tting.

Plumbing installation must observe all state

and local codes. All water and drain connections

MUST BE made by a licensed/qualied plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between 20 and 120 psi

(138 and 827 kPa).

• The water line MUST have a shut-o valve in the

supply line.

• The water line should be looped into 2 coils. This

will allow the unit to be removed for cleaning and

servicing. Make certain that the tubing is not pinched

or damaged during installation.

Connect to potable water supply only.

• Water Mineral Content:

• TDS: greater than 5 ppm (mg/l) but less

than 400 ppm (mg/l)

• Hardness: less than 200 mg/l (12 gpg)

• Not recommended for use with softened

water

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided exible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

ooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

Turn o water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The edges

could be sharp.

CAUTION

WARNING

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de hielo de U-Line

U-Line

U-Line Origins BI-98 Guía de configuración

U-Line

U-Line UMCR014-WC01A Manual de instalación

U-Line

U-Line U-3018CLRINT-40C Manual de instalación

U-Line

U-Line UHNPB315 Manual de instalación

U-Line

U-Line Marine UMCR014 Manual de instalación

U-Line

U-Line UHNP115SS01B Manual de instalación

U-Line

U-Line UHNP315IS81A Manual de instalación

U-Line

U-Line U-CO29B-00 Manual de usuario

U-Line

U-Line ICEMAKER Series Manual de usuario

U-Line

U-Line Origins BI-98 Manual de usuario

U-Line

U-Line Outdoor Series Manual de usuario

U-Line

U-Line UHNP315 Manual de instalación

U-Line

U-Line U-3018CLR Manual de instalación

U-Line

U-Line U-ADA15IMB-00 Manual de usuario

U-Line

U-Line BI95FC Manual de usuario

U-Line

U-Line CO1175 Manual de usuario

U-Line

U-Line BI-95BTP Manual de usuario

U-Line

U-Line UACR014-BS01A Manual de instalación

U-Line

U-Line 1000 SERIES Manual de usuario

U-Line

U-Line UACR115SS01A Manual de instalación

U-Line

U-Line BI95 ADA Height Compliant Series Manual de instalación

U-Line

U-Line U-CLR1215SOD-40B Manual de instalación

U-Line

U-Line CLR1215 Manual de usuario

U-Line

U-Line ADA 1000 Series Manual de usuario

Manuales populares de Máquina de hielo de otras marcas

Hoshizaki

Hoshizaki KMD-460MWJ Manual de usuario

Sub-Zero

Sub-Zero 315I Instrucciones de uso

Unold

Unold 48945 Manual de usuario

Kenmore

Kenmore 2217402A Manual de usuario

Cornelius

Cornelius WM600 Instrucciones de funcionamiento

GE XPIO43SCSS Manual de usuario

Hoshizaki

Hoshizaki KMD-901MAH Manual de usuario

Whynter

Whynter FIM-450HA Manual de usuario

Andrew James

Andrew James AJ000522 Manual de usuario

Scotsman

Scotsman CME1356 Manual de usuario

Scotsman

Scotsman ACM 25 Manual de usuario

Kärcher

Kärcher IP 120 Manual de usuario

Maytag

Maytag MIM1554WRS - Ice Maker Manual de usuario

Hoshizaki

Hoshizaki KM-630MAH Manual de usuario

Princess

Princess Yonanas Manual de usuario

Unold

Unold 48946 Manual de usuario

Electrolux

Electrolux E15IM60GP Manual de usuario

Cornelius

Cornelius UC150 ICE ONLY Manual de usuario
