U-Line SOFPULL H-2861 Manual de usuario

PAGE 1 OF 3 0514 IH-2861

πH-2861

Sofpull®automatic

paper towel diSpenSer

1-800-295-5510

uline.com

IMPORTANT SAFETY INSTRUCTIONS

MOUNTING INSTRUCTIONS

NOTE: Recommended mounting height is 44"

from the floor to bottom of dispenser.

1. Press button on top of dispenser to open cover.

(See Figure 1)

PARTS

Figure 1

Dispenser x 1

NOTE: This dispenser runs on four D-cell alkaline

batteries, which are not included with product.

NOTE: Mounting hardware is not included with

this item. When mounting dispenser, ensure

that proper mounting hardware is used for

appropriate wall composition.

TOOLS NEEDED

Drill Drill Bit Phillips Screwdriver

ATTENTION: Read all instructions before using

the towel dispensing system.

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL

SHOCK OR INJURY TO PERSONS:

1. Close supervision is necessary when this furnishing is

used by children or disabled persons.

2. Use this furnishing only for its intended use

as described in these instructions. Do not

use attachments not recommended by the

manufacturer.

3. Never operate this furnishing if it is not working

properly, if it has been dropped or damaged, or

dropped into water. Return the furnishing to a

service center for examination and repair.

4. Never operate the furnishing with the air openings

blocked. Keep the air openings free of lint, hair and

the like.

5. Never drop or insert any foreign object into any

opening.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are

being used or where oxygen is being administered.

8. Do not mix old and new batteries.

9. Do not mix non-rechargeable and rechargeable

batteries.

PAGE 2 OF 3 0514 IH-2861

LOADING INSTRUCTIONS

LOADING THE BATTERIES

1. To load the batteries, locate the compartment inside

and towards the bottom of the dispenser.

(See Figure 4)

2. Remove the compartment cover by sliding the cover

left to unlock.

3. Place batteries into compartment according to the

battery diagrams on the inside of the compartment.

(See Figure 5)

4. Replace battery compartment cover and slide to

the right to lock.

NOTE: Three red lights will appear on the

dispenser sensor when batteries are properly

loaded.

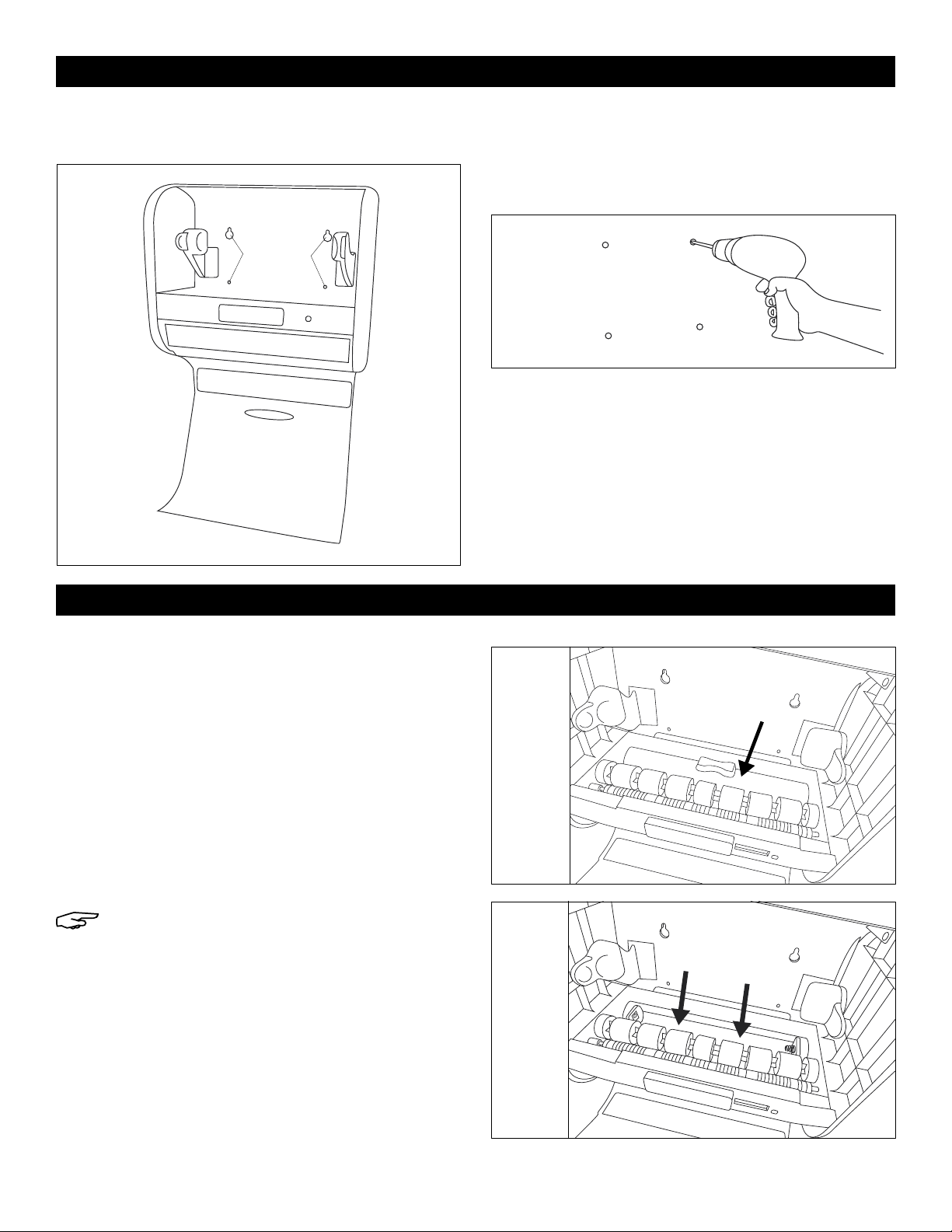

2. Open dispenser cover completely and hold dispenser

to ideal mounting place on wall. (See Figure 2)

3. Using a pencil, mark the four holes on the wall where

screws will be inserted. (See Figure 2)

4. Set dispenser aside and drill into wall at four marked

locations with an appropriate drill bit. (See Figure 3)

5. Hold dispenser to wall so that the holes in the wall

and the dispenser match up. Insert four screws into

previously drilled holes.

MOUNTING INSTRUCTIONS CONTINUED

Mounting

Holes

Figure 4

Figure 5

Figure 2

Figure 3

PAGE 3 OF 3 0514 IH-2861

LOADING THE PAPER TOWELS

1. With dispenser cover open, place the roll of paper

towels on the roll holder supports located inside the

dispenser. The paper must feed from underneath

the roll. (See Figure 6)

2. Push the end of the paper in between the two feed

rollers. (See Figure 7)

3. Press the blue manual feed button located on the

front of the dispenser to feed paper through.

(See Figure 8)

4. Close dispenser cover.

π CHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA

1-800-295-5510

uline.com

OPERATION

NOTE: This Sofpull®dispenser will only function

properly if the correct Sofpull®towel (S-17238) is

placed in the dispenser.

The dispenser runs on four D-cell alkaline batteries

(included) and has a low battery indicator light.

The dispenser also features adjustable settings for paper

length (S, M, L) and time delay, which is the amount of

time between dispenses. (See Figure 8)

The dispenser features two dispensing modes:

a. An on-demand mode, where a new towel is

presented when a hand is waved in front of the

sensor. (See Figure 8)

b. A hanging towel mode, where a new towel

is dispensed as soon as the current towel is

removed from the dispenser. (See Figure 8)

LOADING INSTRUCTIONS CONTINUED

Roll Holder

Supports

Figure 6

Figure 7

Figure 8 SHEET

LENGTHDELAY MODE

S M LS M L

HANGING TOWEL

ON DEMAND

MANUAL

FEED

Sensor
