TYAN TRINITY I845DDR Manual de usuario

http://www.TYAN.com

Trinity i845DDR

///

S2095

Revision 1.00

may be reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in this manual are

property of their respective owners including, but not limited to the following.

TYAN, Trinity i845DDR S2095 are trademarks of TYAN Computer Corporation.

Intel, Pentium, i845, and combinations thereof are trademarks of Intel Corporation.

Award, Award BIOS are trademarks of Award Software.

Microsoft, Windows are trademarks of Microsoft Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond ElectronicsCorporation.

Micronics is a trademark of Micronics Corporation.

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and

disclaims any express or implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the

right to make changes to product descriptions and/or specifications at any time, without notice. In

no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,

loss of use, loss of data or other malady resulting from errors or inaccuracies of information

contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.1 Congratulations

1.2 HardwareSpecifications

1.3 SoftwareSpecifications

Chapter 2: Board Installation

2.0 Board

2.1 Board Jumpers

2.2 FrontPanelConnector

2.3 CMOS Reset

2.4 Power LED

2.5 PCSpeaker

2.6 Secondary USB Connector

2.7 Mounting the motherboard

2.8 Installing the memory

2.9 Installing the heatsinks

2.10 Attaching drive cables

2.11 Installing Add-in cards

2.12 Connecting external devices

2.13 Installing the power supply

2.14 Finishing up

Chapter 3: BIOS

3.1 Main Setup

3.2 Advanced BIOS features

3.3 Advanced Chipset features

3.4 Integrated Peripherals

3.5 Power Management

3.6 PCI Configuration

3.7 Frequency/Voltage Control

3.8 Save and Exit

Chapter 4: Diagnostics

4.1 Beep Codes

4.2 Flash Utility

Appendix: Glossary

Technical Support

……………………………………………..Page 3

……………………………………………..Page 4

……………………………………………..Page 5

……………………………………………..Page 6

……………………………………………..Page 7

……………………………………………..Page 8

……………………………………………..Page 9

……………………………………………Page 10

……………………………………………Page 11

……………………………………………Page 12

……………………………………………Page 15

……………………………………………Page 16

……………………………………………Page 17

……………………………………………Page 18

……………………………………………Page 19

……………………………………………Page 22

……………………………………………Page 23

……………………………………………Page 25

……………………………………………Page 26

……………………………………………Page 27

……………………………………………Page 28

……………………………………………Page 33

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Trinity i845DDRS2095motherboard

1x 34-Pin floppy drive cable

1x Ultra-DMA-100/66/33 IDE cable

1x Trinity i845DDR user’s manual

1x TYAN driver CD

1x I/O shield with 1 LAN/Audio port(optional)

If any of these items are missing, please contact your

vendor/dealer for replacement before continuing with the

installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 Congratulations!

You’re now the owner of one of the most compelling Intel processor solutions –Trinity i845DDR.

Based on the Intel i845 B-stepping chipset, the Trinity i845DDR offers you all the latest features

and stability of a cutting-edge Intel chipset along with the blistering performance of Double Data

Rate memory. Supporting Intel Pentium 4 processors, the Trinity i845DDR delivers an

unprecedented experience for Pentium 4 users. In critical situations where stability is paramount,

but performance cannot be sacrificed, the Trinity i845DDR delivers performance you can trust.

Trinity i845DDR is an integrated motherboard with features such as dual channel UltraATA-100,

optional 10/100Mbit Ethernet and optional AC’97 audio.

Offering features that supercede the competition, Trinity i845DDR enables connectivity right out of

the box. Using the optionally equipped 10/100Mbit Ethernet port, you’re able to get connected in

no time at all. Whether connecting to the Internet or a LAN, or listening to your favorite tunes via

the optional onboard sound, the Trinity i845DDR has you covered in virtually all directions.

The Trinity i845DDR supports up to 2GB of PC2100/1600 DDR SDRAM.

Remem ber to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.2 Hardware Specifications

Processor

•Single PGA478 ZIF socket

•Supports one Intel Pentium 4 Processor

•Onboard VRM

•Front-Side Bus support for 400MHz

Chipset

•Intel i845 B-stepping

•Intel 82845 MCH and 82801BA ICH2

•Winbond W83627HWLPCI/O ASIC

Memory

•Two 2.5v 184-pin DDR DIMM sockets

•Supports up to 2GB of PC2100/1600 DDR

RAM

•SupportsUnbuffered memory

Expansion Slots

•One AGP slot supporting 4X cards (1.5v slot

design)

•Six 32-bit 33MHz (5-volt) v2.2 PCI slots

•Total of seven usable slots

Integrated PCI IDE

•Dual-channel UItraATA-100

•Up to four E-IDE drives

•Support for PIO/DMA/ATAPI devices

Integrated I/O

•One floppy connector supports up to two

drives

•Two 9-pin 16550-based serial ports

•One 25-pin SPP/ECP/EPP parallel port

•Four USB ports (two via optional cable)

•PS/2 keyboard and mouse ports

•Audio (Out, Mic, In) ports (optional)

•One RJ-45 LAN port with LEDs (optional)

Integrated LAN (Optional)

•Intel 82562 LAN controller

•10/100Mbps max data rate

•Wake-on-LAN (WoL) support

Integrated Audio (Optional)

•AC’97 Codec

•Line-In, Line-Out, Mic-In ports

•CD-In, Aux-In ports

http://www.TYAN.com

Form Factor

•ATX footprint 12” x 9.6” (304.8mm x

243.8mm)

•20-pin ATXpower connector

•Two Serial ports

•One Parallel Port

•Stacked USB (two) ports

•One RJ-45 LAN port with LEDs (optional)

Hardware Monitoring

•Winbond W83627HF hardware monitoring

ASIC

•CPU Temp, voltage and fan monitoring

BIOS

•AwardPlug-N-Play 4Mb BIOS Flash ROM

•Supports APM v1.2 and ACPI v1.0

•Auto-configure IDE drive types

•User settings for hardware monitoring

•Multiple boot options

•DMI 2.0 compliant

Regulatory

•FCC DoC (declaration of Conformity)*

•European Community of CE (declaration of

Conformity)*

*Pending at time of print. Please check the

TYAN website for updates –www.tyan.com

1.3 Software Specifications

OS (Operating System) Support

•MicrosoftWindows98

•Microsoft Windows ME

•MicrosoftWindowsNT4

•Workstation

•Server

•MicrosoftWindows2000

•Professional

•Server

•Advanced Server

•Datacenter

•Microsoft Windows XP

•Home

•Professional

The following OSes have not been tested with

thismotherboard:

Any distribution of Linux (RedHat, Suse, etc)

Any distribution of UNIX

Any distribution of BSD (FreeBSD, etc)

Sun MicrosystemsSolaris

MicrosoftWindows3.x

Microsoft Windows NT 3.x

BeBeOS

While any of the OSes abovemay work with

this motherboard, TYAN doesnot and will not

support issues with this motherboard if any or

all of the above OSes are used.*

*TYAN reserves the right to add support or

discontinue support for any OS with or without

notice.

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Trinity i845DDR

matches the ATX system board specifications. Your chassis should support a standard ATX

motherboard form factor.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information which will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch the power supply.

For the safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board.

(3) Avoid touching the motherboard components, IC chips, connectors, and leads.

(4) Avoid touching memorymodule contacts and IC chips

(5) Place the motherboard on a grounded antistatic surface or on the antistatic bag from

which it came in.

Having reviewed the precautions above, the next step is to take the motherboard out of the

cardboard box and static bag, hold it by its edges and place it on a grounded antistatic surface,

component side up. Inspect the board for damage.

The following pages will detail for you on how to install your motherboard into your chassis, install

processor(s), memory, hard drive and floppy cables/drives and heatsinks.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.tyan.com

2.0 –Board

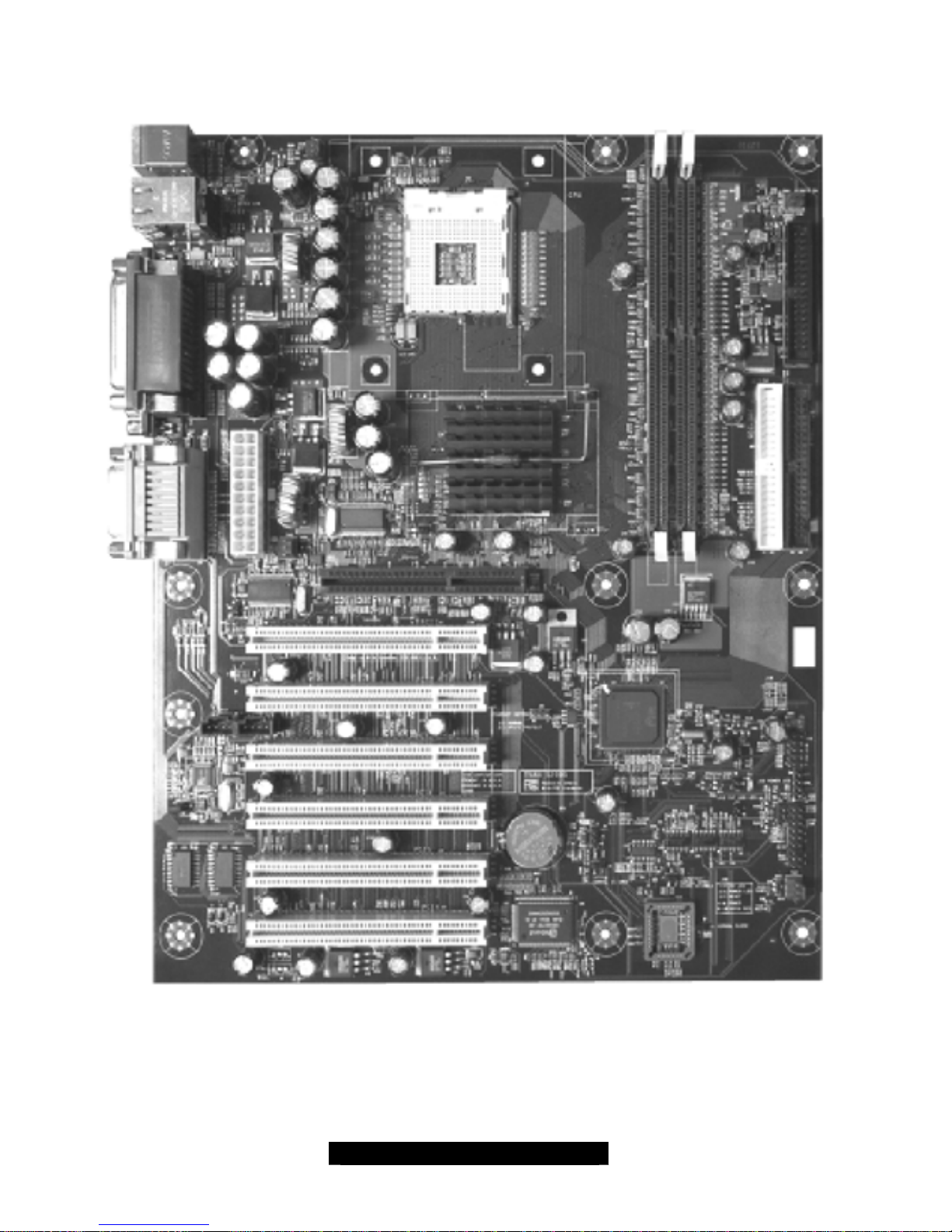

The following is an image of the S2095 Trinity i845DDR.

The above photograph is only a representation of the actual board. Because boards tendto

be updated and go through different revisions, certain components may change and or be

repositioned. The picture above may or may not look exactly like the board you received.

The following page will detail vital components of this board.

http://www.tyan.com

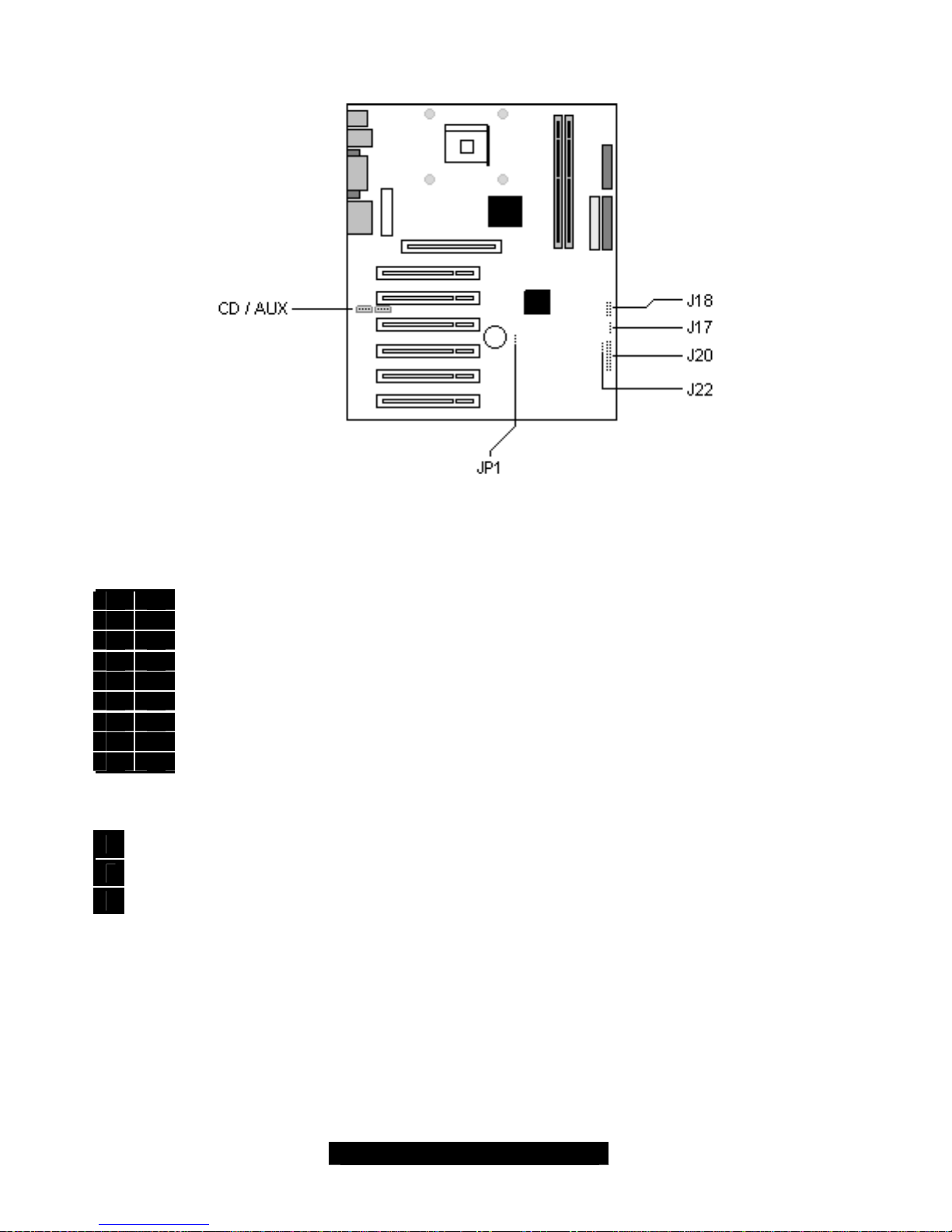

2.1: Board Jumpers

2.2 Front Panel Connector (J20)

Your chassis will usually come with connectors to install onto the motherboard, such as HDD and

Power LEDs. The Front Panel Connector (J20) has been implemented for such purposes.

910

11 12

13 14

15 16

17 18

1,3: Hard drive LED

2,4: Power LED

5,7: Reset Switch

6,8: Power Switch

9,11,13,15: InfraRed

2.3 –CMOS Reset (JP1)

1,2: Default

2,3: Clear CMOS

Connect pins 2 and 3 together to reset the CMOS settings in case an incorrect setting

causes system instability or you have forgotten your system/setup password or have

just flashed your BIOS.

Power off the system and disconnect the power supply.

Close pins 2 and 3 on JP1

-Wait about 5 seconds

-Close pins 1 and 2 on JP1

-Reconnect the power supply and power on the system

http://www.tyan.com

2.4 –Power LED (J22, optional)

Use this connector to attach the front panel Power LED(if your Power LED cable is

3-pin).

2.5–PC Speaker (J17)

Use this connector for your chassis’ internal PC speaker. With it, the motherboard can

report to you using sequences of beeps to identify any errors that you may encounter.

2.6–Secondary USB connector (J18)

Use this connector to attach a rear panel or front chassis USB ports. Front chassis USB

ports are dependant on the chassis used and the manufacturer that makes them. Check

your chassis manufacturer’s website for models that include front USB ports.

TIP: For convenience, look for a compatible chassis that also includes USB connectors. This will

provide a convenience if you should ever need to connect devices like digital cameras or other

USB devices.

http://www.tyan.com

2.7–Mounting the Motherboard

Before installing your motherboard, make sure your chassis has the necessary motherboard

support studs installed. These studs are usually metal and are gold colored. Usually, the chassis

manufacturer will preinstall the support studs in ATX form factor. While this ensures general

compatibility, your TYAN product is specialized and may require you to install a few extra studs. If

you’re not sure which stud goes where, simply lay the motherboard inside the chassis, aligning the

screw holes of the motherboard to the studs inside the case. If there are any studs missing, you’ll

know right away since the motherboard will not be able to be securely installed.

Some chasses include plastic studs instead of metal ones. These ones are also usable but TYAN

recommends using metal studs with screws to make sure the motherboard does not get jarred

during shipping or lots of movement.

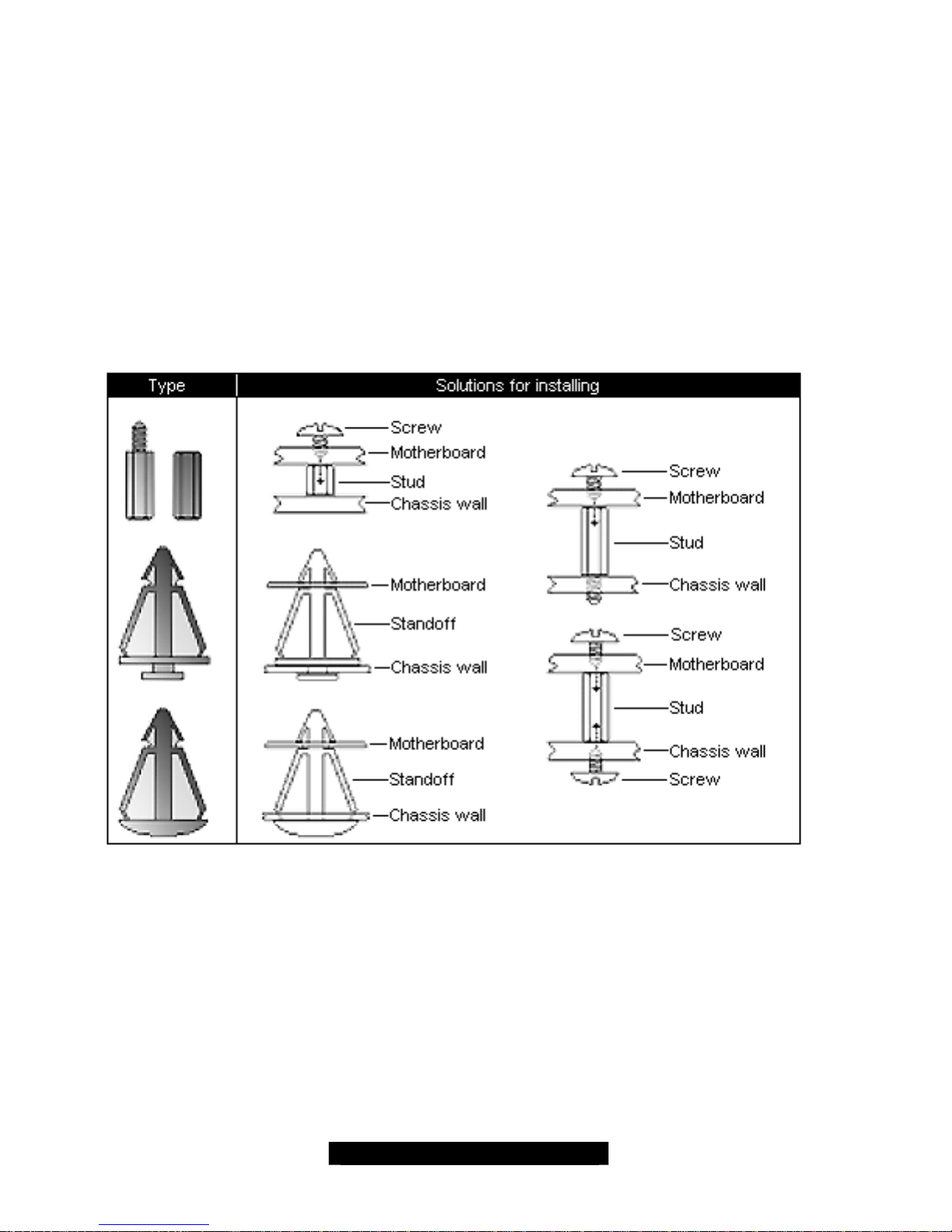

Below is a chart detailing what the most common motherboard studs look like and how they

should be installed.

TIP: Use metal studs if possible, as they hold the motherboard into place more securely than

plastic standoffs.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de TYAN

TYAN

TYAN THUNDER K8QSD PRO Manual de usuario

TYAN

TYAN TIGER 200 Manual de usuario

TYAN

TYAN S1830 TSUNAMI AT Manual de usuario

TYAN

TYAN Tomcat i845GV S2198 Manual de usuario

TYAN

TYAN TOMCAT I815T Manual de usuario

TYAN

TYAN S5642 Manual de usuario

TYAN

TYAN TOMCAT IIIS D Manual de usuario

TYAN

TYAN TOMCAT K8S Manual de usuario

TYAN

TYAN Tiger K8WE Manual de usuario

TYAN

TYAN S7063 Manual de usuario

TYAN

TYAN TIGER I7320, D, R, RD Manual de usuario

TYAN

TYAN Thunder i7501 Pro S2721-533 Manual de usuario

TYAN

TYAN THUNDER 2400 Manual de usuario

TYAN

TYAN TRINITY I845E Manual de usuario

TYAN

TYAN THUNDER X Manual de usuario

TYAN

TYAN TSUNAMI ATX Manual de usuario

TYAN

TYAN Trinity ATX Motherboard Tyan S1598 Manual de usuario

TYAN

TYAN TRINITY 371 Manual de usuario

TYAN

TYAN TIGER I7322DP Manual de usuario

TYAN

TYAN TITAN TURBO AT-2 Manual de usuario

TYAN

TYAN THUNDER I7501 XTREME Manual de usuario

TYAN

TYAN S7016 Manual de usuario

TYAN

TYAN TRINITY 100AT Manual de usuario

TYAN

TYAN S8050 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
