TWM Bard Manual de usuario

Specifications

Wing Span

Wing Area

Flying Weight

Fuselage Length

80 in / 2030 mm

409 sq in / 26.4 sq dm

2.6 lbs / 1200 g

36.5 in / 925 mm

Warning !This model is not a toy.

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of engine powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual

at hand for quick reference.

* Specifications are subject to change without notice.*

INSTRUCTION MANUAL

Bard

Requires : 3 -channel radio w/ 2 standard servos and

2 mini servos

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

P. 1

Bard

P. 3 - 11

Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT

and check for defects for all parts that will require CA or Epoxy for final assembly. Any parts you

find to be defective after the gluing process may be difficult to remove for warranty replacement. The

manufacturer will replace any defective parts. but will not extend to the parts that are good before

gluing to defective parts during assembly.

IND E X

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P. 1

P. 2

P. 11

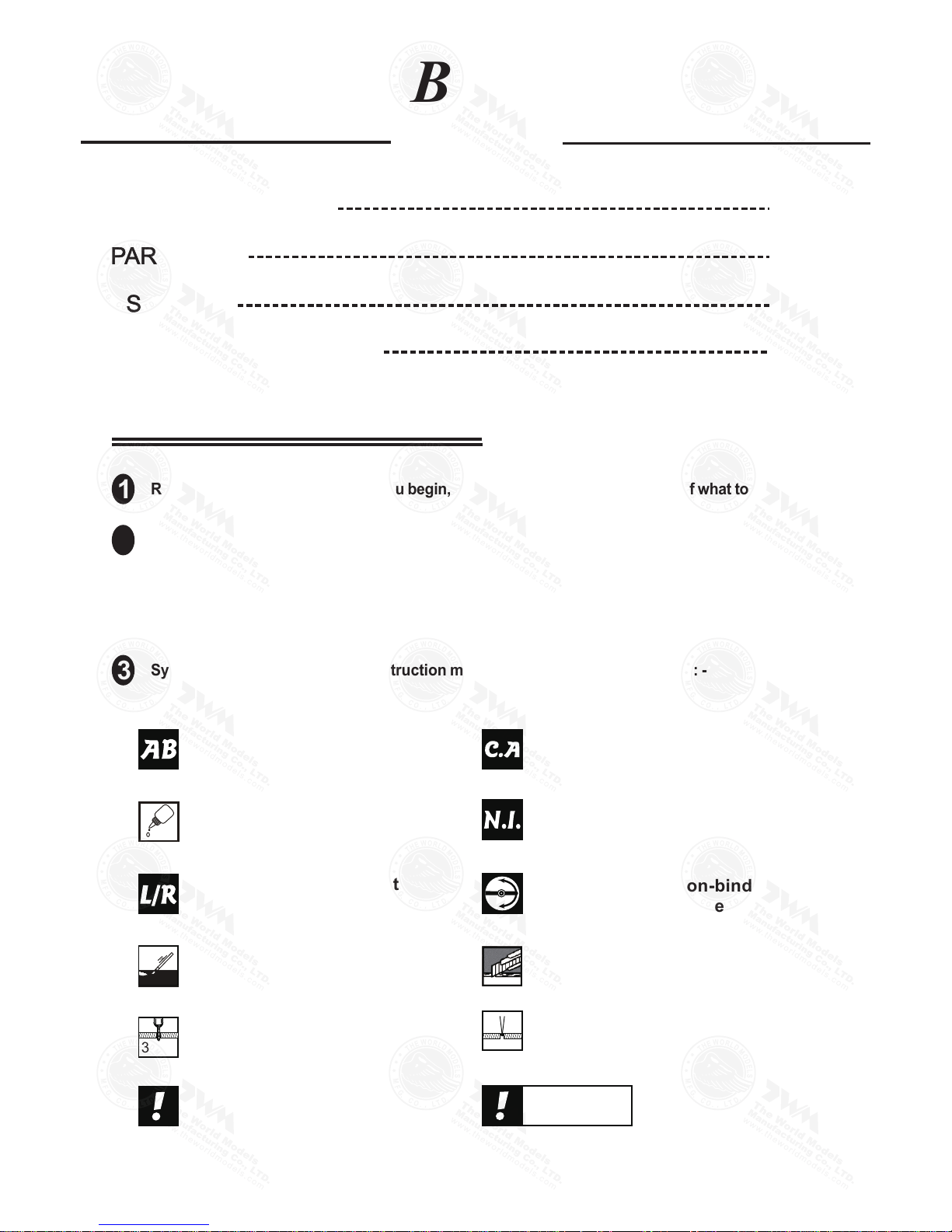

BEFORE YOU BEGIN

Read through the manual before you begin, so you will have an overall idea of what to do.

Symbols used throughout this instruction manual comprise of the following : -

3mm

Do not overlook this symbol!

Cut off shaded portion.

Peel off shaded portion

covering film.

Pay close attention here!

Pierce the shaded portion

covering film.

Must be purchased separately!

Drill holes with the specified

diameter (here: 3mm).

Ensure smooth non-binding

movement while assembling.

Apply instant glue

(C.A.glue, super glue.)

Assemble left and right

sides the same way.

Apply epoxy glue.

Apply thread locker

Warning!

1. FUSELAGE -- 1pc.

2. MAIN WING -- 1pair

3. STABILIZER & ELEVATOR -- 1 set

4. RUDDER -- 1pc.

5. PLILOT (#PC001050A) -- 1pc.

6. CANOPY & COCKPIT -- 1set

7.AILERON SERVO COVER -- 2 pcs

8. PUSHROD & PULLWIRE:--

METAL ROD Ø1.8X55mm (For Aileron) -- 2pcs

METAL ROD Ø1.8X580mm w/Threads (For Rudder) -- 1pc.

WIRE Ø1.5mm (For Elevator) -- 1pc.

COPPER TUBE d2XD2.4X8mm (For Elevator) -- 1pc.

9. WOODEN PARTS:--

BALSA 5X5X48mm (For Radio) -- 2pcs

PLYWOOD 3X48X70mm (For Radio) -- 1pc.

WOODEN 8X13X16mm (For Aileron Servo) -- 2pcs

WOODEN 7X13X16mm (For Aileron Servo) -- 2pcs

Parts List

P.2

10. PLASTIC PARTS:--

CLEVIS -- 4pcs

STRAPER -- 2pcs

HORN -- 4pcs

RUBBER BAND D60X4mm -- 2pcs

FUEL TUBE Ø6X5mm -- 6 pcs

11. METAL PARTS:--

LINKAGE CONNECTOR 2.1mm -- 2sets

WING TUBE Ø6X353mm -- 2pcs

SCREW PM2X12mm -- 2pcs

SCREW PM2X16mm -- 4pcs

SCREW PM2X20mm -- 2pcs

SCRRW PM3X20mm-- 1pc.

SCREW PWA2X8mm -- 8pcs

WASHER d3XD12mm -- 1pc.

12.FUEL TUBE Ø6X5mm -- 7pcs

13. DECALS -- 1set

COVERING:--

LIGHTEX SGX 100 WHITE

LIGHTEX SGX 312 BRIGHT RED

LIGHTEX SGX 201 BLACK

Aileron

PWA2x8mm Screw

PM2x16mm Screw

Wooden 8x13x16mm

1mm

PWA2x8mm

Straper

Fuel

Tube

PM2x16mm

Clevis

Fuel Tube

Ø6x5mm

Metal Rod

Ø1.8x55mm Horn

Aileron Servo

2.5mm

P.3

Wooden 7x13x16mm

Stabilizer / Elevator

d3xD12mm Washer

PM3x20mm Screw

Completed Top View

Bottom View

PM3x20mm

d3xD12mm

Top View

P.4

Rudder

Elevator Linkage

PM2x12mm Screw

Clamp the copper tube

PM2x12mm

Clevis

Fuel Tube

Ø6x5mm

Tube

Wire Horn(Short)

P.5

PM2x20mm Screw

Rudder Pushrod

Fuel Tube

Ø6x5mm

Clevis

PM2x20mm 2mm

Rudder Pushrod

Ø1.8x580mm

Servo Set

3x3mm Set Screw

Linkage Connector

2mm Nut

2mm Washer

Elevator Pushwire

2mm

3mm

Included with the Radio Set.

Elevator Servo.

Please refer to attached sheet for linkage connector installation.

Servos

Balsa 5x5x48mm

Plywood 3x48x70mm

Balsa

5x5x48mm

Fuel Tube

Ø6x5mm Straper

Elevator Pullwire

Ø1.5x740mm

Rudder Pushrod

LINKAGE CONNECTOR

P.6

2mm

Ø1.8x580mm

Rudder Pushrod

Ruder Servo.

Main Wing

Lead to Aileron Servo

Wing Tube Dx353mm

Rudder Band

P.7

Canopy

Wing Setting

11 Adjust the wing and fuselage configuration

as in the diagrams.

A = A'

B = B'

C = C'

P.8

Control Throws

C.G.

Elevator

Rudder

Aileron

21mm

35mm

15mm

45mm

1.8in

C.G.

The ideal C.G. position is 45mm(1.8 in)behind

the leading edge measured at where the wing

meets the fuselage. In order to obtain the C.G.

specified, add weight to the fuselage or move

the battery position. Check the C.G. before

flying.

Adjust the control throws as shown in

the diagram. These throws are good for

general flying. You can adjust according

to your personal preference.

P.9

G160PO8300906

Important Safety Precautions

#First time flyer should never fly by himself / herself. Assistance from experienced flyer is

absolutely necessary.

#Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly

pre-adjusted aircraft.

#Make sure the air field is spacious, never fly the plane too close to people and never get

too close to a running propeller.

#If you find wrinkles on the covering as a result of weather changes, you can use hot iron

to remove the wrinkles. Please begin with lower temperature setting and gradually raise

the temperature until the wrinkles are gone. Too hot an iron may damage the covering.

#Check and re-tighten up all factory assembled screws, use thread locker if applicable.
