Twin-Star International 18DF2433 Manual de usuario
1
ATTENTION
IF YOU HAVE ANY PROBLEMS OR QUESTIONS, EMAIL
OR CALL CUSTOMER SERVICE BEFORE YOU RETURN
THIS PRODUCT TO THE STORE WHERE IT WAS PURCHASED.
in English Call: 866-661-1218
in Spanish Call: 866-661-1218
in French Call: 866-374-9203
ATENCIÓN
SI TIENE ALGÚN PROBLEMA O PREGUNTAS,
ENVÍE UN MENSAJE DE CORREO ELECTRÓNICO O LLAME AL SERVICIO
DE ATENCIÓN AL CLIENTE ANTES DE DEVOLVER
ESTE PRODUCTO A LA TIENDA EN LA QUE LO COMPRÓ.
Línea para llamadas en inglés: 866-661-1218
Línea para llamadas en español: 866-661-1218
Línea para llamadas en francés: 866-374-9203
STOP STOP
PARE PARE
ATTENTION
SI VOUS AVEZ DES PROBLÈMES OU QUESTIONS,
ENVOYEZ UN COURRIEL AU SERVICE À LA CLIENTÈLE OU APPELEZ LE
SERVICE À LA CLIENTÈLE AVANT DE RETOURNER
CE PRODUIT OÙ VOUS L’AVEZ ACHETÉ.
pour le service en anglais, composez le 866-661-1218
pour le service en espagnol, composez le 866-661-1218
pour le service en français, composez le 866-374-9203
ARRÊT ARRÊT
INSTRUCTION MANUAL ENCLOSED
MANUEL D’INSTRUCTION À L’INTÉRIEUR
MANUAL DE INSTRUCCIONES ADJUNTO
INSTRUCTION MANUAL ENCLOSED
MANUEL D’INSTRUCTION À L’INTÉRIEUR
MANUAL DE INSTRUCCIONES ADJUNTO
1
ELECTRIC FIREPLACE MANTEL
18DF2433
ASSEMBLY INSTRUCTION
Requires-Electric Fireplace
Requires-Electric Fireplace
Insert with Heater
Insert with Heater
E-mail: [email protected]
In English call: 866-661-1218
In French call: 866-374-9203
In Spanish call: 866-661-1218
ATTENTION
For Customer Service:
Twin-Star International, Inc.
Delray Beach, FL 33445
Made in China
Printed in China
Españo p. 9
Français p. 17
2

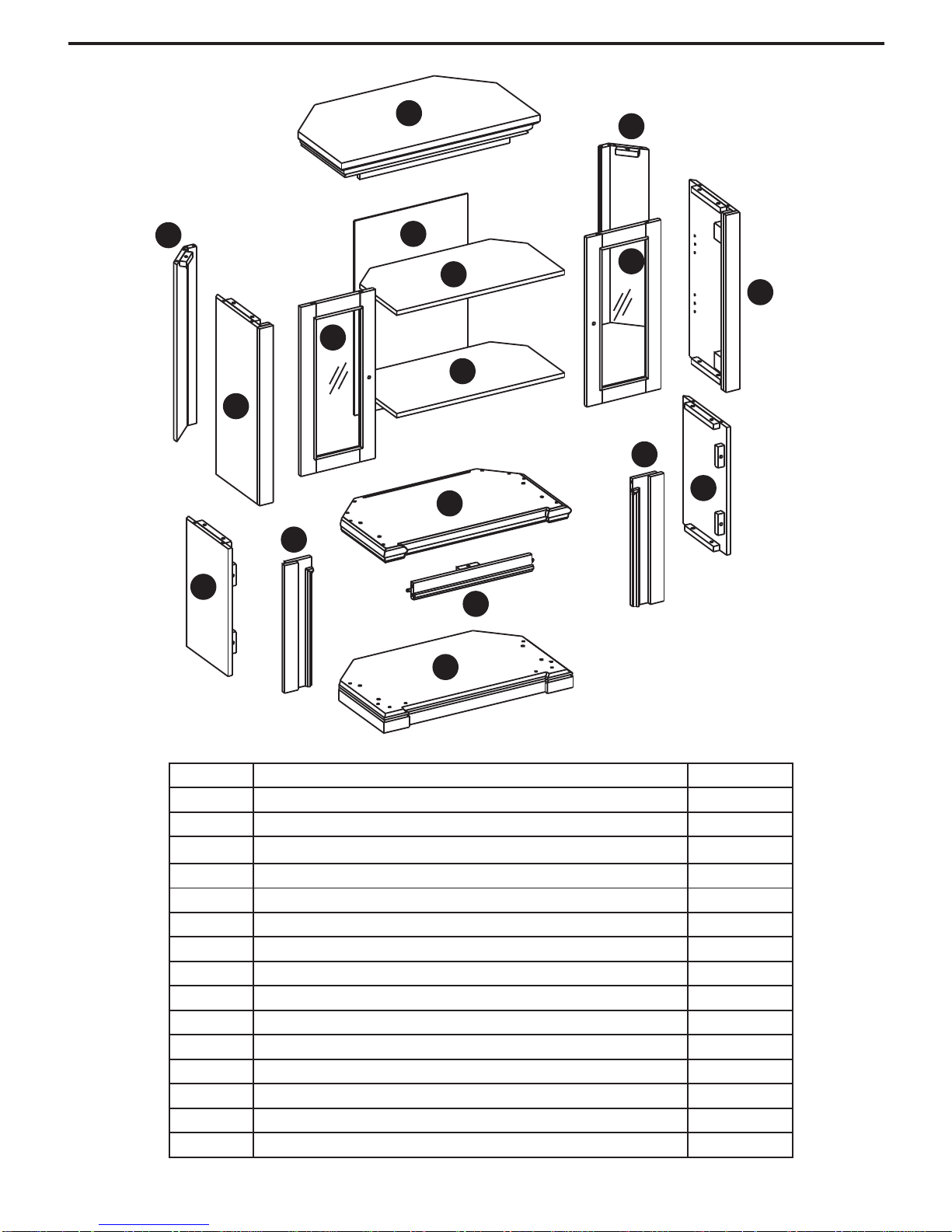

PACKAGE CONTENTS
Part Description Quantity
A Hearth/Base 1
B Left Front Panel 1
C Right Front Panel 1
D Center Front Panel 1
E Left Side Panel 1
F Right Side Panel 1
G Mantel/Top 1
H Center Shelf 1
I Upper Left Side Panel 1
J Upper Right Side Panel 1
K Wood Shelf 2
L Front Door 2
M Left Back Panel 1
N Right Back Panel 1
O Center Back Panel 1
G
B
A
E
C
F
H
I
L
L
M
N
J
K
O
K
D
3

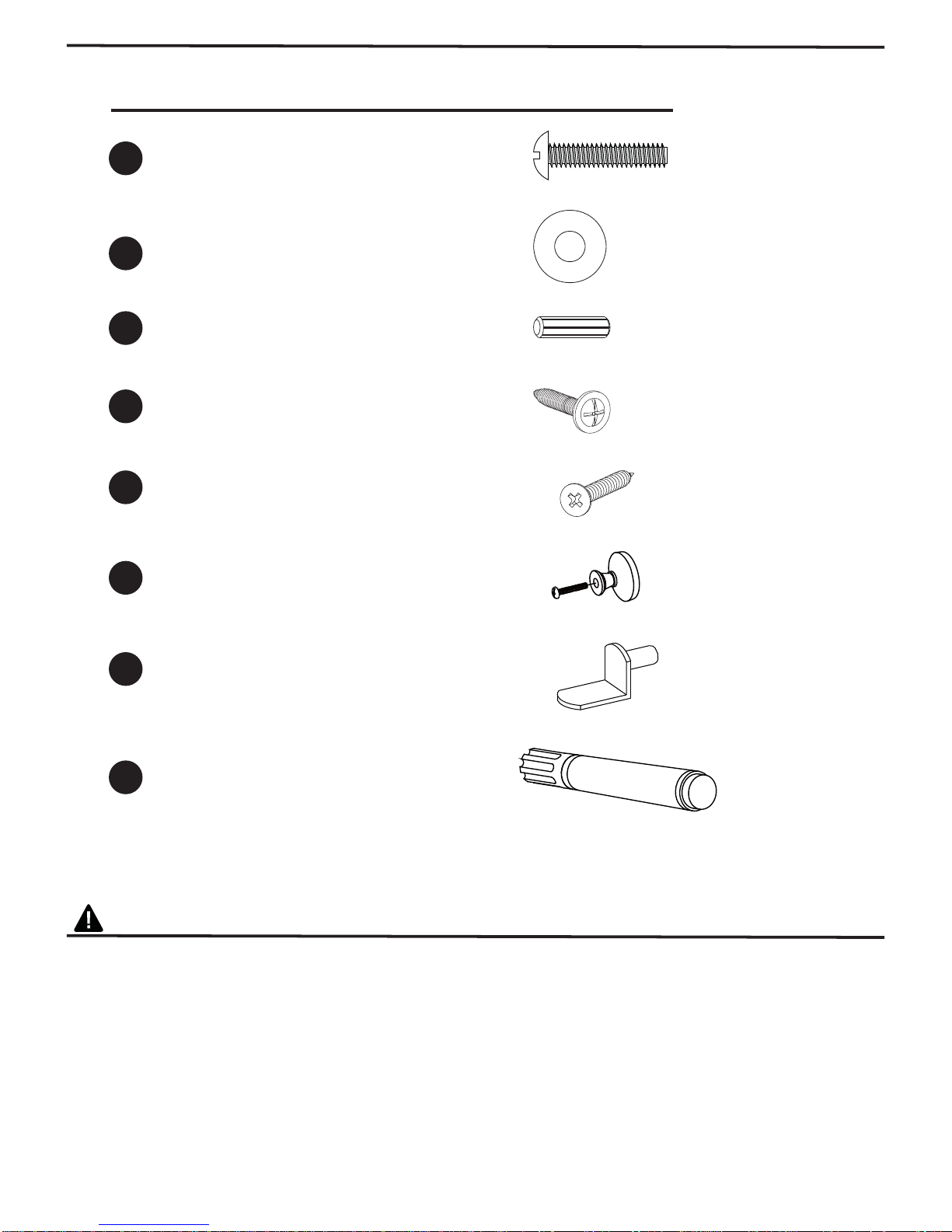

HARDWARE CONTENTS
Part Description
Bolt
Washer
Screw
Wood Dowel
Screw
Knob (with bolt)
Shelf Pin
23+1 extra
23+1 extra
2
32+1 extra
12
2
8
Quantity Picture
(Shown to size)
BB
DD
CC
EE
FF
GG
AA
SAFETY INFORMATION
WARNING
• Before assembly, carefully use scissors or utility knife to cut and unwrap all parts.
Make sure you do not discard the hardware.
CAUTION
• Use care in assembling your new fireplace. Take your time and use the hardware
provided and a quality Phillips head screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
• All panels are labeled left and right as viewed from the front of unit.
Touch-up Pen 1
ZZ
4
ASSEMBLY INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to
assemble, install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 Minutes

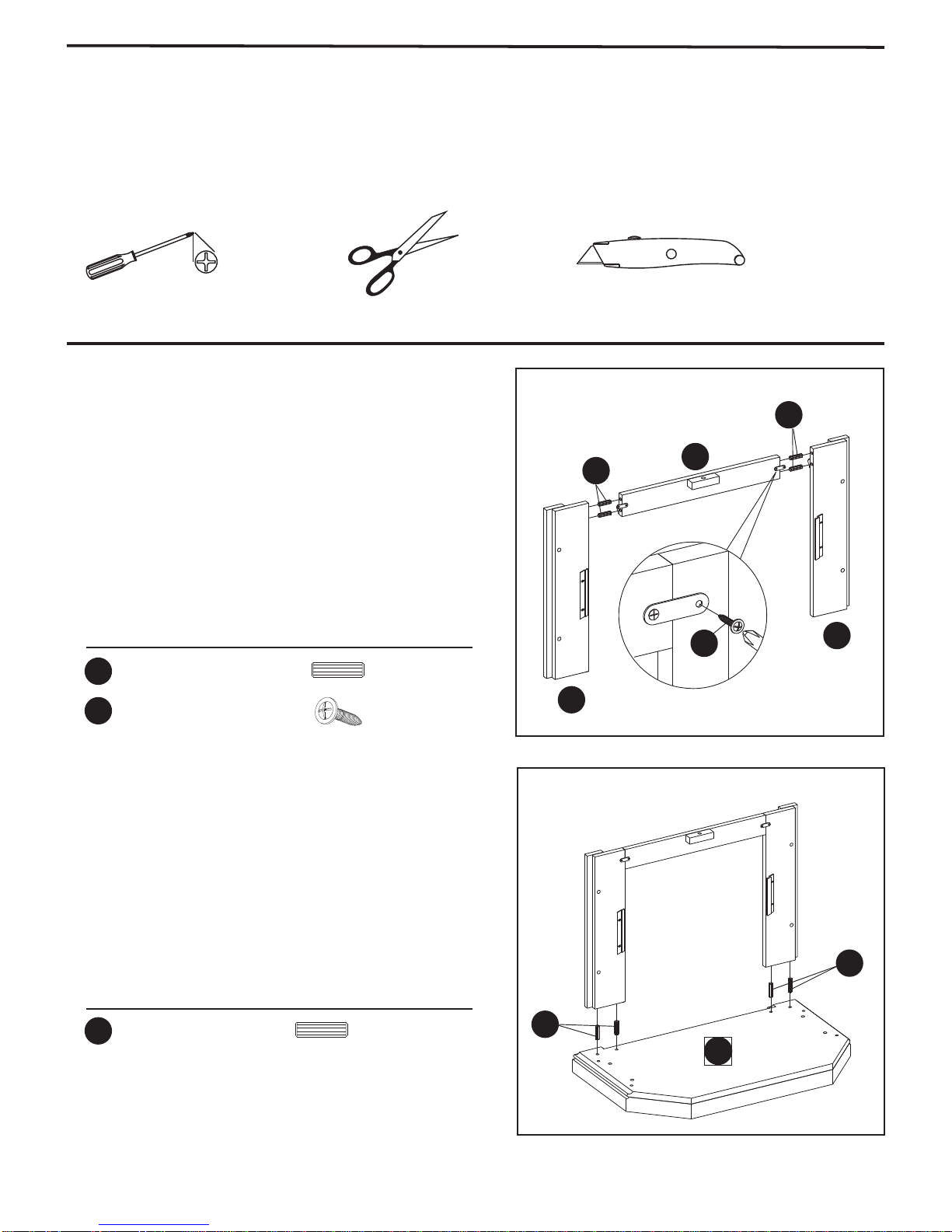

Tools Required for Assembly (not included): Phillips head screwdriver, scissors and utility knife
B
DD
C
D
Fig. 2
Fig. 1
2. Locate Hearth/Base (A) and set out finished side up
on the floor.
Insert one Wood Dowel (CC) into each of the
pre-drilled holes.
Attach the completed Front panel assembly from
step 1 to the Hearth/Base (A). Make sure the dowels
are seated into the pre-drilled holes in the
Hearth/Base.
CC
CC
CC
CC
A
Hardware Used
CC Wood Dowel x 4
1. Locate the Left Front Panel (B), Right Front Panel
(C), Center Front Panel (D), and set out face down
on a scratch-free surface.
Insert one Wood Dowel (CC) into each of the
pre-drilled holes.
Push the Left Front Panel and Right Front Panel
snug to the Center Front Panel. Make sure the Wood
Dowels are seated in the pre-drilled holes.
Connect the Left Front Panel (B), Right Front Panel
(C) and Center Front Panel (D) with Connection
Plate, tighten Screws (DD) through the pre-drilled
holes.
Hardware Used
DD
CC
Screw x 2
Wood Dowel x 4
5
Fig. 3
Fig. 4

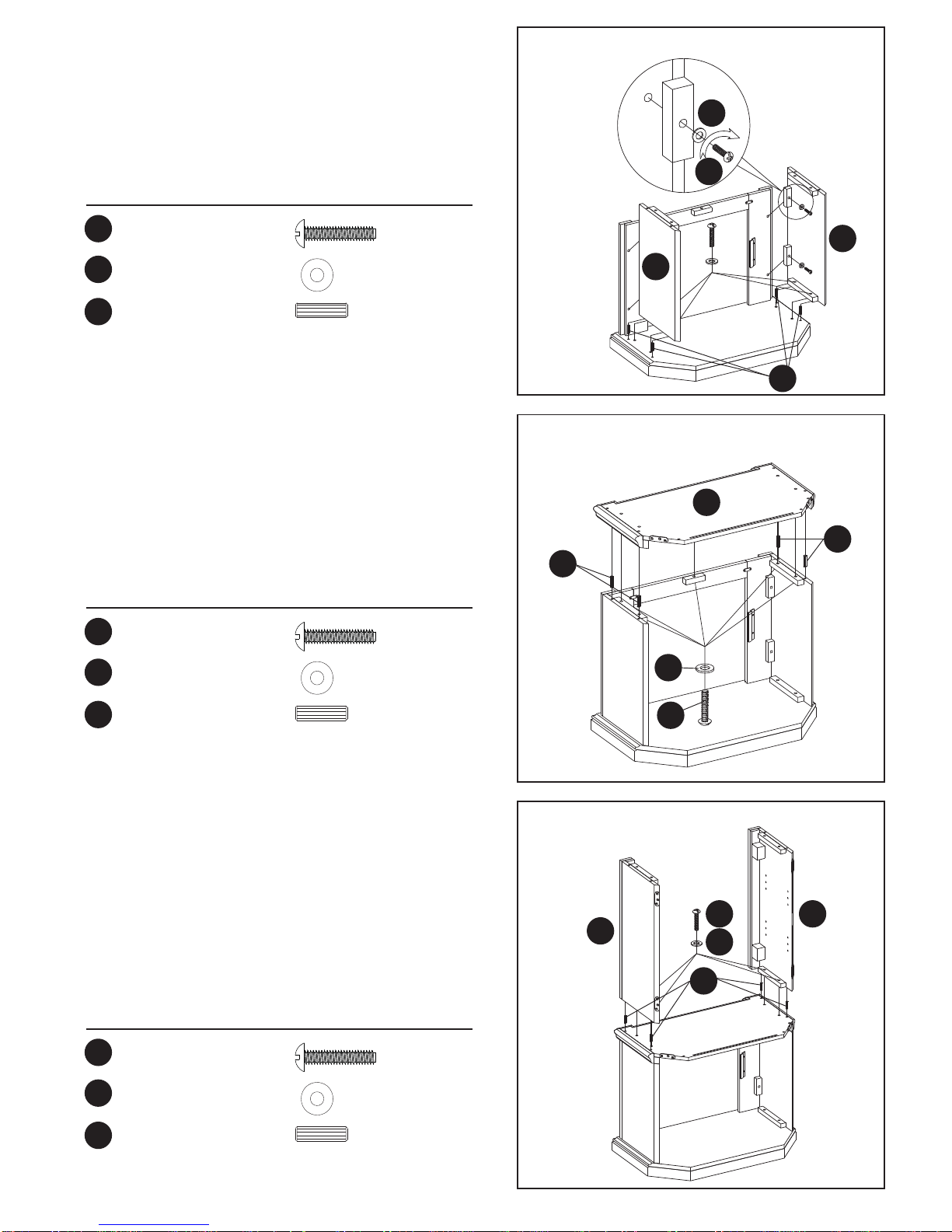

4. Insert one Wood Dowel (CC) into each of the
pre-drilled holes on the top edges of the Assembly
from step 3. Then locate Center Shelf (H) and lay
finished side up on top of completed assembly.
From the inside, attach Center Shelf (H) using Bolts
(AA) and Washers (BB) through the pre-drilled holes
in the mounting blocks.
HAND TIGHTEN ONLY.
5. Insert one Wood Dowel (CC) into each of the
pre-drilled holes on the completed assembly. Attach
Upper Side Panels (I, J) to the completed
assembly from step 4. Make sure that dowels are
seated into the pre-drilled holes. Using Bolts (AA)
and Washers (BB)attach them through pre-drilled
holes in the mounting blocks.
HAND TIGHTEN ONLY.
Hardware Used
Hardware Used
Hardware Used
BB
BB
BB
AA
AA
AA
CC
CC
CC
Bolt
Bolt
Bolt
x 5
x 4
x 8
Washer
Washer
Washer
x 5
x 4
x 8
Wood Dowel
Wood Dowel
Wood Dowel
x 4
x 4
x 4
BB
BB
H
JI
AA
AA
CC
CC
CC
BB
E
F
AA
CC
3. Locate Left Side Panel (E) and Right Side Panel (F),
insert one Wood Dowel (CC) into each of the
pre-drilled holes. Attach to the completed front panel
assembly and Hearth/Base use Bolts (AA) and
Washers (BB) through the pre-drilled holes in the
mounting blocks.
HAND TIGHTEN ONLY.
Fig. 5
6
Fig. 6
Fig. 7

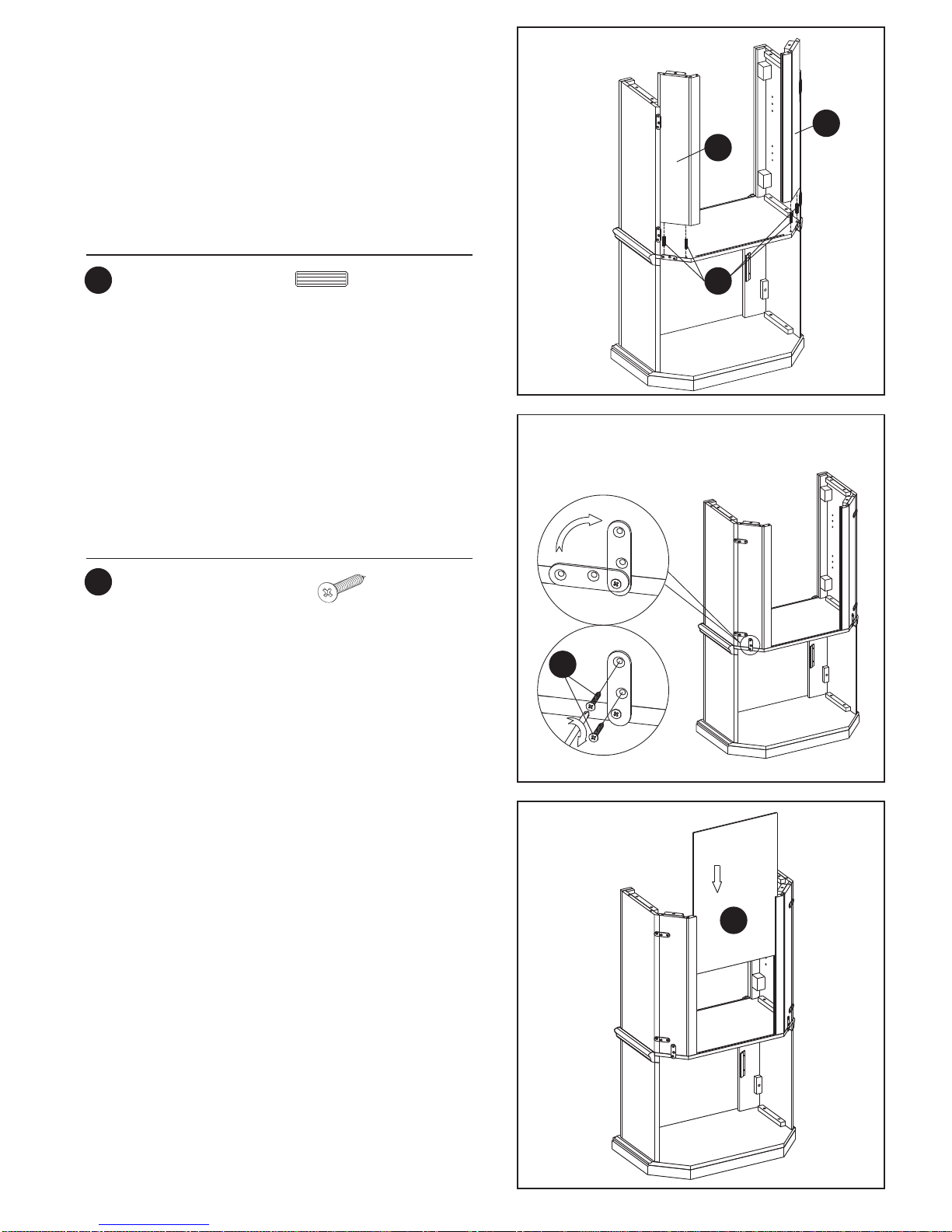

7. Connect the Right Back Panel (M), Left Back Panel
(N) and completed assembly with Connection Plate,
tighten Screws (EE) through the pre-drilled holes.
8. Push the Center Back Panel (O) to the groove on
the Upper Back Panel slowly as diagram show.
Hardware Used
Hardware Used
EE
CC
Screw x 12
Wood Dowel x 4
O
EE
M
N
CC
6. Insert one Wood Dowel (CC) into each of the
pre-drilled holes on the completed assembly. Attach
the Left Back Panels (M) and Right Back Panel (N)
to the completed assembly. Make sure that dowels
are seated into the pre-drilled holes .
Fig. 8
7
Fig. 9
Fig. 10
Fig. 11

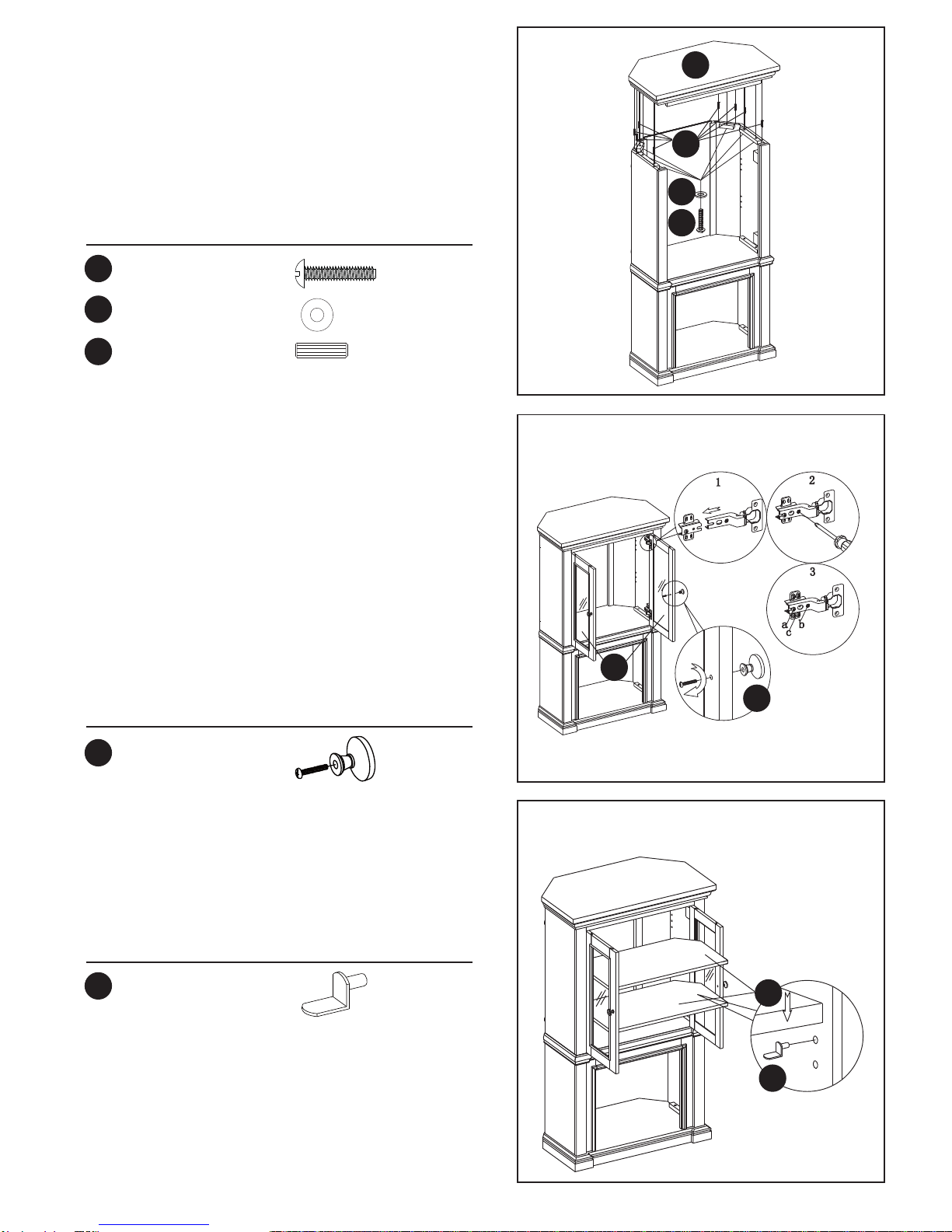

9. Insert one Wood Dowel (CC) into each of the
pre-drilled holes on the top edges of the Assembly
from step 8. Then locate Mantel/Top (G) and lay
finished side up on top of completed assembly.
From the inside, attach Mantel/Top (G) using Bolts
(AA) and Washers (BB) through the pre-drilled holes
in the mounting blocks.
HAND TIGHTEN ONLY.
Using Phillips head screwdriver tighten all Bolts
alternating top and bottom, left and right.
11. Choose desired height of Shelf (K) and place the
four Shelf Pin (GG) into same height shelf holes
inside side panels. Insert Wood Shelf (K), allow
Wood Shelf (K) to rest on the Shelf Pin (GG).
Hardware Used
Hardware Used
BB
FF
AA
CC
Knob (with bolt)
Bolt
x 2
x 6
Washer x 6
Wood Dowel x 8
FF
L
GG
K
AA
BB
CC
G
10. Locate Front Doors (L). Slide door hinge keyhole
into panel hinge bracket. (Diagram 1)
Use Phillips Head Screwdriver to tighten screws.
(Diagram 2)
TO ADJUST HINGES
To adjust door forward or backward change
keyhole slot position. (As Shown In Diagram 3a)
To adjust door right or left loosen/tighten screw.
(As Shown In Diagram 3b)
To adjust door up or down adjust bracket height.
(As Shown In Diagram 3c)
Attach the Knob (FF) to the Front Doors (L), use
the bolts attached through the pre-drilled holes in
the doors. Then use a Phillips Head Screwdriver to
tighten the bolts.
Hardware Used
GG Shelf Pin x 8
8
Fig. 12
Completed
Unit
Electric
Fireplace Insert
Install
Insert
From
Back

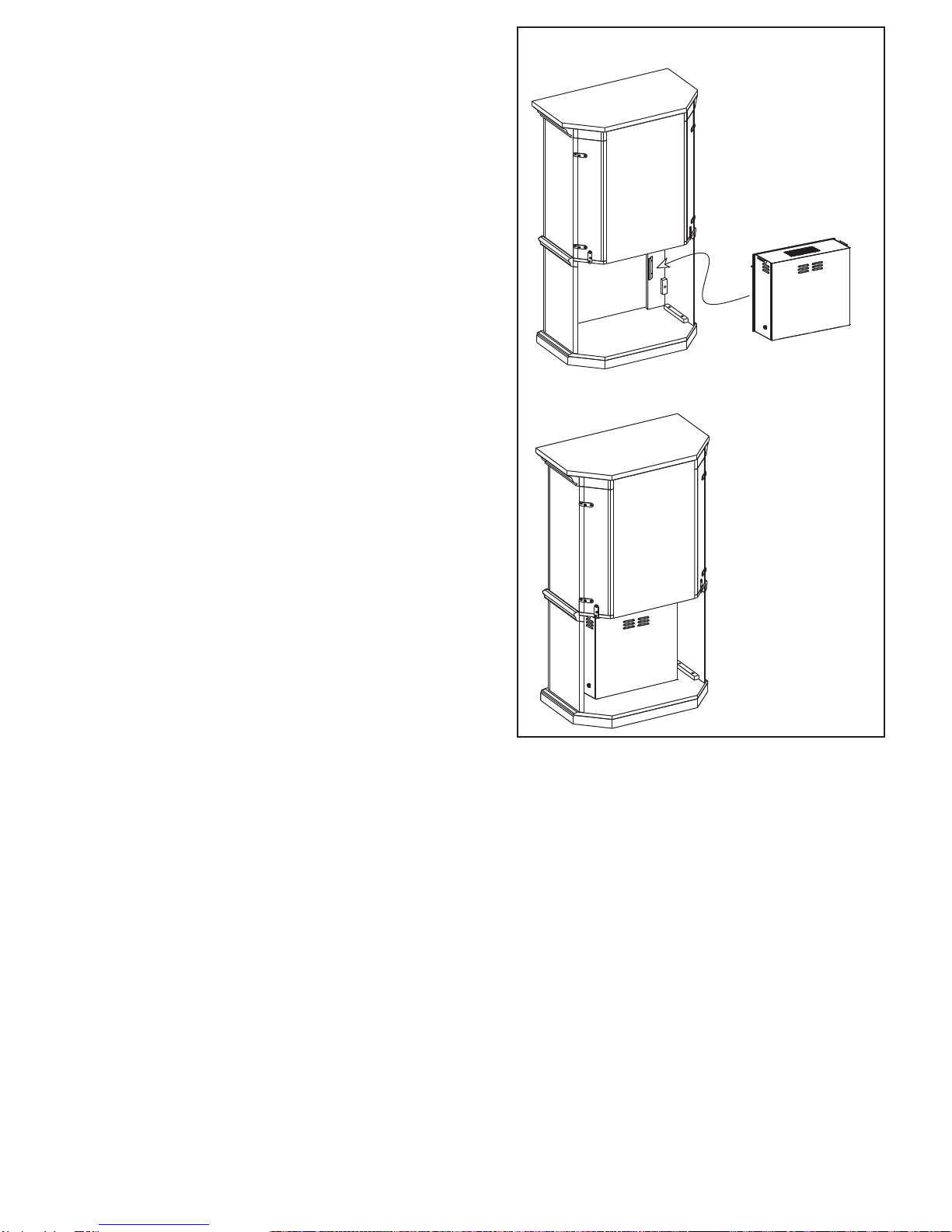

12. Remove the two mounting brackets attached to the
back of the Left and Right Front panels. Set aside
with the wood screws.
PLEASE READ ALL “ELECTRIC FIREPLACE
INSERT” INSTRUCTIONS PRIOR TO
INSTALLING ELECTRIC INSERT IN YOUR
COMPLETED FIREPLACE MANTEL. INSTALL
THE INSERT IN YOUR FIREPLACE CLOSE TO
ITS FINAL POSITION.
Lift insert carefully into the back of the unit and
center in the insert opening. Do not drag insert
across Hearth/Base (A) as it may scratch your unit.
Install the mounting brackets to hold insert flush
against the inside of the mantel front panel.
MOVE YOUR COMPLETED UNIT ONLY SHORT
DISTANCES. MOVE COMPLETED UNIT WITH
GREAT CARE. IT TAKES TWO PEOPLE TO
MOVE COMPLETED UNIT INTO ITS FINAL
POSITION.
08/11/11
9
18DF2433
CHIMENEA ELÉCTRICA
Necesitará, Además, El
Necesitará, Además, El
Hogar Eléctrico Con Calentador
Hogar Eléctrico Con Calentador
Línea para llamadas en inglés: 866-661-1218
Línea para llamadas en francés: 866-374-9203
Línea para llamadas en español: 866-661-1218
ATENCIÓN
Servicio de atención al cliente:
Twin-Star International, Inc.
Delray Beach, FL 33445
Fabricado en China
Impreso en China
English. 1
Français p. 17
INSTRUCCIÓN DE MONTAJE
