Operating manual
FDB15
Operating manual FDB15
2
Introduction
Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO.
The FDB15 dolly is an accessory for the B15 loudspeaker.
This accessory set is characterized by a subtle look, a remarkable size to weight ratio and
ease of use.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
TIP
CAUTION
WARNING
Operating manual FDB15
3
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the FDB15 dolly.
General information
Operation manual: OM-FDB15
Version 1.0 en, 03/2019
© by TW AUDiO 2019; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Operating manual FDB15
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 6
2.1 Components ........................................................................................................... 6
3. Technical specifications .................................................................................................. 7
3.1 Data sheet............................................................................................................... 7
4. Commissioning............................................................................................................... 8
4.1 Using FDB15 dolly with B15 loudspeaker ................................................................ 8
5. Transport and Storage.................................................................................................. 10
6. CE Conformity Declaration............................................................................................ 11
7. Disposal ....................................................................................................................... 11
Operating manual FDB15
5
1. Safety | Intended use
To avoid risks please observe the following safety instructions when using accessories.
The FDB15 dolly was developed for professional use in sound systems. The dolly may only
be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TW AUDiO.
Before each use, check the integrity of the FDB15 dolly and ensure that all components are in
perfect condition.
WARNING
The FDB15 dolly may only be used with the B15 loudspeaker.
These operating manual describe how to use the FDB15 dolly. Any other use shall be deemed
improper and may result in damage or even injury.
Modifications or alterations to individual parts of the FDB15 dolly are not permitted! Danger to
life!
WARNING
The FDB15 is an accessory designed both for indoor and outdoor use.
CAUTION
The FDB15 dolly may only be used by trained and qualified personnel. Personnel must check
the FDB15 for its full suitability before each use.
WARNING
When visible damage to any part of the FDB15 dolly is detected, it must be decommissioned
immediately.
WARNING
When moving the FDB15 dolly, ensure full load-bearing capacity and stability of the substrate.
The FDB15 dolly is specified for a load of not more than one B15 loudspeaker. This load
capacity must never be exceeded!
WARNING
During movement (assembly or dismantling, transport to the place of use) of the FDB15 dolly
with the B15 loudspeaker, ensure sufficient space to prevent collisions with other objects.
WARNING
Operating manual FDB15
6

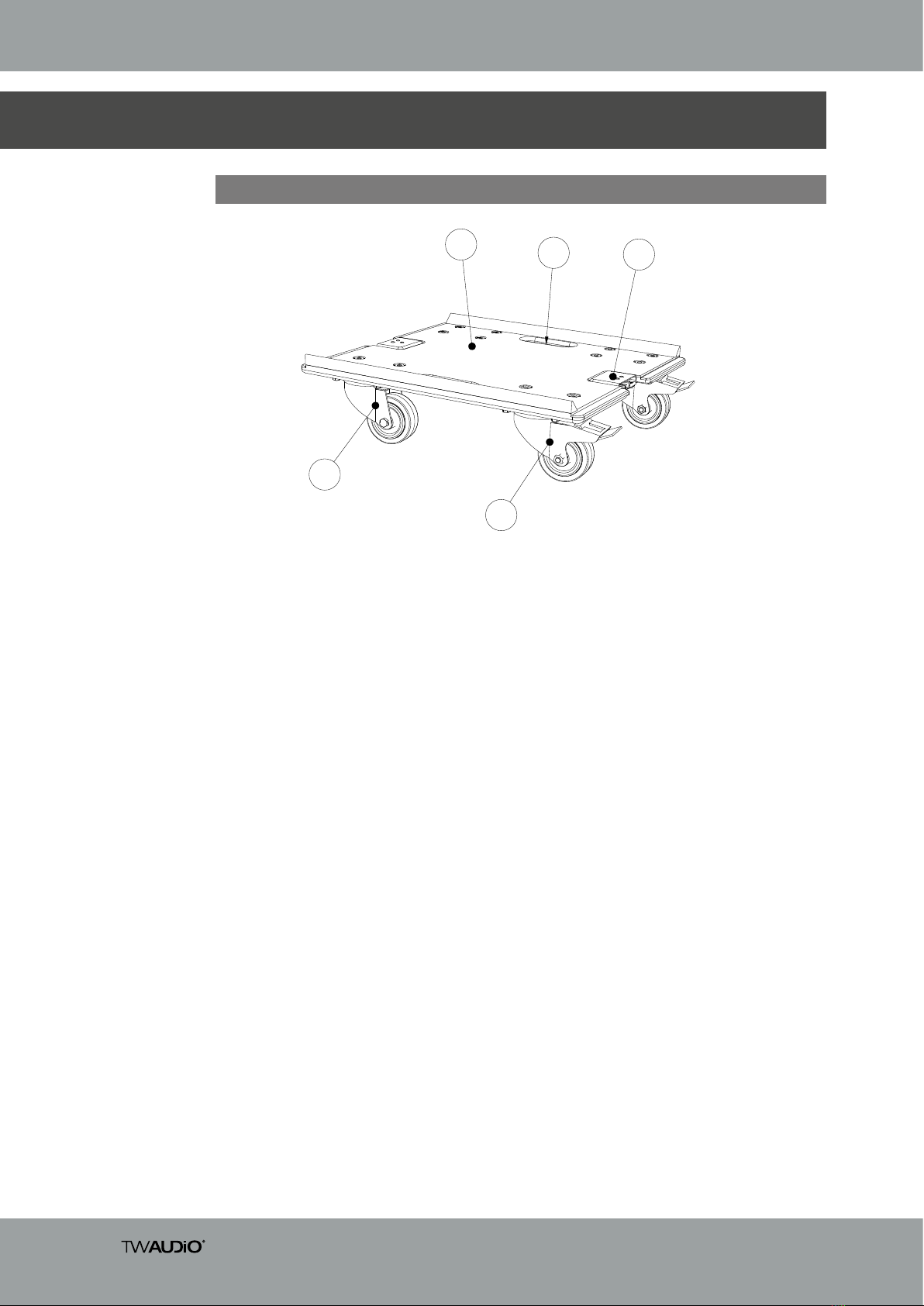

2. Overview
2.1 Components
1. Dolly - Surface Warnex textured paint
2. Handles (2 pieces)
3. Butterfly-Latch, middle (2 pieces)
4. 80mm castor with stopper (2 pieces)
5. 80mm castor without stopper (2 pieces)
Figure 2.1 - Overview
123
4
5
Operating manual FDB15
7
3. Technical specifications
3.1 Data sheet
Maximum load capacity 1x B15
Dimensions (h x w x d) 500 x 440 x 140 mm (19.7 x 17.3 x 5.5in)
Weight 5,9 kg (13 lbs)
Surface Warnex textured paint
Operating manual FDB15
8
4. Commissioning
4.1 Using FDB15 dolly with B15 loudspeaker
Figure 4.1.1 - Transport setup B15 loudspeaker with FDB15
Please note that two persons are always required to set up the FDB15 dolly with the
B15 loudspeaker!
WARNING
Place the B15 loudspeaker sideways upright on the floor and position the FDB15 dolly so
that the castors with stoppers are at the top.
Attach the FDB15 dolly to the B15 loudspeaker using the butterfly latches.
WARNING
Figure 4.1.2 - Put up the B15 loudspeaker with FDB15
Operating manual FDB15
9
Figure 4.1.3 - Moving B15 loudspeaker with FDB15
When moving the FDB15 dolly transport assembly with the B15 loudspeaker, note that there
is a risk of tipping due to the high center of gravity.
WARNING
Operating manual FDB15
10
5. Transport and Storage
Ensure that the surface of the rigging frame is not damaged during transport and storage.
Moisture may penetrate where steel surfaces are exposed by scratches and result in corro-
sion.
This is why the product should be transported in a safe, careful, dry and largely dust-free
manner.
The following transport and storage accessories are available from TW AUDiO:
• CoverB15 (Protective cover)
The original packaging is not suitable as permanent storage and transport packaging.
NOTE
