TVS electronics RP 3160 STAR Manual de usuario

Receipt Printer User’s Manual

RP 3160 STAR

All specifications are subject to change without notice

RP 3160 STAR User’s Manual

Part Number: 1025040086, Rev A, Description: User Manual, RP3160 STAR

RP 3160 STAR User’s Manual

TABLE OF CONTENTS

1. Parts Identifications

2. Setting up the printer

2.1 Unpacking

2.2 Connecting the cables

2.3 Loading the roll paper

2.4 Adjustment of paper width

3. Control panel and other functions

4. Self Test

5. ASCII Print

6. Select Baud Rate Mode

7. Hexadecimal Dump

8. Printer Cleaning

9. Specifications

9.1. General Specifications

9.2. Auto Cutter Specifications

9.3. Interface

9.4. Electrical Characteristics

9.5. Environmental Requirements

9.6. Reliability

9.7. Certification

10. Command List

RP 3160 STAR User’s Manual

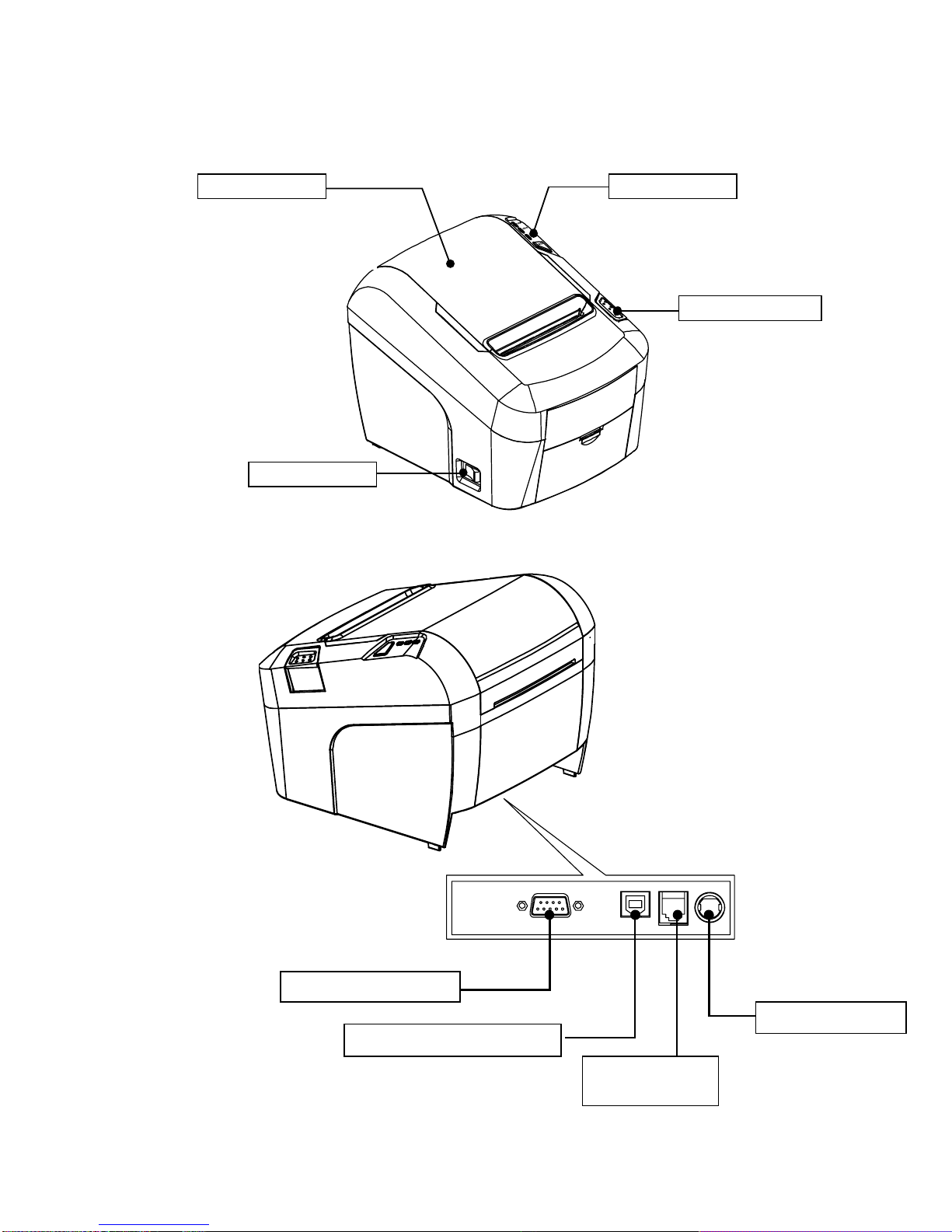

1. Parts Identifications

INTERFACE CONNECTOR(USB)

INTERFACE CONNECTOR

PERIPHERAL

DRIVE CONNECTOR

POWER CONNECTOR

PRINTER COVER

CONTROL PANEL

COVER OPEN LEVER

POWER SWITCH

Open this cover to load

or replace paper.

Features LED indicators

to indicate printer status

and switches to operate

the printer.

Used to turn on/off

power to the printer.

Pull down this lever to

open the printer cover.

RP 3160 STAR User’s Manual

2. Setting Up the Printer

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your

dealer for assistance.

The Printer User’s Manual Roll Paper

Adaptor Interface Cable (Option)

RP 3160 STAR User’s Manual

2-2. Connecting the Cables

You can connect up the cables required for printing to the printer.

They all connect to the connector panel on the back of the printer, which is shown below :

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

For connection to a

host computer.

INTERFACE CONNECTOR

Connects to peripheral units

such as cash drawers, etc.

Do not connect this to a

telephone.

PERIPHERAL

DRIVE CONNECTOR

For connection of the AC

adapter. Never unplug the

AC adapter while the printer

is on.

POWER CONNECTOR

For connection to a

host computer.

INTERFACE CONNECTOR (USB)

RP 3160 STAR User’s Manual

2-2-1. Interface Connector

<9 Pin Serial> <USB “B” Type>

USB interface

SIGNAL

I/O

DESCRIPTION

+5V

DATA-

Printer transmit data line

DATA+

Printer transmit data line

GND

System Ground

9Pin Serial Interface

SIGNAL

I/O

DESCRIPTION

RXD

Input

Printer receive data line RS-232C level

TXD

Output

Printer transmit data line RS-232C level

4,7

DTR

Output

Printer handshake to host line RS-232C level

GND

System Ground

DSR

Input

Data Send Ready

1,8,9

RP 3160 STAR User’s Manual

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.

The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing.

SIGNAL

DESCRIPTION

Signal GND

Drawer kick-out drive signal 1

Output

Drawer open/close signal

Input

+24V

Drawer kick-out drive signal 2

Output

Signal GND

CAUTION:

To avoid an over current, the resistance of the drawer kick-out solenoid must be 24 Ω or more.

RP 3160 STAR User’s Manual

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that

have the paper glued to the core because the printer cannot detect the paper end correctly.

(Turn off power switch)

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pulling down the cover-open lever.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.

RP 3160 STAR User’s Manual

5. Be sure to note the correct direction that the paper comes off the roll.

6. Pull out a small amount of paper, as shown. Then, close the cover.

7. Tear off the paper as shown.
