Turtle Beach Tango Manual de usuario

TangoUserGuide

Introduction/Overview

CongratulationsonyourpurchaseofTangoheadphonesfromTurtleBeach.Youhave

chosenwell.Younowhaveinyourpossessionapremiumproductthatwillbringyour

gamingexperiencetoawholenewlevel,heighteningyoursenses,sharpeningyourreflexes

andenhancingyourcommunications.Welcometoexcellence!

TableofContents

1. What’sIncluded

2. Feature/FunctionMap(Locationofcontrols/inputs)

3. SettingUp(Connectionsetc.)

4. PairingInstructions

5. SystemSettings

6. ChatSettings

7. Recharging

8. Safety

9. Conformity



What’sIncluded



HeadsetRFTransmitterDigitalOpticalCable

USBPowerCableUSBProgrammingCableXBABluetoothAdapter

HeadsetChargingCableQuickStartGuide(Don’thaveartforthis)

StickerPresetsManual



2

3

4



5



6

7

Feature/FunctionMap

Headset



1. Power

2. GamePresets

3. Chat/Mic.Presets

4. Main

5. ChargingLED

6. HeadsetChargingPort



RFTransmitter

1. Power/PairingLED

2. SURROUNDON/OFF

3. SURROUNDANGLES

4. DIGITALIN/OUTJacks

5. LINEIN(Left/Right)

6. LINEINVOLUMEControl

7. PowerSwitch



56

OpticalCable

SettingUp(Connectionsetc.)

1. Connectopticalcable*andtransmitterpowercables(included)togameconsole



2. InsertMicrophoneBoom



3. PowerheadsetON

a. PressandholdPowerbuttonuntilLEDturnssolid

b. Listenforvoiceprompt



4. PowertransmitterON



TransmitterPower Cable

GameConsole

NOTE:Removeprotectivecapsfrombothendsoftheopticalcable.

*OriginalXBOX360modelsrequireXBOX360HDMIAudioAdapterCable(soldseparately).

PairingInstructions

HeadsetandTransmitter

Theheadsetandtransmittershouldbepre‐pairedoutofthebox.Theinstructionsbelowareonly

necessaryifpre‐pairingappearstohavebeenlost.

1. HeadsetshouldbepoweredOFF

2. PressandholdPairingbuttononthetransmitteruntiltheLEDFlashes



3. PressandholdPowerbuttonontheheadsetuntiltheLEDflashes



UsingyourTangoHeadsetonPS3(Usethisheaderonrelatedpagesinthelayout)



YourTurtleBeachTangoheadphonesaredesignedtoworkonPS3GameConsoles(Versions?).Inorder

togetidealfunctionalityfromyourheadphones,followthedirectionsbelow.



PS3BluetoothConfiguration



1.GotoPS3Settings(Weshouldincludescreencapturesforthese)

•Choose“AccessorySettings”(screencaptures)

•Choose“ManageBluetoothDevices”(TangoBluetoothOFF)

2.ScanforBluetoothDevices(screencaptures)

3.PowerTangoON:

a.PressandHoldBluetoothButtonuntilLEDflashesblueandred.



PressandHold



b.Select“TurtleBeachTango.”

c. Whenpromptedforapasscode,enter,“0000.”LEDwillflashblueonce

persecond



d.YouarenowpairedwithPS3.

PS3OutputSettings





1.GotoSettings(Weshouldincludescreencapturesforthese)

•Choose“SoundSettings”(screencaptures)

oChoose“AudioOutputSettings”(TangoBluetoothOFF)

i. Choose“OpticalDigital”

1. Choose“DolbyDigital5.1Ch.”

2.GotoSettings(Weshouldincludescreencapturesforthese)

•Choose“SoundSettings”(screencaptures)

oChoose“AudioMulti‐Output”(TangoBluetoothOFF)

i. AdjustPSNchatvolumeusingBluetoothVolumebutton

ontherightearcup.



PressandHold

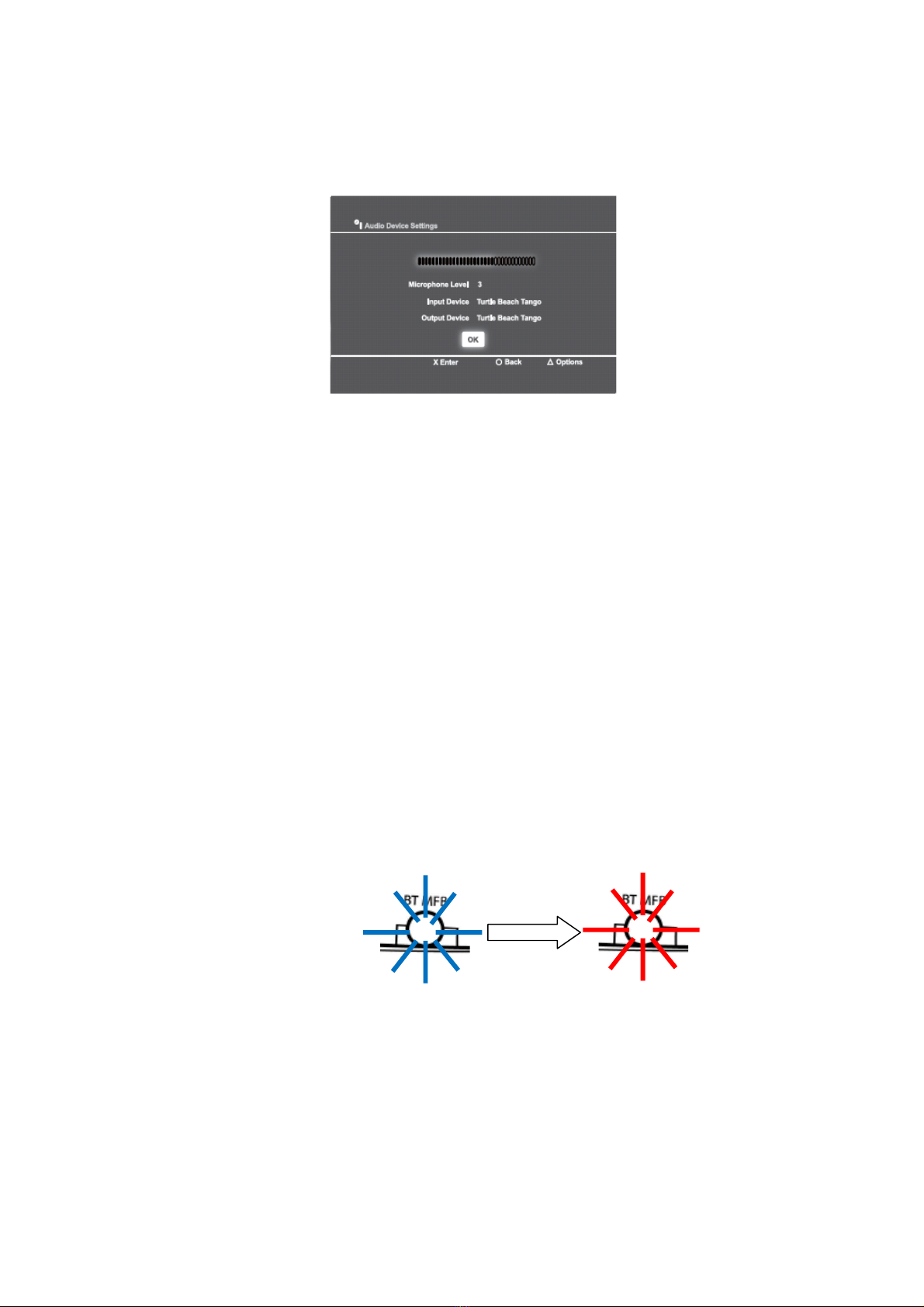

PS3MicrophoneSettings



1.GotoPS3Settings(Weshouldincludescreencapturesforthese)

•Choose“AccessorySettings”(screencaptures)

•Choose“Input/OutputDevice”(TangoBluetoothOFF)

•Choose“TurtleBeachTango”

2.Adjustmicrophonevolumelevel



UsingyourTangoHeadsetonXBOX360(Usethisheaderonrelatedpagesinthelayout)



YourTurtleBeachTangoheadphonesaredesignedtoworkonXBOX360GameConsoles(Versions?).In

ordertogetidealfunctionalityfromyourheadphones,followthedirectionsbelow.



XBOXWirelessSettings

1.TurnonXBOX360Controller(NeedLineArtforthis)andplugintheXBA(turned

off)totheheadsetjack.

2.PressandholdXBAbuttonforfour(4)secondsuntiltheLEDbeginstoblink.

3.YouarenowinPairingmode.

4.PressandholdBluetoothMFBforfive(5)seconds.LEDwillchangefromBlueto

Red.



5.Releasethebutton.Voiceprompt“BluetoothPaired.”

•Choose“SoundSettings”(screencaptures)

oChoose“AudioOutputSettings”(TangoBluetoothOFF)

i. Choose“OpticalDigital”

1. Choose“DolbyDigital5.1Ch.”

XBOXConfiguration



1. GotoXBOXSettings.

a. Choose“Audio”

i. Choose“AccessorySettings.”

ii. Choose“AudioDeviceSettings.”

iii. Set“DigitalOutput”to“DolbyDigital5.1.”



2. GobacktoXBOXSettings

a. Choose“Preferences.”

i. Choose“Voice.”

ii. Under“VoiceOutput,”choose“PlayThroughHeadset.”



BluetoothSettings(Usethisheaderonrelatedpagesinthelayout)

Pairing(Bluetooth)withaphone

1.TurnHeadsetON

2.PressandholdBluetoothButtonuntilLEDflashesBlueandRed



3.SetmobilephonetoBluetoothsearchmode*

4.Choose“TurtleBeachTango”

5.Whenpromptedforapasscode,enter“0000.”

*Eachphonewilldiffer.Refertotheuser’sguideforyourphone.



DualBluetoothPairing

TurtleBeachTangoheadphonescanpairwithtwodevicesatonce.Thisfeatureallowson‐

linechattingwithothergamersandtheabilitytoinstantlyswitchtophonecalls.Followthe

instructionsbelowfordualBluetoothpairing.



1.TurnHeadsetOFF

2.PressandholdBluetoothButtonuntilLEDflashesBlueandRed



3.SetdevicetoBluetoothsearchmode*

4.Choose“TurtleBeachTango”

5.Whenpromptedforapasscode,enter“0000.”

*Eachdevicewilldiffer.Refertotheuser’sguideforyourdevice.



SurroundSoundSettings

TurtleBeachTangoheadphoneshaveasurroundsoundfeaturebringingadditionalrealism

toyourgamingexperience.



1. PressSURROUNDON/OFFtoturnONthesurroundsoundfunction.

2. PresstheSURROUNDANGLESbuttononthetransmittertoscrollthrough

six(6)differentpresets.



3. TheLEDwillblinkinsequencetoindicatewhichpresetwasselected.



Recharging

TurtleBeachHeadphonesfeaturearechargeablebatteryenablingcontinuousgamingforuptoten

(10)hours.Whentheheadsetbatterychargeislow,atonewillsoundeveryten(10)seconds.The

headphonescanbechargedwithoutinterruptinggame‐playusingtheincludedheadsetcharging

cable.




