4TurboLock TL - 201
Section 1
Information & Safety Warnings
1.1 Introduction
This user manual will guide you through the functions and usage of your TurboLock TL-201. It is important that you follow all
instructions and regard all notes that appear throughout this manual. Consult this manual before you attempt to use your lock.
If you have questions not answered by this manual or are in need of repair or non-routine service, contact customer service
at 855-850-8031. Before contacting customer service, please have your purchase information ready as this may be needed
during the call. This information may be recorded below.
Date of Purchase:
Place of Purchase:
1.2 Safety Warnings
When reading this manual, note these icons:
Notes with this icon MUST be read, understood, and obeyed to prevent injury or damage etc.
Notes with this icon include relevant information.
General Usage
• Never insert objects into the lock other than batteries as described in this manual.
• The lock is not a toy. Do not leave children unsupervised around the lock.
• Verify that all parts of the lock are accounted for. If any part is missing, contact customer service.
• The lock is best suited for standard doors made for buildings within the U.S.
• Use only the parts included in the original packaging or received from TurboLock.
TurboLock TL - 201 5
• Replace the batteries after receiving the lock’s low battery notication.
• Only use clean water, mild cleaner, and soft, non-abrasive cloth when cleaning.
• Never submerge the lock or any of the lock’s components.
• Never apply any cleaner directly to any part of the lock.
• Do not let water and liquids get into the lock’s electric parts or battery compartment.
• Objects should not be hung from the lock’s handles at any time.
• Installation surfaces must be level. Do not install on doors or surfaces with any type of deformity as gaps or warping may
cause the lock to malfunction or fail to operate entirely.
• Old and new batteries as well as batteries from dierent brands may not be mixed.
• Use only four AA batteries.
• Use the lock only as described in this user manual.
• If the battery compartment or surrounding parts are damaged, do not use the lock.
1.3 End-of-Life Disposal
This product must not be disposed of by incineration, landlling, or mixing with household trash. Improper disposal of the
battery contained within this product may result in the battery heating up, rupturing, or igniting which may cause serious injury.
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any
TurboLock TL-201 at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program, or facility.
Local regulations and laws pertaining to the recycling and disposal of certain batteries and/or products containing them will vary
according to country, state, and local governments. You must check laws and regulations corresponding to where you live in
order to properly dispose of the battery and/or unit. It is the user’s responsibility to dispose of their waste equipment properly in
accordance with local regulations and laws.
For additional information about where you should drop o your batteries and electrical or electronic waste, please contact your
local or regional waste-management oce, your household waste disposal service, or your point-of-sale.
6TurboLock TL - 201
Section 2
Overview

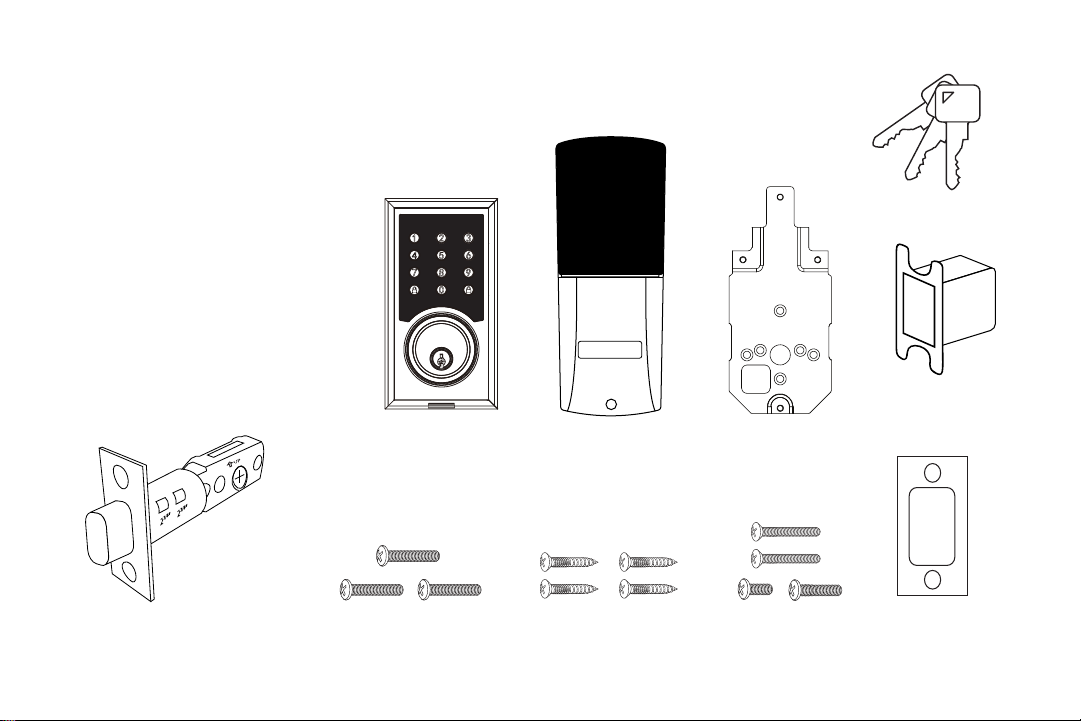

2.1 Package Contents
Outside Section 1x
Inside Section 1x
Plate 1x
Adjustable Latch Assembly 1x
Wood Screws 4x
Inside Screws 4x
Mounting Screws 3x
Keys 3x
Strike Box 1x
Strike Plate 1x
L R
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
Outside Section Inside Section Plate
Mounting Screws Inside ScrewsWood Screws
Keys
Adjustable Latch Assembly
2-3/8” (60 mm) or 2-3/4” (70 mm)
Strike Plate
Strike Box
TurboLock TL - 201 7
2.2 Product Parts
L R
Keyhole
Micro USB Port
Keypad
Battery Compartment
(Batteries not included.)
Battery Cover
L/R Switch
Reset Button
Thumb Turn
8TurboLock TL - 201
2.3 Battery Information
The lock requires four standard or rechargeable ‘AA’ batteries which will be stored inside the back of the lock. New batteries
should be installed as soon as possible after receiving any low battery indication. After that rst notication, the lock will only
have enough power for approximately 50 uses before the batteries are fully depleted. This indication can be received from the
lock itself; the lock will beep after being unlocked. Expected battery life is approximately 365 days.
Section 3
Installation (Retrot)
This section details installation steps needed if you are installing the TL-201 on a door with a single cutout already
made. Replacing an older xture with a newer one is known as a retrot. If your door has never had a lock or
doorknob installed or otherwise has no cutout, please skip to page 13.
• For easier installation, have another person help hold the lock.
• Remove all parts of any old lock before installing the TL-201. In some cases, the old strike plate and/or box may be used.
• For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre-
Installation and Main Installation.
• If your door happens to have two cut-outs, check the clearance between the two. Make sure there is enough distance so that
you may seal o any extra opening.
3.1 Pre-Installation
Part 1 Installing the Latch
KEEP DOOR OPEN AT ALL TIMES SHORTLY BEFORE, DURING AND SHORTLY AFTER INSTALLATION. If the lock is
incomplete or improperly installed, the lock and/or door may become stuck.
TurboLock TL - 201 9
Step 1. Check the
UP
icon on the latch and insert it into the hole. The latch’s plate should sit ush against the edge of
the door. (Fig. 1) If there’s too much space behind the latch or if it’s sticking out of the door, the latch should be
adjusted. If the latch needs adjusting, continue on to Step 2; otherwise, skip to Step 3.
Step 2. Turn the latch and extend or retract it as needed. Make sure the metal peg pops into one of the two square holes in
the side and the deadbolt is pushed all the way in while adjusting the latch’s length. (Fig. 2) Insert the latch back into
the door.
Step 3. Add 2x wood screws and use a screwdriver (not included) to secure them. (Fig. 3)
Part 2 Installing the Strike
In most cases, the existing strike plate and setup can be used. If you wish to use the one included with your lock, refer to the
instructions for Part 3 on pages 15-16.
Part 3 Adjusting for Door Orientation
Step 1. With the door open, check it from the back and/or inside of the room. The lock’s parts should be oriented dierently
depending on whether the lock will be on the left side or right side of the door.
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
UP
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
(Fig. 1) (Fig. 2) (Fig. 3)
10 TurboLock TL - 201
Step 2. Remove the battery cover from the inside section of the lock and adjust the L/R Switch and thumb turn as needed.
3.2 Main Installation
Step 1. Start with the outside section. Feed the power cables under the
latch and thread the latch pin and two of the pegs through the
latch. The third and highest peg should be above the latch. If
needed, have someone hold the door itself or hold the outside
section at against the front of the door. (Fig. 4)
• Before threading the latch pin into the silver center part
and make sure the key is turned so it can easily be removed
from the keyhole. Make sure the latch pin is horizontal when
inserting.
• It’s highly recommended to leave the door open and keep the keys
in the lock during installation.
• Make sure the power cables are under the latch.
Latch on the right
L/R switch pushed to
R side + thumb turn
horizontal
Latch on the left
L/R switch pushed to
L side + thumb turn
vertical
L R
L R
L R
L R
Inside Section
Inside Section
2
3/4
”2
3/8
”
Highest Peg
(Fig. 4)
Silicone Backing
Latch Pin
