Tunturi E60R Manual de usuario

www�tunturi�com

- Please read this assembly manual carefully prior to assembling this product.

- Lesen Sie sich vor der Montage des Produkts diese Montageanleitung sorgfältig durch.

- Veuillez lire attentivement le présent manuel d’assemblage avant de monter ce produit.

- Lees deze montagehandleiding zorgvuldig voordat u dit product in elkaar gaat zetten.

- Leggere attentamente questo manuale di montaggio prima di montare il prodotto.

- Antes de montar este producto, lea atentamente este manual de montaje.

- Läs den här monteringshandboken noggrant före användning av den här produkten.

- Lue tämä asennusohje huolellisesti ennen tämän tuotteen asennusta.

Attention, Achtung, Attention, Attentie, Attenzione, Atención, Giv akt, Huomio

GB Assembly manual

DE Montageanleitung

FR Manuel d’assemblage

NL Montagehandleiding

IT Manuale di montaggio

ES Manual de montaje

SV Monteringshandbok

SU Asennusohje

E60-R Bike Performance

EN957

Class HB

Made in China

RoHS

2011/65/EU

SN:

HOME USE

MAX USER WEIGHT: 135 KGS

300 LBS

INPUT: AC 110 - 220~240V

50-60HZ 2.3 Amp.

SKU: 20TBR60000

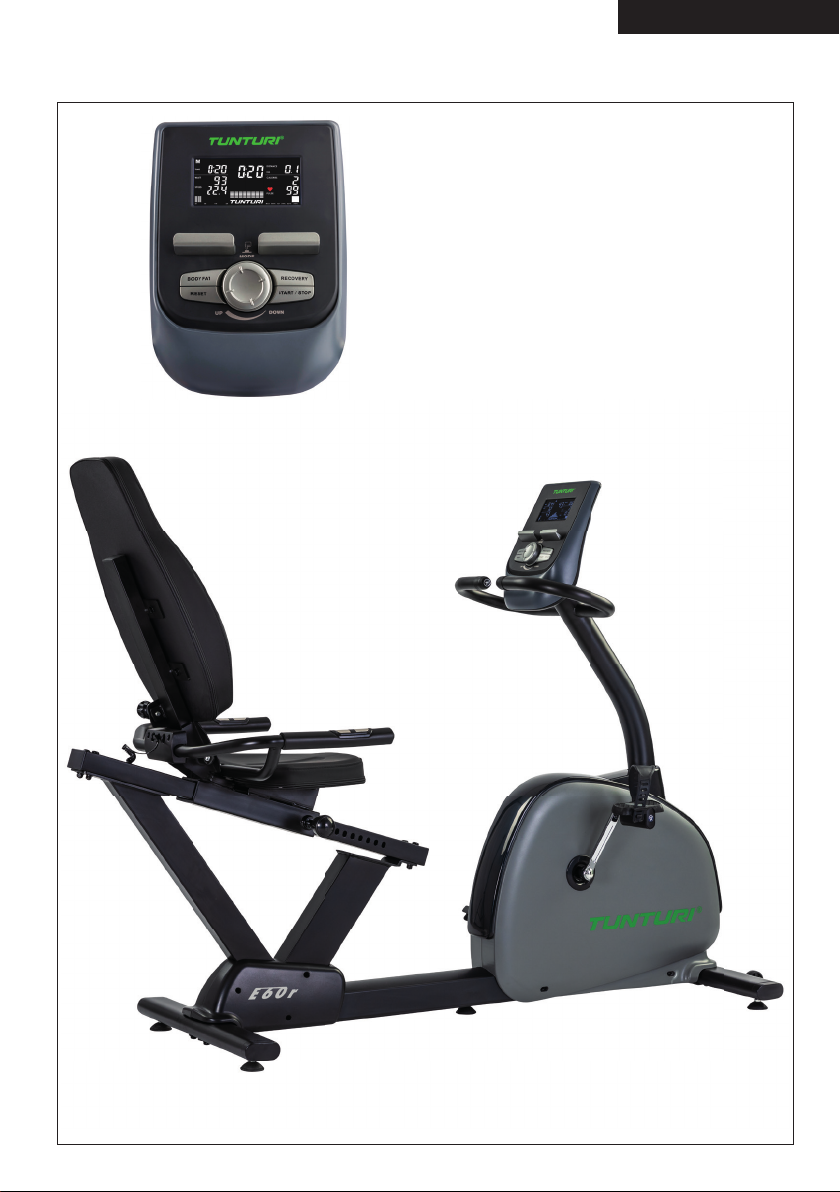

Recumbent bike E60-R

ROUTES

Tunturi Routes

iOS & Android

17 - 20

21 - 25

26 - 30

31 - 35

36 - 40

41 - 45

46 - 50

51 - 54

GET YOUR

USER MANUAL

ONLINE

http://manuals.tunturi.com

WWW

IMPORTANT

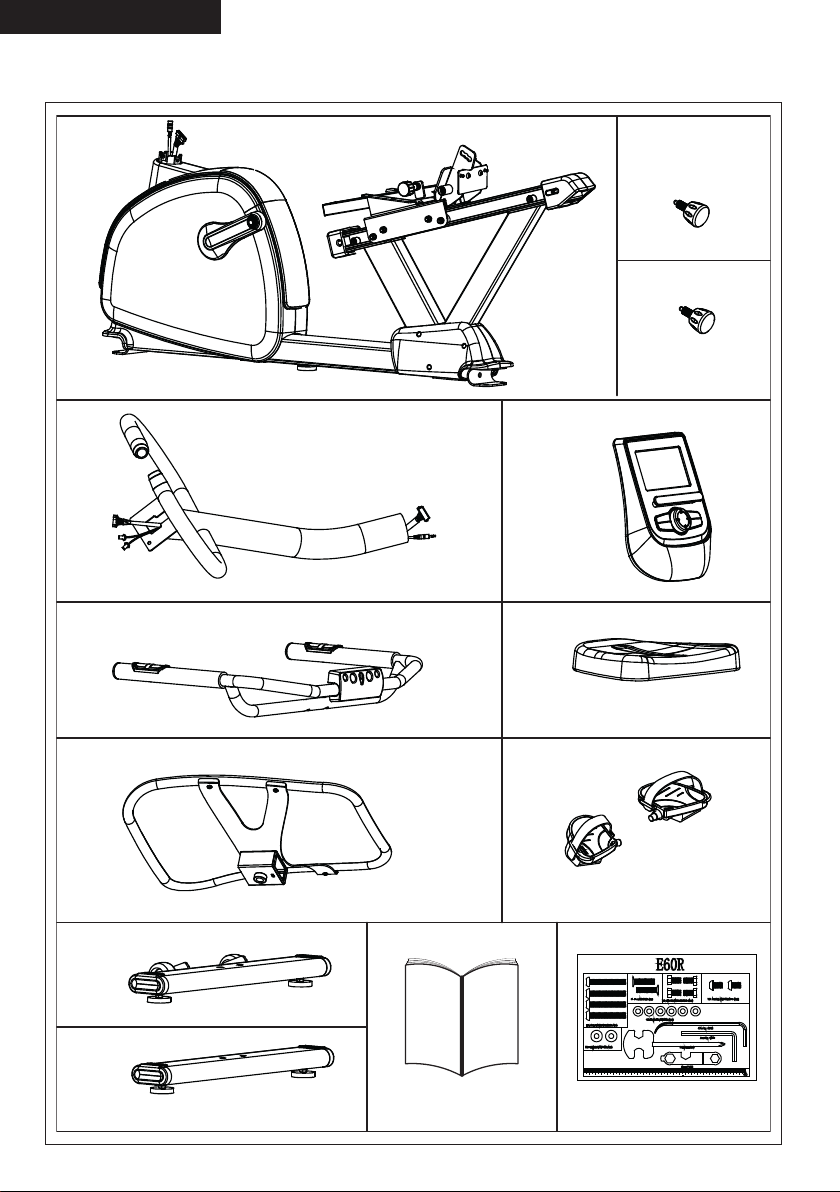

F20 Bike

100 cm

113: Allen Bolt M8xP1.25x12mm (2pcs)

114: Flat Washer Ø8*Ø16*2L (6pcs)

116: Flat Washer Ø8*Ø19*2L (4pcs)

112: Allen Bolt M8xP1.25x16mm (4pcs)111: Allen Bolt M8xP1.25x35Lmm (2pcs)

110: Allen Bolt M8xP1.25x60mm (4pcs)

Allen Key 5MM (1)

Allen Key 6MM (1)

Screwdriver (1)

Wrench (1)

F20 Bike

113: Allen Bolt M8xP1.25x12mm (2pcs)

114: Flat Washer Ø8*Ø16*2L (6pcs)

116: Flat Washer Ø8*Ø19*2L (4pcs)

112: Allen Bolt M8xP1.25x16mm (4pcs)111: Allen Bolt M8xP1.25x35Lmm (2pcs)

110: Allen Bolt M8xP1.25x60mm (4pcs)

Allen Key 5MM (1)

Allen Key 6MM (1)

Screwdriver (1)

Wrench (1)

F20 Bike

D-1

113: Allen Bolt M8xP1.25x12mm (2pcs)

114: Flat Washer Ø8*Ø16*2L (6pcs)

116: Flat Washer Ø8*Ø19*2L (4pcs)

112: Allen Bolt M8xP1.25x16mm (4pcs)111: Allen Bolt M8xP1.25x35Lmm (2pcs)

110: Allen Bolt M8xP1.25x60mm (4pcs)

Allen Key 5MM (1)

Allen Key 6MM (1)

Screwdriver (1)

Wrench (1)

F20 Bike

D-2

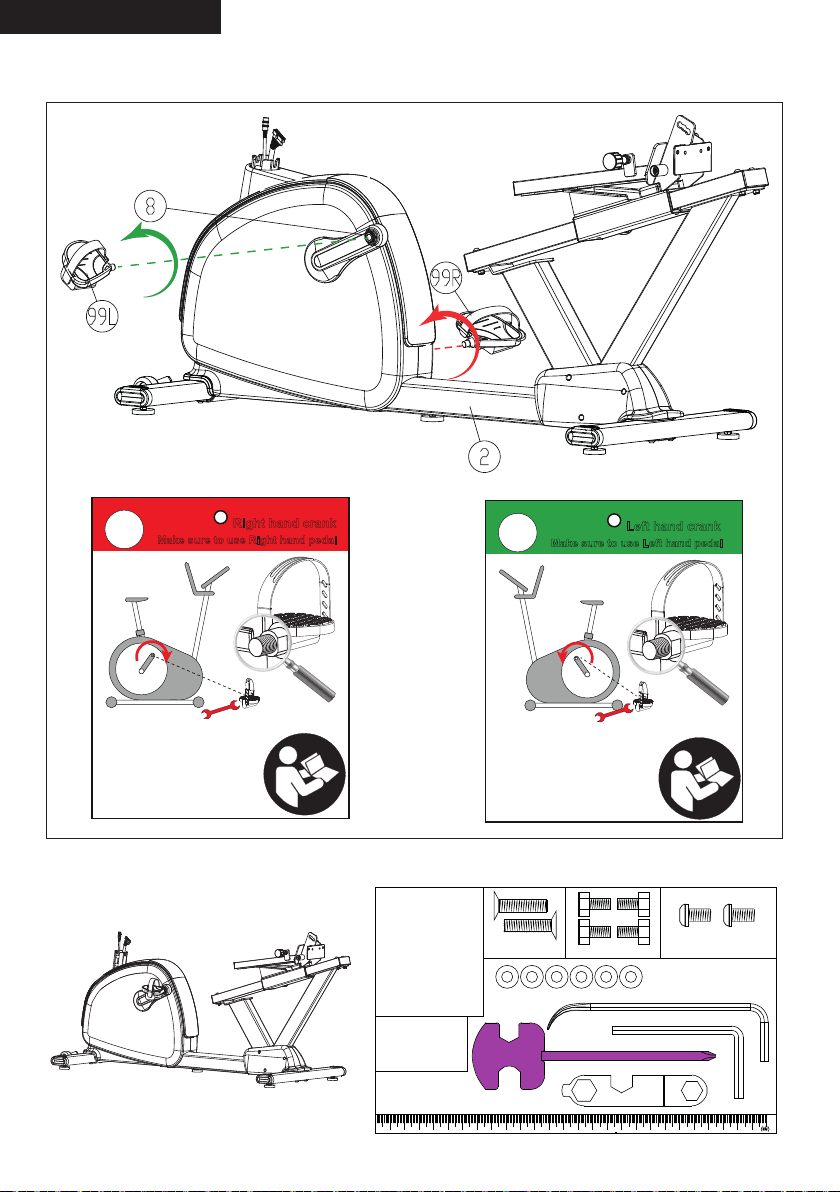

LLeft hand crank

Make sure to use Left hand pedal

Fit the left hand pedal into

the left hand crank.

Firstly turn the pedal axle in

counter-clockwise direction by hand.

Use the wrench to fully

tightnen the pedal.

RRight hand crank

Make sure to use Right hand pedal

Fit the right hand pedal into

the right hand crank.

Firstly turn the pedal axle in

clockwise direction by hand.

Use the wrench to fully

tightnen the pedal.

113: Allen Bolt M8xP1.25x12mm (2pcs)

114: Flat Washer Ø8*Ø16*2L (6pcs)

116: Flat Washer Ø8*Ø19*2L (4pcs)

112: Allen Bolt M8xP1.25x16mm (4pcs)111: Allen Bolt M8xP1.25x35Lmm (2pcs)

110: Allen Bolt M8xP1.25x60mm (4pcs)

Allen Key 5MM (1)

Allen Key 6MM (1)

Screwdriver (1)

Wrench (1)

F20 Bike

D-3

113: Allen Bolt M8xP1.25x12mm (2pcs)

114: Flat Washer Ø8*Ø16*2L (6pcs)

116: Flat Washer Ø8*Ø19*2L (4pcs)

112: Allen Bolt M8xP1.25x16mm (4pcs)111: Allen Bolt M8xP1.25x35Lmm (2pcs)

110: Allen Bolt M8xP1.25x60mm (4pcs)

Allen Key 5MM (1)

Allen Key 6MM (1)

Screwdriver (1)

Wrench (1)

F20 Bike

D-4

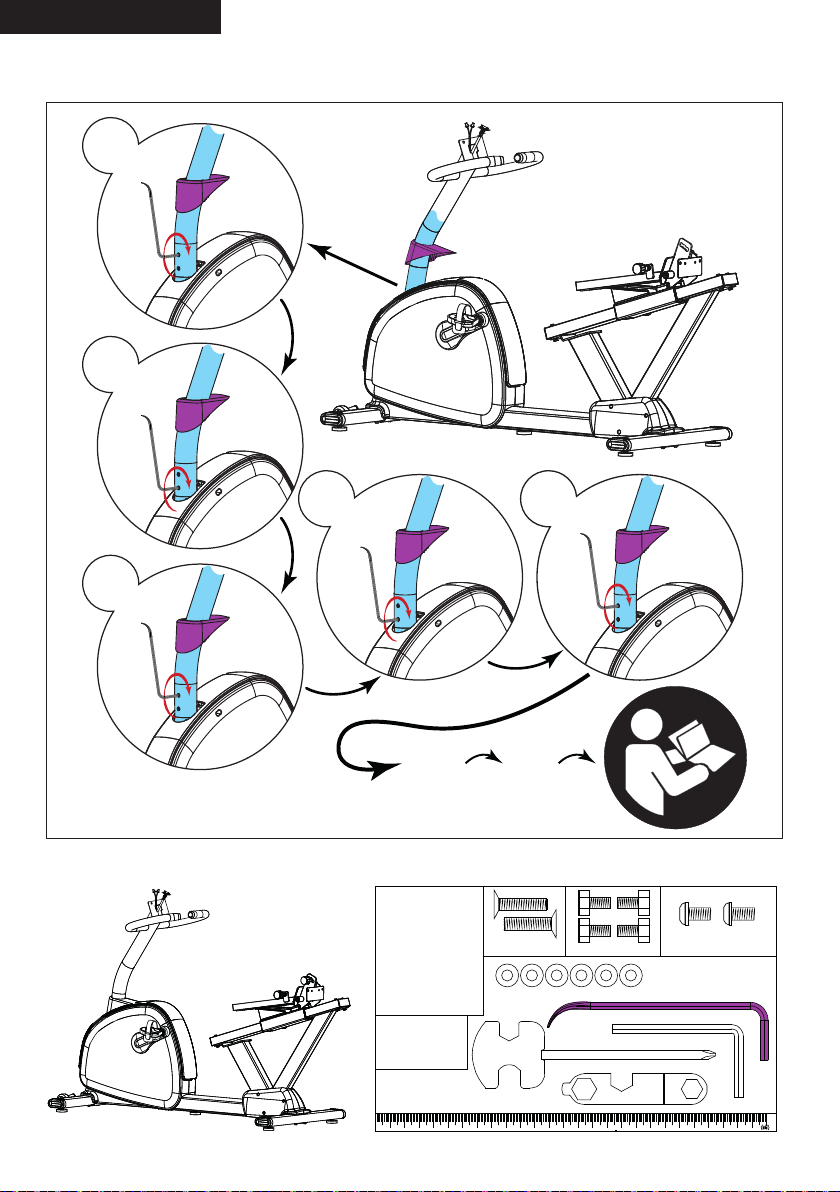

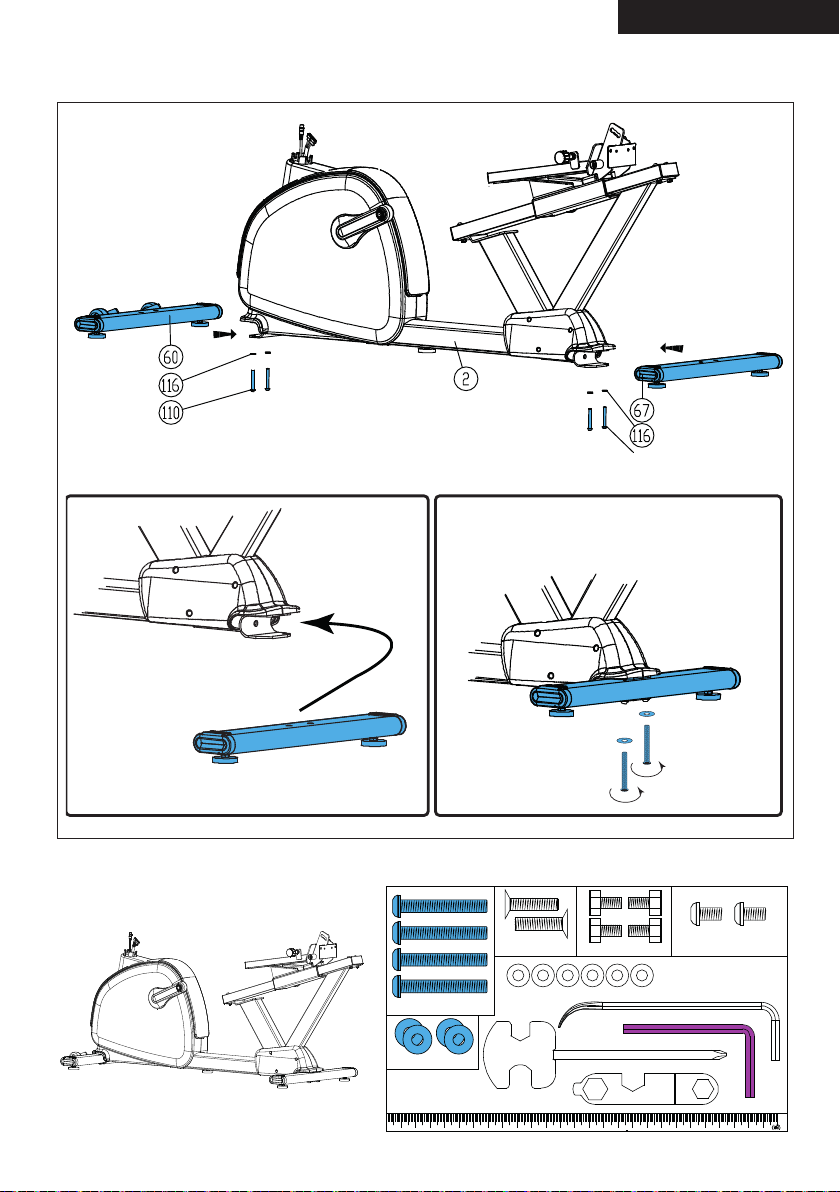

A-1

A-2

A-1 A-2

113: Allen Bolt M8xP1.25x12mm (2pcs)

114: Flat Washer Ø8*Ø16*2L (6pcs)

116: Flat Washer Ø8*Ø19*2L (4pcs)

112: Allen Bolt M8xP1.25x16mm (4pcs)111: Allen Bolt M8xP1.25x35Lmm (2pcs)

110: Allen Bolt M8xP1.25x60mm (4pcs)

Allen Key 5MM (1)

Allen Key 6MM (1)

Screwdriver (1)

Wrench (1)

F20 Bike

D-5
