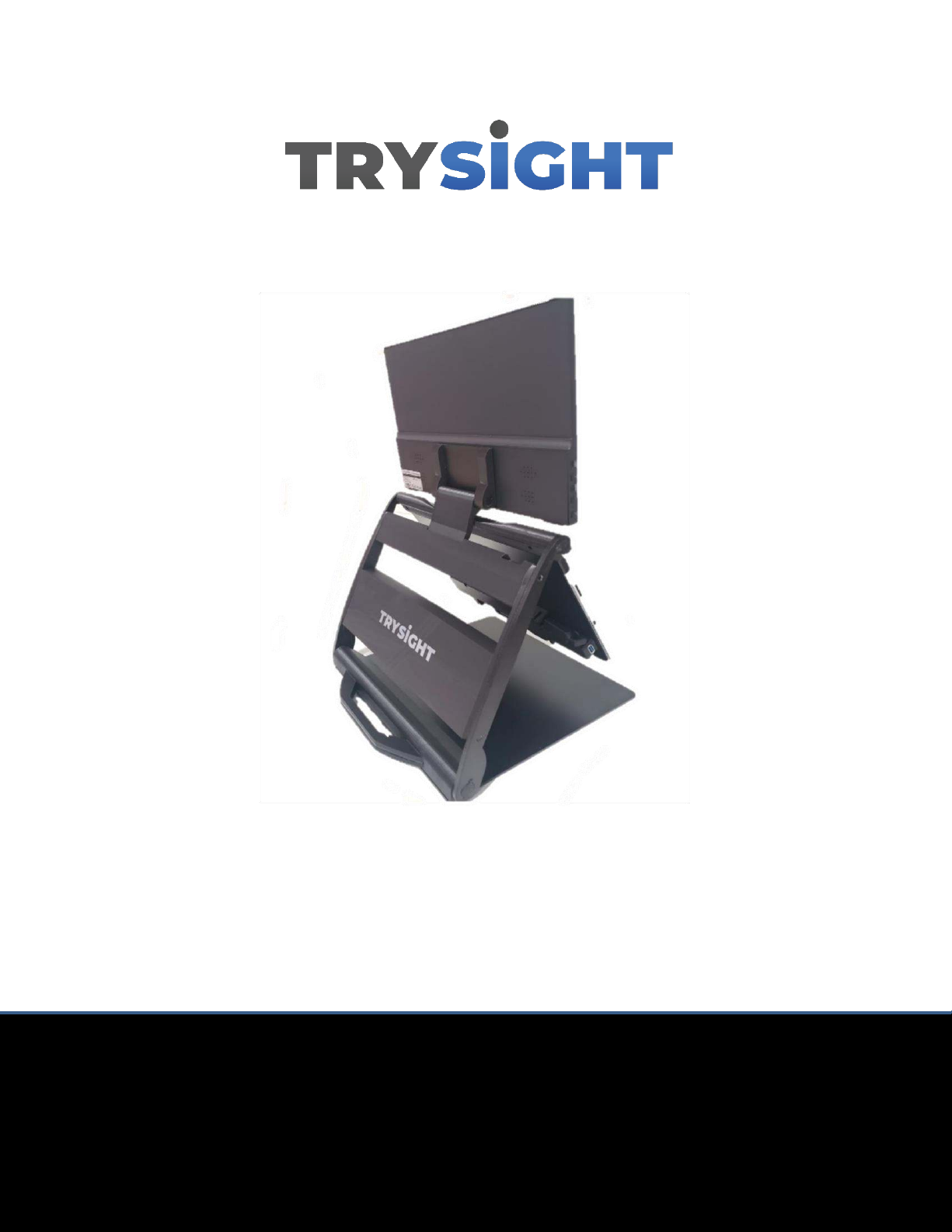

TRYSIGHT MERCURY 13 Manual de usuario
MERCURY 13/PORTABLE CCTV with SPEECH
User Guide / Version 1.0
Introduction to Mercury 13……………………..1
Safety and Care……………………………………..2
What’s Included…………………………………….3
Using the Mercury 13…………………………..4-8
Powering On and Charging……………………..4
Ejecting and Inserting the Tablet…………….5
Quick On/Off………………………………………...6
LED Light……………………..……………………....7
Keyboard………………………….….……………….8
Reference Guide……………………………..…9-10
Locations………………………………………………9
LED Light & Camera………………………………10
Starting the Software……………………………11
Top Menu Bar……………………………………….12
Top Menu Bar……………………………………….13
Magnifying…………………………………..………14
Changing Colors/………………………….….….15
Capturing and Saving Pictures……………….16
Capturing and Saving Videos…………..…….17
Reading Text…………………………………..18-19
To Read …………………………………..…………18
When Reading…………………..…………………19
Distance Viewing(Optional).………….…20-27
Camera Placement……………………………….20
Distance Viewing Controls……….……….21-22
Dual Monitor…………………………....…….23-27
TABLE OF CONTENTS
Settings……………..…………………….…...28-32
General Options…………………….…………….29
Speech Options……………..…….….…………..30
Reading Options………………….………….31-32
Power Off ..………………….…….….………33-34
Warranty Conditions…………...….……..……35
Contact Us……………………………....…..…….36
Technical Specifications….………….………..37
TABLE OF CONTENTS
1
Congratulations on your purchase of the Mercury 13! Easy
and comfortable reading has been brought closer and more
accessible by this device made by Trysight.
Mercury 13 is an advanced tablet based magnifier with
highly accurate reading capabilities allowing the user to
listen to printed material in a clear natural sounding voice.
The Mercury 13 has been designed with the low vision user
in mind. It doubles as a magnification system and a
Windows laptop by using a large print Bluetooth keyboard.
We are excited for you, our valued customers,as you enjoy
the possibilities we have imagined!
INTRODUCTION TO MERCURY 13
S a f e t y A n d C a r e
2
Do not expose the Mercury 13 to extreme or rapid changes in
temperature or humidity. Do not place Mercury 13 near a
radiator or heater, or where it will be exposed to direct
sunlight. These conditions may damage electronics or optics
of the Mercury 13.
Do not place this system on an unstable surface. It may fall,causing
serious damage to the unit or injuries to the user.
SAFETY AND CARE
W h a t ' s I n c l u d e d
3
Mercury 13
unit should come with these items:
1X - Laptop travel case
1X - Mercury 13 tablet with stand
1x - Second Monitor (optional)
1X - Distance camera (optional)
1X - Bluetooth keyboard with trackpad
1X - Charger
1X - User Manual
WHAT’S INCLUDED
U s i n g T h e M e r c u r y 1 3
4
Powering On and Charging
Mercury 13 comes with a stand which holds the tablet.
There is a handle on the stand to carry the unit. Simply
open the stand and this will unveil the tablet. The tablet
screen can be tilted to a comfortable angle.
The charging cable gets connected on the left side of the
tablet.
The power button is located on the bottom left side of the
tablet. Hold down the power button for 2 seconds to start
the device.
USING THE MERCURY 13
U s i n g T h e M e r c u r y 1 3
5
Ejecting and Inserting the Tablet
To eject the Microsoft Surface tablet from its stand, slightly
press down the bracket on the top right plate of the stand
and gently slide the tablet out by pushing it to the right.
While inserting the tablet back onto the stand, ensure that
the power button is on the left side.
USING THE MERCURY 13
U s i n g T h e M e r c u r y 1 3
6
Quick On and Off
To enable quick on/off functionality, the unit can go into "Sleep"
mode. The unit can wake up instantly from sleep mode in 2
seconds. However, Sleep mode uses a small amount of battery as
the unit is not completely turned off. After about 2 weeks in sleep
mode, the battery will drain out and will need recharging even if you
don't use the unit. To put the unit to sleep, tap the Power button
quickly (Don't hold it down). To wake it up, tap the powerbutton
again.
Use as a Windows Machine
The unit is a full-fledged Windows machine and can be used as
such. All Windows applications will run normally and the machine
can be used as your laptop. If you remove the tablet from the stand,
a hinge on the back of the tablet allows a plate to come out of the
body and hold the screen upright at an angle of your choice.
USING THE MERCURY 13
U s i n g T h e M e r c u r y 1 3
7
LED Light
The LED flash light is built separately in to the stand to
provide better image quality. It is located behind the
tablet.
•LED Light Switch
•LED/HUB Connector Cable
USING THE MERCURY 13
