TRP-C39S

User’s Manual

Fiber to RS-232/422/485 Isolated Converter,

SC Single Mode

Printed Feb. 2007 Rev 1.0

Trycom Technology Co.,Ltd

1F, No.2-11,Sihu street ,Yingge Township, Taipei, Taiwan ROC

Tel: 886-2-86781191 , Fax: 886-2-86781172

Web: www.trycom.com.tw

Copyright Notice: The information in this manual is subject to change without prior notice in order to improve reliability,

design and function and dosed not represent a commitment on the part of the manufacturer. No part of this manual may

be reproduced, copied, or transmitted in any form without the prior written permission of manufacturer.

Acknowledgment Products mentioned in this manual are mentioned for identification purpose only. Products manes

appearing in this manual may or may not be registered trademarks or copyright of their respective companies.

1/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

1. Introduction

The TRP-C39S fiber converter allows RS-232/422/485 signals to be bi-directionally converted to

fiber optic and extended the line signal distance up to 40KM over single mode. By using fiber optic

transmission technology TRP-C39S secures a stable and error free data transmission over the

industrial environments. The high bandwidth fiber connections solve problems with electrical noise

and different ground potentials over long transmission. TRP-C39S support auto configuration in

data format, baud rate and RS-485 data direction flow control, it also provides with 3000V DC

isolation and internal surge protection. The industry DIN rail and panel mounting design enable user

a fast and professional installation.

1-1.Features

¾Wide input range DC power supply.

¾SC single mode fiber port.

¾Auto direction flow control on RS-485.

¾Auto RS-232/422/485 signals switching.

¾Auto data format detecting.

¾Auto baud rate switching from 300bps to 115.2Kbps.

¾Support 3000V DC isolation protection.

¾Support surge protection on RS-422/485 data lines.

¾Power/TX/RX mode LED indicator.

¾Fiber transmission distance up to 40KM.

¾DIN rail or panel mount support.

1-2.Specifications

¾Power Input Voltage: DC +10V to +30V.

¾Interface: RS-232/422/485 auto switching.

¾RS-232: 3 full-duplex (TXD, RXD, GND).

¾RS-422: Differential 4 full-duplex wires.

¾RS-485: Differential 2 half-duplex wires.

¾Cable: Fiber cable (9/125um).

¾Wavelength: 1310(FPLD) nM.

¾Distance: Fiber up to 40KM and RS422/485 up to 4000ft. (1200M).

¾RS-422/485 line protection: Against surge, short circuit, voltage peak.

¾Connection type: Screw terminal for maximum AWG #12~30 wires.

¾Power supply: Screw terminal, or external DC adapter.

¾Power consumption: 1.6W.

¾Isolation Voltage: 3000V DC.

¾Operating environment: 0 to 60C.

¾Storage temperature: -20 to 70C.

¾Humidity: 10-90% Non-condensing.

¾Dimension: 151 mm X 75mm X 2 6mm.

¾Weight: 388g.

2/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

2. TRP-C39 Hardware Description.

2-1.TRP-C39S panel layout

2-2. Block Diagram

3/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

2-3. LED Indictor

PWR LED: System is ready.

RX LED: Data receiving.

TX LED: Data transmitting.

3. Install TRP-C39S

3-1. Power connection

The TRP-C39S is equipped with a 2-pin terminal block and power jack. Power can be supplied from

terminal block or external power adapter and supports wide input range from + 10~30V. When

power is correctly supplied the PWR LED will lighting and indicates the system is up. It is highly

recommended use the power jack specification 5.5*2.1*12mm if the power supply is from external

DC plug.

Warning: User can only choose one of following 2 power sources.

1. External DC adapter. 2. Screw terminal DC input

Do not use both power input simultaneously.

3-2. RS-232/422/485 serial devices connection

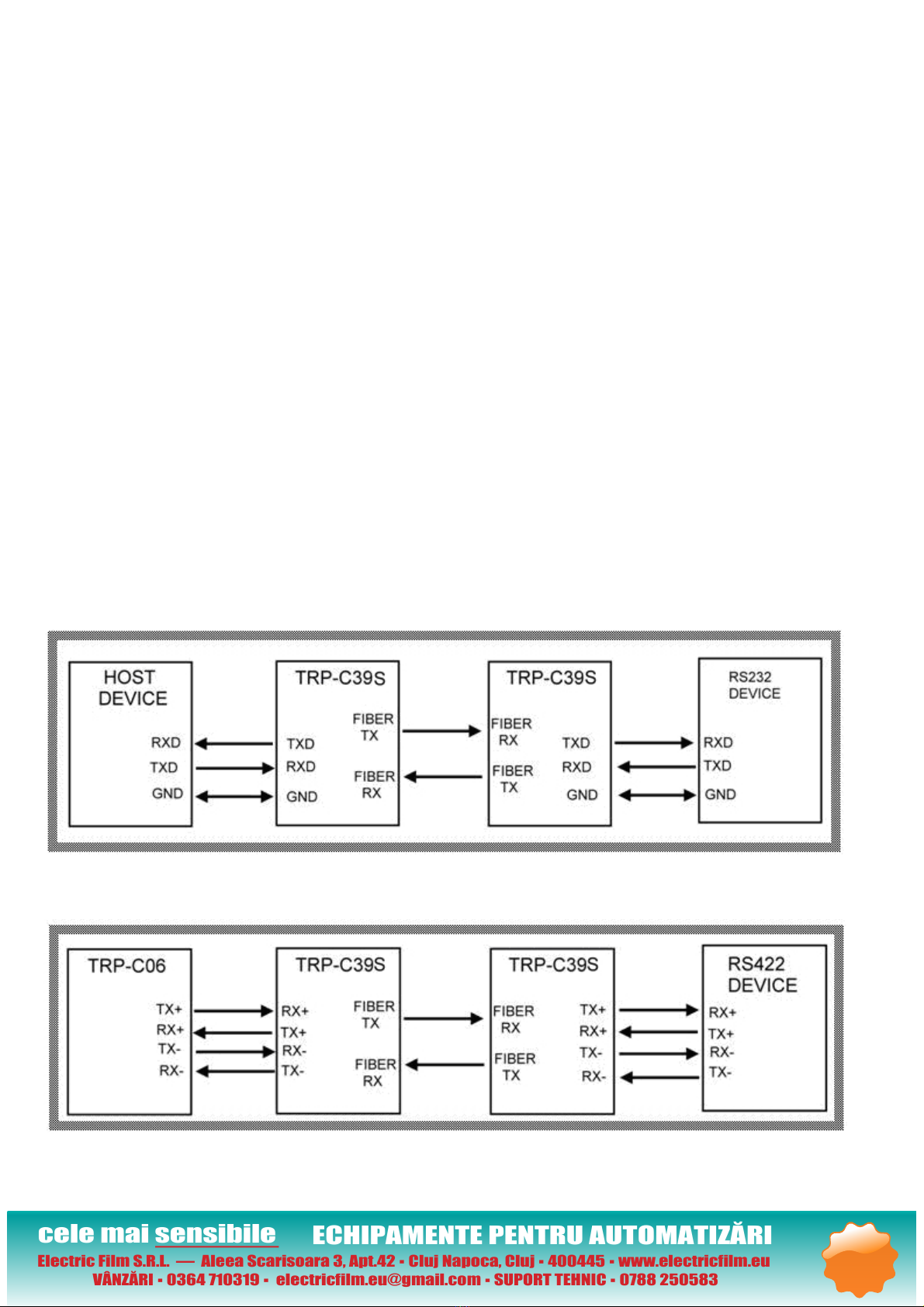

3-2-1.RS-232 wiring connection

3-2-2.RS-422 wiring connection

4/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

3-2-3.RS-485 wiring connection

4. How to test TRP-C39S

Trycom Technology Co.,Ltd offers demo and test utility, these utilities may help user to demo and

test TRP-C39S fast and easily. User may download the utilities from Trycom web site

www.trycom.com.tw. The testing utility includes.

RS-422 test utility:

Test422.exe for DOS.

DEMO.exe for Windows.

RS-485 utility:

Test485.exe for DOS.

TRPCOM for Windows.

4-1. RS-422 loop back Test

Refer to wire connection as below.

5/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

STEP1:Run the “DEMO.EXE” utility (See the Figure 1).

Fig.1

STEP2: Click the “Setting” to set the RS-422 loop counter (See the Figure 2); the demo setting

screen will shown as Fig.2.

Fig.2

*Please note: “COM3” is an example of COM port number; the real COM number is assigned by

your PC after the installation.

STEP3:.Click the “OK” the utility will show the input and output status.

6/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

4-2. RS-485 test

Refer to 4-2-3 for RS-485 wire connection. User may also directly link TRP-C39S to Trycom

Remote IO modules, the wiring connection is as below.

Step1. Install TRPCOM utility.

TRPCOM is a test utility which may help user to test TRP-C39S with RS-485 device easily.

Double click “Setup.exe”, the install Wizard will guide you to complete the installation.

Step2. Configure COM port and baud rate, after configuration press “OK” to the next screen.

7/8

ECHIPAMENTE PENTRU AUTOMATIZĂRI

Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu

VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583

cele mai sensibile

Step3.Send command “$01M” and press “Send”

Step4. Data response received

Test complete.

8/8
