Trust 14948 Manual de usuario

User’s manual

UPS SERIES

Version 1.0

UPS SERIES

User’s manual

Version 1.0

User’s manual

G F

C D

User’s

manual

User’s manual

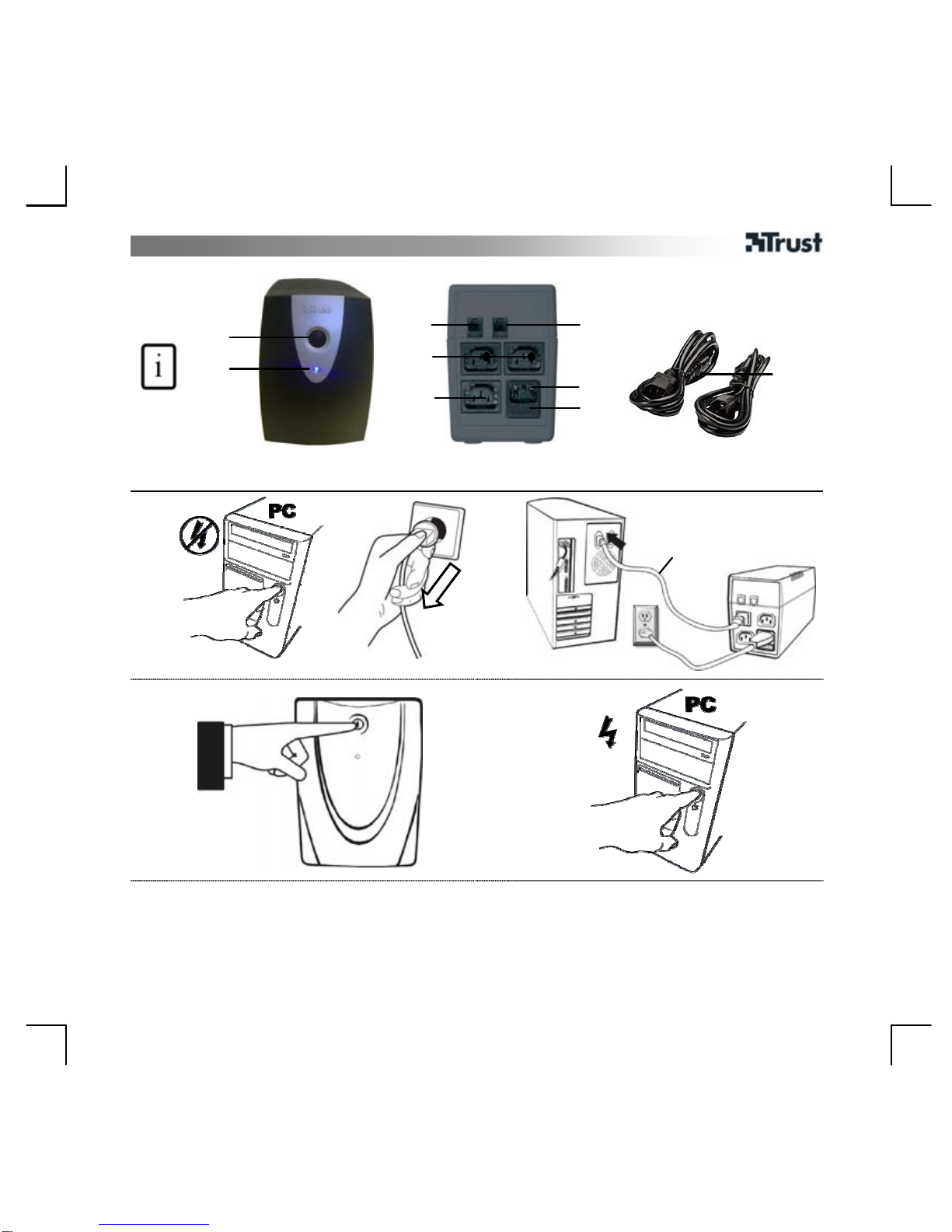

Product information

A: On/Off button

B: Status LED

- AC power: Lit steady

- Battery power: Lit flash

C: Phone/Modem out

D: Phone line in

E: AC input

F: Fuse holder

G: Surge only output

H: Backup output

I: Loop through cables

Installation

1 PC off

Use power cable from PC to connect UPS to AC socket

Use loop through cable (I) to connect PC to UPS Backup output (H)

Device connected to Surge Only output (G) does not get UPS backup!

UPS least 20cm away from monitor!

UPS on

The UPS might be battery low due to its self-discharge characteristic; suggest to charge 8 hours before

using battery power!

4 PC on

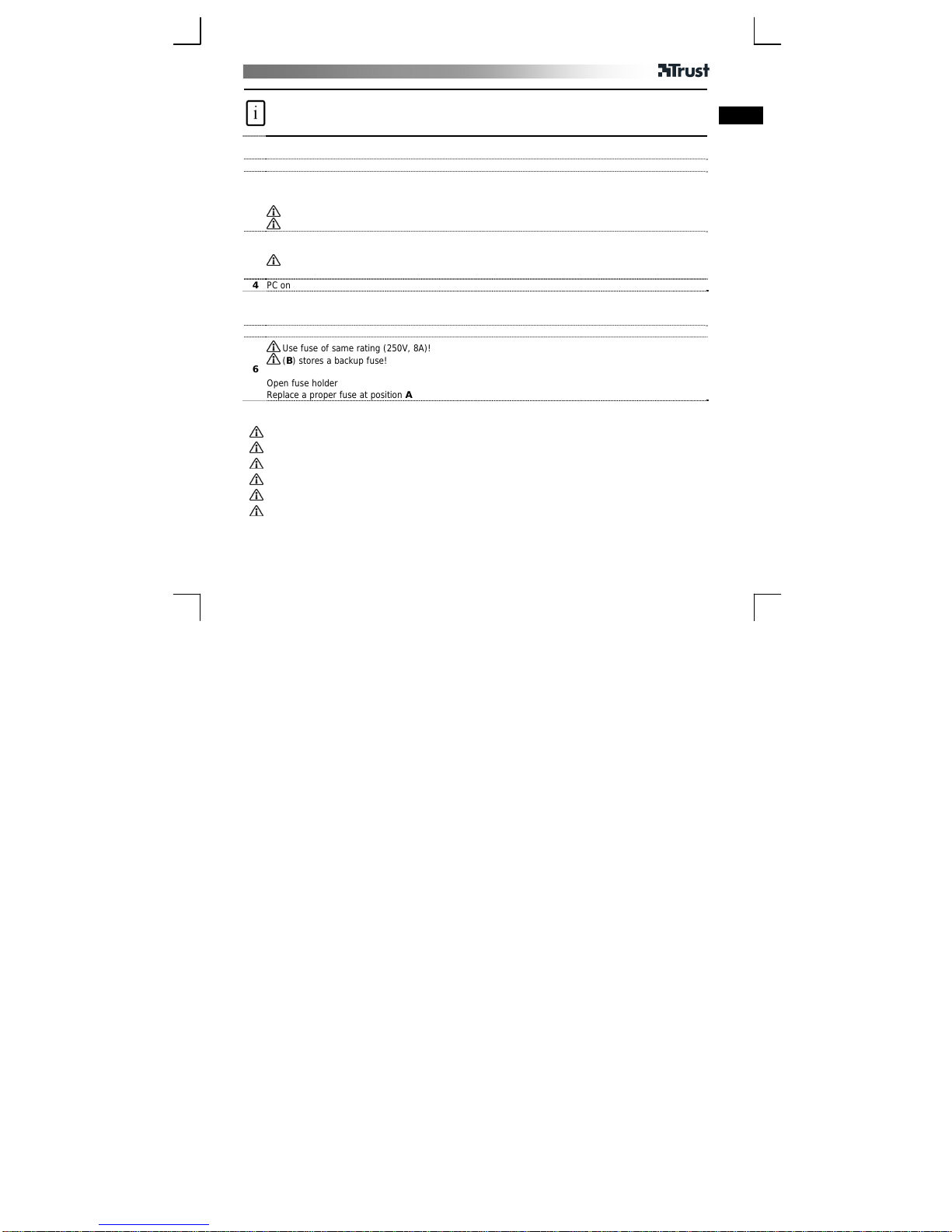

Replacing fuse

5 UPS completely off

Use fuse of same rating (250V, 8A)!

(B) stores a backup fuse!

Open fuse holder

Replace a proper fuse at position A

Reminder

UPS is charged only when AC power is supplied and UPS is on!

Fully discharge then recharge the battery every 3 months for longer battery life!

Connect incoming analogue phone line to D; Connect a telephone or modem to C!

Backup time is related to the connected devices and battery condition!

UPS does not have dial-up function nor smart management like message alarm!

Conductive device, like laser printer, is suggested to connect to the Surge Only output!

User’s manual

Specification

Model 14948 14949 14950 14938

Operation type Line Interactive

Output capacity 500VA /240W 600VA / 300W 750VA /360W 950VA /480W

230 VAC

Voltage range 170 ~ 274 VAC

Input

Frequency 47-63 Hz

230 VAC

Frequency 50 / 60 Hz

Output

Freq. regulation +/- 1 Hz

Surge current protection [J] Max. 150

Maximum surge current

[Amp] 6,500 A

Transfer time (typical) Less than 3 ms

Battery type &

number 12 V/4.5 AH, 1 pc.

Or 6V / 4Ah, 2pcs. 12 V/7 AH, 1 pc. 12 V/9 AH, 1 pc.

Backup time

(min.) 12 ~ 30 26 ~ 45 34 ~ 60

Battery

Charge time 8 hours to 90% after full discharge

Working

surroundings 0 – 40° C, 0-90% relative humiditySurroun

dings Sound level Less than 40 dB

Weight 4.9 kg 6.7 kg

Minimum load 40.8W 51W 61.2W 81.6W

Indication and audio alarm

Indicator Sound Output Char-

ging Description What to do?

- - - No UPS is

turned off Turn the UPS on using the ON/OFF button.

Blue - 230 V Yes Normal use No action.

User’s manual

No input

voltage No input voltage. Is now using the battery

voltage. Save your data and turn off your

computer.

Blue

(flashing) A beep

every

seconds

230 V No

No input

voltage and

load on UPS

is too low

Due to Green Power function, UPS may shut

down in 5 minutes when the load is lower than

+/-10% of the minimum load required.

Blue

(flashing

quickly)

Beep

every

second

230 V No Battery low.

UPS will turn

off soon.

Save your data immediately and turn off your

computer.

For extensive service, register at www.trust.com/register.

Safety

•Warning: This product contains sealed lead-acid battery(s).

May release toxic materials into the environment when not disposed properly.

Must be recycled properly. Contact your local government.

Short circuit of the battery(s) may cause burns, fire or explosion.

Do not disassemble, puncture or expose to high temperatures. Acid and toxic materials might be released,

causing injury.

•This UPS generates leakage current less than 0.5mA, please use in comfort.

•The sum of the leakage current of the UPS and its connected equipments must not exceed 3.5mA.

•Do not open or repair this device.

•Disconnect the power plug from the mains supply before cleaning the device.

•Keep this device away from liquids, such as water.

•Do not use this device in combination with non-computer related items, such as medical equipment,

microwave ovens, vacuum cleaners, etc.

•Make sure the UPS is placed on a firm surface, such as your desk or the floor.

•ALWAYS use the UPS with an earthed plug socket.

•Do not connect a multiple socket to the UPS.

•Never cover the UPS to avoid overheating. Keep the UPS out of the reach of heat sources, such as the sun,

heaters, etc.

•The outputs may have a high voltage, even when the device is turned off.

•Keep the UPS at least 20 cm from your monitor.

•Do not expose the battery to a naked flame. This may cause the battery to explode.

•Never drill holes into the battery.

•The battery must not be opened or damaged. If the battery is opened or damaged, electrolyte may be

released, which is harmful to skin, eyes and the environment.

•When the battery is empty, ask your local authority where you can dispose of it.

User’s manual

•This device meets the essential requirements and other relevant conditions of the applicable European

directives. The Declaration of Conformity (DoC) is available at www.trust.com/14938/ce,

www.trust.com/14950/ce, www.trust.com/14948/ce, www.trust.com/14949/ce

If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household waste.

Warranty & copyright

•This product has a two-year manufacturer's warranty which is effective from the date of purchase. For more

information see www.trust.com/warranty

•Reproduction of this manual or any part of it is prohibited without permission from Trust International B.V.
