TrueCam A7 Manual de usuario

● 2304x1296@30FPS

● GPS Logger & Speed Camera Detector

● Lighting Keyboard

● CPL & UV Lens available

Car DVR with GPS Logger

& Speed Camera Detector

User manual

Product Picture & Function..........................................................................................2

a) Device Introduction...................................................................................................................2

b) Button Function.........................................................................................................................3

c) LED Light Status List ...............................................................................................................5

d) Product Accessoris...................................................................................................................5

Basic Operation............................................................................................................5

a) TF Card Installation...................................................................................................................5

b) GPS/Speed Camera Detector Installation................................................................................6

c) Power Supplied..........................................................................................................................6

d) CPL Installation (Optional).........................................................................................................7

e) G-sensor Function...................................................................................................................8

f) Video Mode................................................................................................................................9

g) Take Picture............................................................................................................................10

h) Playback Mode......................................................................................................................11

Menu Setting........................................................................................................12

a) Video Mode............................................................................................................................12

b) Playback Mode..................................................................................................................13

Connection..........................................................................................................14

a) Connect to TV.........................................................................................................................14

b) Connect to Computer...............................................................................................................14

DVR Player..................................................................................................................15

Product Specication................................................................................................16

Product Picture & Function

a) Device Introduction

15 16 17

18 19 20

1. TF Card Slot 2. HDMI Port 3. LED Light

4. Lens 5. Speaker 6. Status Light (Blue)

7. Charging Light (Red) 8. Menu Button 9. File Protection Button

10. Mode Button 11. LCD Display 12. Up Button

13. OK Button 14. Down Button 15. Power Button

16. Holder Connector 17. Photo Button 18. USB Port

19. Reset Button 20. Microphone

21 22

b) Button Function

Power Button

Press this button for 2~3 sec. to turn on/off the device.

Photo Button

In video mode, in any time, press this button to take picture.

Reset Button

When the device crashed, press this button to shut down the device.

Menu Button

Press this button during standby status or playback mode, menu list of current mode will appear.

When the device is in recoding, press this button to change the ash light status " ", " ", " ".

File Protection Button

In video mode, when device is in recording, press this button to set the recording video to be protected manually,

21. GPS/Speed Camera Detector Module

22. Voice Switch for Speed Camera Detector

23. Power Input

24. Sticker for Holder

25. Camera Holder

so as to prevent it from being overwritten by loop recording.

In playback mode, press this button to lock or unlock the video le.

When le protection is active, the icon “ ” will appear on LCD display.

Mode Button

The device only has two mode, video mode and playback mode.

Press this button during standby status, can switch device in video mode and playback mode.

When the device is in recording, there is no effect to press this button.

Up Button

In video mode, press this button to turn on/off LCD display.

In menu setting, press this button to up item.

In playback mode, press this button to choose previous le.

OK Button

In video mode, press this button to start/stop recording.

In playback mode, press this button to play/pause video le.

In menu setting, press this button to conrm the menu setting.

Down Button

In video mode, press this button to start/stop sound recording.

In menu setting, press this button to next item.

In playback mode, press this button to choose next le.

Audio Switch

This button is only for Speed Camera Detector.

Push this switch to turn on/off the voice of Speed Camera Detector.

c) LED Light Status List

LED Light Status Meaning

Status Light (Blue)

Flash Device is in Recording

On Device is in standby or Playback Mode

Off Device is off

Charging Light(Red) On Charging Battery

Off Charging nish

d) Product Accessories

1. Car DVR x1 2. Car Charger x1 3. Camera Holder x1 4. Sticker x1 5. Sucker x1

6. HDMI Cable x1 7. USB Cable x1 8. User's Manual x1 9. GPS/Speed Camera Detector Module x1

10. CD 11.UV Len (

Optional)

11.CPL Len (

Optional)

Basic Operation

a) TF Card Installation

Install the TF card into TF Card Slot as picture shown.

b) GPS/Speed Camera Detector Installation

Insert GPS/Speed Camera Detector module into camera holder, as below picture:

Install the device on the wind shield with sticker or sucker.

When power on, Speed Camera Detector will have voice from Speed Camera Detector Speaker, and the device

will automatically start to catch GPS signal.

If doesn't catch the GPS signal, GPS icon " " will be shown on LCD display.

If successfully catching the GPS signal, GPS icon " " will be shown on LCD Display.

c) CPL Installation

CPL:Circular-Polarizing Filters, could reduce the reection of inner car on the car window.

Without CPL With CPL

Install CPL onto device thru screw on device camera. And after install CPL onto device and install device onto

car window, rotate the adjustment circle ring on CPL to

get the good Polarized effect to car window reflection.

adjustment circle ring

d) Power Supplied

Connect USB port and car cigarette with car charger, then start engine, the device will automatically power on

and recording.

Note: There is two Mini USB port, one is on device, another is on Camera Holder.

If connect car charger with Mini USB port on device, power supply to device only.

If connect car charger with Mini USB port on Camera Holder, power supply to device and GPS/Speed

Camera Detector Module both.

So if want to work with GPS/Speed Camera Detector Module, Car Charger need connect with Mini USB port

on Camera Holder.

e) G-sensor Function

When there is a collision, Gravity Sensor(G Sensor) can get the direction and exact data of collision.

Meanwhile, according to setting value in G sensor sensitivity, the device determine whether set current recorded

video to protection mode or not, which will not be overwritten by loop recording.

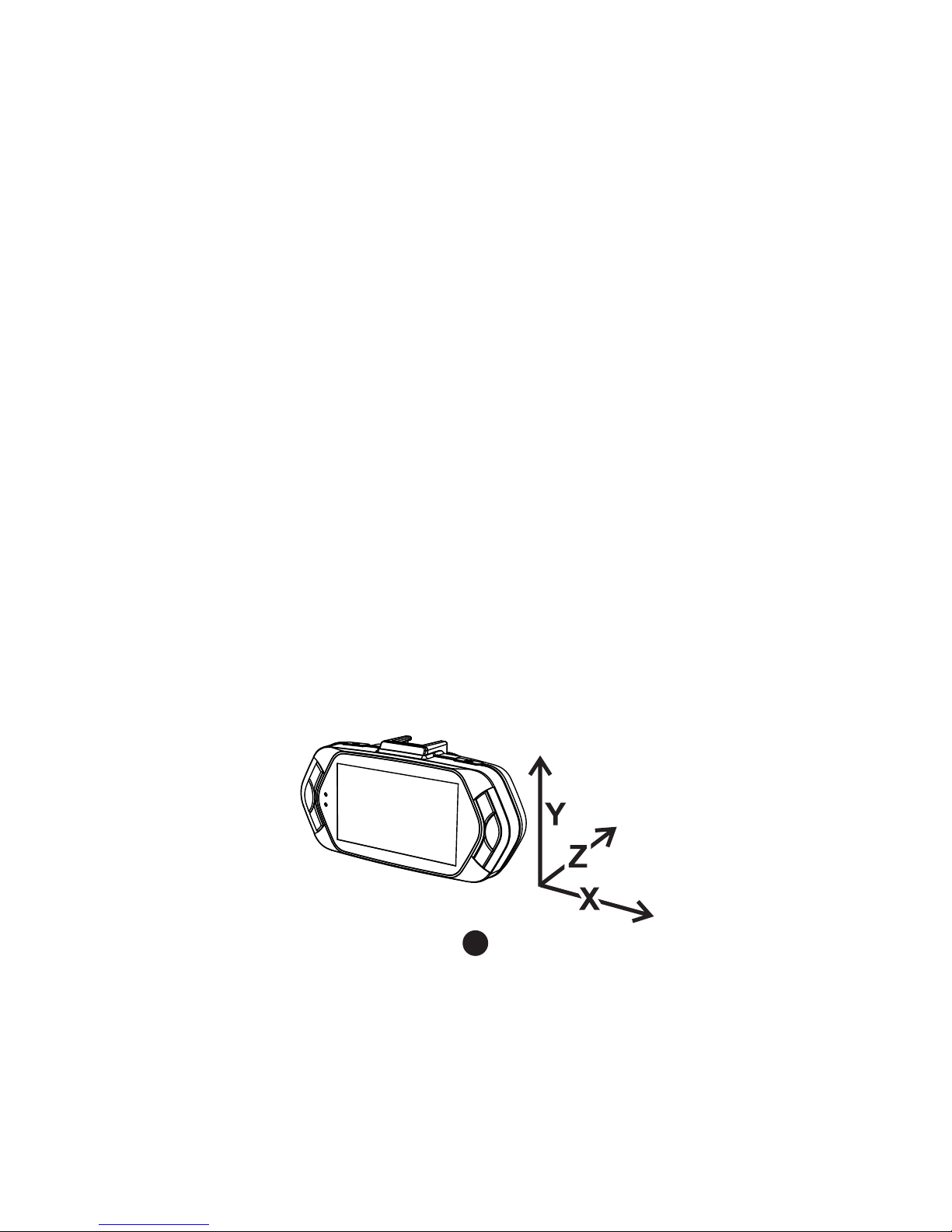

G-Sensor direction as below picture.
