TABLE OF CONTENTS

Safety Information

Safety Precautions 1

Proper Disposal 2

Connecting Electricity 3

Adapter Plugs 3

Installation / Operation Instructions

Ownership 4

Required Tools 4

Uncrating 4

Locating & Installation of Leg/Castors 5

Pizza Prep Tables 6

Installing TSSU Hood Cover 6

Leveling Cabinet 7

Electrical Instructions 7

Wire Gauge Chart 8

Start-up 9

Cabinet Air-Flow 9

Shelving Install/Operation & Light Switch 10

Maintenance, Care & Cleaning

Cleaning Condenser Coil 11-12

Temperature Control Adjustment 13

Stainless Steel Equipment Care & Cleaning 14-15

Warranty (U.S.A. & Canada Only!) 16

INSTALLATION MANUAL FOR UNDERCOUNTERS,

WORKTOPS, SANDWICH/SALAD & PIZZA PREP

UNDERCOUNTERS, WORKTOPS,

SANDWICH/SALAD & PIZZA PREP

TRUE FOOD SERVICE EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366

(636)-240-2400 • FAX (636)272-2408 • INT’L FAX (636)272-7546 • (800)325-6152

Parts Department (800)424-TRUE • Parts Department FAX# (636)272-9471

CONGRATULATIONS!

You have just purchased the finest commercial

refrigerator available. You can expect many years of

trouble-free operation.

TPP-93D-6

TWT-93

TPP-67D-2

TUC-60D-4

TSSU-48-10

TUC-27G

*Spanish, German, and French versions included.

11/9/07-25K SB #897003

............ www.truemfg.com ............

True Food Service Equipment, Inc.

............ www.truemfg.com ............

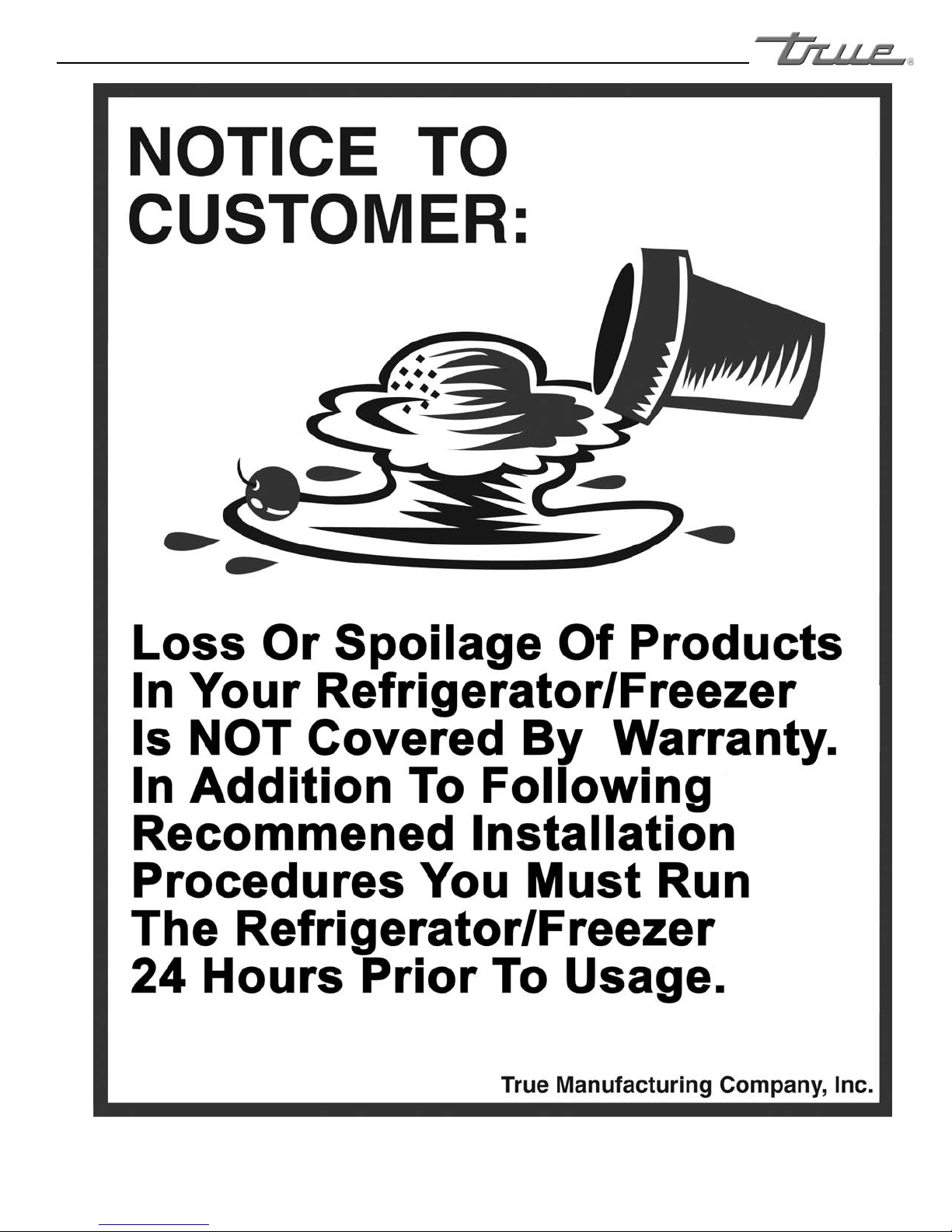

SAFETY INFORMATION

True Food Service Equipment, Inc.

This refrigerator must be properly installed and

located in accordance with the Installation

Instructions before it is used.

Do not allow children to climb, stand or hang

on the shelves in the refrigerator. They could

damage the refrigerator and seriously injure

themselves.

Do not touch the cold surfaces in the refrigera-

tor compartment when hands are damp or wet.

Skin may stick to these extremely cold surfaces.

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

Keep fingers out of the “pinch point” areas;

clearances between the doors and between the

doors and cabinet are necessarily small; be

careful closing doors when children are in the

area.

NOTE: We strongly recommend that any

servicing be preformed by a qualified

individual.

Unplug the refrigerator before cleaning and

making repairs.

Setting temperature controls to the 0 position

does not remove power.

WARNING!

Use this appliance for its intended purpose as described in

this Owner Manual.

How to Maintain Your Unit to

Receive the Most Efficient and

Successful Operation

You have selected one of the finest commercial refrigeration units made. It is

manufactured under strict quality controls with only the best quality materials

available. Your TRUE cooler when properly maintained will give you many

years of trouble-free service.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

............ www.truemfg.com ............

True Food Service Equipment, Inc.

SAFETY INFORMATION

PROPER DISPOSAL OF THE REFRIGERATOR

DANGER!

RISK OF CHILD ENTRAPMENT

USE OF EXTENSION CORDS

NEVER USE AN EXTENSION CORD! TRUE will not warranty any refrigerator that has been

connected to an extension cord.

Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are

still dangerous… even if they will sit for “just a few

days.” If you are getting rid of your old refrigerator,

please follow the instructions below to help pre-

vent accidents.

Before You Throw Away Your Old Refrigerator

or Freezer:

Take off the doors.

Leave the shelves in place so that children may

not easily climb inside.

Refrigerant Disposal

Your old refrigerator may have a cooling system

that uses “Ozone Depleting ” chemicals. If you are

throwing away your old refrigerator, make sure the

refrigerant is removed for proper disposal by a

qualified service technician. If you intentionally

release any refrigerants you can be subject to

fines and imprisonment under provisions of the

environmental regulations.

The power cord of this appliance is equipped with

a 3-prong (grounding) plug which mates with a

standard 3-prong (grounding) wall outlet to mini-

mize the possibility of electric shock hazard from

this appliance.

Have the wall outlet and circuit checked by a quali-

fied electrician to make sure the outlet is properly

grounded.

If the outlet is a standard 2-prong outlet, it is your

personal responsibility and obligation to have it

replaced with the properly grounded 3-prong wall

outlet.

The refrigerator should always be plugged into it’s

own individual electrical circuit, which has a volt-

age rating that matches the rating plate.

This provides the best performance and also pre-

vents overloading building wiring circuits which

could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the

power cord. Always grip plug firmly and pull

straight out from the outlet.

Repair or replace immediately all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end.

When removing the refrigerator away from the wall,

be careful not to roll over or damage the power

cord.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

For personal safety, this appliance must be properly grounded.

WARNING!

USE OF ADAPTER PLUGS

NEVER USE AN ADAPTER PLUG! Because of potential safety hazards under certain conditions, we

strongly recommend against the use of an adapter plug.

............ www.truemfg.com ............

SAFETY INFORMATION

True Food Service Equipment, Inc.

(North America Use Only!)

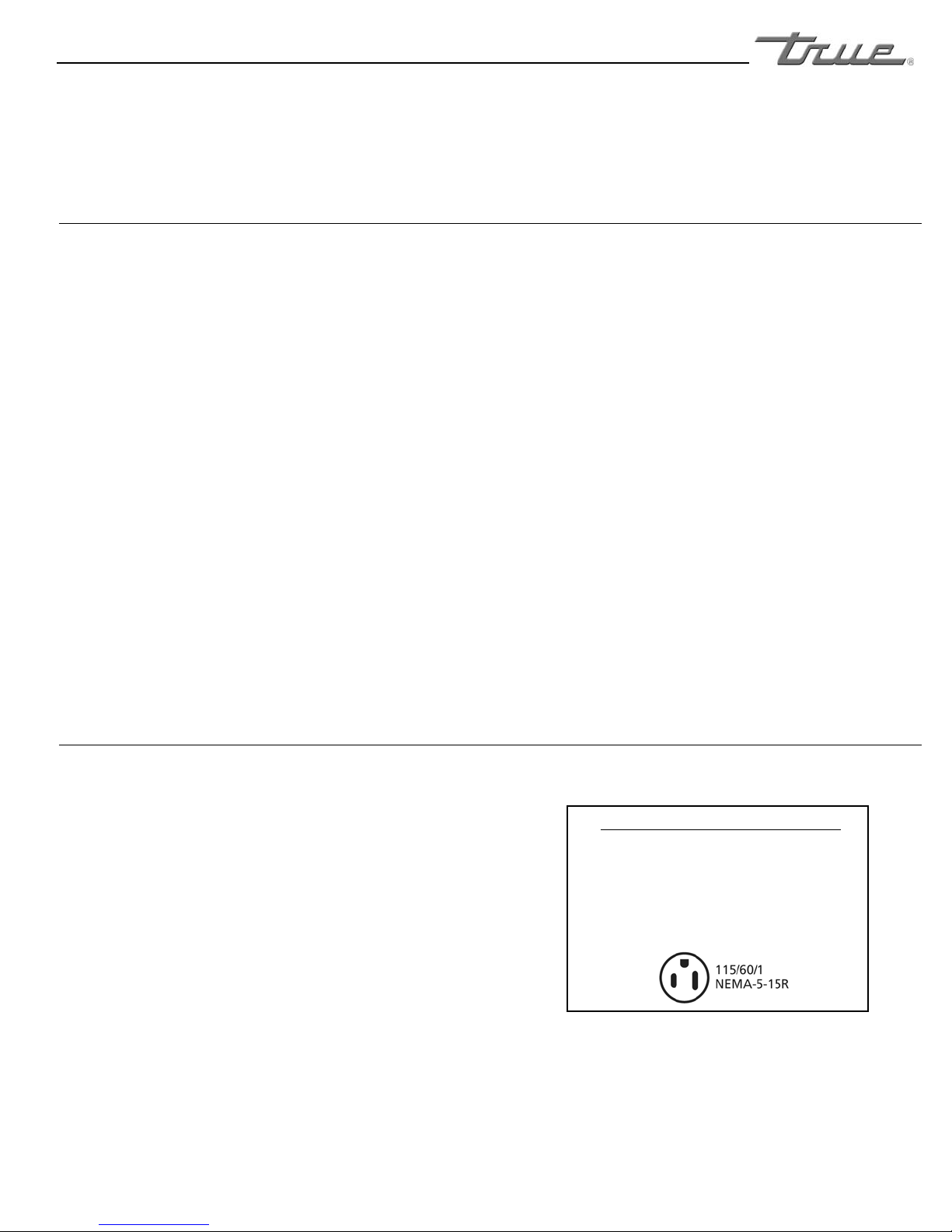

NEMA plugs

TRUE uses these types of plugs.

If you do not have the right outlet

have a certified electrician install

the correct power source.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

To insure that your unit works properly from the

first day, it must be installed properly. We highly

recommend a trained refrigeration mechanic and

electrician install your True equipment. The cost

of a professional installation is money well spent.

Before you start to install your True unit, carefully

inspect it for freight damage. If damage is discov-

ered, immediately file a claim with the delivery

freight carrier.

True is not responsible for damage incurred dur-

ing shipment.

OWNERSHIP

Adjustable Wrench

Phillips Head Screwdriver

Level

REQUIRED TOOLS

Step 1

The following procedure is recommended for

uncrating the unit:

A. Remove the outer packaging, (cardboard and

bubbles or styrofoam corners and clear plastic).

Inspect for concealed damage.Again, immediate-

ly file a claim with the freight carrier if there is

damage.

B. Move your unit as close to the final location as

possible before removing the wooden skid.

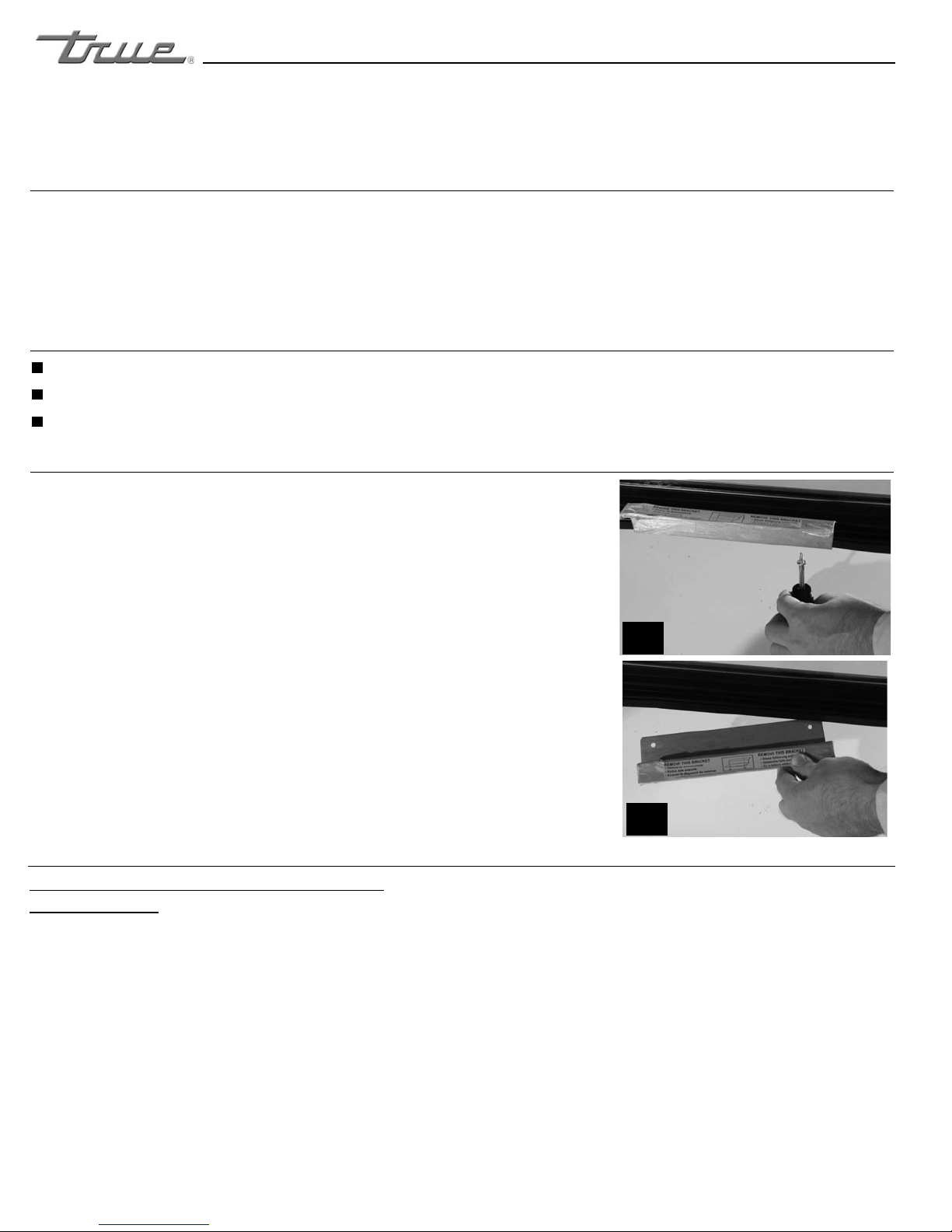

C. Remove door bracket on swing glass door

models (see image 1-2).

Note: Keys for coolers with door locks are located

in warranty packets.

UNCRATING

INSTALLATION / OPERATION INSTRUCTIONS

Glass Door Models Only.

REMOTE UNITS (This section applies to

remotes only!)

• Remote cabinets must be ordered as remote.

We do not recommend converting for a standard

self contained to remote system.

• All remote cabinets must be hard wired.

• No castors available.

• All remote cabinets come standard using 404A

refrigerant.

• All remote units come standard with expansion

valve, liquid line solenoid, heated condensate

pan, and defrost timer when applicable.

• Contact True Technical Service for BTU

requirements.

• No wiring necessary between cabinet and

condensing unit.

• All remote condensing units purchased from

True are 208/230 volts single phase.

If you have any questions regarding this sec-

tion, please call True at 1-(800)-325-6152.

............ www.truemfg.com ............

INSTALLATION / OPERATION INSTRUCTIONS

True Food Service Equipment, Inc.

Step 2

A. Place packing material behind cabinet as a

cushion. Carefully lay the unit on its back to

remove skid.

When lifting unit remember to

leave the cabinet upright for 24 hours before

plugging into power source.

B. Remove skid by unscrewing all base rail anchor

brackets. Place skid to the side.

C. Carefully lift cabinet upright.

LOCATING

Removing

skid from

bottom of

cabinet.

Thread castor into the under-

side of cabinet frame rail.

Thread leg into cabinet

bottom frame rail.

The end of the leg is

adjustable to easy leveling.

Use the tool provided to

tighten the castor into place.

For leveling, insert the shim

between the castor and frame rail.

1234

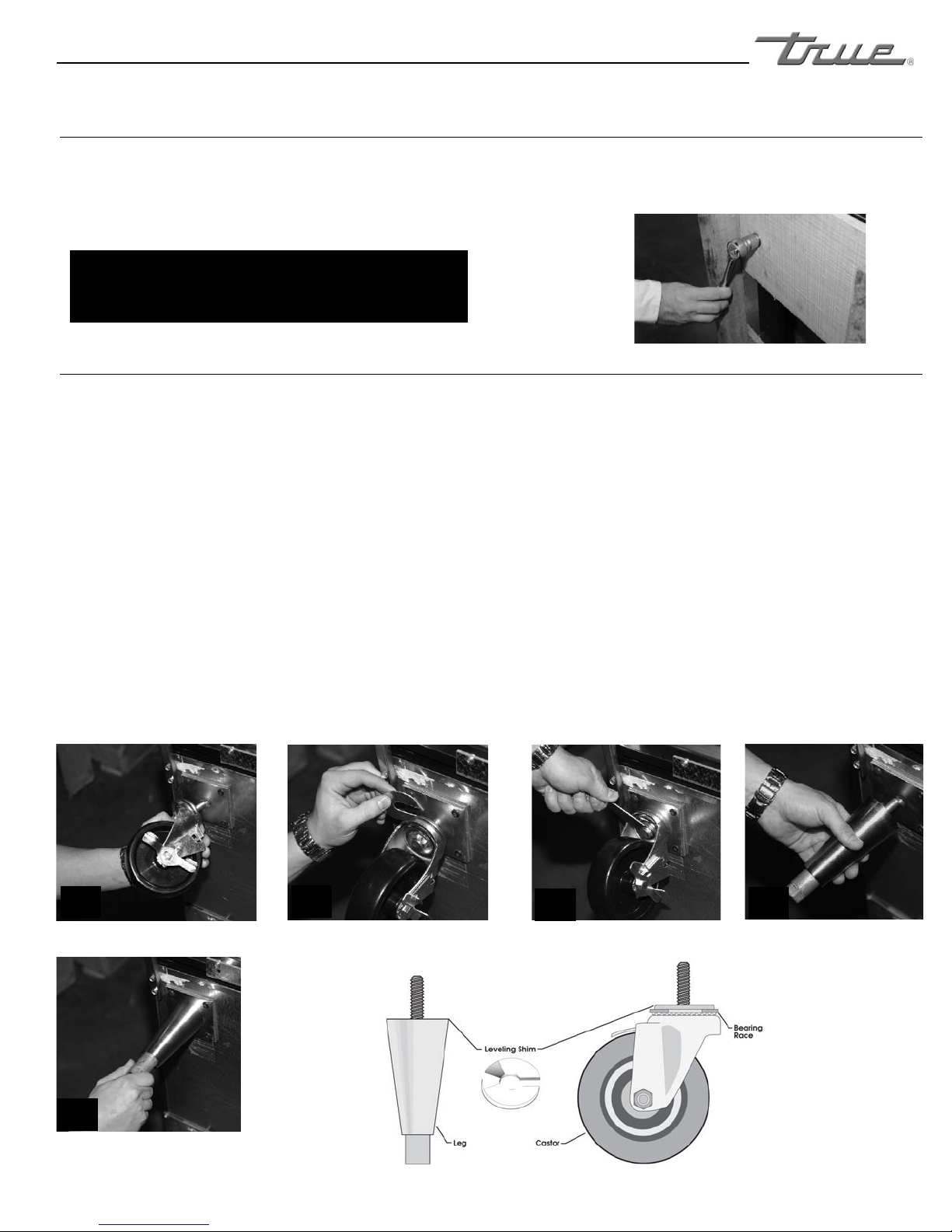

INSTALLATION OF LEGS AND CASTORS

Important Safeguard for installation of leg/castor (Images 1-5 demonstrate procedure)

Step 3

Securing Castors and Legs

To obtain maximum strength and stability of the

unit, it is important that you make sure each castor

is secure. Legs are hand-tightened securely against

the lower rail assembly. The bearing race on the

castor of the top edge of the leg must make firm

contact with the rail.

Unit leveling

Four leveling shims have been provided for level-

ing castored units positioned on uneven floors.

Shims must be positioned between rail end and

bearing race. True requires a four shim limit to

each individual castor.

A. Turn the bearing race counter-clockwise until

the cabinet is level. Level front to back and side to

side. (diagonally)

B. Install the desired number of shims, making sure

the slot of the shim is in contact with the threaded

stem of the castor.

C. If more than one shim is used, turn the slot at a

90° angle so they are not in line.

D. Turn the bearing race clockwise to tighten and

secure the castor by tightening the anchoring bolt

with a 3/4 inch open-end wrench or the tool

provided.

CAUTION

To avoid damage to lower rail assembly,

slowly raise unit to upright position.

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

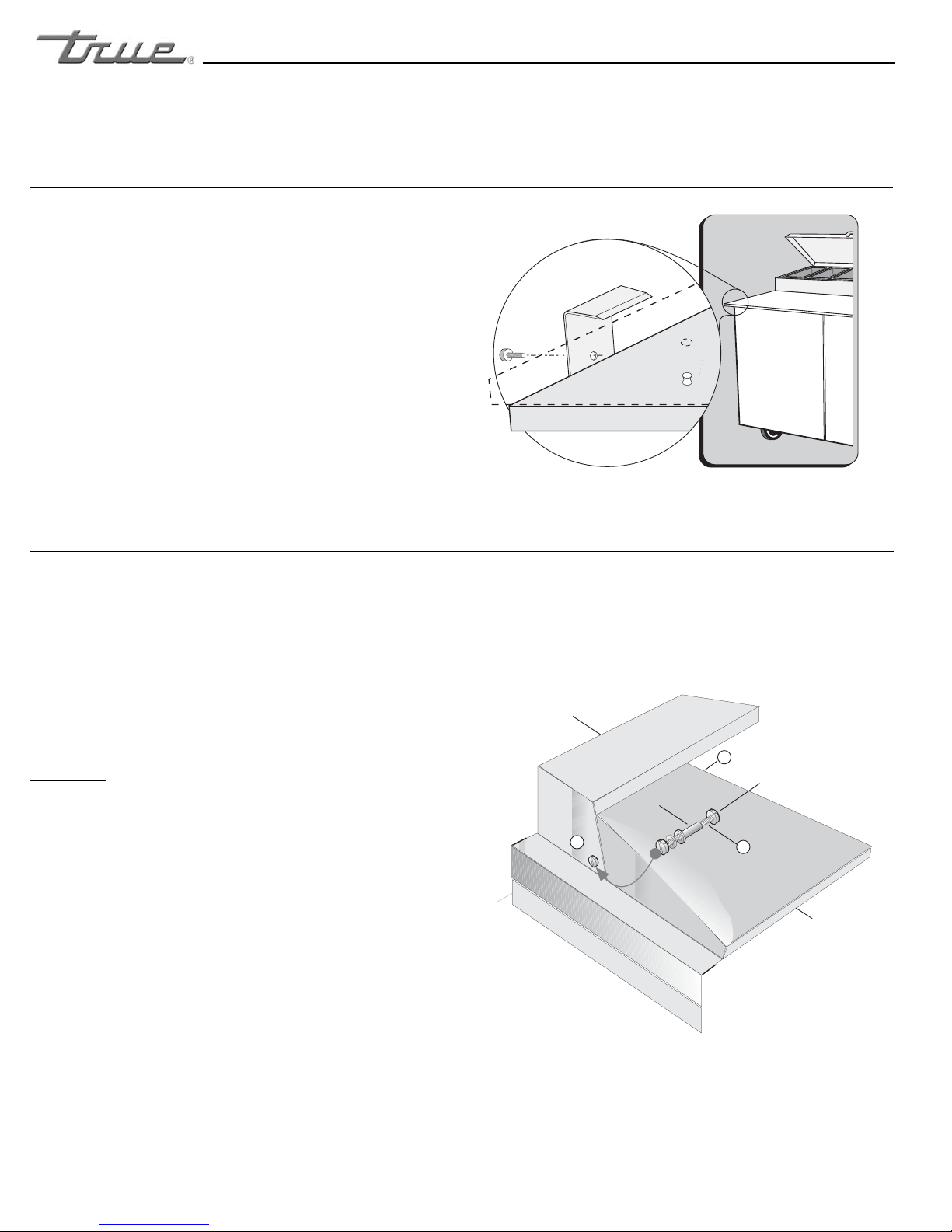

PIZZA PREP TABLES

Step 4

A. Remove rear grill and thread electric cord

through grommet in grill.

B. Replace grill.

C. Align cutting board with rivnuts and attach

retainer clip to table top (figure 1).

D. Install the lid brackets. Note that there is a

specifically designed left, center (if applicable), and

right bracket.

CUTTING BOARD

RETAINER

CLIP

TABLE TOP

Figure 1.

ANCHORING THE TSSU HOOD COVER

Step 5

TSSU Hood Installation Instruction

A. Remove rear grill and thread electric cord This is

True’s recommended procedure for installing the

fasteners required to connect the sandwich salad

hood cover to the hood.

See callout #1 on the illustration.

Assembly

1. Locate the hood cover, (packaged within the

cardboard container on top of the salad sandwich

unit), and position under the hood.

2. Remove the slotted thumb screw from hood by

backing out the factory installed, slotted thumb

screw. See diagram of slotted screw and callout #2.

3. Place hood cover into final position, (beneath

hood), align hood hinge pin with anchor hole on

hood cover and re-attach fastener by replacing

thumb screw into hinge pin.

4. Repeat procedure for both ends of hood.

FASTENER ASSEMBLY

HOOD COVER

HINGE PIN

HOOD

SLOTTED THUMB SCREW

............ www.truemfg.com ............

True Food Service Equipment, Inc.

Step 7

A. Before your new unit is connected to a power

supply, check the incoming voltage with a volt-

meter. If anything less than 100% of the rated volt-

age for operation is noted, correct immediately.

B. All units are equipped with a 7 ft. (2.1m) service

cord, and must be powered at proper operating

voltage at all times. Refer to cabinet data plate for

this voltage.

True requires that a sole use circuit be dedicated

for the unit. Failure to do so voids warranty.

WARNING

Compressor warranties are void if compressor

burns out due to low voltage.

WARNING

Power supply cord ground should not be

removed!

NOTE

To reference wiring diagram - Remove front lou-

vered grill, wiring diagram is positioned on the

inside cabinet wall.

ELECTRICAL INSTRUCTIONS

Step 6

A. Set unit in its final location. Be sure there is ade-

quate ventilation in your room. Under extreme heat

conditions, (100°F+, 38°C+), you may want to install

an exhaust fan.

Warning

Warranty is void if ventilation is insufficient.

B. Proper leveling of your True cooler is critical to

operating success (for non-mobile models). Effective

condensate removal and door operation will be

effected by leveling.

C. The cooler should be leveled from inside the

cabinet. Place a level on the inside floor of the unit

front to back and side to side.

D. Ensure that the drain hose or hoses are posi-

tioned in the pan.

E. Free plug and cord from inside the lower rear of

the cooler (do not plug in).

F. The unit should be placed close enough to the

electrical supply so that extension cords are never

used.

Warning

Compressor warranties are void if the unit is more

than 7 ft. (2.1m) from plug-in connection. TRUE

will not warranty any units that are connected to

an extension cord.

LEVELING

INSTALLATION / OPERATION INSTRUCTIONS

............ www.truemfg.com ............

True Food Service Equipment, Inc.

INSTALLATION / OPERATION INSTRUCTIONS

Wire Gauge for 2% Voltage Drop in Supply Circuits

115 Volt Distance In Feet To Center of Load

Amps 20 30 40 50 60 70 80 90 100 120 140 160

2 141414141414141414141414

3 141414141414141414141412

4 141414141414141414121212

5 141414141414141212121010

6 141414141414121212101010

7 1414141414121212101010 8

8 14141414121212101010 8 8

9 141414121212101010 8 8 8

10 14 14 14 12 12 10 10 10 10 8 8 8

12 14 14 12 12 10 10 10 8 8 8 8 6

14 14 14 12 10 10 10 8 8 8 6 6 6

16 14 12 12 10 10 8 8 8 8 6 6 6

18 14 12 10 10 8 8 8 8 8 8 8 5

20 14 12 10 10 8 8 8 6 6 6 5 5

25 12 10 10 8 8 6 6 6 6 5 4 4

30 12 10 8 8 6 6 6 6 5 4 4 3

35 10 10 8 6 6 6 5 5 4 4 3 2

40 1088665544322

45 1086665443321

50 1086654433211

Wire Gauge for 2% Voltage Drop in Supply Circuits

230 Volts Distance In Feet To Center of Load

Amps 20 30 40 50 60 70 80 90 100 120 140 160

5 141414141414141414141414

6 141414141414141414141412

7 141414141414141414141212

8 141414141414141414121212

9 141414141414141412121210

10 14 14 14 14 14 14 14 12 12 12 10 10

12 14 14 14 14 14 14 12 12 12 10 10 10

14 14 14 14 14 14 12 12 12 10 10 10 8

16 14 14 14 14 12 12 12 10 10 10 8 8

18 14 14 14 12 12 12 10 10 10 8 8 8

20 14 14 14 12 10 10 10 10 10 8 8 8

25 14 14 12 12 10 10 10 10 8 8 6 6

30 14 12 12 10 10 10 8 8 8 6 6 6

35 14 12 10 10 10 8 8 8 8 6 6 5

40 14 12 10 10 8 8 8 6 6 6 5 5

50 12 10 10 8 6 6 6 6 6 5 4 4

60 12 10 8 6 6 6 6 6 5 4 4 3

70 10 10 8 6 6 6 5 5 4 4 2 2

80 1088665544322

90 1086655443311

100 1086654433211

CONDUCTORS AND CIRCUITS

Otros manuales para TUC-27G

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Mesa de preparación de alimentos de True

True

True TSSU-60-15M-B Manual de usuario

True

True TSSU-60-24M-B-ST Manual de usuario

True

True TPP-60D-2 Manual de usuario

True

True TPP-119 Manual de usuario

True

True TSSU-72-18-ADA Manual de usuario

True

True TSSU-60-16D-4 Manual de usuario

True

True TSSU-48-8 Manual de usuario

True

True TSSU-72-12M-B Manual de usuario

True

True TPP-67D-4 Manual de usuario

True

True TSSU-36-8 Manual de usuario

True

True TSSU-72-15M-B Manual de usuario

True

True TSSU-36-8 Manual de usuario

True

True TSSU-36-12M-B Manual de usuario

True

True TPP-44 Manual de usuario

True

True TPP-44D-2 Manual de usuario

True

True TSSU-27-12M-C Manual de usuario

True

True TSSU-72-12 Manual de usuario

True

True TSSU-48-12 Manual de usuario

True

True TSSU-48-10 Manual de usuario

True

True TSSU-60-8 Manual de usuario

True

True TSSU-60-24M-B-ST Manual de usuario

True

True TSSU-72-30M-B-DS-ST Manual de usuario

True

True TSSU-72-10 Manual de usuario

True

True TSSU-48-12D-4 Manual de usuario

Manuales populares de Mesa de preparación de alimentos de otras marcas

Falcon

Falcon HS3 Instrucciones de instalación

Randell

Randell 33330 Manual de usuario

Master Bilt

Master Bilt PT44 Instrucciones de instalación y funcionamiento

ROCAM

ROCAM TORO 2/1 AP Manual de usuario

Silver King

Silver King SKP4818 Guía de inicio rápido

Delfield

Delfield 186114 PTB Manual de usuario

BOLERO

BOLERO U430 Manual de usuario

Matt Blatt

Matt Blatt CAPA MBCAPADTBWA Manual de usuario

Delfield

Delfield 18648PTL Manual de usuario

Randell

Randell 32330 Manual de usuario

Bartscher

Bartscher Saladette 900T2 Instrucciones de operación

Randell

Randell 9301-7 Manual de usuario

Randell

Randell 8000D-290 Series Manual de usuario

lassele

lassele LCB-53 Manual de usuario

Silver King

Silver King SKP6024 Guía de inicio rápido

Delfield

Delfield F18MR31A Manual de usuario

ACADEMY

ACADEMY FSAAPT2105 Manual del propietario

Zanussi

Zanussi BHHPTB08L 865307 Manual de usuario
