Tripp Lite SmartPro SMART1500RMXL2Ua Manual de usuario

Owner’s Manual

Warranty

Registration

chance to win a FREE Tripp Lite

product! www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Important Safety Instructions 2

Mounting 4

Quick Installation 6

Optional Installation 7

Basic Operation 9

Storage and Service 17

Battery Replacement 18

Warranty Registration 20

Español 21

Français 41

SmartPro®2U Rackmount

Intelligent, Line-Interactive UPS Systems

120V Sine Wave Output • 1,000VA—1,500VA

SMART1500RMXL2UA

(AG-0006) SMART1500RM2U

(AG-0007) SMART1000RMXL2U

(AG-0011)

Not suitable for mobile applications.

201205186-93-3148.indb 1 6/19/2012 1:14:56 PM

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation, operation

and storage of this product. Failure to heed these warnings may affect the warranty.

UPS Location Warnings

• Use caution when lifting the UPS. Because of the considerable weight of all rackmount UPS

systems, at least two people should assist in lifting and installing them.

• InstalltheUPSindoors,awayfromexcessmoistureorheat,dustordirectsunlight.

• Forbestperformance,theambienttemperatureneartheUPSshouldbebetween0°Cand40°C

(between32°Fand104°F).

• LeaveadequatespacearoundallsidesoftheUPSforproperventilation.Donotobstructitsvents

or fan openings.

• WhenmountingtheUPSsysteminatowerorientation,makesuretheLCDScreenpanelisatthe

topoftheUPS,notatthebottom.

• Donotmountunitwithitsfrontorrearpanelfacingdown(atanyangle).Mountinginthismanner

will seriously inhibit the unit’s internal cooling, eventually causing product damage not covered

under warranty.

UPS Connection Warnings

• TheUPScontainsitsownenergysource(battery).Theoutputterminalsmaybeliveevenwhenthe

UPSisnotconnectedtoanACsupply.

• ConnecttheUPStoaproperlygroundedACpoweroutlet.DonotmodifytheUPS’spluginaway

thatwouldeliminatetheUPS’sconnectiontoground.DonotuseadaptersthateliminatetheUPS’s

connection to ground.

• DonotplugtheUPSintoitself;thiswilldamagetheUPSandvoidyourwarranty.

• If you are connecting the UPS to a motor-powered AC generator, the generator must provide

filtered,frequency-regulatedcomputer-gradeoutput.ConnectingtheUPStoageneratorwillvoid

itsUltimateLifetimeInsurance.

Equipment Connection Warnings

• Useofthisequipmentinlifesupportapplicationswherefailureofthisequipmentcanreasonably

beexpectedtocausethefailureofthelifesupportequipmentortosignificantlyaffectitssafety

oreffectivenessisnotrecommended.Donotusethisequipmentinthepresenceofaflammable

anestheticmixturewithair,oxygenornitrousoxide.

• DonotconnectsurgesuppressorsorextensioncordstotheoutputoftheUPS.Thismightdamage

theUPSandmayaffectthesurgesuppressorandUPSwarranties.

201205186-93-3148.indb 2 6/19/2012 1:14:56 PM

Battery Warnings

• Batteriescanpresentariskofelectricalshockandburnfromhighshort-circuitcurrent.Observe

properprecautions.Donotdisposeofthebatteriesinafire.DonotopentheUPSorbatteries.

Donotshortorbridgethebatteryterminalswithanyobject.UnplugandturnofftheUPSbefore

performingbatteryreplacement.Usetoolswithinsulatedhandles.Therearenouser-serviceable

partsinsidetheUPS.Batteryreplacementshouldbeperformedonlybyauthorizedservicepersonnel

using the same number and type of batteries (Sealed Lead-Acid). The batteries are recyclable.

Refertoyourlocalcodesfordisposalrequirementsorvisitwww.tripplite.com/UPSbatteryrecycling

forrecyclinginformation.TrippLiteoffersacompletelineofUPSSystemReplacementBattery

Cartridges(R.B.C.).Visit Tripp Lite onthe Webat www.tripplite.com/support/battery/index.cfmto

locatethespecificreplacementbatteryforyourUPS.TheRBCTypecanalsobefoundonthelabel

affixedtotheBatteryRetentionPlate.

• Duringhot-swapbatteryreplacement,theUPSwillnotprovidebackuppowerintheeventofa

blackout or other power interruptions.

• DonotoperatetheUPSwithoutbatteries.

External Battery Connection Warnings

• When adding external battery packs to select models with external battery pack connectors,

connect only Tripp Lite-recommended battery packs of the correct voltage and type. Do

not connect or disconnect battery packs when the UPS is operating on battery power.

Visitwww.tripplite.com/support/battery/index.cfmtolocatethesupportedbatterytype(s)foryourUPS.

Important Safety Instructions

201205186-93-3148.indb 3 6/19/2012 1:14:56 PM

Mounting (Rack)

Mountyourequipmentineithera2-postor4-postrackorrackenclosure.Theusermustdetermine

thefitnessofhardwareandproceduresbeforemounting.Ifhardwareandproceduresarenotsuitable

for your application, contact the manufacturer of your rack or rack enclosure. The procedures

described in this manual are for common rack and rack enclosure types and may not be appropriate

for all applications.

Note: The illustrations may differ from your model.

4-Post Mounting

1The included plastic pegs Awill temporarily

support the empty rackmount shelves B

while you install the permanent mounting

hardware.Insertapegnearthecenterofthe

front and rear bracket of each shelf as

shown. (Each front bracket has 6 holes and

each rear bracket has 3 holes.) The pegs will

snap into place.

 Afterinstallingthepegs,expandeachshelf

to match the depth of your rack rails. The

pegswillfitthroughthesquareholesinthe

rack rails to support the shelves. Refer to the

rack unit labels to confirm that the shelves

are level in all directions. Note: The support

ledge of each shelf must face inward.

2Secure the shelves Bto the mounting rails

permanently using the included screws and

cup washers Cas shown. Place the cup

washer between the screw and the rack so

that the screw enters the wider opening of

the cup washer first.

Place 4 screws total at the front and 4

screws total at the back.

Tighten all screws before proceeding.

WARNING: Do not attempt to install your

equipment until you have inserted and

tightened the required screws. The

plastic pegs will not support the weight

of your equipment.

3 Attachyourequipment’smountingbracketsto

the forward mounting holes of the cabinet using

the hardware included with your equipment.

The mounting bracket “ears” should face

forward. (Some equipment may have

pre-installed or integral mounting brackets.)

4 With theaid of anassistant (ifnecessary),

lift your equipment and slide it into the

shelves. Attach the equipment mounting

brackets to the forward mounting rails with

user-supplied screws and washers D.

Tighten all screws securely.

201205186-93-3148.indb 4 6/19/2012 1:15:01 PM

Mounting (Rack) continued

2-Post Mounting/Wall Mounting

2-postmountingrequiresaTrippLite2-PostRackmountInstallationKit(model:2POSTRMKITWM,

sold separately).

WallmountingrequiresaTrippLiteWallMountKit9(2POSTRMKITWM,soldseparately).

Mounting (Tower)

WARNING: When mounting the UPS system in a tower or wall-mount orientation, make sure

the LCD Screen panel is at the top of the UPS, not at the bottom.

Note: To mount the UPS in an upright (tower) position, 2-9USTAND is required (sold separately).

Rotate the LCD Screen panel for easy viewing

whiletheUPSistowermounted.Insertasmall

screwdriver, or other tool, in the slots on either

side of the panel. Pop the panel out, rotate it

and pop the panel back in place.

201205186-93-3148.indb 5 6/19/2012 1:15:02 PM

Quick Installation

1Plug the UPS into an outlet on

a dedicated circuit.

Note: After you plug the UPS into a live AC

outlet, the UPS (in “Standby” mode) will

automatically charge its batteries, but will

not supply power to its outlets until it is

turned ON.

2Plug your equipment into

the UPS.*

* Your UPS is designed to support only electronic

equipment. You will overload the UPS if the total

VA ratings for all the equipment you connect

exceeds the UPS’s Output Capacity. To find your

equipment’s VA ratings, look on its nameplates.

If the equipment is listed in amps, multiply the

number of amps by 120 to determine VA.

(Example: 1 amp × 120 = 120 VA) If you are

unsure if you have overloaded the UPS’s outlets,

see LOAD icon description in LCD Interface

section underBasicOperation.

3Turn the UPS ON.

Press and hold the button Afor one

second. The alarm will beep once briefly.

Note: UPS system will function properly upon initial

startup, however, maximum runtime and a

successful self-test will only be accessible after it

has been charged for 24 hours.

201205186-93-3148.indb 6 6/19/2012 1:15:03 PM

USB RS232 Model: SMART1500RMXL2UA

USB Model: SMART1500RMXL2UA

RS232USB Model: SMART1500RMXL2UA

4-5

Optional Installation

These connections are optional. Your UPS will function properly without these connections.

1USB and RS-232 Serial

Communications

UsetheincludedUSBcable(see 1A)orDB9

serial cable (see 1B) to connect the

communication port on your computer to the

communicationportofyourUPS.Installon

your computer the Tripp Lite PowerAlert

Software appropriate to your computer’s

operating system.

2EPO Port Connection

This optional feature is only for those

applications which require connection to a

facility’sEmergencyPowerOff(EPO)circuit.

WhentheUPSisconnectedtothiscircuit,it

enables emergency shutdown of the UPS’s

inverter.

Usingthe cableprovided, connect the EPO

portofyourUPS(see 2A) to a user-supplied

normally closed or normally open switch

according to the circuit diagram (see 2B).

The EPO port is not a phone line surge

suppressor;donotconnectaphonelineto

this port.

201205186-93-3148.indb 7 6/19/2012 1:15:06 PM

Optional Installation continued

3External Battery Connection

(Select Models)

Your UPS comes with a robust internal

battery system; external batteries are

needed only to extend runtime. Adding

externalbatterieswillincreaserechargetime

as well as runtime. This UPS supports

BP36V15-2U (limit 1) and BP36V42-3U

(unlimited).

The illustration (see 3)showsthelocationofyourUPS’sExternalBatteryConnector Awhere

you will insert the battery pack cable. Complete installation instructions for your battery pack

appearinthebatterypackowner’smanual.Makesurethatcablesarefullyinsertedintotheir

connectors.Smallsparksmayresultduringbatteryconnection;thisisnormal.

DonotconnectordisconnectbatterypackswhentheUPSisrunningonbatterypower.

CAUTION! When an external battery pack is connected, make sure the AC load does not

exceed the nameplate rating. Select models are derated when an external battery pack

is connected. See UPS nameplate label for derating details.

WhenconnectingexternalbatteriestotheUPS,gototheTrippLitewebsiteatwww.tripplite.com/

en/support/bpconfig/index.cfmtodownloadtheExternalBatteryPackUtilitysoftwaretoconfigure

yourUPSforexternalbatterysupport.

Model Name

Wattage with Internal

Batteries Only

Wattage with External

Batteries Attached

SMART1500RMXL2UA 1350W 1200W

SMART1500RM2U 1350W N/A

SMART1000RMXL2U 900W 800W

Note:

1. The runtime will automatically recalculate once the External Battery Pack Tool process is complete.

2. If the setup will no longer include external batteries, the UPS can be configured to work without external

batteries via the LCD Screen. See External Battery Settings Control section under Basic Operation for details.

3. If external battery packs are removed, the UPS must be reset to “NO EXTERNAL BATTERY” via the LCD

interface or the External Battery Configuration Program available on the Tripp Lite website. Failure to do so

may result in damage to the internal batteries due to over-charging.

201205186-93-3148.indb 8 6/19/2012 1:15:06 PM

Note: This LCD image is shown

with all icons illuminated. Under

normal conditions, only select

icons will be lit.

Basic Operation

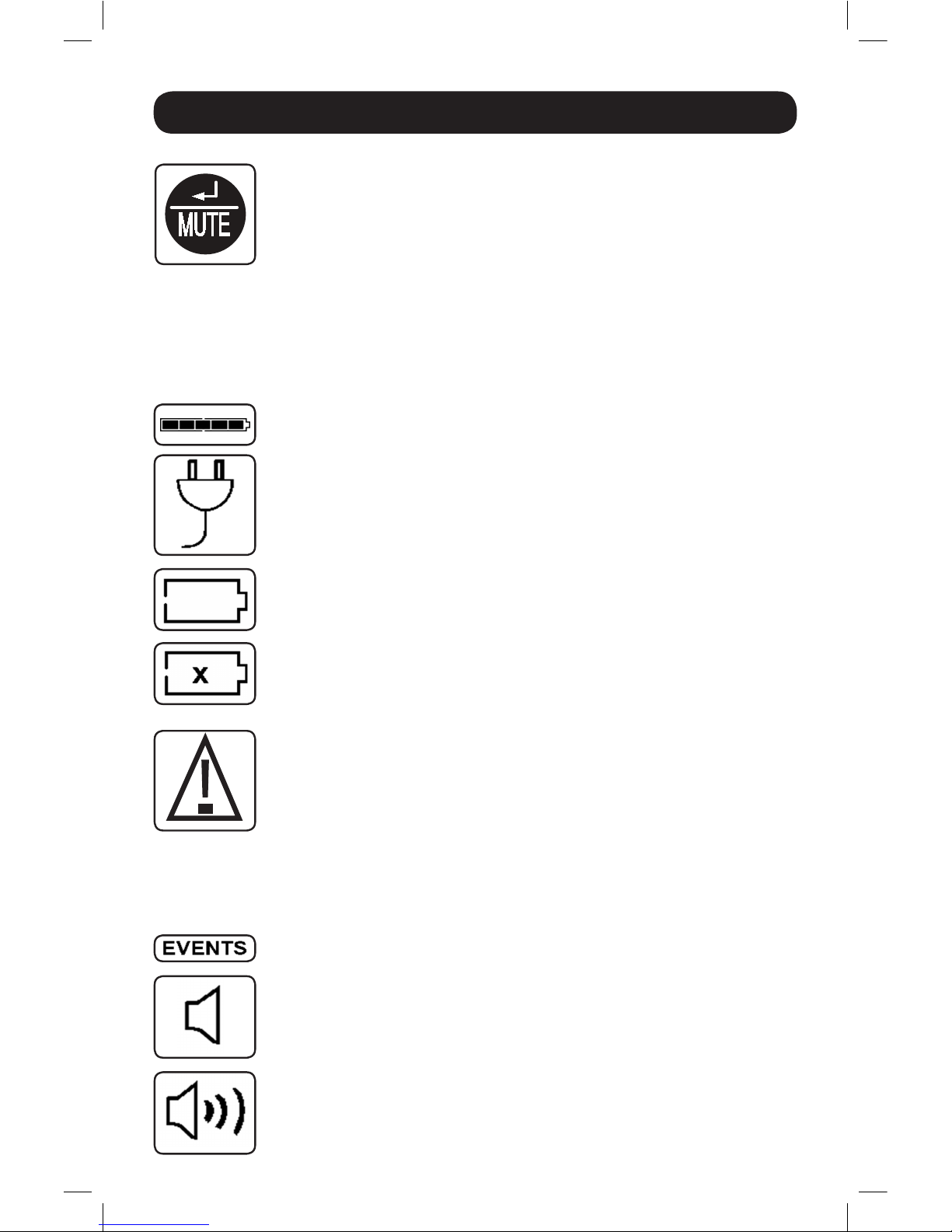

LCD Interface

3-Digit Display:Thisdisplayisgenerallyusedtoshowvaluesforagiven“Display”

or “Control” screen.

“ON/OFF” Button

• To turn the UPS ON:AfteryouplugtheUPSintoaliveACoutlet,theUPS(in

“Standby” mode) will automatically charge its batteries, but will not supply

powertoitsoutletsuntilitisturnedON.WiththeUPSpluggedintoaliveAC

walloutlet,pressandholdthe“ON/OFF”buttonforonesecond.*TheUPSwill

beeponcetoindicateONstatus.Releasethebutton.

• To cold-start the UPS:Ifutilitypowerisabsent,youcan“cold-start”theUPS

(i.e., turn it on and supply power for a limited time from its batteries) by pressing

andholdingthe“ON/OFF”buttonforonesecond.*TheUPSwillbeeponceto

indicateONstatus.Releasethebutton.

• To turn the UPS OFF:WiththeUPSONandreceivingutilitypower,pressand

holdthe“ON/OFF”buttonfor2.5seconds.*TheUPSwillbeeponcetoindicate

OFF status. Then unplug the UPS from the wall outlet. The UPS will be

completely off.

* If the user unintentionally presses the ON/OFF button, the OFF function can be temporarily

canceled by continuing to hold the ON/OFF button until the UPS beeps and then, without

releasing it, momentarily press either the MODE button or the ENTER/MUTE button. Once

both buttons are released, the UPS will remain ON.

“MODE” Button

To enable viewing of power displays and control menu options, tap this button. See

“DisplayPowerConditions”&“ControlMenuOptions”fordetails.

• Can be used in conjunction with the ON/OFF button to cancel the “OFF”

function.See“ON/OFFButton”instructionsabove.

• CanbeusedinconjunctionwiththeENTER/MUTEbuttontorestoretheLCDto

FactoryMode.See“ControlMenuOptions.”

201205186-93-3148.indb 9 6/19/2012 1:15:07 PM

Basic Operation continued

“ENTER/MUTE” Button

To toggle settings options while viewing a control menu option, tap this button.

TheUPS power failurealarm can alsobe temporarilysilencedby tappingthis

button. Once silenced, an alarm will automatically re-sound to indicate low

batteryconditionsandcannolongerbesilenced.*

•Can be used in conjunction with the ON/OFF button to cancel the “OFF”

function.See“ON/OFFButton”instructionsabove.

•CanbeusedinconjunctionwiththeENTER/MUTEbuttontorestoretheLCD

toFactoryMode.See“ON/OFFButton”instructions.

* Note: Alarm-free silent operation is available by setting the alarm to disable

(see CONTROL MENU OPTIONS / ALARM ENABLE-DISABLE section).

Battery Capacity:Thiswillbeactiveinall“Display”modes,butisnotshownin

“Control” modes.

AC Input:ThisindicatesthattheunitisrunninginLineModeandsupplyingAC

powertoequipmentconnectedtotheoutput.

Battery Input:ThiswillflashtoindicatethattheUPSisnotreceivingACinput

andisrunningininvertermode.TheBatteryInputiconisalsousedinconjunction

withtheEVENTSicontoindicateOnBatteryevents.

Replace Battery Icon: In the event that UPS batteries expire and require

replacement, this icon and the warning icon will flash. This icon will also flash

after a failed UPS self-test (see the BASIC OPERATION / CONTROL MENU

OPTIONS/SELF-TESTsectionformoreinformation).

Warning: This will flash to let the user know that there’s a warning condition and

immediateactionmustbetaken:

1.For Replace Battery: Replace Battery and Warning icons flash during any

normal“Display”mode.

2.ForOverload:Load,WarningandLoadPercentageiconswillflash,thealarm

willsoundrepeatedlyandtheLCDscreenwillswitchfromtheuser-selected

displaymodetoLoadPercentage.OverloadindicationisavailableinbothAC

andbatterymodes.CAUTION!Anyoverloadconditionthatisnotcorrectedby

theuserimmediatelymaycausetheUPStoshutdownandceasesupplying

power in the event of a blackout or brownout.

EVENTS Icon: Displayed in conjunction with the AVR icon and BATT icons to

indicatethenumberofOnBatteryorAVReventsthathaveoccurred.

Alarm Off:Indicatesthatthealarmisdisabled.

Alarm On: Indicatesthatthealarmisenabled.

201205186-93-3148.indb 10 6/19/2012 1:15:08 PM

Otros manuales para SmartPro SMART1500RMXL2Ua

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite ECO550UPS Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL2U Manual de usuario

Tripp Lite

Tripp Lite LCDT Series Manual de usuario

Tripp Lite

Tripp Lite SMART1500LCD Manual de usuario

Tripp Lite

Tripp Lite Line-Interactive UPS System SMART750USB Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U Manual de usuario

Tripp Lite

Tripp Lite 500 VA Manual de usuario

Tripp Lite

Tripp Lite OMNIPOWER PRO550 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline S3MX Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manual de usuario

Tripp Lite

Tripp Lite OmniSmart OMNISMART1400 Manual de usuario

Tripp Lite

Tripp Lite SmartPro UPS System SMART550USB Manual de usuario

Tripp Lite

Tripp Lite OmniSmart OMNISMART500 Manual de usuario

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU6000RT3UHV Manual de usuario

Tripp Lite

Tripp Lite SmartPro VS SMART2200VS Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART750RMXL2U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU20K3/3XR5 Manual de usuario

Tripp Lite

Tripp Lite SmartPro Series Manual de usuario

Tripp Lite

Tripp Lite SMART2200RM2UN Guía de configuración

Tripp Lite

Tripp Lite OMNISMART OMNIVS500 Manual de usuario

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1500XL Guía de configuración

Tripp Lite

Tripp Lite SMART1200LCD Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
