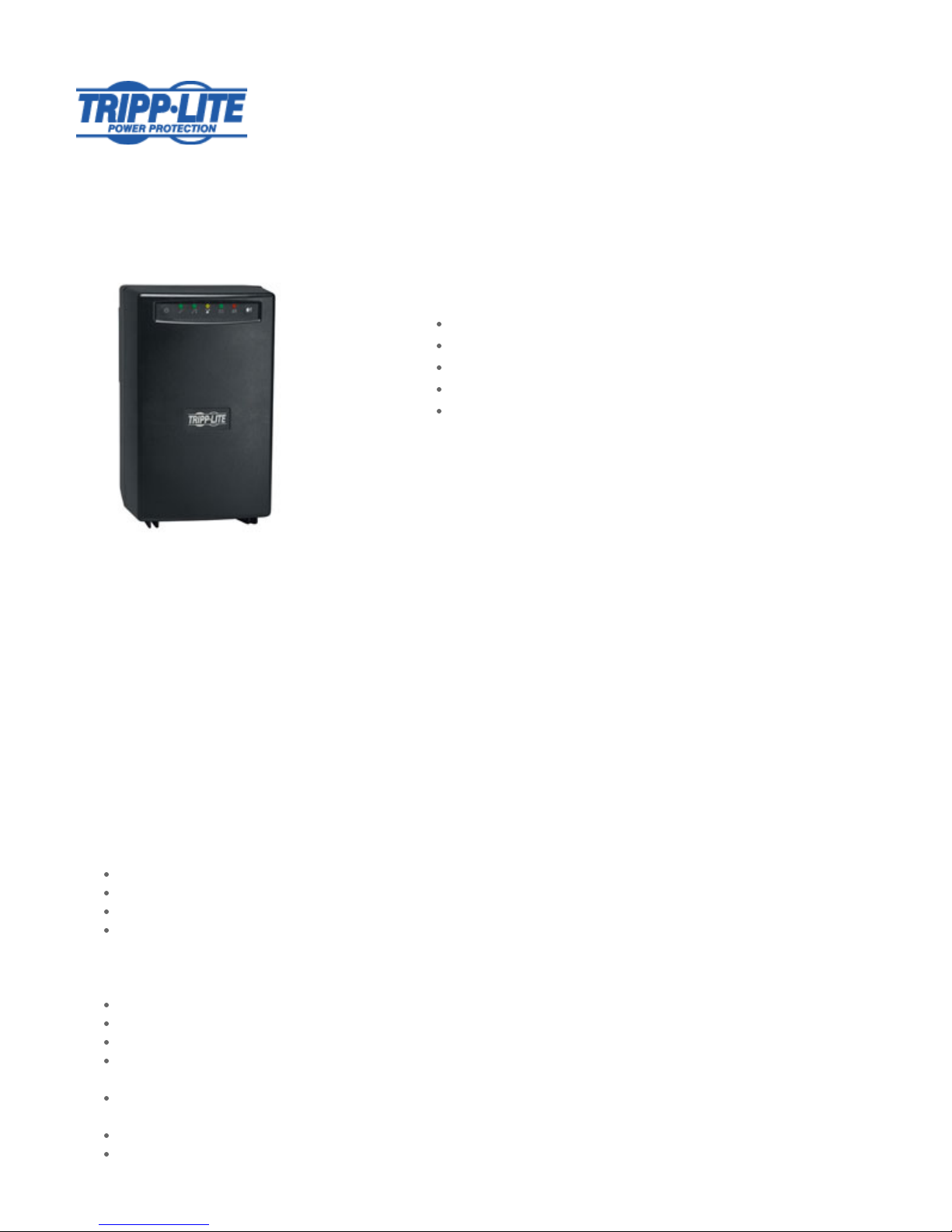

Tripp Lite SM1500NAFTA Manual de usuario
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: SM1500NAFTA
Smart Pro Line Interactive Tower UPS System - NAFTA assembled version of the SMART1500
Highlights
1500VA / 1.5kVA line interactive tower UPS
Maintains 120V nominal output over an input range of 75 to 147V
Network communications supported via USB port, serial port
Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V)
$250,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only)
Description
Tripp Lite's SM1500NAFTA intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment
from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during
power failures. 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types, including
the support of multiple network workstations. Includes a total of 6 outlets, 1 of which can be individually powered on and off via software interface to
selectively reboot remote equipment or to automatically shed less significant loads to extend battery runtime for more critical equipment. Supports
remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and
unattended shutdown software with complete cabling. Supports SNMP with optional SNMPWEBSOLO external adapter. Built-in audible alarm and 5
front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with optional
UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from
transient surges. Attractive, small-footprint tower housing uses less than 66 square inches of floor or desktop space. $250,000 connected equipment
insurance (USA and Canada Only).
Package Includes
SM1500NAFTA UPS System
USB and DB9 monitoring cables
PowerAlert unattended shutdown and UPS/Power monitoring software
Instruction manual with warranty information
Features
1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types
Built-in voltage regulation and battery support, plus complete AC suppression prevents equipment damage, data loss and downtime
Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an
input voltage range of 75-147V
Includes a total of 6 NEMA5-15R outlets, 1 of which can be individually powered on and off via software interface to selectively reboot
remote equipment or shed less significant loads to extend battery runtime for more critical equipment
Includes 1 USB and 1 DB9 monitoring port for remote monitoring of UPS status and site power conditions
Communications ports enable safe unattended shutdown without data loss during extended power failures
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage,
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage,
DC battery voltage and battery capacity
Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected
equipment
PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting
completely locked computers by automatically switching UPS power off and back on again
Notification of system status via 5 LEDs and multi-function audible alarms
Wall mountable with UPSWM wallmount bracket
Attractive small footprint beige tower housing uses less than 66 square inches
Hot-swappable/user replaceable batteries allow on-site battery replacement
Cold start capability enables UPS turn-on in battery mode during blackout conditions
UL (USA), cUL (Canada), NOM (Mexico), Class A (Emissions)
$250,000 Ultimate Lifetime Insurance (USA and Canada only)
$250,000 connected equipment insurance (USA and Canada Only)
Specifications
OUTPUT
Output Volt Amp
Capacity (VA)
1500
Output kVA capacity
(kVA)
1.5
Output Watt Capacity
(watts)
980
Output power factor 0.7
Nominal Output
Voltage(s) Supported
120V
Frequency compatibility 60 Hz
Output voltage
regulation (line mode)
-18%, +8%
Output voltage
regulation (Battery mode)
+/- 5%
Built-in UPS output
receptacles
6 5-15R outlet(s)
Built-in controllable
switched load banks
One switchable single-outlet 5-15R load bank
Basic PDU options PDU1215 (1U / 13 5-15R outlets); PDUNV (1U / 2 C19, 12 C13 outlets); PDU1415 (0U / 14 5-15R outlets);
PDUV15 (0U / 12 5-15R outlets)
Metered PDU options PDUMH15 (1U / 13 5-15R outlets); PDUMH15AT (1U / 8 5-15R outlets)*; PDUMV15 (0U / 16 5-15R outlets)
Switched PDU options PDUMH15ATNET (1U / 8 5-15R outlets)*; PDUMV15NET (0U / 16 5-15R outlets)
External PDU
redundancy options
*Auto Transfer Switch features utilizing the secondary PDU input cord are compatible with Smart Online UPS
models only
Output AC waveform (AC
mode)
Sine wave
Output AC waveform
(battery mode)
PWM sine wave
INPUT
Rated input current (at
maximum load)
12A
Nominal Input Voltage(s)
Supported
120V AC
UPS input connection
type
5-15P
Input circuit breaker 15A
UPS Input cord length
(ft.)
6
UPS Input cord length
(m)
1.8
Recommended Electrical
Service
15A 120V
BATTERY
Full load runtime
(minutes)
7 min. (980w)
Half load runtime
(minutes)
20 min. (490w)
DC system voltage (VDC) 36
Battery recharge rate
(included batteries)
Less than 4 hours from 10% to 90%
Replacement battery
cartridge (internal UPS
battery replacement)
RBC53
Battery Access Battery access door
Battery replacement
description
Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation
description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
Overvoltage correction Input voltages between 128 and 147 are reduced by 12%
Undervoltage correction Input voltages between 93 and 107 are boosted by 14%
Severe undervoltage
correction
Input voltages between 75 and 92 are boosted by 30%
LEDS ALARMS & SWITCHES
LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Alarms Audible alarm indicates power-failure, overload and low-battery conditions
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
SURGE / NOISE SUPPRESSION
UPS AC suppression
joule rating
480
UPS AC suppression
response time
Instantaneous
EMI / RFI AC noise
suppression
Yes
PHYSICAL
Installation form factors
supported with included
accessories
Tower
Installation form factors
supported with optional
accessories
Wallmount (UPSWM - tower mounting kit)
Primary form factor Tower
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / inches)
12.8 x 7.5 x 9
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / cm)
32.4 x 19 x 22.9
UPS / Power Module
weight (lbs)
38.4
UPS / Power Module
weight (kg)
17.4
UPS Shipping
dimensions (height x
width x depth / inches)
18.2 x 12 x 13.8
UPS Shipping
dimensions (height x
width x depth / cm)
46.4 x 30.5 x 34.9
Shipping weight (lbs) 42.6
Shipping weight (kg) 19.3
UPS housing material PVC
Cooling method Fan
ENVIRONMENTAL
Operating Temperature
Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature
Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full
load)
138.8
Battery mode BTU / hr.
(full load)
454.4
COMMUNICATIONS
Communications
interface
USB; DB9 Serial
Network monitoring port
description
Supports detailed monitoring of UPS and site power conditions
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time 2-4 milliseconds
Low voltage transfer to
battery power (setpoint)
75
High voltage transfer to
battery power (setpoint)
147
SPECIAL FEATURES
Cold Start (startup in
battery mode during a
power failure)
Cold-start operation supported
High availability UPS
features
Hot swappable batteries
Green & high efficiency
features
Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A
(EMI); ROHS (Restriction of Hazardous Substances)
WARRANTY
Product Warranty Period
(Worldwide)
2-year limited warranty
Connected Equipment
Insurance (U.S., Canada
& Puerto Rico)
$250,000 Ultimate Lifetime Insurance
Related Items
Optional Products
Product Type Related Model Description Qty.
Audio Cables CT120 Instant-Read- AC Outlet Circuit Tester 1
Extended Warranties WEXT3-500-1500 3-Year Extended Warranty - For Smart Line-Interactive and Online
Tower or Rack models, 1500VA or less
1
Extended Warranties WEXT5-500-1500 5-Year Extended Warranty - For Smart Line-Interactive and Online
Tower or Rack models, 1500VA or less
1
Power Distribution PDU1215 Basic PDU / Power Distribution Unit - Safe, reliable power distribution
for critical networking equipment
1
Surge Protectors DCATV Network Surge Suppressor - Essential protection for TV/VCR coaxial
lines
1
Surge Protectors DNET1 Network Surge Suppressor - Essential protection for data and
communication lines
1
Surge Protectors DTEL2 Network Surge Suppressor - Essential protection for data and
communication lines
1
USB Hubs/Accessories U022-010 10-ft. USB2.0 A/B Gold Device Cable
(A Male to B Male)
1
Wallmount Bracket UPSWM Wallmount Bracket and installation accessories (4 washers, 4 screws,
1 Velcro safety strap)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3535.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
