Trion CM Series Manual de usuario

Lets clear the air

CV/CM Modular Cartridge Air Filters for Commercial/Industrial Applications

Over recent years a growing body of scientific evidence has indicated that the air

within our homes and other buildings can be more seriously polluted than the

outdoor air in even the largest and most industrialised cities. It also indicates that

people spend approximately 90% of their time indoors.

Indoor pollution is made up of pollens, dust, tobacco smoke, spores, cooking

fumes, welding fumes, oil mist, aerosols, exhaust fumes and even bacteria and

viruses, these pollutants circulate throughout the environment.

They are trapped by the energy saving advances of tighter construction and

better insulation so not only is outdoor air kept out, but indoor air is sealed in

giving rise to lethargy and general malaise, commonly known as Sick Building

Syndrome.

TRION AIR PURIFIERS

For more than 50 years, Trion has been a pioneer and market leader in the

development, manufacture and marketing of air purifying equipment. Its business

is related to products which help improve the quality of indoor air and conserve

energy.

Trion manufactures and markets worldwide a complete range of air purification

equipment covering the widest range of applications in the domestic, commercial,

industrial and marine markets.

FROM SUBMARINES TO SKY SCRAPERS

Trion air purifiers use the same principle to improve the quality of air in your

home, office and factory as is used in the sophisticated systems we have designed

for the US, UK and other European submarine fleets.

At Trion, we believe that just because most air cleaners resemble each other on the

outside, they do not necessarily operate the same on the inside. The products

described in this brochure were designed to do the things our competitors can’t.

For over 50 years Trion have been at the forefront of electronic air purification

technology, and people around the world enjoy the benefits of breathing clean air

whether at home, work or at leisure, thanks to Trion.

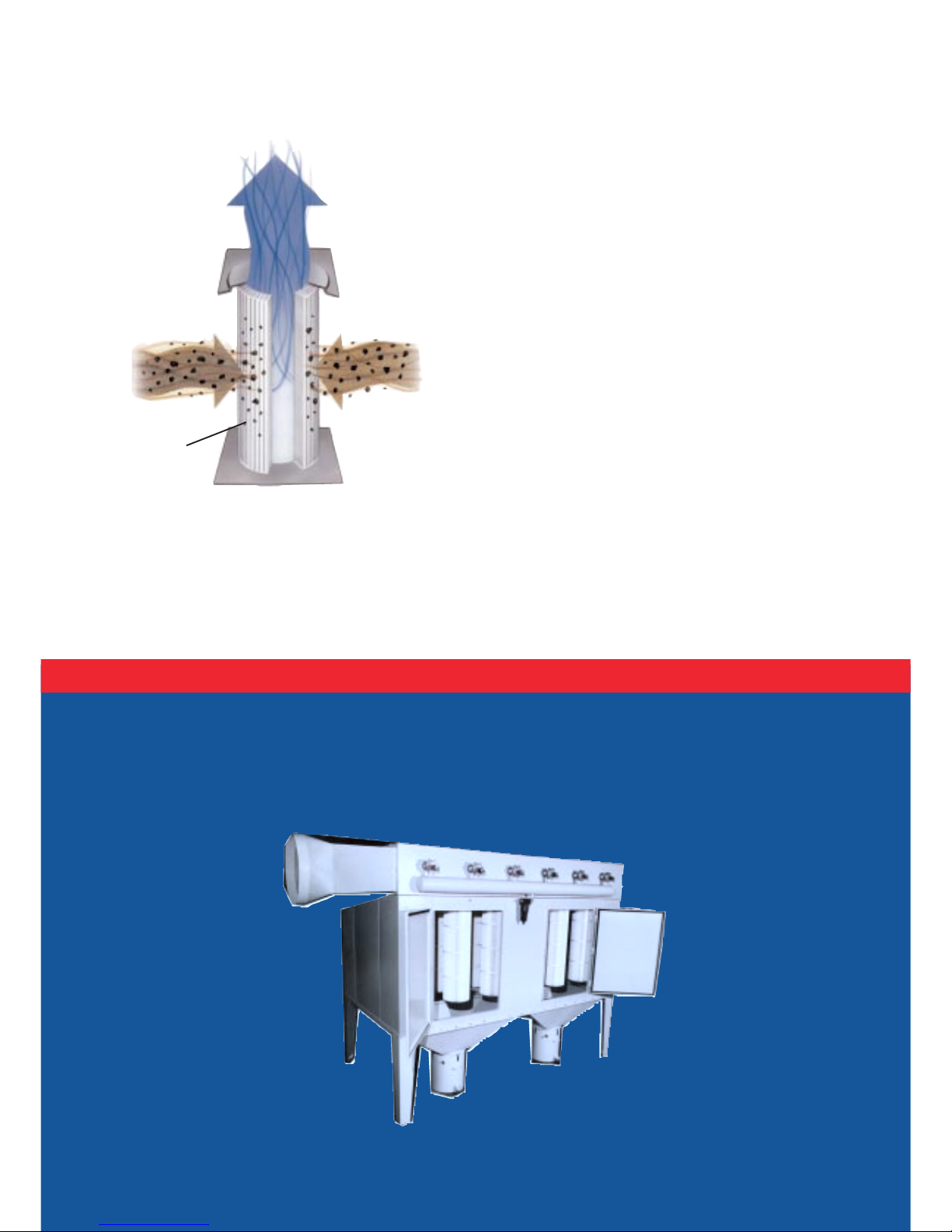

HOW TRION CM / CV CARTRIDGE AIR CLEANERS WORK

Contaminated air is drawn through high efficiency cartridge

filters, where the particulate is collected on the media.

Filtered air is pulled through the system and exhausted.

Direction of exhaust can be varied.

APPLICATIONS

For industrial work environments,Trion cartridge dust collection

systems are excellent for fixed applications.

• Heavy Smoke from Welding and Laser Cutting

• Grinding Dust and Metal Fines

• Pharmaceuticals

• Heavy Powders

• Process Dust from Food Processing, Packaging, etc.

BENEFITS / ADVANTAGES

• Over 99% efficient down to 0.5 micron

• Very high surface collecting area

• Easily cleaned with automatic pulse-jet, reducing maintenance

downtime and extending filter life

• Contains and captures contaminants for recycling or easy

removal

• Effectively handles heavy duty cycle applications

CLEAN AIR

DIRTY AIRDIRTY AIR

CARTRIDGE FILTER

OTHER CONFIGURATIONS ARE AVAILABLE TO SUIT YOUR APPLICATION

TRION CV MODEL

PRODUCT CV2 CV4

Max Air Vol m3/hr * 2040 4080

No. of Cartridges 2 4

Filter Area total 52m2104m2

Noise level dBA* 75 dBA 75 dBA

Input Voltage 400V/3ph/50Hz 400V/3ph/50Hz

Power 3.0 Kw 5.5 Kw or (2 x 3.0 Kw)**

Efficiency 99.93% 99.93%

Cleaning System Pulse-Jet Pulse-Jet

Dust Collection Hoppers 1 2

Inlet Connection 200mm x 1 200mm x 2

Height Inlet Connection (mm) 1460 1460

Height (mm) 3170 3491 (3170)

Width (mm) 750 1500

Depth (mm) 850+200 Tank 850+200 Tank

Weight (kgs) 318 455

Nominal Resistance (Polyester Cartridge) 1500 PA 1500 PA

External available Pressure 900 PA 1600 PA (900 PA)

* Depending on configuration

** Alternatively available with 2 x 3.0 Kw or 1 x 5.5 Kw

The TRION CV Series units are freestanding, self-cleaning cartridge filters suitable for the removal of most

dry smoke and dusts (not explosive or flammable).

The filter cabinet is made from 1.5mm welded sheet metal. The unit is supplied on a stand with a collection

hopper and dust barrel which can be easily removed and emptied.

The self-cleaning system utilises compressed air which is stored in tanks on the outside of the unit. The

compressed air is led directly through the tank into the cartridges. Alternatively, the cartridges can be

cleaned during operation (on-line) or through pressure difference, which saves on compressed air.

Additionally, there is an off-line cleaning system installed. The control box with a filter monitoring

mechanism for cleaning is included. The interval-pulse sequences are individually adjustable as are

the δ-p-value settings.

Model CV4 shown

TRION CM MODEL

CM2 CM4 CM6 CM8

2000 4000 6000 8000

2468

52m2104m2136m2208m2

----

230/1ph/50Hz 230/1ph/50Hz 230/1ph/50Hz 230/1ph/50Hz

----

99.93% 99.93% 99.93% 99.93%

Pulse-Jet Pulse-Jet Pulse-Jet Pulse-Jet

1234

200 x 1 200mm x 2 200mm x 3 200mm x 4

----

2450 2450 2450 2450

750 1500 2250 3000

850+200 Tank 850+200 Tank 850+200 Tank 850+200 Tank

260 520 780 1040

1500 PA 1500 PA 1500 PA 1500 PA

----

The TRION CM Series units are also freestanding and self-cleaning cartridge filters but without integral

fan. Air movement is provided by other external sources.

The self-cleaning system process is exactly the same as the CV model. For both the CM and CV changing

the cartridges is made easy by the large doors on the front of the unit. The larger dust particles are led

directly into the collection hopper through a buffle which is installed at the air inlet.

The filter cabinet is also made from 1.5mm welded sheet metal. The unit is supplied on a stand with a

collection hopper and dust barrel which can be easily removed and emptied. The unit price includes a

compressed air maintenance system with a reverse-safety valve, water filter and pressure valve.

Model CM4 shown
