trig TA14 Manual de usuario
TRIG WARRANTY
Trig Avionics warranty runs for a two-year period, starting from the date
of installation.
This warranty covers repair and/or replacement at our option, of any
parts found to be defective, provided such defects in our opinion are due
to faulty material or workmanship and are not caused by tampering,
abuse, or normal wear.
Our warranty service is provided FCA our location or our other associated
Trig Service Centres.
Trig Avionics will not accept or pay for any charges for warranty work
performed outside our factory without prior written consent.
This warranty applies only to products in normal use. It does not apply to
units or circuit boards defective due to improper installation, physical
damage, tampering, lightning or other electrical discharge, units with
altered serial numbers, or units repaired by unauthorized persons or in
violation of Trig Avionics service procedures.
Trig Avionics assumes no responsibility for any consequential losses of
any nature with respect to any products or services sold, rendered, or
delivered.
Out of Warranty Repairs
Trig provides product support beyond the warranty period of two years.
After this period, any avionics requiring repairs should be returned to
one of our Approved Trig Dealers. If a repair is necessary this will be
charged at a standard rate, irrespective of the nature of the fault. Trig
guarantees to repair or replace a product even if the cost of the repair
exceeds our standard charge. If you wish to access our out of warranty
support, then please contact your Approved Trig Dealer or Trig Support
for further information.
TA14
INSTALLATION
GUIDE
02457-00 AA
Trig Avionics
Hardwareweg 3
3821 BL Amersfoort
Netherlands
Thank you for purchasing a Trig TA14 transponder antenna.
This pack contains installation information and support and warranty
information.
All our avionics are thoroughly tested prior to despatch and are designed
to provide years of trouble free service. To access technical support for
your Trig Avionics product you should first contact your Approved Trig
Dealer.
If you have any further technical questions, then please access your
closest Trig Service Centre through the support section of our website.
www.trig-avionics.com/support/
Thanks,
The Trig Team
enquiries@trig-avionics.com
INSTALLATION GUIDE
The following instructions are for fitting the antenna to a metal-skinned
aircraft. If you are fitting the antenna to a composite aircraft you must
add a metallic ground plane of not less than 150 cm2(24 square inches)
behind the antenna.
1. The mounting location should be at least 18” from any other
metal protrusions and on as flat a surface as possible, typically on
the underside of the aircraft.
2. Using the template provided, drill two mounting holes and one
hole for the connector.

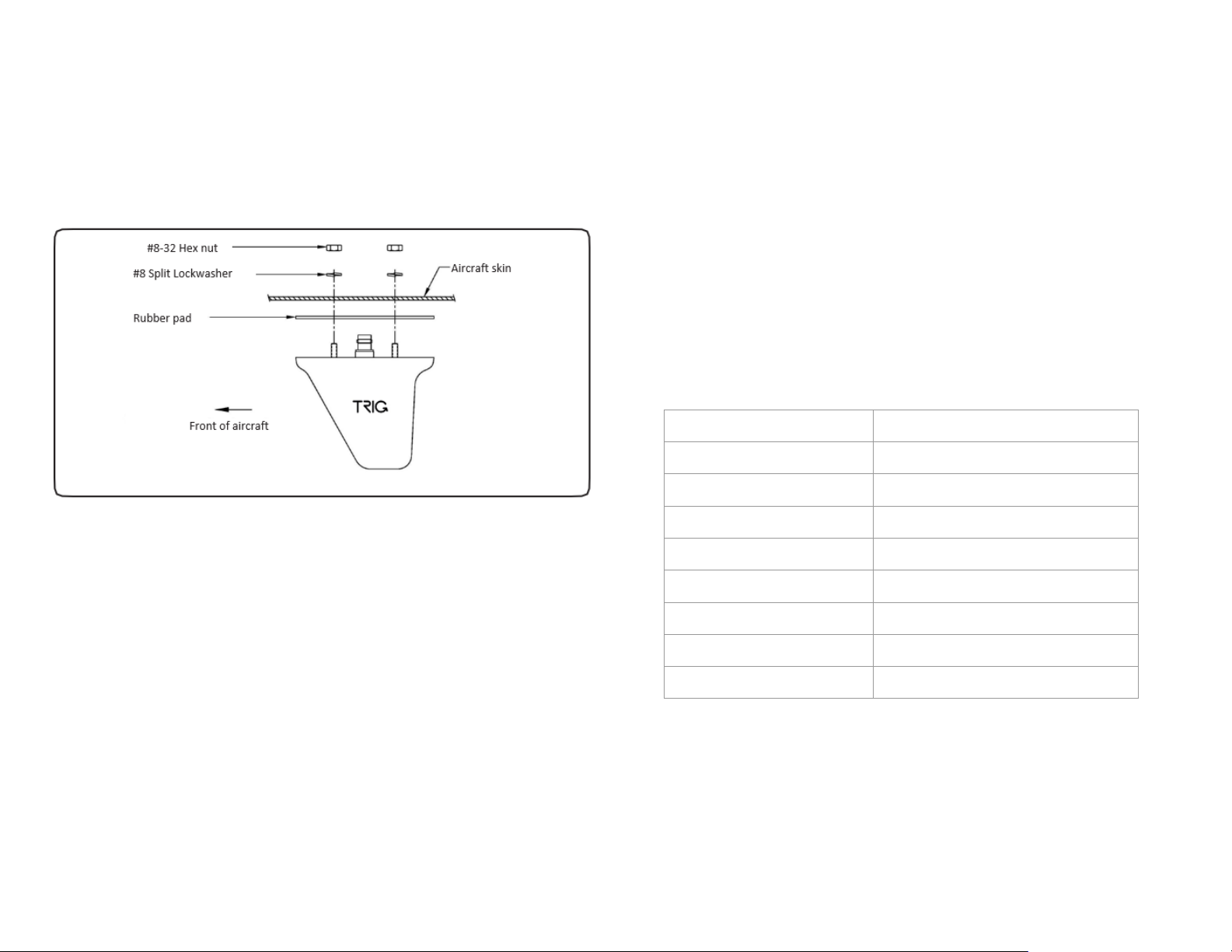

3. Mount the antenna by placing the rubber pad (provided)
between the antenna base and the aircraft skin. Insert the
hardware provided, as shown and tighten all mounting screws
securely to provide a good electrical contact to the aircraft skin
or ground plane.
4. Connect the antenna to the aircraft radio using RG400 or similar
50 ohm coax cable, with a BNC type male connector attached to
the antenna end of the cable (not supplied). Terminate the other
end of the cable with a suitable connector to mate with the
aircraft radio.
SPECIFICATION SHEET
TA14 –Transponder/ DME Antenna - blade
The TA14 is a broadband blade type antenna for transponder or DME
application. The antenna has longer mounting studs for a variety of
mounting locations.
The antenna is designed to operate at speeds up to 350 mph and
altitudes up to 50,000 ft. It has a drag force of 0.09 lb @ 250 mph.
The TA14 is certified to FAA TSO-C66c and TSO-C74c.
Specifications:
Frequency:
960 –1220 MHz
Impedance:
50 ohm nominal
VSWR:
1.5:1 maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
BNC female
RF Power capacity
2.5 kW Peak
Gain
Unity
Max. height/ weight
86 mm (3.4”) – 90 g (0.2 lb)
