Trick-tools EZ-CUt Manual de usuario

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

TOOLS NEEDED TO ATTACH YOUR MILWAUKEE BAND SAW TO THE EZ –CUT JIG

¾” OPEN END WRENCH

11/32” OPEN END WRENCH

3/32” HEX KEY

THE EZ –CUT JIG ATTACHES TO THE 6232-20 CORDED MILWAUKEE DEEP-CUT PORTABLE BANDSAW

AND TO THE 2729-20 CORDLESS MILWAUKEE DEEP CUT PORTABLE BAND SAW.

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

1. INSTALLING YOUR SAW INTO THE EZ –CUT JIG:

Open THE EZ –CUT JIG to the fully opened positon.

positon

Remove the two ½” bolts and nuts from top lock and remove top lock assembly.

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

Remove trigger arm assembly using 3/32 Allen Key and 11/32

...Locknut

Set trigger arm assembly aside.

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

Handle the band saw by putting your hand under the motor and tilt the band saw so that

the top handle of the band saw will insert through the top side of THE EZ –CUT JIG.

Push the saw back so that the trigger handle seats into THE EZ - CUT JIG.

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

Install top lock assembly and firmly tighten the two ½” bolts and nuts.

(Top Lock Bolts pictured here)

Snuggly tighten the two handle clamps on both sides of THE EZ –CUT JIG.

Tighten the two ½” bolts and nuts

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

Re-install trigger arm assembly (that was set aside on page 3) by sliding the

arm through the trigger slot.

(Top Lock Nuts pictured here)

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

Fasten the round end of the arm underneath the top plate with 1/8” shoulder bolt and nut.

(Pictured here without 1/8“ shoulder bolt and nut)

(Pictured here with tightened 1/8” shoulder bolt and nut)

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

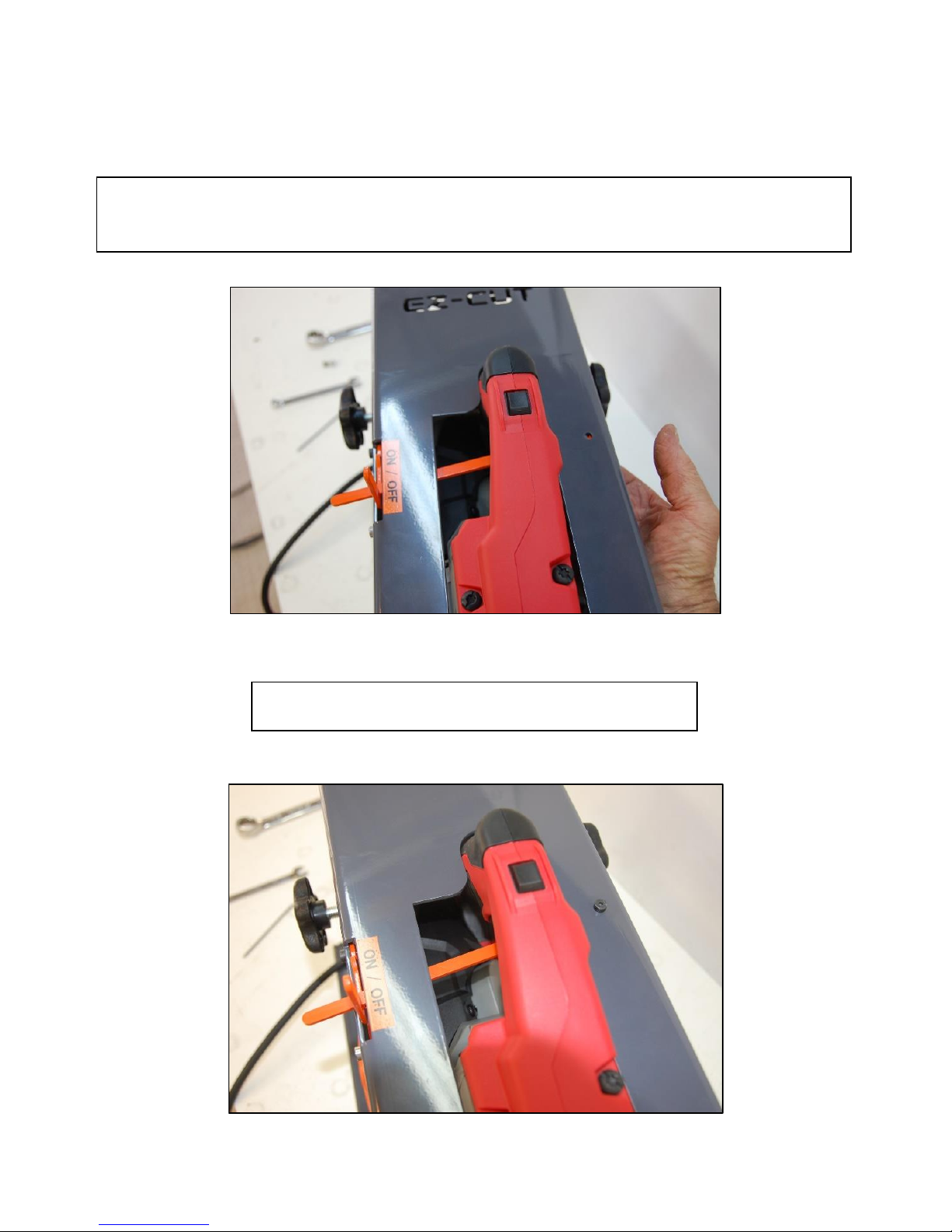

When tightening be sure the trigger arm assembly moves freely.

(Pictured here in the OFF position)



(Pictured here in the ON position)

THE EZ –CUT JIG

USER MANUAL

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND USER MANUAL BEFORE ANY CUTTING IS DONE

1. INSTALLING THE BLADE INTO THE SAW:

CAUTION: SEE THE BAND SAW MANUFACTURER USER MANUAL ON

HOW TO SAFELY CHANGE BAND SAW BLADE

To install the blade while the band saw is connected to THE EZ –CUT JIG,

leave the band saw in the upright position and flip the blade lever back.
