INSTALLATION AND INSTRUCTION MANUAL

LARDER LF506W

LF506GR

ECL506W

Thank you for buying a TRICITY BENDIX DOMESTIC APPLIANCE

To enable you to use your appliance effectively and safely, please read this instruction

book carefully before using the appliance and retain for future reference. If you require

guidance in the use of the appliance or require further information, please contact our

Customer Care Department.

TRICITY BENDIX

CUSTOMER CARE DEPARTMENT

P.O. BOX 47

NEWBURY

BERKSHIRE

RG14 5XL

Tel: 01635 525542

Fax: 01635 42970

Guide to use the instruction book

The following Symbols will be found in the text to guide you through the instructions

Safety Instructions Hints and Tips

Step by step instructions Environmental Information

for an operation

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them

all before installing or using this appliance. Your safety is of paramount importance. If you are

unsure about any of the meanings or these warnings contact the Customer Care Department.

Installation

This appliance is heavy. Care should be taken

when moving it.

It is dangerous to alter the specifications or

attempt to modify this product in any way.

Ensure that the appliance does not stand on

the electrical supply cable. If the supply cord

is damaged, it must be replaced by a special

cord available from your local Service Force

Centre.

Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

Parts which heat up should not be exposed.

Whenever possible, the back of the appliance

should be close to a wall but leaving the

required distance for ventilation as stated in

the installation instructions.

The appliance should be left for 2 hours after

installation before it is turned on, in order to

allow the refrigerant to settle.

Child Safety

Do not allow children to tamper with the

controls or play with the product.

During Use

This appliance is designed for domestic use

only, specifically for the storage of edible

foodstuffs only.

Maintenance and Cleaning

Switch off, and unplug the appliance before

carrying out any cleaning or maintenance

work.

Servicing

This product should be serviced by an

authorised engineer, and only genuine spare

parts should be used.

Under no circumstances should you attempt

to repair the machine yourself. Repairs carried

out by inexperienced persons may cause

injury or serious malfunctioning. Contact your

local Service Force Centre.

At the End of the appliance Life

When disposing of your appliance, use an

authorised disposal site.

Remove the plug and ensure that any locks or

catches are removed, to prevent young

children being trapped inside.

Please read this

instruction book carefully

before use and retain

for future reference.

For the User

Important Safety Instructions 3

Description of the Appliance 5

Control Panel 5

Using Your Appliance 6

Before Use 6

To Start The Appliance 6

Thermostat Control 6

Larder Compartment 7

Storage Guide

Shelf Adjustment

Hints and Tips 8

Normal Operating Sounds 8

Food Storage 8

Energy Saving Advice 8

Maintenance and Cleaning 9

Internal Cleaning 9

External Cleaning 9

To Change the Lightbulb 9

Defrosting Your Appliance 10

When the Appliance is Not in Use 10

What Happens if Something

Goes Wrong 11

Service and Spare Parts 12

Service Centres 13

For the Installer

Installation Instructions 15

Technical Information 15

Electrical Connections 16

Electrical requirements 16

Installation

Installation requirements 17

Ventilation requirements 17

Levelling 17

Door Reversal 18

Side Fixed Handle Change 19

Guarantee Conditions 20

TABLE OF CONTENTS

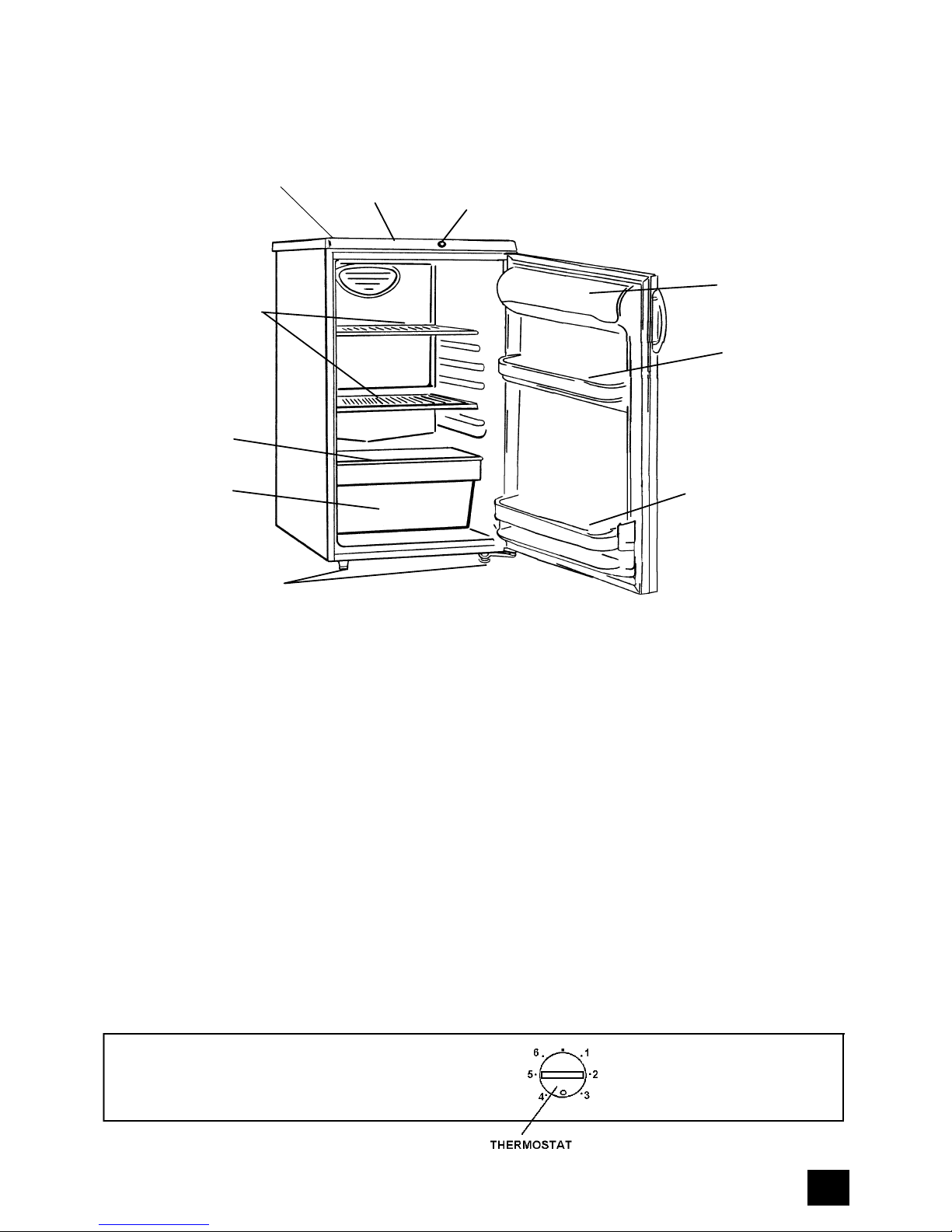

Description of the Appliance

THE FURNISHINGS FROM THE SHRINK WRAP PACK SHOULD BE POSITIONED

IN LINE WITH THE ABOVE DIAGRAM

CONTROL PANEL

Control Panel Thermostat

Adjustable Shelf

Salad Drawer

Cover

Salad Drawer

Adjustable Feet

Dairy

Compartment

Door Storage

Shelf

Bottle Shelf

Heat Resistant Top

PACK CONTENTS:

Wire Shelf (2)

Glass Salad Drawer Cover/Trim (1)

Salad Drawer (1)

Egg Tray (1)

LF506W LF506GR

Wire Shelf/Trim Assembly (3)

Glass Salad Drawer Cover/Trim (1)

Salad Drawer (1)

Egg Tray (1)

ECL506W

Wire Shelf (2)

Glass Salad Drawer Cover/Trim (1)

Salad Drawer (1)

Egg Tray (1)

Butter Dish (1)

This appliance is designed for

domestic use only, specifically for the

storage of edible foodstuffs.

This appliance is designed to operate in

ambient temperatures (surrounding air

temperature) between 10°C (50°F) and 32°C

(90°F).

If these temperatures are exceeded i.e.,

colder or warmer, the appliance will not

operate correctly.

Before Use

Remove all securing tapes.

Wash the inside of the appliance with lukewarm

water with a little bicarbonate of soda added (5ml

to 0.5 litre of water). Do not use soap or

detergent as the smell may linger. Dry the

appliance thoroughly.

To Start the Appliance

1. Allow the appliance to stand for 2 hrs after

installation.

2. Plug in the appliance and switch on at the

mains supply.

3. Turn the thermostat control to the required

setting. A setting of 3 - 4 is usually suitable for

normal operation (see thermostat control).

4. Leave the appliance for approximately 4 hours

for the correct temperature to be reached

before placing food inside.

Thermostat Control

The thermostat control situated in the control

panel regulates the temperature of the larder

compartment. Thermostat control is marked from

1-6, the higher the number, the colder the setting.

Position 1 - Cold

Position 6 - Coldest

The temperature will be affected by:

Ambient temperature

How often the door is opened

How much food is stored

Position of the appliance

In determining the correct temperature control

setting, all these factors have to be considered

and some experimentation may be necessary.

Do not allow children to tamper with the

controls or play with the product.

USING THE APPLIANCE

Do not use detergents, abrasive

powders, highly perfumed cleaning

products, wax polishes or products

containing alcohol.

Larder Compartment

The correct temperature for safe storage of fresh food inside is 0oC to 5oC (32oF to 41oF). The warmest

part of the fridge compartment is at the top of the cabinet and the coolest at the bottom.

Storage Guide

Adjustable shelves

The larder compartment is fitted with shelves

which are adjusted for the storage of different

sized articles.

If the door cannot be opened further than 90°

remove the shelves by tilting the shelf

downwards and pulling outwards.

Cooked meats,

ready meals,

baked goods

Dairy produce,

margarine,

preserves,

marmalade

Fresh meats,

fresh poultry,

fresh fish,

mince, burgers

Vegetables,

fruit

Eggs,

butter,

cheese

Preserves,

marmalade

Drinks,

milk

Normal Operating Sounds

You may hear faint gurgling or bubbling

sounds when the refrigerant is pumped

through the coils or tubing at the rear, to the

cooling plate/evaporator.

When the compressor is on, the refrigerant is

being pumped round , and you will hear a

whirring sound or pulsating noise from the

compressor.

A thermostat controls the compressor, and

you will hear a faint 'click' when the thermostat

cuts in and out.

Food Storage

To obtain the best results from your appliance

neither hot foods nor liquids which may

evaporate, should be placed in the larder

compartment.

Keep the time between buying chilled food

and placing it in your fridge as short as

possible.

Do not push food together too much, try to

allow air to circulate around each item.

Do not store food uncovered.

Remove suspect food from your refrigerator

and clean, refer to cleaning and maintenance.

Energy Saving Advice

Do not install the cabinet close to sources of

heat, such as a cooker, dishwasher or

radiator.

Locate the appliance in a cool well ventilated

room and make sure that the air openings of

the cabinet are not obstructed.

Always leave warm food to cool down to room

temperature before placing in the fridge.

Try to avoid keeping the door open for long

periods, or opening the door too frequently as

warm air will enter the cabinet, and cause the

compressor to switch on unnecessarily often.

Ensure there are no obstructions preventing

the door from closing properly.

It is advisable to periodically clean the

refrigeration system at the back of the

appliance with a duster or vacuum cleaner.

HINTS AND TIPS

Before any maintenance or cleaning work

is carried out DISCONNECT the appliance

from the ELECTRICITY supply

Internal Cleaning

Clean the inside and accessories with warm water

and bicarbonate of soda (5ml to 0.5 litre of water).

Rinse and dry thoroughly.

Do not use detergents, abrasive powders,

highly perfumed cleaning products, wax

polishes or cleaning products containing

bleach or alcohol.

Clean the drain hole of the water trough at regular

intervals and ensure that the drain hole is clear at

all times. If blocked carefully clear using a piece

of flexible curtain wire inserted into the drain

outlet to remove the blockage.

Regularly check the door seals and wipe clean to

ensure they are clean and free from debris.

External Cleaning

Wash the outer cabinet with warm soapy water.

Do NOT use abrasive products.

There are sharp edges on the underside

of the product so care should be taken

when cleaning.

Once or twice a year dust the condenser (black

grille) and the compressor at the back of the

appliance, with a brush or vacuum cleaner, as an

accumulation of dust will affect the performance

of the appliance and cause excessive electricity

consumption.

To Change the Light Bulb

1. Switch off the appliance and disconnect

from the electricity supply.

2. Remove the light cover by first removing the

screw with a screwdriver.

3. Pull the cover outwards towards the roof of

the cabinet.

4. Unscrew the bulb and replace it with a new

15 watt E14 SES bulb (available from your

local Service Force Centre).

5. Replace the cover by engaging the top

locating lugs and press home.

6. Replace and tighten the screw.

MAINTENANCE AND CLEANING

Defrosting Your Appliance

The fridge compartment is defrosted

automatically. Defrost water from the cooling

plate runs out of the drain and onto a tray on

the motor compressor where it is evaporated.

this process is completely automatic. Droplets of

water on the cooling plate during defrosting are

quite normal and will freeze on the plate

afterwards.

When the Appliance is Not in Use

When the appliance is not in use for long periods

disconnect from the electricity supply, empty all of

the food and clean the appliance, leaving the

door ajar to prevent unpleasant smells.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Tricity Bendix

Tricity Bendix

Tricity Bendix TB 100 FF Guía del producto

Tricity Bendix

Tricity Bendix Fridge freezer Manual de usuario

Tricity Bendix

Tricity Bendix Freezer Operating Manual de usuario

Tricity Bendix

Tricity Bendix TB 89 L Guía del producto

Tricity Bendix

Tricity Bendix TRT 15 JA Guía del producto

Tricity Bendix

Tricity Bendix TB 110 FF Guía del producto

Tricity Bendix

Tricity Bendix Refrigerator Hoja de especificaciones

Tricity Bendix

Tricity Bendix BL 492 W Manual de usuario

Tricity Bendix

Tricity Bendix BL602W Guía del producto

Tricity Bendix

Tricity Bendix FDF105W Manual de usuario

Tricity Bendix

Tricity Bendix ECD 807 W Eco Plus Manual de usuario

Tricity Bendix

Tricity Bendix TB 117 FF Guía del producto

Tricity Bendix

Tricity Bendix ECD019 Guía del producto

Tricity Bendix

Tricity Bendix FD 852 A Manual de usuario

Tricity Bendix

Tricity Bendix TB 116 FF Guía del producto

Tricity Bendix

Tricity Bendix TB 114 FF Manual de usuario

Tricity Bendix

Tricity Bendix TB 58 R Guía del producto

Tricity Bendix

Tricity Bendix Fridge/Freezer Manual de usuario

Tricity Bendix

Tricity Bendix Refrigerator Manual de usuario

Tricity Bendix

Tricity Bendix ERC506 Manual de usuario

Tricity Bendix

Tricity Bendix BR 592 W Manual de usuario

Tricity Bendix

Tricity Bendix ECR506 Manual de usuario

Tricity Bendix

Tricity Bendix FD 845 S Manual de usuario

Tricity Bendix

Tricity Bendix Larder Refrigerators Hoja de especificaciones

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
