MODEL NO.

RE60 SS / RE60DC

OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. RE60 SS / RE60DC

Voltage: 230/240 Volts AC 50Hz

Wattage: 10.5/11.4 kW

Height: 900mm

Width: 600mm

Depth: 598mm

This appliance complies with: European Council Directive 73/23/EEC.

EMC Directive 89/336/EEC.

CE Marking Directive 93/68/EEC.

TECHNICAL DETAILS

Technical Details ................................................................................. 2

Contents ......................................................................................... 3

Preface ........................................................................................... 5

Safety ............................................................................................. 6

Before Installation ........................................................................... 6

During Operation ........................................................................... 6

After Use ................................................................................... 7

General .................................................................................... 7

Introduction ...................................................................................... 8

Rating Plate ................................................................................ 8

Installation .................................................................................. 8

General Notes on Using Your Cooker ........................................................ 9

About Condensation and Steam ............................................................. 9

The Cooling Fan for the Controls ............................................................ 9

Control Panel Indicator Neons ............................................................... 9

Cookware .................................................................................. 9

Grill and Oven Furniture .................................................................... 10

Getting to Know your Cooker ................................................................... 11

The Control Panel ......................................................................... 11

The Automatic Timer ...................................................................... 12

The Ceramic Hob ............................................................................... 14

Using the Hob ............................................................................. 14

Recommended Saucepans ................................................................. 14

Hints and Tips ............................................................................. 14

Hot Hob Indicator .......................................................................... 15

Deep Fat Frying ........................................................................... 15

Preserving ................................................................................. 15

The Grill ........................................................................................ 16

Uses of the Grill ........................................................................... 16

Selecting the Grill .......................................................................... 16

Things to Note ............................................................................. 16

The Grill Pan and Handle ................................................................... 16

Hints and Tips ............................................................................. 17

Grilling Chart .............................................................................. 17

The Top Oven ................................................................................... 18

Uses of the Top Oven ...................................................................... 18

Selecting the Top Oven .................................................................... 18

Things to Note ............................................................................. 18

To Fit the Top Oven Shelf .................................................................. 18

Hints and Tips ............................................................................. 19

The Fan Oven ................................................................................... 20

Uses of the Fan Oven ...................................................................... 20

Selecting the Fan Oven .................................................................... 20

Things to Note ............................................................................. 20

To Fit the Fan Oven Shelves ............................................................... 20

Hints and Tips ............................................................................. 21

Oven Cooking Chart ............................................................................. 22

Roasting chart ................................................................................. 23

CONTENTS

Defrosting ....................................................................................... 24

Uses of Defrost Feature ................................................................... 24

SelectingDefrost ......................................................................... 24

Things to Note ............................................................................ 24

Hints and Tips ............................................................................ 24

Care and Cleaning ............................................................................... 25

Cleaning Materials ........................................................................ 25

Cleaning the Ceramic Hob ................................................................. 25

Hints and Tips ............................................................................ 26

Cleaning the Outside of the Cooker ........................................................ 26

Cleaning the Stainless Brushed Steel Control Knobs and Handles .......................... 26

Cleaning the Grill, Grill Pan, Grill Pan Grid and Oven Shelves ............................... 26

Cleaning the Dual grill ..................................................................... 26

Cleaning Inside the Oven and Grill Compartments .......................................... 27

Care of Stayclean Surfaces ................................................................ 27

Hints and Tips ............................................................................ 27

Cleaning between the Outer and Inner Door Panels ......................................... 27

Replacing an Oven Light Bulb .............................................................. 28

Something Not Working? ....................................................................... 29

Service and Spare Parts ......................................................................... 30

Customer Service Centres ....................................................................... 31

Guarantee Conditions ........................................................................... 33

CONTENTS

Dear Customer,

Thank you for buying a Tricity Bendix cooker. With our experience in

developing and manufacturing the very best in U.K. cookers, you can be

assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix cookers comply with British Standard safety and performance

requirements. They have been approved by BEAB (British Electrotechnical

Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix cooker, we ask that you PLEASE

READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be

made to cooking times and temperatures which may differ from your previous

cooker.

It is most important that this instruction book is retained with the cooker for

future reference. Should the cooker be sold, or if you move house and leave

the cooker, always ensure that the book remains with the cooker. This will

enable the new owner to be acquainted with the functioning of the cooker and

the relevant warnings.

Please read the whole instruction book before attempting to use the cooker

ensuring you follow the recommendations given.

PREFACE

THESE WARNINGS ARE PROVIDED IN

THE INTERESTS OF YOUR SAFETY.

ENSURE THAT YOU UNDERSTAND

THEM ALL BEFORE INSTALLING OR

USING THE COOKER.

PLEASE

READ

CAREFULLY

BEFORE INSTALLATION

This cooker is heavy and care must

be taken when moving it.

Ensure that all packaging, both

inside and outside the cooker has

been removed before the appliance

is used.

If the cooker is to be placed on a

base, measures must be taken to

prevent the cooker slipping from the

base.

Do not try to lift or move the cooker

by pulling the door handles.

The electrical installation work must

be undertaken by a qualified

electrician / competent person.

It is dangerous to alter or modify

the specifications of the cooker in

any way.

Do not use the cooker if the ceramic

glass is damaged. If a fault or crack

becomes visible during cooking,

disconnect the cooker immediately

from the electricity supply and

contact your local Tricity Bendix

Service Force Centre. Do not place

silver foil or plastic containers on

ceramic glass.

After installation, please dispose of

the packaging with due regard to

safety and the environment, your

local authority can arrange this.

DURING OPERATION

Do not use this cooker if it is in

contact with water. Never operate it

with wet hands.

This cooker is designed to be

operated by adults. Young children

must not be allowed to tamper with

the cooker or play with the controls.

During use the cooker becomes hot.

Care should be taken to avoid

touching heating elements inside the

oven.

Accessible parts especially around

the grill area may become hot when

the cooker is in use. Children should

be kept away until it has cooled.

Take great care when heating fats

and oils as they will ignite if they

become too hot.

This cooker has been designed for

cooking edible foodstuffs only, and

must not be used for any other

purposes.

Never place plastic or any other

material which may melt in the oven

or on the hob.

Ensure cooking utensils are large

enough to contain foods to prevent

spillages and boil overs.

The handles of saucepans which are

smaller than the heated area on the

hob will become hot. Ensure your

hand is protected before handling the

pan.

SAFETY

Take care to follow the

recommendations given for tending

the food when grilling. Use the

handle provided in the

recommended way.

Ensure that you support the grill pan

when it is in the withdrawn or partially

withdrawn position.

Ensure that all vents are left

unobstructed to ensure ventilation of

the oven.

Ensure that the anti-tilt shelves are

put in place correctly. Refer to

instructions on pages 18 and 20.

Never line any part of the cooker with

aluminium foil. Do not allow

heatproof cooking material, e.g.

roasting bags to come into contact

with oven elements.

Always stand back from the cooker

when opening the oven door to allow

any build up of steam or heat to

release.

Do not place sealed cans or aerosols

inside the oven. They may explode if

they are heated.

Do not leave the hotplates switched

ON for long periods when not

covered by a saucepan. The controls

may overheat.

AFTER USE

Ensure that all control knobs are in

the OFF position when not in use.

For hygiene and safety reasons this

cooker should be kept clean at all

times. A build-up of fats or other

foodstuffs could result in a fire,

especially in the grill pan.

Do not leave utensils containing

foodstuffs, e.g. fat or oil in or on the

cooker in case it is inadvertently

switched ON.

Cookers and hobs become very hot,

and retain their heat for a long period

of time after use. Children should be

kept well away from the cooker until

it has cooled.

GENERAL Under no circumstances should

repairs be carried out by

inexperienced persons as this may

cause injury or serious malfunction.

This cooker should be serviced by

an authorised Service Engineer and

only genuine approved spare parts

should be used.

Do not stand on the cooker or on

the open oven doors.

Do not hang towels, dishcloths or

clothes from the cooker or its handle.

They are a safety hazard.

Always allow the cooling fan to cool

the cooker down before switching off

at the wall prior to carrying out any

cleaning or maintenance work.

Only clean this cooker in accordance

with the instructions given in this

book.

Extreme care must be taken when

using a razor on the ceramic hob.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the

meanings of these WARNINGS contact the:

Customer Care Department

Telephone 0870 5 950950

Always use oven gloves to remove

and replace food in the oven.

Never leave the cooker unattended

when the oven doors are open

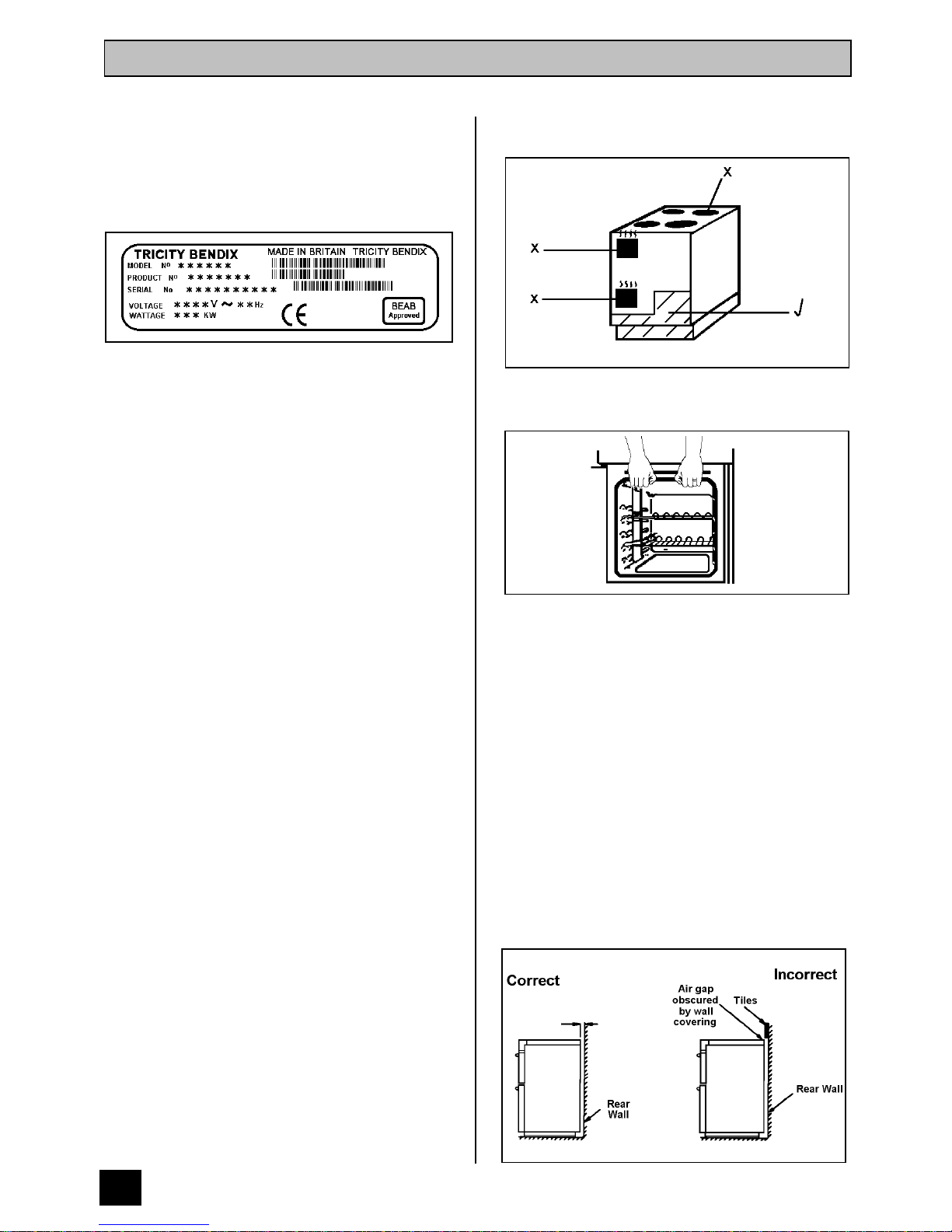

RATING PLATE

Record the model, product and serial numbers on the

back cover from the rating plate. This is situated on

the lower front frame of the cooker and can be seen

upon opening the top oven door.

The cooker must be protected by a suitably rated

fuse or circuit breaker. The rating of the cooker is

given on the rating plate.

Do not remove the rating plate from the cooker

as this may invalidate the guarantee.

INSTALLATION

If your cooker has been damaged in transit, contact

your supplier immediately. DO NOT attempt to install

it.

Your cooker left the factory fully packaged to protect

it from damage. If it is delivered without packaging

and damage has occurred the manufacturer cannot

accept responsibility. Contact your supplier for

advice.

Once the packaging has been removed the cooker

should only be moved by hand. DO NOT use a sack

barrow or any other aid to lift the cooker as damage

may occur.

Connection to the electricity supply must be carried

out by a qualified electrician/competent person.

The electrical connection should be made using a

double pole isolating switch (cooker socket) with at

least 3mm contact separation. The cable must have

conductors of sufficiently high cross-sectional area to

prevent overheating and deterioration.

The recommended cross-section area is six square

millimetres (6.00mm²).

The cable should be routed away from potentially hot

areas marked by X in the diagram below.

To move the cooker, open the fan oven door, and lift

the cooker by holding inside the top of the

compartment.

This is a type Y cooker which means it is

free-standing and can be fitted with cabinets on one

or both sides. It may also be fitted in a corner setting.

Ensure that the cooker is standing level.

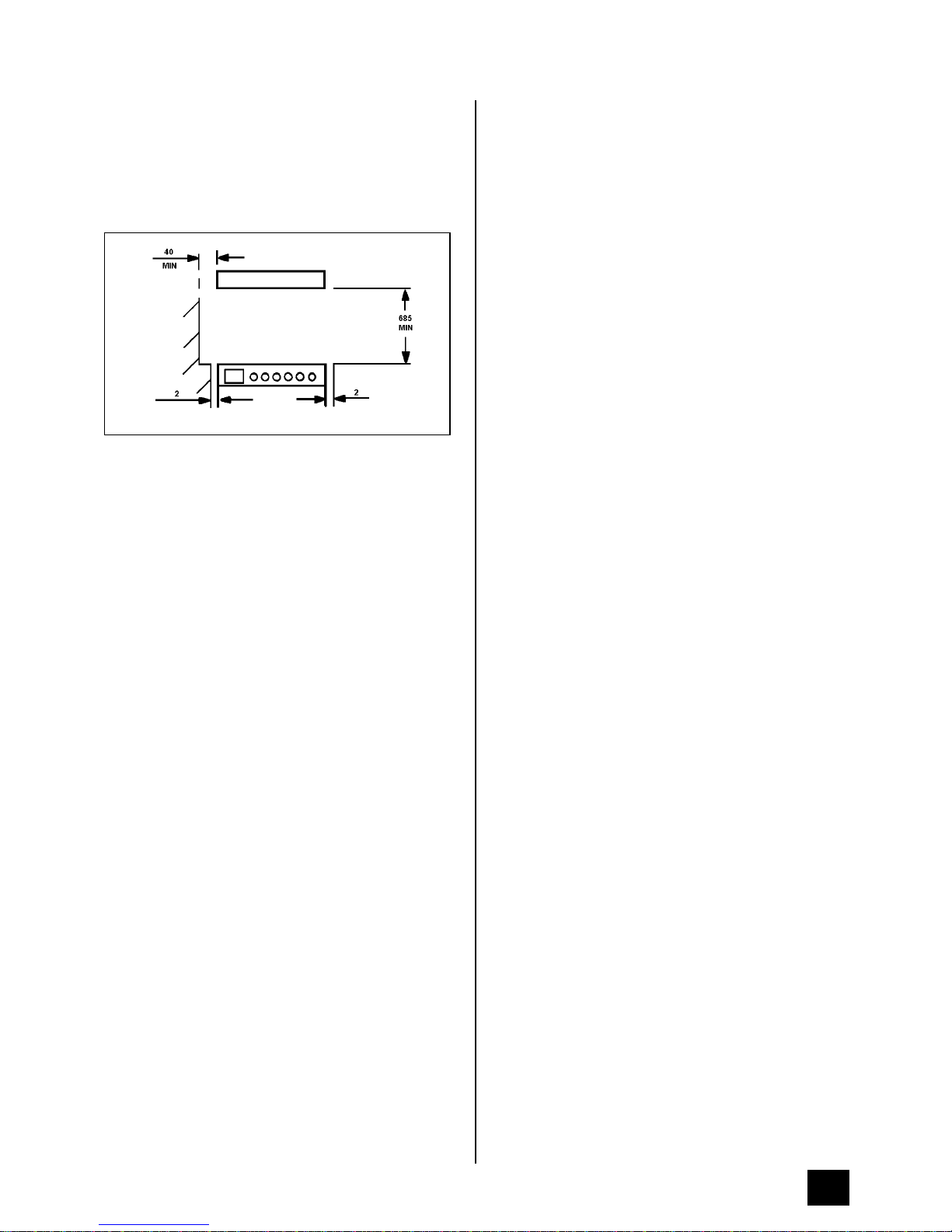

Side walls which are above hob level should be

protected by heat resistant non-combustible material

and MUST NOT be nearer than 40mm to the hob

side.

A nominal air gap of 2mm all around the cooker is

required to enable the cooker to be moved into

position.

Always ensure an air gap is maintained at hotplate

level. Tiles or other forms of deep wall covering

should not obscure this gap.

WARNING: THIS COOKER MUST BE EARTHED

INTRODUCTION

REAR VIEW

Air gap

Note: Vapours from the oven vents may in time

cause discolouration of wallcoverings behind the

cooker. For ease of cleaning it may be preferable to

tile behind the cooker.

Overhanging surfaces or a cooker hood should be a

minimum of 685mm above the hob.

It is important to ensure that the cooker is level after

installation. Levelling feet are fitted to the cooker to

accommodate uneven floors.

GENERAL NOTES ON USING YOUR

COOKER

We suggest that you run the oven elements for 10 -

15 minutes at 220°C to burn off any residue from

their surfaces.

The procedure should be repeated with the grill for

approximately 5 - 10 minutes.

During this period an odour may be emitted, it is

therefore advisable to open a window for ventilation.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a

boiling kettle. The ovens are vented to allow some of

this steam to escape. However, always stand back

from the cooker when opening the oven door to allow

any build up of steam or heat to release.

If the steam comes into contact with a cool surface

on the outside of the cooker, e.g. a trim, it will

condense and produce water droplets. This is quite

normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away

condensation and also soilage from surfaces

including the vent at the rear of the hob. See note

at the top of this page.

For your safety wallcoverings at the rear of the

cooker should be securely fixed to the wall.

The cooling fan operates immediately when the grill

or top oven is switched on. It may run on after the

controls are switched off until the appliance has

cooled. If an automatic programme has been set for

the top oven, the cooling fan does not switch on until

the cooktime begins.

The cooling fan may operate after a time when the

fan oven is in use. This will depend on the

temperature setting and the length of time the oven

has been in use.

CONTROL PANEL INDICATOR NEONS

These lights indicate whether the ovens are switched

on.

The neons also indicate when the set temperature

has been reached. They will turn on and off during

use to show that the temperature is being

maintained.

If the neons do not operate as the instructions

indicate the controls have been incorrectly set.

Return all controls to zero and re-set following the

instructions for the required setting.

When the oven has been set for automatic cooking

the neon should remain unlit during OFF periods.

COOKWARE

Baking trays, oven dishes etc., should not be placed

directly against the grid covering the fan at the back

of the oven.

Do not use baking trays larger than 30cm x 35cm

(12" x 14") as they will restrict the circulation of heat

and may affect performance.

THE COOLING FAN FOR THE CONTROLS

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have

been supplied with the cooker. If you require

replacements of any of the items listed below, please

contact your local Service Force Centre quoting the

relevant part number.

1 grill pan

(311409401)

1 grill pan handle

(311468100)

Note

If you require an additional handle for your grill pan,

this can be ordered from your local Tricity Bendix

Service Centre by quoting part number 311479800\6.

1 grill pan grid

(311419801)

1 straight shelf

for grilling and top

oven cooking only

2 straight shelves

for fan oven cooking

Scuffing of the Stayclean oven lining by the oven

furniture pack may occur during transit. These marks

will disappear after the oven elements have been

burnt off for the first time.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Electrodoméstico de cocina de Tricity Bendix

Tricity Bendix

Tricity Bendix SI 459 Manual de usuario

Tricity Bendix

Tricity Bendix Si452W Manual de usuario

Tricity Bendix

Tricity Bendix SI 322 Manual de usuario

Tricity Bendix

Tricity Bendix SE500/1 Manual de usuario

Tricity Bendix

Tricity Bendix President 2558 Manual de usuario

Tricity Bendix

Tricity Bendix Electric Cooker Manual de usuario

Tricity Bendix

Tricity Bendix CSIE 451 Hoja de especificaciones

Tricity Bendix

Tricity Bendix CSIE317 Manual de usuario

Tricity Bendix

Tricity Bendix CSIE 231 Guía del producto

Tricity Bendix

Tricity Bendix DSIE 456 Manual de usuario

Tricity Bendix

Tricity Bendix SIE 533 Manual de usuario

Tricity Bendix

Tricity Bendix Cooker Manual de usuario

Tricity Bendix

Tricity Bendix Electric Cooker Manual de usuario

Tricity Bendix

Tricity Bendix CSIE 501 Manual de usuario

Tricity Bendix

Tricity Bendix CSI 2400 Manual de usuario

Tricity Bendix

Tricity Bendix SIE514 Manual de usuario

Tricity Bendix

Tricity Bendix SI 600 W Hoja de especificaciones

Tricity Bendix

Tricity Bendix SI310 Manual de usuario

Tricity Bendix

Tricity Bendix CSIE 452 Manual de usuario

Tricity Bendix

Tricity Bendix SG 211 Guía del producto

Tricity Bendix

Tricity Bendix DSIE328 Manual de usuario

Tricity Bendix

Tricity Bendix R2486CNA Manual de usuario

Tricity Bendix

Tricity Bendix SI 600 W Hoja de especificaciones

Tricity Bendix

Tricity Bendix R-238A Manual de instrucciones

Manuales populares de Electrodoméstico de cocina de otras marcas

Tayama

Tayama TYG-35AF Manual de usuario

AEG

AEG 43172V-MN Manual de usuario

REBER

REBER Professional 40 Guía del usuario

North American

North American BB12482G / TR-F-04-B-NCT-1 Manual de usuario

Presto

Presto fountain popper Manual de usuario

Westmark

Westmark 1035 2260 Manual de usuario

Zanussi

Zanussi ZCG64396XA Manual de usuario

HOFFEN

HOFFEN SM-9302M Manual de usuario

Philips

Philips HD3133 Manual de usuario

Ronco

Ronco Beef Jerky Manual de usuario

Hendi

Hendi 470411 Manual de usuario

Livoo

Livoo MEN386 Manual de usuario

Vogue

Vogue D446 Manual de usuario

croydon

croydon WR-10313-700 Manual de usuario

ADE

ADE AUTOMATIC-L Manual de usuario

Chefman

Chefman RJ43-SQ Series Manual de usuario

Vacmaster

Vacmaster VP680 Manual de usuario

Jetmaster

Jetmaster 900HG Manual de usuario
