MODEL NO.

RE50G

OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. RE50G

Voltage: 230/240 Volts AC 50Hz

Wattage: 9.9/10.8kW

Height: 900mm

Width: 500mm

Depth: 600mm

This appliance complies with: European Council Directive 73/23/EEC.

EMC Directive 89/336/EEC.

CE Marking Directive 93/68/EEC.

TECHNICAL DETAILS

Technical Details ................................................................................. 2

Contents ......................................................................................... 3

Preface ........................................................................................... 5

Safety ............................................................................................. 6

Before Installation .................................................................................. 6

During Operation ................................................................................... 6

After Use .......................................................................................... 7

General ........................................................................................... 7

Introduction ...................................................................................... 8

Rating Plate ................................................................................ 8

Installation .................................................................................. 8

General Notes on Using Your Cooker ........................................................ 9

Control Panel Indicator Neon ................................................................ 9

About Condensation and Steam ............................................................. 9

Grill and Oven Furniture ..................................................................... 9

Getting to know your Cooker .................................................................... 10

The Control Panel ......................................................................... 10

The Electronic Minute Minder ............................................................... 11

The Sealed Hotplates ............................................................................ 13

Recommended Saucepans ................................................................. 13

Hints and Tips ............................................................................. 13

Deep Fat Frying ........................................................................... 14

Preserving ................................................................................. 14

The Grill ........................................................................................ 15

Uses of the Grill ........................................................................... 15

Selecting the Grill .......................................................................... 15

Things To Note ............................................................................ 15

The Grill Pan and Handle ................................................................... 15

Hints and Tips ............................................................................. 16

Grilling Chart .............................................................................. 16

The Fan Oven ................................................................................... 17

Uses of the Fan Oven ...................................................................... 17

Selecting the Fan Oven .................................................................... 17

Things To Note ............................................................................ 17

To Fit the Oven Shelves ................................................................... 17

Hints and Tips ............................................................................. 18

Oven Cooking Chart ............................................................................. 19

Roasting Chart .................................................................................. 20

CONTENTS

Defrosting ....................................................................................... 21

Uses of Defrost Feature ................................................................... 21

Selecting Defrost .......................................................................... 21

Things to Note ............................................................................ 21

Hints and Tips ............................................................................ 21

Care and Cleaning ............................................................................... 22

Cleaning Materials ........................................................................ 22

Cleaning the Sealed Hotplates and Hotplate trims .......................................... 22

Cleaning the Vitreous Enamel .............................................................. 22

Cleaning the Outside of the Cooker ........................................................ 22

Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves .................................... 23

Cleaning Inside the Oven and Grill Compartments .......................................... 23

Care of Stayclean Surfaces ................................................................ 23

Hints and Tips ............................................................................ 23

Cleaning the Door Glass ................................................................... 24

Something not Working? ........................................................................ 25

Service and Spare Parts ......................................................................... 26

Customer Service Centres ....................................................................... 27

Guarantee Conditions ........................................................................... 29

CONTENTS

Dear Customer,

Thank you for buying a Tricity Bendix cooker. With our experience in

developing and manufacturing the very best in U.K. cookers, you can be

assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix cookers comply with British Standard safety and performance

requirements. They have been approved by BEAB (British Electrotechnical

Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix cooker, we ask that you PLEASE

READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be

made to cooking times and temperatures which may differ from your previous

cooker.

It is most important that this instruction book is retained with the cooker for

future reference. Should the cooker be sold, or if you move house and leave

the cooker, always ensure that the book remains with the cooker. This will

enable the new owner to be acquainted with the functioning of the cooker and

the relevant warnings.

Please read the whole instruction book before attempting to use the cooker ensuring

you follow the recommendations given.

PREFACE

THESE WARNINGS ARE PROVIDED IN

THE INTERESTS OF YOUR SAFETY.

ENSURE THAT YOU UNDERSTAND THEM

ALL BEFORE INSTALLING OR USING THE

COOKER.

PLEASE

READ

CAREFULLY

BEFORE INSTALLATION

This cooker is heavy and care must be

taken when moving it.

Ensure that all packaging, both inside

and outside the cooker has been

removed before the appliance is used.

If the cooker is to be placed on a base,

measures must be taken to prevent the

cooker slipping from the base.

Do not try to move the cooker by

pulling the door handles. See notes on

installation.

The electrical installation work must be

undertaken by a qualified electrician/

competent person.

It is dangerous to alter or modify the

specifications of the cooker in any way.

After installation, please dispose of the

packaging with due regard to safety and

the environment.

DURING OPERATION

Do not use this cooker if it is in contact

with water. Never operate it with wet

hands.

This cooker is designed to be operated

by adults. Young children must not be

allowed to tamper with the cooker or

play with the controls.

During use the cooker becomes Hot.

Care should be taken to avoid touching

heating elements inside the oven.

Accessible parts especially around the

grill area may become hot when the

cooker is in use. Children should be

kept away until it has cooled.

Take great care when heating fats and

oils as they will ignite if they become too

hot.

This cooker has been designed for

cooking edible foodstuffs only, and

must not be used for any other

purposes.

Never place plastic or any other

material which may melt in the oven or

on the hob.

Ensure cooking utensils are large

enough to contain foods to prevent

spillages and boil overs.

The handles of saucepans which are

smaller than the heated area on the hob

will become hot. Ensure your hand is

protected before handling the pan.

Take care to follow the

recommendations given for tending the

food when grilling.

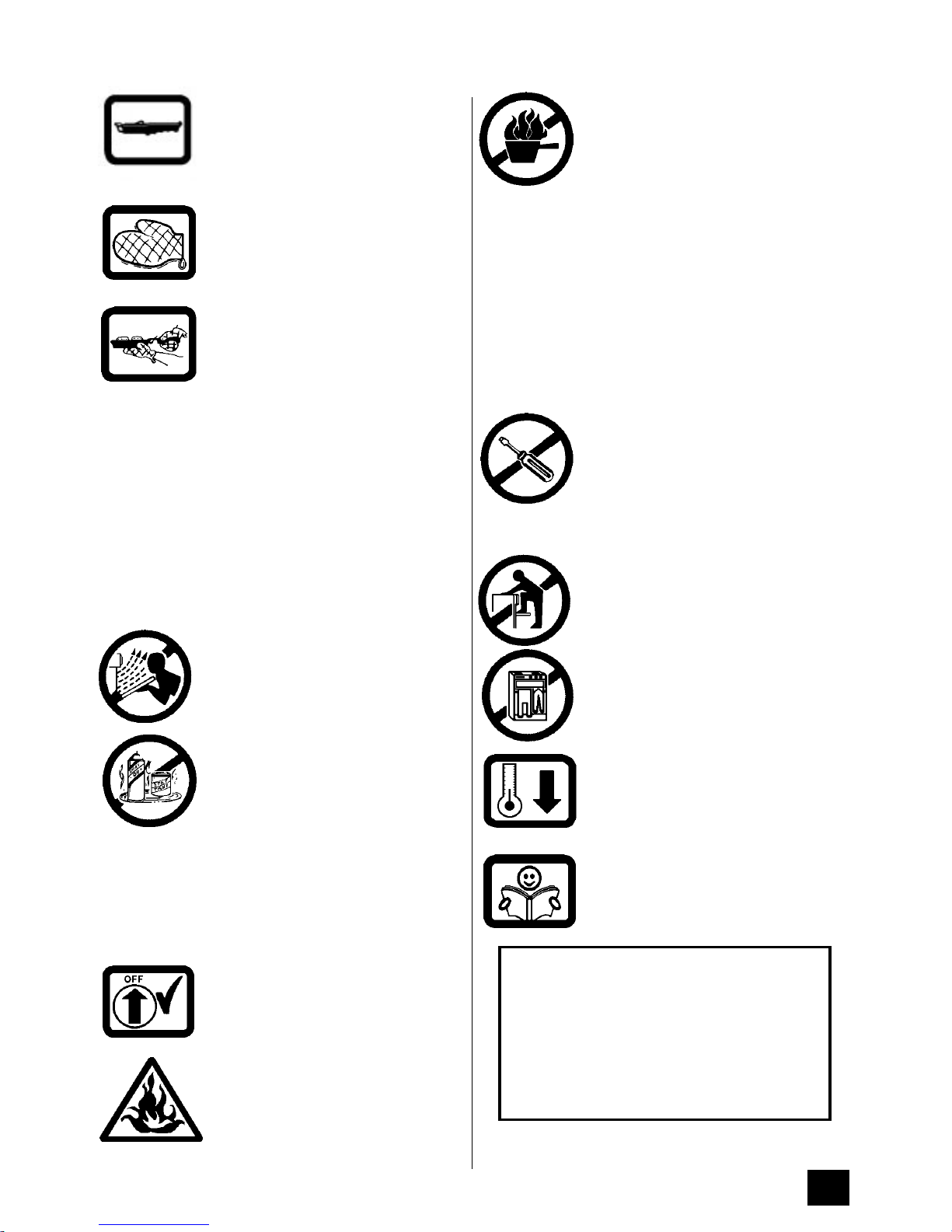

SAFETY

Do not leave the grill pan handle in

position when grilling as it will become

hot.

Always use oven gloves to remove and

replace the grill pan handle when

grilling. Recommendations given on

page 15.

Ensure that you support the grill pan

when it is in the withdrawn or partially

withdrawn position.

Ensure that all vents are left

unobstructed to ensure ventilation of the

oven.

Ensure that the anti-tilt shelves are put

in place correctly. Refer to instructions

on page 17.

Never line any part of the cooker with

aluminium foil.

Always stand back from the cooker

when opening the oven door to allow

any build up of steam or heat to

release.

Do not place sealed cans or aerosols

inside the oven. They may explode if

they are heated.

Do not leave the hotplates switched

ON for long periods when not covered

by a saucepan. The controls and

cabinets may overheat.

AFTER USE

Ensure that all control knobs are in the

OFF position when not in use.

For hygiene and safety reasons this

cooker should be kept clean at all times.

A build-up of fats or other foodstuffs

could result in a fire, especially in the

grill pan.

Do not leave utensils containing

foodstuffs, e.g. fat or oil in or on the

cooker in case it is inadvertently

switched ON.

Cookers and hobs become very hot,

and retain their heat for a long period of

time after use. Children should be kept

well away from the cooker until it has

cooled.

GENERAL Under no circumstances should

repairs be carried out by inexperienced

persons as this may cause injury or

serious malfunction.

This cooker should be serviced by an

authorised Service Engineer and only

genuine approved spare parts should be

used.

Do not stand on the cooker or on the

open oven door.

Do not hang towels, dishcloths or

clothes from the cooker or its handle.

They are a safety hazard.

Always switch OFF the cooker at its

power point and allow the cooker to

cool before any maintenance or

cleaning work is carried out.

Only clean this cooker in accordance

with the instructions given in this book.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the

meanings of these WARNINGS contact the:

Customer Care Department

Telephone 0870 5 950950

RATING PLATE

Record the model, product and serial numbers on the

back cover from the rating plate. This is situated on the

lower front frame of the cooker and can be seen upon

opening the fan oven door.

The cooker must be protected by a suitably rated fuse

or circuit breaker. The rating of the cooker is given on

the rating plate.

Do not remove the rating plate from the cooker as

this may invalidate the guarantee.

INSTALLATION

If your cooker has been damaged in transit, contact

your supplier immediately. DO NOT attempt to install it.

Your cooker left the factory fully packaged to protect it

from damage. If it is delivered without packaging and

damage has occurred, the manufacturer cannot accept

responsibility. Contact your supplier for advice.

Once the packaging has been removed the cooker

should only be moved by hand. DO NOT use a sack

barrow or any other aid to lift the cooker as damage

may occur.

Connection to the electricity supply must be carried out

by a qualified electrician/competent person.

The electrical connection should be made using a

double pole isolating switch (cooker socket) with at least

3mm contact separation. The cable must have

conductors of sufficiently high cross-sectional area to

prevent overheating and deterioration.

The cable should be routed away from potentially hot

areas marked by X in the diagram below.

To move the cooker, open the fan oven door, and lift

the cooker by holding inside the top of the

compartment.

This is a type X appliance which means it is

free-standing and can be fitted with cabinets on one or

both sides. It may also be fitted in a corner setting.

Ensure that the cooker is standing level.

Side walls which are above hob level should be

protected by heat resistant non-combustible material

and MUST NOT be nearer than 40mm to the hob side.

A nominal air gap of 2mm all around the cooker is

required to enable the cooker to be moved into position.

It is recommended that proprietary trims are fitted to

protect the worktops of either side of the appliance.

These are available from most DIY stores.

Always ensure an air gap is maintained at hotplate

level. Tiles or other forms of deep wall covering should

not obscure this gap.

WARNING: THIS COOKER MUST BE EARTHED

INTRODUCTION

Six square millimetres (6.00mm²) is the recommended

cross-section area.

Air gap

Note: Vapours from the oven vent may in time cause

discolouration of wallcoverings behind the cooker. For

ease of cleaning it may be preferable to tile behind the

cooker.

Overhanging surfaces or a cooker hood should be a

minimum of 685mm above the hob.

It is important to ensure that the appliance is level after

installation. Levelling feet are fitted to the front of the

appliance to accommodate uneven floors.

GENERAL NOTES ON USING YOUR

COOKER

We suggest that you run the oven elements for 10 - 15

minutes at 220°C to burn off any residue from their

surfaces.

The procedure should be repeated with the grill for

approximately 5 - 10 minutes.

During this period an odour may be emitted, it is

therefore advisable to open a window for ventilation.

OVEN INDICATOR NEON

The light will indicate whether the oven is switched on,

the neon also indicates when the set temperature has

been reached. The neon will turn on and off during use

to show that the temperature is being maintained.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a

boiling kettle. The ovens are vented to allow some of

this steam to escape. However, always stand back from

the cooker when opening the oven door to allow any

build up of steam or heat to release.

If the steam comes into contact with a cool surface on

the outside of the cooker, e.g. a trim, it will condense

and produce water droplets. This is quite normal and is

not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away

condensation and also soilage from surfaces.

THE COOLING FAN FOR THE CONTROL

The cooling fan will always come on when the grill is

switched on. If it is only used for a short period of time

the fan will switch off when the controls are turned off. If

the grill is used for a longer period of time the fan will

run on depending on the temperature, and may cycle on

and off until the cooker has cooled.

In the case of the main oven the cooling fan may not

switch on except when used for a longer period of time.

The cooling fan may run on, and cycle on and off after

the control knobs have been switched off, until the

cooker has cooled. Do not switch the cooker off at its

power point until the fan has cooled the cooker down.

GRILL AND OVEN FURNITURE

The following items of grill and oven furniture have been

supplied with the cooker.

1 grill pan

1 grill pan handle

1 grill pan grid

1 straight shelf

for grilling only

2 straight shelves

for main oven cooking

THE CONTROL PANEL

FEATURES

A - Fan Oven Control

B - Fan Oven Indicator Neon

C - Grill Control

D - Hotplate Controls

GETTING TO KNOW YOUR COOKER

A C D
