Tricity Bendix CDW 101 Manual de usuario

Dishwasher

CDW 101

INSTRUCTION BOOK

PART 2

The control panel

1.MAINS ON indicator light

2.ON/OFF push button

3.Programme guide

4.Door handle

5.Programme marker

6.Programme selector dial

7. Programme sequence indicator

As the programme progresses, the programme

selector dial turns, to show the phase in the wash

programme the appliance has reached.

Prewash /Rinse and hold

Wash

Cold rinse

Hot rinse

Drying

Description of the appliance

1. Water hardness adjustment

2. Levelling spacers

3. Upper basket stop

4. Salt container

5. Large filter

6. Detergent dispenser

7. Control panel

8. Rating plate

9. Rinse aid dispenser

10. Central filter

11. Lower spray arm

12. Upper spray arm

13. Upper basket

14. Worktop

IN68

Washing programmes

Programme Degree of soil

and

type of load

Require

push button

Starting

position of the

programme

selector

Recommended quantity

of detergent

Wash Prewash

Heavy soil.

Crockery, cutlery,

pots and pans.

Normal soil

Crockery and cutlery

Light soil

Crockery cutlery

Any.

Partial load (to be

completed later in

the day).

Cycle description

* POWER WASH

65°

NORMALWASH

65°

** ECO WASH

65°

RINSE

HOLD

Cold prewash

Main wash up to 65°C

1 cold rinse

1 hot rinse

Drying

Main wash up to 65°C

1 cold rinse

1 hot rinse

Drying

Main wash up to 65°C

1 cold rinse

1 hot rinse

1 cold rinse (to avoid

food scraps from

sticking together).

*Testing programme for EN 50242 (see "Hints for Test Centres").

** This is a special programme for quick washing a full load of lightly soiled dishes, glasses and crockery (except pots)

so that you may re-use them promptly.

25 g 5 g

30 g /

/ /

1On/Off

On/Off

Hints for test centres

Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser

Test standard: EN 50242

Reference programme: POWER WASH 65°

Load: 12 standard place settings

Rinse aid selector: position 5

Detergent dosage: 25 g in the dispenser

5 g on the dispenser lid

US57 UI67

Arrangement upper basket Arrangement lower basket

1. Check the filters

Ensure they are clean and properly positioned

(see "Maintenance and cleaning").

2. Check that there is rinse aid and

salt

3. Load the dishes

Remove any scraps of food.

Pull the lower basket out and arrange the

saucepans, plates and cutlery in it.

Pull the upper basket out and arrange the plates,

saucers, glasses and cups etc.in it.

Slide the baskets back into the machine.

4. Ensure that the spray arms can

rotate freely.

5. Measure out detergent

Add the required amount of detergent into the

dispenser according to the "Washing programmes"

chart.

Close the detergent dispenser lid.

6. Close the dishwasher door

7. Set the programme

Turn the programme selector dial clockwise until the

number of the programme you wish to select

corresponds with the programme marker on the

control panel.

8. Start the programme

Depress the On/Off push button and close the door,

the machine will start.

If you wish to interrupt the washing programme at

any time press this button again.

9. At the end of the washing

programme

At the end of the programme the dishwasher will

automatically stop.

The “Mains On” indicator light remains on until the

On/Off push button is depressed.

10. Switch off the dishwasher

Switch off the dishwasher by pressing the On/Off

push button.

Wait a few minutes before removing the dishes; in

this way they will be cooler and the drying will be

improved.

Empty the lower basket first and then the upper one;

this will avoid water dripping from the upper basket

onto the dishes in the lower one.

When the washing programme has finished, it

is recommended that the dishwasher is

unplugged and the water tap turned off.

In general it is not advisable to open the door

while the machine is working; if the door is

opened however, a safety device ensures that

the machine stops.

Important!

Care must be taken if the door is opened during

the hot phase or immediately after a

programme has finished, as steam may escape.

Operating sequence

Loading your appliance

Before placing dishes in the machine, remove any scraps of

food, to avoid clogging the filters and consequently reducing

the performance.

Do not load very small items which can fall

through the baskets.

The lower basket

The lower basket is designed to take saucepans, lids, plates,

salad bowls, cutlery etc.

Serving dishes and large lids should be arranged around the

edge of the basket, ensuring that the upper spray arm can

turn freely.

The cutlery basket

Long bladed knives stored in an upright position

are a potential hazard.

Long and/or sharp items of cutlery such as

carving knives must be positioned horizontally in

the upper basket.

Take care when loading or unloading sharp items

such as knives.

Cutlery should be placed in the removable cutlery basket

with the handles facing downwards.

If the handles protrude from the bottom of the basket,

obstructing the lower spray arm, load the cutlery with the

handles facing upwards.

Mix spoons with other cutlery to prevent them from sticking

together.

Arrange spoons, dessert spoons, teaspoons, knives and

other small items of cutlery in the rack on the side of the

cutlery basket.

UI67

UI27

Using your appliance

UI66

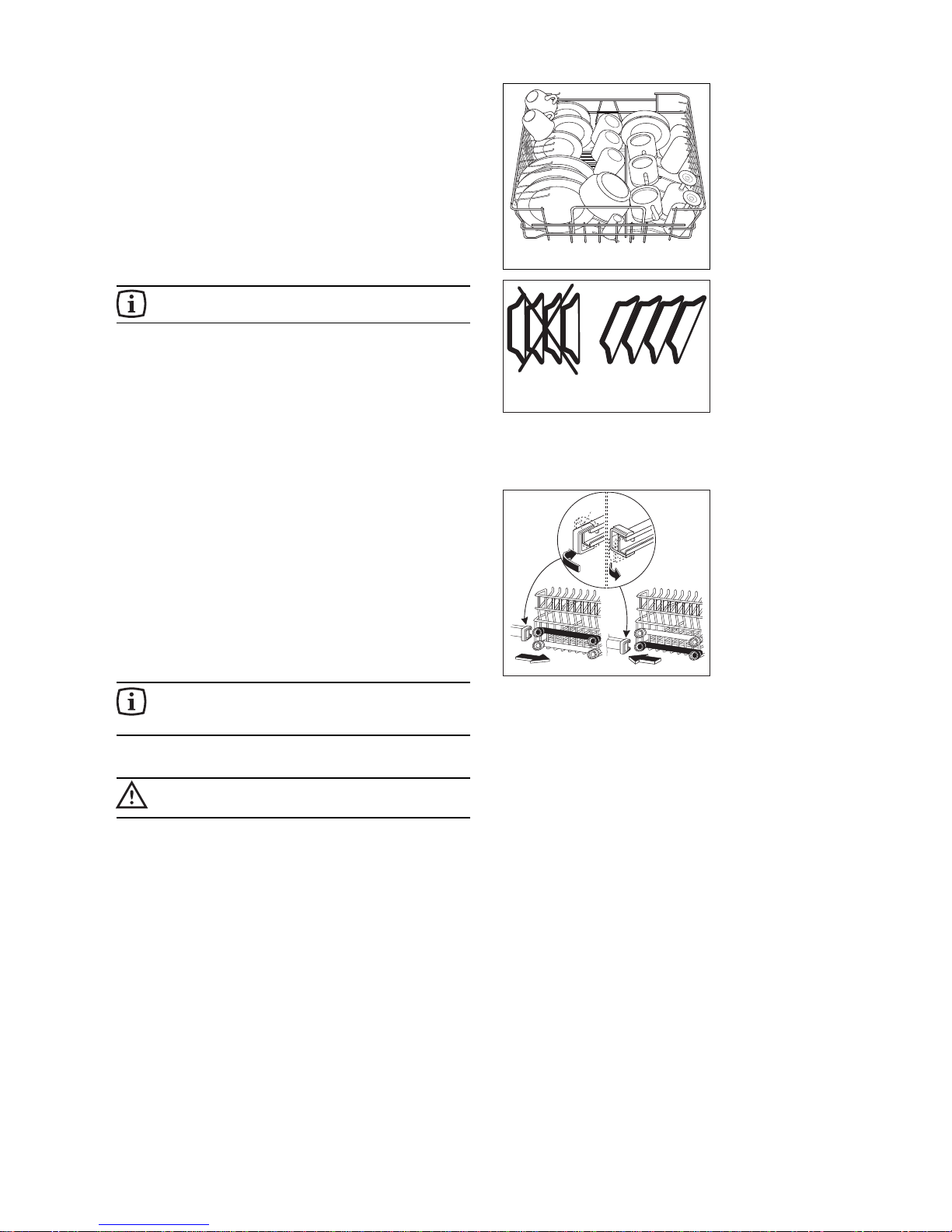

The upper basket

The upper basket is designed for plates (dessert plates,

saucers, dinner plates of up to 24 cm in diameter), salad

bowls, cups and glasses.

If dishes are loaded in the upper basket, tilt them forwards.

Arrange items on and underneath the fold-down cup racks

so that water can reach all surfaces.

Light items (plastic bowls etc.) should be loaded in the upper

basket and arranged so they do not move.

Before closing the door, ensure that the spray

arms can rotate freely.

Adjusting the height of the upper

basket

If washing very large plates (over 27 cm and up to 31 cm in

diameter) you can load them in the lower basket after

moving the upper basket to the higher position.

To move to the higher position proceed as follows:

1. Move the front runner stops (A) of the upper basket

outwards and slide the basket out.

2. Refit the basket in the higher position and replace the

stops (A) in their original position.

When the top basket is in the higher position it

will only take plates up to 20 cm in diameter and

you will not be able to use the raised cup racks.

After loading your machine always close the

door, as an open door can be a hazard.

US64

RC01

US70

Dimensions Width 60 cm

Height with worktop 85 cm

Height without worktop 82 cm

Max depth 55.5 cm

Max depth with open door 115,2cm

Electrical connection Voltage 220/240 V - 50 Hz

Motor rating during wash 200 W

Power of heating element 2100 W

Overall power 2300 W

Water supply pressure Minimum 50 kPa (0.5 bar)

Maximum 800 kPa (8 bar)

Capacity 12 place settings

Technical specifications

Adjusting the worktop

You can move the worktop forward or backward by

25 mm in order to align the machine with other kitchen units.

Simply unscrew the two rear retaining screws, move the top

to the required position and then retighten the screws.

Fitting under a counter

(kitchen worktop or sink)

By removing the machine’s worktop, you can install it under

a close fitting sink unit or a pre-existing top, providing the

dimensions of the recess correspond to those shown in the

picture.

Proceed as follows:

- Remove the machine’s worktop by unscrewing the

two rear retaining screws, pull from the front and

slide out the rear slots, lifting the worktop.

Insert the machine after adjusting height and levelling with

the adjustable feet.When inserting the machine, ensure that

the water inlet and drain hoses are not kinked or squashed.

IN26

820

570 - 600

600

IN05

152980 67/0

Tricity Bendix, 55-77 High Street, Slough, Berkshire, SL1 1DZ

Customer care telephone number...

08705 950 950

©Electrolux Household Appliances Limited 2000

From the Electrolux Group. The world’s No.1 choice.

The Electrolux Group is the world’s largest producer of powered appliances for kitchen,

cleaning and outdoor use. More than 55 million Electrolux Group products (such as

refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year

to a value of approx. 14 billion USD in more than 150 countries around the world.
