TW100-W2

NWay Web Cruiser

User’s Guide

Rev. 01 (June, 1998)

6ETH602H.01

Printed In Taiwan

RECYCLABLE

Wichtige Sicherheitshinweise

1. Bitte lesen Sie sich diese Hinweise sorgfältig durch.

2. Heben Sie diese Anleitung für den spätern Gebrauch auf.

3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine

Flüssig- oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung.

4. Um eine Beschädigung des Gerätes zu vermeiden sollten Sie nur Zubehörteile verwenden,

die vom Hersteller zugelassen sind.

5. Das Gerät is vor Feuchtigkeit zu schützen.

6. Bei der Aufstellung des Gerätes ist auf sichern Stand zu achten. Ein Kippen oder Fallen

könnte Verletzungen hervorrufen. Verwenden Sie nur sichere Standorte und beachten Sie

die Aufstellhinweise des Herstellers.

7. Die Belüftungsöffnungen dienen zur Luftzirkulation die das Gerät vor Überhitzung

schützt. Sorgen Sie dafür, daß diese Öffnungen nicht abgedeckt werden.

8. Beachten Sie beim Anschluß an das Stromnetz die Anschlußwerte.

9. Die Netzanschlußsteckdose muß aus Gründen der elektrischen Sicherheit einen

Schutzleiterkontakt haben.

10. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen kann. Es sollete

auch nichts auf der Leitung abgestellt werden.

11. Alle Hinweise und Warnungen die sich am Geräten befinden sind zu beachten.

12. Wird das Gerät über einen längeren Zeitraum nicht benutzt, sollten Sie es vom Stromnetz

trennen. Somit wird im Falle einer Überspannung eine Beschädigung vermieden.

13. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder Flüssigkeiten in das Gerät

gelangen. Dies könnte einen Brand bzw. Elektrischen Schlag auslösen.

14. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit

nur von authorisiertem Servicepersonal geöffnet werden.

15. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu trennen und von

einer qualifizierten Servicestelle zu überprüfen:

a– Netzkabel oder Netzstecker sint beschädigt.

b– Flüssigkeit ist in das Gerät eingedrungen.

c– Das Gerät war Feuchtigkeit ausgesetzt.

d– Wenn das Gerät nicht der Bedienungsanleitung ensprechend funktioniert oder Sie mit

Hilfe dieser Anleitung keine Verbesserung erzielen.

e– Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.

f– Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.

16. Bei Reparaturen dürfen nur Orginalersatzteile bzw. den Orginalteilen entsprechende Teile

verwendet werden. Der Einsatz von ungeeigneten Ersatzteilen kann eine weitere

Beschädigung hervorrufen.

17. Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren

Servicepartner. Somit stellen Sie die Betriebssicherheit des Gerätes sicher.

iii

Quick Installation

This section takes you through a step-by-step minimum installa-

tion and setup procedure for the internet server. Please refer to

the main text of this manual for detailed information about the

setup and operation of this device.

Getting Started

Step 1: Unpack the device. Make certain no components have

been lost or damaged. A packing list is provided on page 5.

Step 2: Choose an installation site on a flat, level surface or wall

near the modem or ISDN/TA you plan to use for internet

connections or near the network line you plan to use for a

LAN connection. Note that the internet server can be hung

on a wall using the wall mounting equipment included

with the product.

Making Connections

Step 3: Connect the internet server to your LAN using a Cate-

gory 3, 4 or 5, twisted-pair cable and the device’s single RJ-

45 LAN port. This connection should be made to an

Ethernet or Fast Ethernet switch or hub. (The RJ-45 port

looks like a phone jack.)

Step 4: Connect the internet server to a modem or ISDN/TA, us-

ing one or both of the device’s serial ports (COM1 and

COM2). (Note that your modem or ISDN/TA should al-

ready be connected and setup according to the instructions

included with it.)

Step 5: Plug the power adapter into the device and into an out-

let.

Configuring

Step 6: Before your can use your internet server, IP addresses on

your LAN’s PCs must be set so that they are compatible

with the internet server’s settings. The internet server

comes with the default local IP address: 192.168.100.1 and

the default subnet mask setting: 255.255.255.0. Computer

stations on your LAN that will use the internet server for

internet access must modify their IP settings to

192.168.100.xxx (where xxx is a number between 2 and

255). All stations must also modify their subnet mask set-

tings to match the internet server subnet mask setting,

and set their default gateway to the local IP address (in

this case the default address listed above) used by the

internet server. If you want to use a different IP address

range, see “Setting IP Addresses” on page 12.

Step 7: The internet server can be configured and operated via

Telnet or a web browser once PC IP addresses have been

properly set. (Note that some device settings can be ma-

nipulated using the IS Admin program included with the

device.) Start your Telnet or browser software and enter

the IP address of the internet server (either the default IP

listed above or the new address you assigned using IS

Admin). This should bring up the internet server start

menu. See the next series of steps for information about

variables that must be set for the device to work properly.

Key Variables

Step 8: ISP Account -> Phone Number,when you signed-up

for an account with your ISP (internet service provider),

you should have been given an access phone number that

your modem will dial. Look under the “WAN Port Vari-

ables” menu for this variable and enter the phone number

provider by your ISP.

Step 9: ISP Account -> User ID,your ISP should also have as-

signed a User ID (aka, a username) that you will use for

logging-in. Also under “WAN Port Variables,” enter this

user ID exactly as it was provided to you.

Step 10: ISP Account -> Password,finally, to complete the

ISP login process, the internet server must provide the

password associated with the user ID assigned by your

ISP. Enter it.

You have now completed the basic steps necessary to install, con-

figure, and begin using the internet server. Note that, with

respect to steps 8–10, it may be necessary for you to use a “Login

Script” instead. If you enter the information required in those

three variables correctly and still have trouble logging-in, see the

“Login Script” section on page 19 to create a login script.

Trademarks

Contents subject to change without prior notice.

All trademarks belong to their respective proprietors.

No part of this publication may be reproduced in any form or by

any means or used to make any derivative such as translation,

transformation, or adaptation without permission from the manu-

facturer, as stipulated by the United States Copyright Act of 1976.

FCC Warning

This equipment has been tested and found to comply with the lim-

its for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in

accordance with this user’s guide, may cause harmful interference

to radio communications. Operation of this equipment in a resi-

dential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own ex-

pense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product

may cause radio interference in which case the user may be re-

quired to take adequate measures.

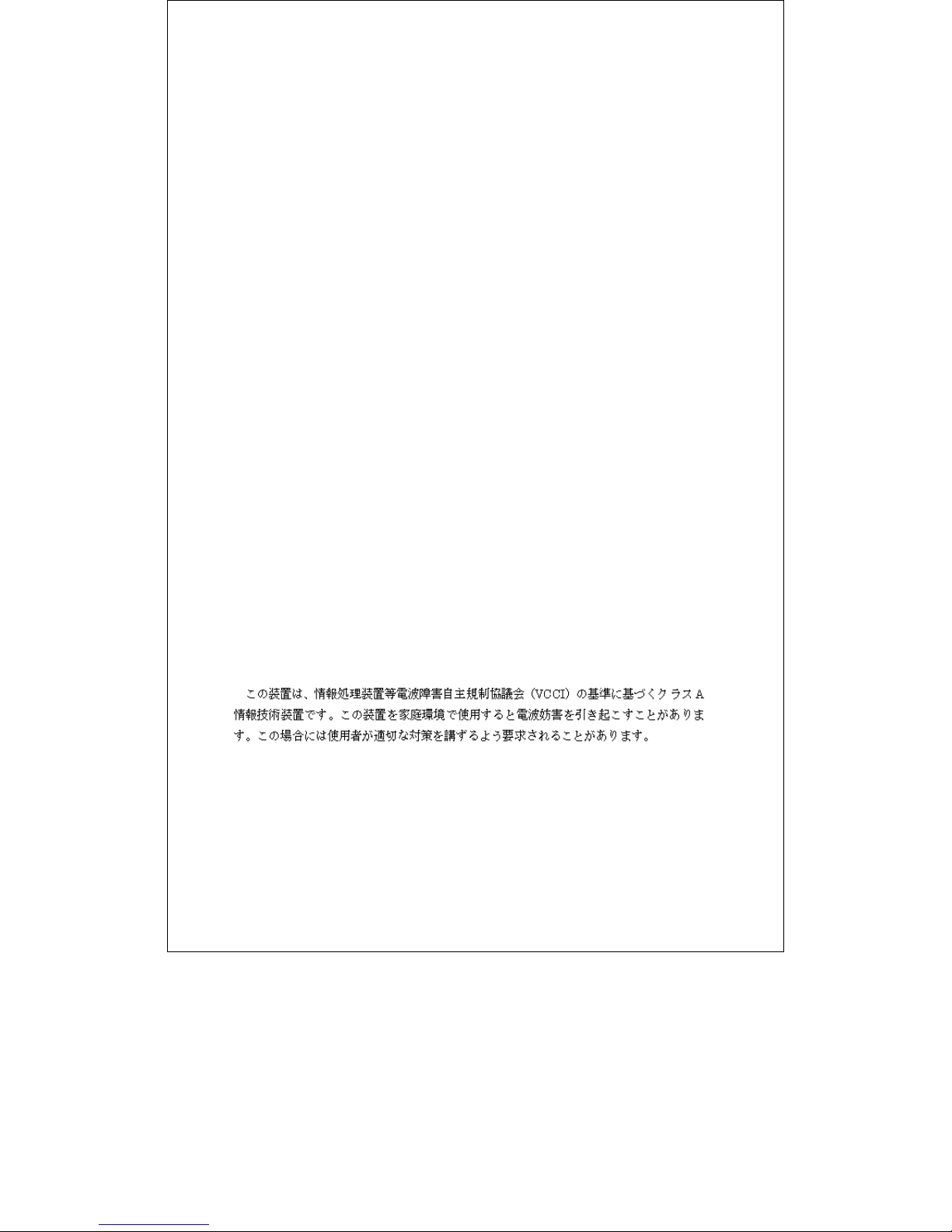

VCCI A Warning

TABLE OF CONTENTS

QUICK INSTALLATION ......................................................... III

0ABOUT THIS GUIDE .......................................................... XI

Audience ........................................................................................xi

Overview of the User’s Guide........................................................xi

1CHAPTER 1 : INTRODUCTION..............................................1

Product Description .......................................................................1

Product Features ............................................................................1

Internet Server Technology ............................................................2

2CHAPTER 2 : INSTALLATION...............................................5

Unpacking ......................................................................................5

Desktop / Shelf Installation..........................................................6

Wall Installation ............................................................................6

Port Description..............................................................................7

Serial – WAN .........................................................................................7

RJ-45 – LAN ..........................................................................................8

LED Description.............................................................................8

Pw/Tx .....................................................................................................8

Link/Rx...................................................................................................8

COM1 / COM2........................................................................................8

Normal LED Flash Pattern...................................................................9

Internet Server User’s Guide

viii

Connecting to the Local Network ..................................................9

Connecting to the Internet ...........................................................10

Connecting Power.........................................................................10

3CHAPTER 3 : SYSTEM SETUP...........................................11

Setting IP Addresses ....................................................................12

Default Addressing..............................................................................12

Configuring LAN IP Addresses...........................................................12

Using In-Band Telnet to Configure the Server...........................14

Using a Browser to Configure the Server....................................14

Minimum Configuration .............................................................15

DNS IP Address...................................................................................16

ISP Account -> Phone Number ...........................................................16

ISP Account -> User ID .......................................................................17

ISP Account -> Password ....................................................................18

Operation ......................................................................................20

4CHAPTER 4 : CONFIGURATION VARIABLES........................21

System Variables..........................................................................21

Server Name ........................................................................................21

Local LAN -> IP Address..................................................................... 22

Local LAN -> Subnet Mask .................................................................22

DNS IP Address...................................................................................23

Maximum Idle Time ............................................................................23

Operation Mode ...................................................................................24

Change Password ................................................................................25

WAN Port (1 & 2) Variables ........................................................25

Maximum User Connection.................................................................25

Line Type .............................................................................................26

Baud Rate ............................................................................................26

ISP Account -> Phone Number ...........................................................26

ISP Account -> User ID .......................................................................27

ISP Account -> Password ....................................................................27

ISP Account -> IP Address .................................................................27

Modem AT Command..........................................................................28

DHCP Server Variables ...............................................................30

Enable ..................................................................................................30

IP Address Range -> Start ..................................................................31

IP Address Range -> End ....................................................................31

IP Lease Time ......................................................................................32

IP Reserve Table..................................................................................32

Server Address Variables.............................................................32

System Monitoring .......................................................................34

Displaying Information .......................................................................34

Tools .....................................................................................................35

Navigation Controls.....................................................................36

5APPENDIX A : TROUBLESHOOTING ...................................37

System POST................................................................................37

Device Installation Problems.......................................................38

WAN.....................................................................................................38

LAN ......................................................................................................39

Station Configuration Problems .................................................39

Operating Problems .....................................................................39

6APPENDIX B : SPECIFICATIONS ........................................41

General..........................................................................................41

Environmental and Physical.......................................................42

7APPENDIX C : AT COMMANDS .........................................43

Basic AT Command Set...............................................................43

Internet Server User’s Guide

Extended AT& Command Set .....................................................47

8APPENDIX D : PORT PINOUTS ..........................................49

Serial Ports...................................................................................49

RJ-45 Port ....................................................................................50

9APPENDIX E : GLOSSARY ................................................51

INDEX ...............................................................................56

Otros manuales para TW100-W2

Tabla de contenidos

Otros manuales de Hardware de red de TRENDnet

TRENDnet

TRENDnet TEG-S4M4S30 Manual

TRENDnet

TRENDnet TEG-S3M2MG Manual de usuario

TRENDnet

TRENDnet TFC-1000S60D5 Manual

TRENDnet

TRENDnet TEW-441PC - 108Mbps Wireless PC Card... Manual de usuario

TRENDnet

TRENDnet TEG-160WS Manual de usuario

TRENDnet

TRENDnet TE100-S15M Manual de usuario

TRENDnet

TRENDnet TEG-S3M2CG Manual de usuario

TRENDnet

TRENDnet TEG-S3M8FX Manual de usuario

TRENDnet

TRENDnet TPE-101I Manual de usuario

TRENDnet

TRENDnet TEW-800MB Manual de usuario

TRENDnet

TRENDnet TEG-S3M8S15 Manual de usuario

TRENDnet

TRENDnet TEW-800MB Manual de usuario

TRENDnet

TRENDnet TEG-MGBSX - SFP Transceiver Module Manual de usuario

TRENDnet

TRENDnet TV-NVR104 Manual de usuario

TRENDnet

TRENDnet TEG-S4M1CG Manual

TRENDnet

TRENDnet TV-NVR408 Manual de usuario

TRENDnet

TRENDnet TEG-S4M1FG Manual

TRENDnet

TRENDnet TFC-1000S60D3 Manual

TRENDnet

TRENDnet TEG-S3M8TX Manual de usuario

TRENDnet

TRENDnet TEG-S3M11CF Manual de usuario

TRENDnet

TRENDnet TPE-101I Manual de usuario

TRENDnet

TRENDnet TPE-103I Manual de usuario

TRENDnet

TRENDnet TW100-W2 Manual de usuario

TRENDnet

TRENDnet TEW-680MB Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
