TRENDnet TU2-ET100 Manual de usuario

TRENDnet

TRENDware, USA

What's Next in Networking

TU2-ET100

Version 01.26.05

USB 2.0 Fast Ethernet Adapter

Quick Installation Guide

GAdaptateur Fast Ethernet USB 2.0

Guide d'installation rapide

USB 2.0 Fast-Ethernet-Adapter

Kurzanleitung zur Installation

Guía de instalación rápida del

adaptador Fast Ethernet con USB 2.0

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Prepare for Installation ......................................................................

2. Product Detail ....................................................................................

3. Hardware Installation .........................................................................

4. Driver Installation ...............................................................................

Thank you for purchasing TRENDnet's TU2-ET100 USB 2.0 Fast Ethernet

Adapter.

This guide will help you set-up your USB 2.0 Fast Ethernet Adapter. Following

the installations should be quick and easy. If you run into problems, please

refer to the Troubleshooting section. If you need further technical support,

please visit www.TRENDNET.com or call technical support by phone.

Verify Package Contents

Please make sure you have everything in the box:

1. Prepare for Installation

English QIG

English

Minimum System Requirements

1. Pentium 300Mhz or faster with at least 64MB RAM

2. Computer with an available USB slot

3. Windows XP, 2000, ME, 98SE

TU2-ET100 CD-ROM Quick Installation Guide

TRENDnet

TRENDware, USA

What's Next in Networking

TU2-ET100

Version 01.26.05

USB 2.0 Fast Ethernet Adapter

Quick Installation Guide

GAdaptateur Fast Ethernet USB 2.0

Guide d'installation rapide

USB 2.0 Fast-Ethernet-Adapter

Kurzanleitung zur Installation

Guía de instalación rápida del

adaptador Fast Ethernet con USB 2.0

2. Product Detail

The USB 2.0 Fast Ethernet Adapter has one RJ-45 connector, an LED for

network activity and an attached USB cable.

English

LED for network activity

RJ-45 connector

Attached USB cable

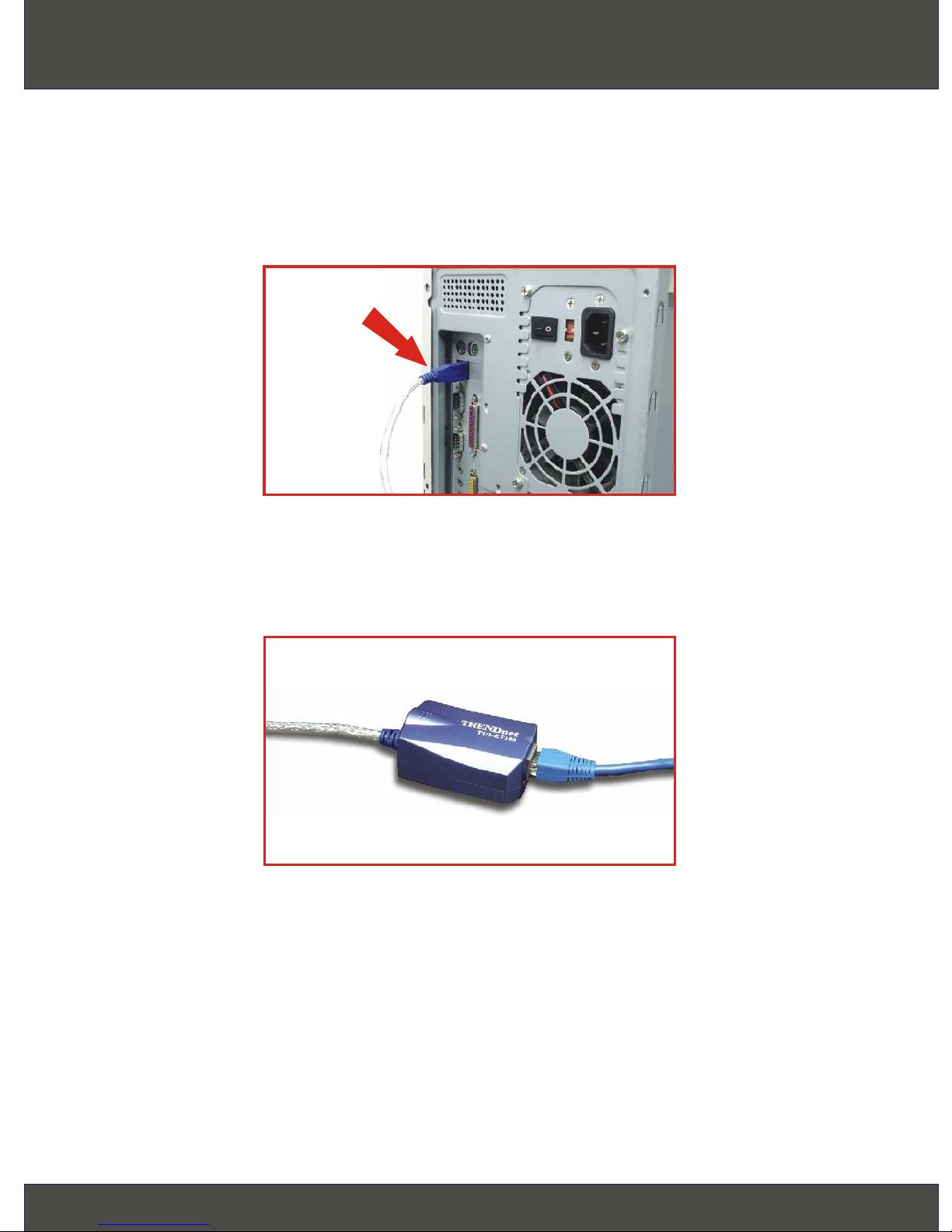

3. Hardware Installation

1. Turn on your computer and allow your operating system to fully load into the

system.

2. Connect the Type-A connector of your TU2-ET100 into a USB slot of your

desktop or notebook.

English

3. Connect one end of the CAT-5 cable into the TU2-ET100's RJ-45 port, and

connect the other end into your switch, router, cable modem, or DSL modem.

4. Driver Installation

English

Windows XP

After inserting the TU2-ET100 into one of your USB ports, the “Found New

Hardware” message appears. Please insert the TU2-ET100 Driver CD-ROM

into your computer's CD-ROM drive.

1. Click Install the software automatically (Recommended) and Click Next.

2. Select d:\winxp\ax88772.inf and Click Next.

5English

NOTE: TRENDnet's USB 2.0 Fast Ethernet Adapter has been fully

tested under all supported Windows Operating Systems and has been

approved for their functionality; click Continue Anyway.

3. Click Finish.

Your driver installation is now complete.

6English

After inserting the TU2-ET100 into one of your USB slots, the “Found New

Hardware” message appears.

1. Insert the TU2-ET100 Driver CD-ROM that came with this product. Click

Next.

2. Select Search for suitable driver for my device (recommended) and Click

Next.

Windows 2000

7English

3. Select Specify a location and Click Next.

4. Type D:\win2k in the text box and Click OK.

5. Click Next.

NOTE: Replace “D” in “D:\win2k” with whichever letter is assigned to

your CD-ROM drive.

8English

NOTE: TRENDnet's USB 2.0 Fast Ethernet Adapter has been fully

tested under all supported Windows Operating Systems and has been

approved for their functionality; click Yes.

6. Click Finish.

Your driver installation is now complete.
