TRENDnet TU-ET100C - Manual de usuario
Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TU-ET100C
Version 10.21.04
USB 1.1 Fast Ethernet Adapter
Quick Installation Guide
Guide d'installation rapide de
l'adaptateur Fast Ethernet USB 1.1 TU-ET100C
Kurzanleitung zur Installation des
Fast-Ethernet-Adapters TU-ET100C USB 1.1
Guía de instalación rápida del
adaptador Ethernet Fast USB 1.1 TU-ET100C
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
2
3
4
15
18
1. Prepare for Installation ......................................................................
2. Product Detail ....................................................................................
3. Hardware Installation .........................................................................
4. Driver Installation ...............................................................................
5. Verify Installation ...............................................................................
Thank you for purchasing TRENDnet's TU-ET100C USB 1.1 Fast Ethernet
Adapter.
This guide will help you set-up your USB 1.1 Fast Ethernet Adapter. Following
the installations should be quick and easy. If you run into problems, please
refer to the Troubleshooting section. If you need further technical support,
please visit www.TRENDNET.com or call technical support by phone.
Verify Package Contents
Please make sure you have everything in the box:
1
1. Prepare for Installation
English QIG
English
Minimum System Requirements
1. Pentium 300Mhz or faster with at least 64MB RAM
2. Computer with an available USB port
3. Windows XP, 2000, ME, 98SE
TU-ET100C Quick Installation Guide CD-ROM
TRENDnet
TRENDware, USA
What's Next in Networking
TU-ET100C
Version 10.21.04
USB 1.1 Fast Ethernet Adapter
Quick Installation Guide
Guide d'installation rapide de
l'adaptateur Fast Ethernet USB 1.1 TU-ET100C
Kurzanleitung zur Installation des
Fast-Ethernet-Adapters TU-ET100C USB 1.1
Guía de instalación rápida del
adaptador Ethernet Fast USB 1.1 TU-ET100C
2
2. Product Detail
The USB 1.1 Fast Ethernet Adapter has one RJ-45 connector and an attached
USB cable.
English
RJ-45 connector
3
3. Hardware Installation
English
1. Turn on your computer and allow your operating system to fully load into the
system.
2. Connect the Type-A connector of your TU-ET100C into a USB slot of your
desktop or notebook.
3. Connect one end of the CAT-5 cable into the TU-ET100C's RJ-45 port, and
connect the other end into your switch, router, cable modem, or DSL modem.
4English
4. Driver Installation
After inserting the TU-ET100C into one of your USB ports, the “Found New
Hardware” message appears. You will notice a message at the lower right hand
corner of your desktop.
1. Allow Windows XP to install your drivers. You will get another message
telling you that your TU-ET100C is ready for use.
Windows XP
Your driver installation is now complete.
Note: If you would like to verify the TU-ET100C has been installed
properly for your windows, go to the Verify Installation section.
5English
After inserting the TU-ET100C into one of your USB slots, the “Found New
Hardware” message appears.
1. Insert the floppy disk that came with this product. Click Next.
2. Select Display a list of known drivers for this device. Click Next.
Windows 2000
6English
3. Click Have Disk.
4. Click Browse…
5. Click the down arrow by the Look in text box and click 3½ Floppy (A:).
7English
6. Double click Win2000.
7. Click NET8511 and click Open.
8. Click OK.
8English

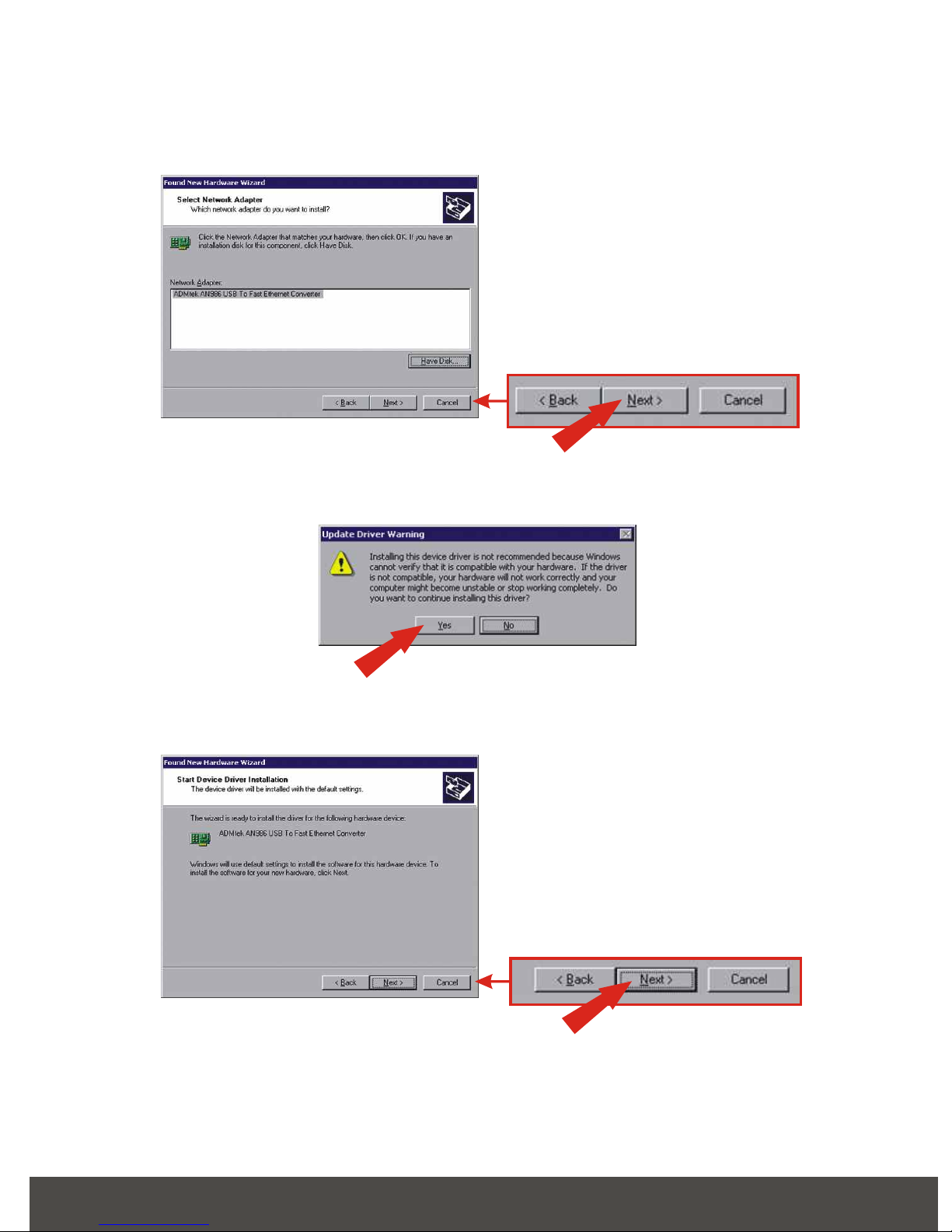

9. Click Next.
10. Click Yes.
11. Click Next.
