TRENDnet TEW-226PC Manual de usuario

TRENDnet

TRENDware, USA

What's Next in Networking

TEW-226PC

TEW-228PI

Version 10.25.04

11 Mbps wireless adapter

Quick Installation Guide

Guide d'installation rapide de

l'adaptateur sans fil 11 Mbps 802.11b

Kurzanleitung zur Installation des

drahtlosen 11 MBit/s 802.11b Adapters

Guía de instalación rápida del

adaptador inalámbrico 802.11b a 11 Mbps

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Introduction ........................................................................................

2. Product Detail ....................................................................................

3. Install Wireless Configuration Utility ..................................................

4. Install Hardware ..................................................................................

5. Install Drivers .....................................................................................

6. Wireless Configuration ......................................................................

1. Introduction

English QIG

English

Please make sure you have everything in the box:

Thank you for purchasing TRENDnet's TEW-226PC/TEW-228PI wireless

adapter.

This guide will help you set up your 11 Mbps wireless adapter. Following the

installations should be quick and easy. If you run into problems, please refer to

the Troubleshooting section. If you need further technical support, please visit

www.TRENDNET.com or call technical support by phone.

1. Computer with an available Type II 32-bit CardBus slot (TEW-226PC) or 32-

bit PCI slot (TEW-228PI)

2. 300 MHz processor or faster

3. 32 MB of RAM

4. 802.11b or 802.11g Access Point (for Infrastructure Mode) or another

802.11b wireless adapter (for Ad- Hoc/Peer-to-Peer networking mode).

Quick Installation Guide

TEW-226PC

TEW-228PI (with detachable antenna) CD-ROM

Verify Package Contents

Minimum Hardware Requirements

TRENDnet

TRENDware, USA

What's Next in Networking

TEW-226PC

TEW-228PI

Version 10.25.04

11 Mbps wireless adapter

Quick Installation Guide

Guide d'installation rapide de

l'adaptateur sans fil 11 Mbps 802.11b

Kurzanleitung zur Installation des

drahtlosen 11 MBit/s 802.11b Adapters

Guía de instalación rápida del

adaptador inalámbrico 802.11b a 11 Mbps

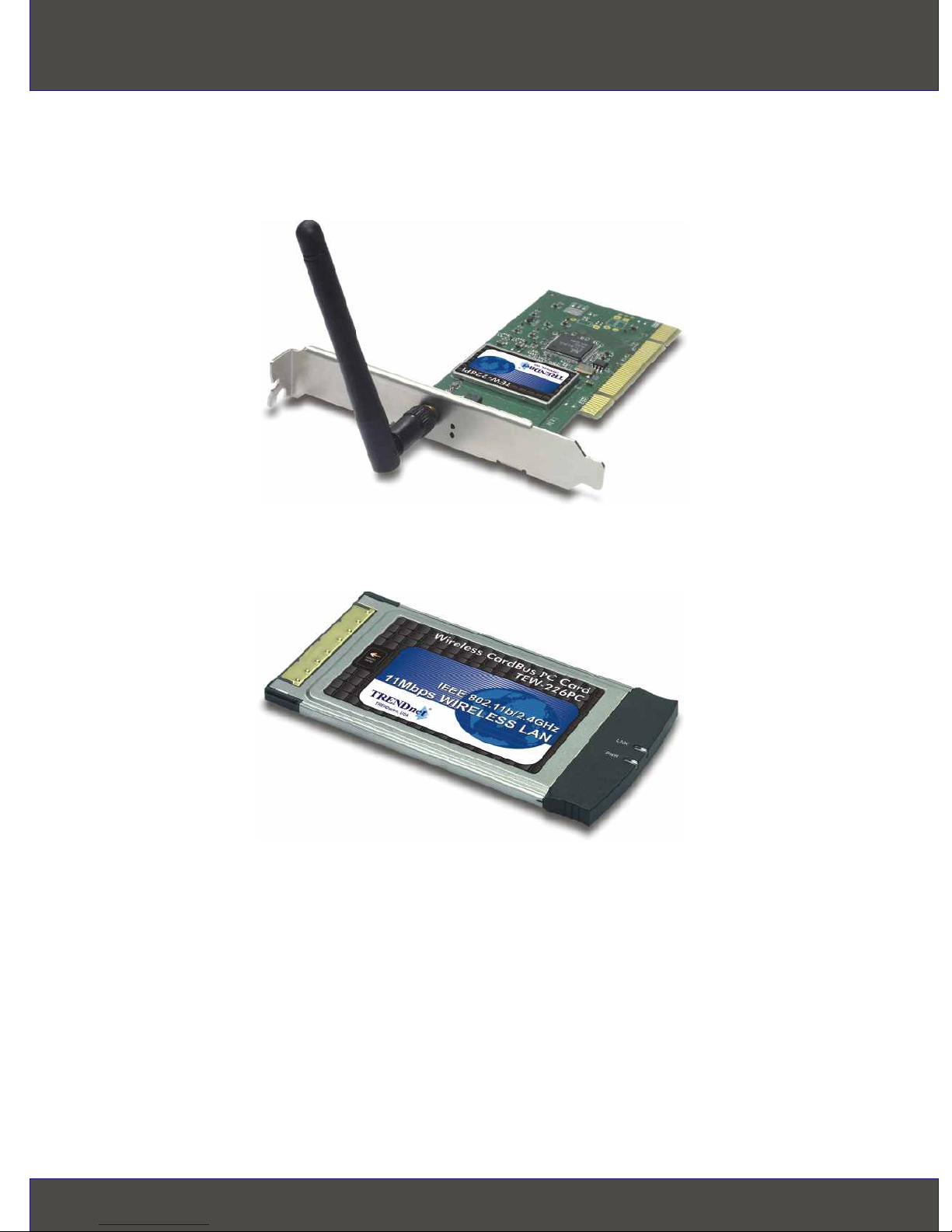

2. Product Detail

English

The TEW-226PC has two LEDS for network activity and power. The TEW-

228PI has a detachable antenna with one LED indicating network activity.

3English

1. Insert the TEW-226PC/TEW-228PI CD-ROM into your computer's CD-ROM

drive; the installation menu window will appear automatically. If the window

does not appear automatically, click Start, click Run, and type

E:\Autorun.exe in the text-field. Click OK.

2. On the Installation Menu, click Install Utility.

Windows 98SE/ME/2000/XP

3. Install Wireless Configuration Utility

Note: Replace “E” in “E:\Autorun.exe” with whichever letter is assigned

to your CD-ROM drive.

4English

3. Click Next.

4. Select the region that applies to your country and click Next.

5. Click OK.

5English

6. Click Next to start installing.

7. Click Next.

8. Click Finish.

6English

9. Click Exit on the Installation Menu screen.

Note: For Windows 98SE/ME, select “No, I will restart my computer

later,” and click Finish.

7English

1. Shut down your computer.

2. Insert the PC Card firmly into your notebook PC's open PC Card slot. Only

the plastic end-piece should protrude from the slot.

3. Boot up your laptop PC and make sure Windows's Desktop is properly

loaded.

Proceed only if you have already completed the steps in Section 2

If you are installing the TEW-226PC Wireless PC Card:

4. Install Hardware

8English

1. Shut down your computer.

2. Open your computer case to reveal the motherboard and expansion slots.

(Please refer to your computer's user manual if you need help opening the

case)

3. Insert the wireless card into one of motherboard's free PCI slots. Press down

firmly and evenly on the card until it snaps into place.

4. Screw the PCI card's metal bracket into your case with a standard bracket

screw. Attach the included antenna to the connector on the back of your

card.

5. Close your computer case, and boot up your computer.

Proceed only if you have already completed the steps in Section 2

If you are installing the TEW-228PI Wireless PCI Card:
