Traxon E:cue SYMPL pro Node Manual de usuario

AM255360031, AM305660031, AM305690031

e:cue

SYMPL pro Node (e:pix)

Information for Use

Edition:

30.06.23 [EN_SYMPL_pro_Node_Setup_v2p0]

Published by:

Traxon Technologies Europe GmbH

Karl-Schurz-Strasse 38

33100 Paderborn, Germany

Read the Information for Use and the Safety Instructions

carefully. Subject to modication without prior notice.

Typographical and other errors do not justify any claim for

damages. Modication of the product is prohibited.

This manual is designed for electricians, system administrators,

and product users.

All product names and trademarks mentioned in this manual are

trademarks of their respective owners.

Except for internal use, relinquishment of the instructions to a

third party, duplication in any type or form - also extracts - as

well as exploitation and / or communication of the contents is not

permitted.

Traxon Technologies Europe GmbH

Sales Operations

Karl-Schurz-Str. 38

33100 Paderborn, Germany

+49 5251 54648-0

[email protected]

Downloads and more information at:

www.ecue.com

Table of Contents

1 Security instructions 03

1.1 Symbols 03

1.2 General security instructions 03

2 General device description 03

2.1 Delivery content 04

2.2 Connectors and Interfaces 04

2.3 User interface: LEDs 04

2.4 Identify button: Identication & Reset 05

3 General remarks 05

3.1 Transport 05

3.2 Unpacking 05

3.3 Warranty regulations 06

3.4 Maintenance and Repair 06

3.5 Disposal 06

3.6 Support 06

4 Installation 06

4.1 Installation conditions 06

4.2 Mounting process 07

4.3 Ethernet connection 07

4.4 DMX connection 07

4.5 Power supply 07

4.6 Protective Earth 08

5 Networkconguration 08

5.1 Default network properties 08

5.2 Network conguration with SYMPHOLIGHT 08

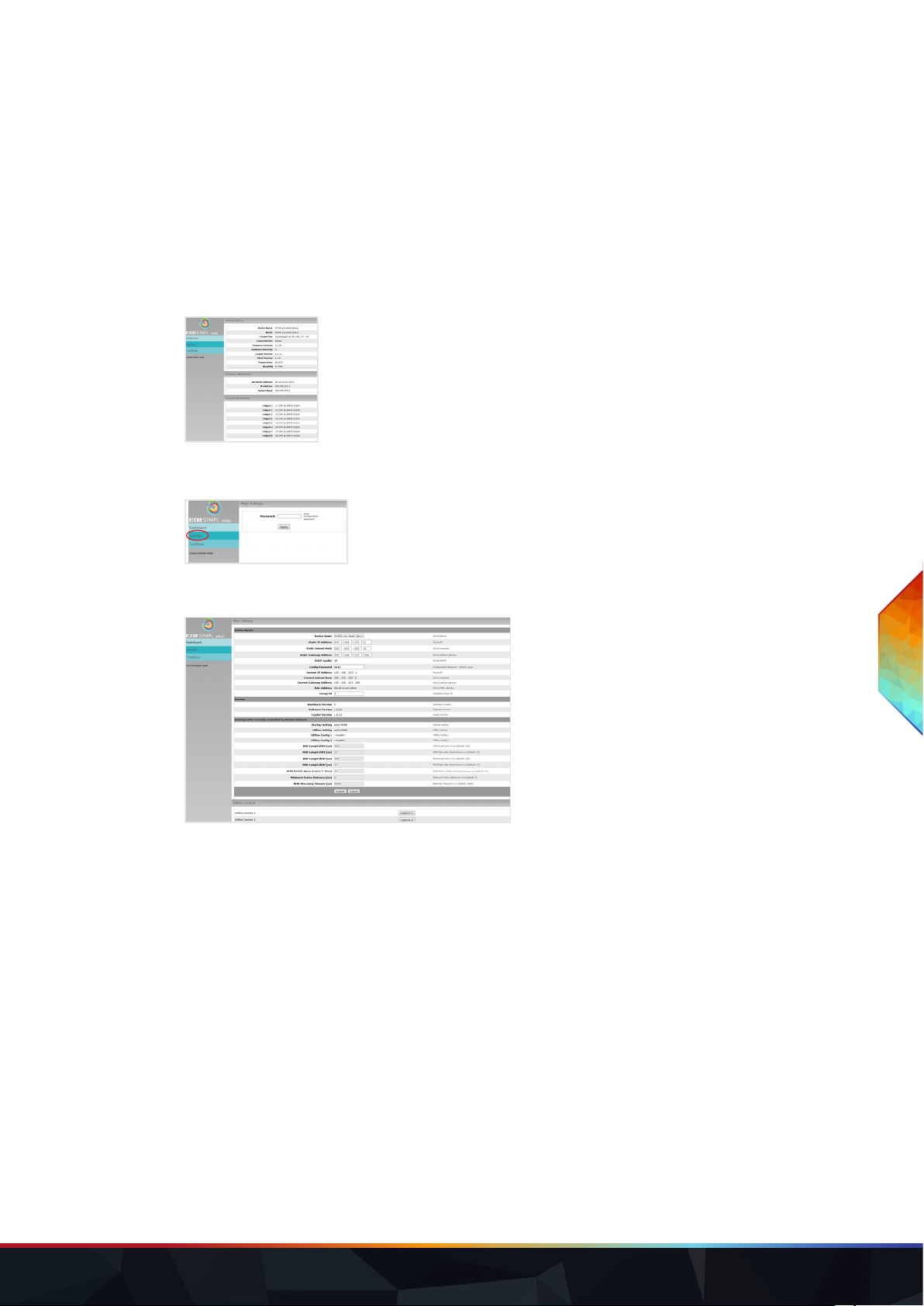

5.3 Network conguration with the web interface 09

6 Extended DMX/RDM settings 10

7 Test mode 11

7.1 Test mode via Test button 11

7.2 Test mode via web interface 11

8 FirmwareUpdate 12

9 Dismounting 12

10 Productspecications 13

11 Certications 14

12 Dimensions 14

SYMPL pro Node (e:pix) — Information for Use

1 Security instructions

Please read and follow the safety instructions, provided in a separate manual, carefully. Make

sure that the environmental, mounting, and installation prerequisites are met. This manual

should be kept at a safe place and in reach of the device.

1.1 Symbols

The exclamation mark warns about possible

damage of the device itself, to connected devices,

and to the user.

The information symbol gives general hints and

informs about handling and procedures for use of

the device.

1.2 General security instructions

2 General device description

e:cue SYMPL Nodes are a system of interfaces for e:cue SYMPHOLIGHT only. They provide

various connection types like DMX/RDM, DALI, digital inputs and outputs etc. SYMPL Nodes

always operate in online mode, as a device interface for SYMPHOLIGHT. All interactions are

initiated and controlled by SYMPHOLIGHT. Connections between servers, Cores and Nodes

are always made with e:net via Ethernet.

The SYMPL pro Node (e:pix) is the dedicated output device for a high amount of controllable

channels. It comes with 8 x DMX/RDM*) universes or 8 x e:pix/RDM*) universes over screw

terminal plugs.

The SYMPL pro Node (e:pix) is especially designed for the control of medium to large size

DMX/RDM*) installations. Within SYMPHOLIGHT the SYMPL pro Node makes it possible to

run up to 4096 DMX/ RDM channels (= 1360 RGB pixels, 170 pxl/universe) over Ethernet, with

bidirectional communication and all benets from RDM. The e:pix version runs up to 16,348

DMX/ RDM channels (= 5456 RGB pixels, 682 pxl/universe).

With an extended operating temperature of -40 ... 70°C (max 1 hour/day; continuous operation

at max. 60 °C) the SYMPL pro Node (e:pix) is suited for projects in tough outdoor

environments. In addition to embedded temperature and humidity sensors*) whose data is

readable in SYMPHOLIGHT, a backup on data loss and test modes add to the features of the

SYMPL Node.

The SYMPL Node is powered by an external power supply or via Power-over-Ethernet. It is

— Connect cables and data only when the device is powered

down.

— Ground the Ethernet and DMX connection cables for

outdoor installations (optional for indoor only). Connect

the SYMPL pro Node (e:pix) to Protective Earth when at

least one connected cable runs outdoor.

— The device must be supplied by a separate power supply

that is certied according to the local regulations (e.g.

SELV, Class 2).

— If safety instructions are missing, please contact Traxon

e:cue to receive a new copy.

SYMPL pro Node (e:pix) — Information for Use | Security instructions



content

easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable

vertical surface.

*) e:pix and the sensors are not available in all product versions:

DMX RDM e:pix sensors

SYMPL pro Node x x - x

SYMPL pro Node e:pix x x x x

Please refer to your product version for the applicable features throughout this manual.

2.1 Delivery content

Delivery content of the e:cue SYMPL pro Node (e:pix) -

Product number AM255360031, AM305660031, AM305690031

1. SYMPL pro Node (e:pix)

2. Safety instructions

3. Installation guide

2.2 Connectors and Interfaces

View from top:

2.3 User interface: LEDs

The SYMPL pro Node (e:pix) has 11 LEDs on the front panel. The 11 LEDs show the basic states of the

SYMPL pro Node (e:pix).

LEDs

Status On: If constantly on, the device is online. Server application is in operation.

Blinking: If blinking in one second intervals, the device is oine, no connection to a

SYMPHOLIGHT server or Core is available. If blinking more rapidly, the device is in

bootloader mode.

e:net O: no link available.

On: link established.

Blinking: e:net trac.

— To operate the SYMPL pro Node (e:pix) a SYMPHOLIGHT

version 3.0 or higher or a Lighting Application Suite

version 7.0 SR2 or higher is mandatory.

— e:cue SYMPL Noes are not hot-pluggable.

6 7

8 9 10

1DMX output 1 ... 8 (GND, DMX-, DMX+ left to right)

2DMX/RDM status LEDs

3Test / Error LED

4e:net LED (Ethernet, LAN activity)

5Status LED (Device status)

6Identify button

7Test button

8Protective Earth

9Power supply (Vcc+, Vcc- left to right)

10 e:net / Ethernet

11 DIN rail handle

SYMPL pro Node (e:pix) — Information for Use | General device description



content

Test / Error O: no error detected.

Short-short-long sequence: Test mode active.

On: If constantly lights in red, an error occurred. This can be an internal error or

malfunction of the device, or an external error, e.g. a shortcut of interface connections or

alien power supply. Switch the device o and on. If the error persists, check the wiring or

contact Traxon e:cue Service.

Status +

Test / Error

The Status and Test / Error LED blink simultaneously to identify the SYMPL Node

(enabled “Identify Interface Mode” in SYMPHOLIGHT).

DMX 1 ... 8 Orange: DMX/RDM data outgoing.

White: e:pix data outgoing.

Blue: data incoming.

Orange + White: port error.

2.4 Identifybutton:Identication&Reset

The Identify button has three functions: to send an Identify message (A), to reset the Node (B), and to exit the

error state (C). For the e:pix version, the Identify button additionally switches protocol during Test mode (D).

(A) Only available with e:net: A short press during operation in online mode sends an Identify message to the

server. This helps to assign the Node in the Setup tab in SYMPHOLIGHT.

(B) The Identify button can also be used to reset the device to factory state or to stay in bootloader mode.

With a reset you restore the password and device settings by using the Identify button. Please note that the

device name is not reset:

yKeep the Identify button pressed while powering up, Status and Test / Error LEDs light up at rst.

Bootloader mode is signaled by a fast blinking Status LED. Release the button now. The device stays in

bootloader mode to download a new rmware.

To exit the bootloader mode, short press the Identify button again.

yPress the Identify button during operation until Status and Test / Error LEDs blink alternating, then

blink together. Releasing the button now resets the device to its factory settings. The password and

network settings are reset to their default values. Please note that the device name cannot be reset.

yKeeping the button pressed further on, the device proceeds to normal operation. No changes apply.

switch back to normal activity if the cause of error is eliminated. The Node might reboot.

(D) e:pix version only: During test mode, single press the Identify button to switch between e:pix and DMX

protocol in the test.

3 General remarks

3.1 Transport

Only transport the device in its original packaging. This protects the device from damage.

3.2 Unpacking

Only unpack the device at its installation location. To protect the device against condensation water, unpack it

and wait until all moisture remaining in the device has evaporated. Condensation can occur when the device is

moved from a cold to a warm location. Keep the packaging for use in case of further transport. Inspect all

parts for completeness regarding chapter “2.1 Delivery content” (page 04). If there is apparent damage to

the device or parts are missing from the delivery scope, please contact the Traxon e:cue support service.

SYMPL pro Node (e:pix) — Information for Use | General remarks



content

3.3 Warranty regulations

Depending on the product, warranty regulations are of dierent duration. The warranty time is usually noted

in the quote and in the order conrmation. See www.traxon-ecue.com/terms-and-conditions for details. Legal

warranty regulations apply in any case.

3.4 Maintenance and Repair

This device requires no maintenance.

To update the rmware see „8 Firmware Update“ on page 12.

3.5 Disposal

The proper disposal of packing materials and of the device is the responsibility of the respective user and for

his account; in all other matters, the retrieval obligation for packing materials and the device is subject to the

statutory regulations.

3.6 Support

In case of technical problems or questions regarding installation and repair please contact:

Traxon Technologies Europe GmbH

Customer Service

Karl-Schurz-Str. 38

33100 Paderborn, Germany

+49 (5251) 54648-0

[email protected]

4 Installation

The installation of the SYMPL pro Node (e:pix) consists of mounting the device, connections to power supply,

to e:net, and to the DMX (e:pix) devices.

The sequence of cabling is not dened. Supply the device with power after all cabling is completed; it starts

booting.

4.1 Installation conditions

Installation position Terminals on top and bottom

Horizontal spacing On both sides 18 mm

Minimum vertical rail grid spacing 115 mm (90 + 25 mm) (excluding conduit)

Recommended vertical rail grid spacing 160 mm (with 40 mm conduit)

— Before dismounting, appropriate measures must be taken

to protect the respective components against damage

caused by electrostatic discharge (ESD protection).

— Do not try to repair the device. Return it to your Traxon

e:cue distributor for replacement or repair.

Batteries and technical appliances must not be disposed of

with domestic waste, but should be handed in at the

appropriate collection and disposal points.

Connect cables and data only when the device is powered

down.

SYMPL pro Node (e:pix) — Information for Use | Installation



content

4.2 Mounting process

The SYMPL pro Node (e:pix) is designed to mount onto a 35mm DIN rail (EN 60715) in a horizontal position.

1. Clip the device to the rail from top.

2. Apply gentle pressure to the top front to snap it in place. The device has

been mounted successfully.

You can also mount the device on any at surface. Use a 3 to 3.5mm screw

for the hanger hole.

For mechanical stability, mounting on a rail is recommended.

4.3 Ethernet connection

The pin-assignment of the Ethernet port corresponds to RJ45 standards. You can use every common

Ethernet component, like cable, splitters, and switches. Connect the SYMPL pro Node (e:pix) at the

designated Ethernet interface with a patch cable (RJ45, CAT5).

4.4 DMX connection

The SYMPL pro Node (e:pix) can control eight DMX (e:pix) universes with its eight DMX ports. Connect DMX

(e:pix) devices to the SYMPL Node using 3-pin terminal plugs at the DMX interface of the SYMPL Node.

The appropriate pin assignment is dened as follows:

From left to right: GND, DMX-, DMX+

It is recommended to use twisted pair cabling.

Use shielded cables for outdoor installations.

4.5 Power supply

The e:cue SYMPL pro Node (e:pix) can be powered by an external power supply or via Power-over-Ethernet.

PoE:

For PoE, simply connect an Ethernet connection from a power sourcing device.

External power supply:

Connect the SYMPL pro Node (e:pix) to a certied NEC Class 2 24 V DC power supply unit. Present power

supply equates to the status “On” or running of the SYMPL Node.

To connect the device to a power supply unit, use the provided 2-pole terminal and lay the wires as stated on

the front label. The voltage assignment is left V+ and right V-.

Turn the power on when all cables are connected to the SYMPL pro Node (e:pix). The device starts booting.

During the booting process all DMX/RDM LEDs turn on consecutively. The device has nished booting and is

in operation when the LED Status is ashing.

— Ground the Ethernet cable for outdoor installations

(optional for indoor only).

— Never connect more than one SYMPL pro Node (e:pix) in

factory state to a network. The identical IP addresses will

conict and disturb proper communication.

Ground the DMX connection cable for outdoor installations

(optional for indoor only). Ground each cable seperately.

The SYMPL pro Node (e:pix) is not suited for powering over a

DC power supply network. The device must be supplied by a

separate power supply that is certied according to the local

regulations (e.g. SELV, Class 2).

SYMPL pro Node (e:pix) — Information for Use | Installation



content

4.6 Protective Earth

Grounding of the SYMPL pro Node (e:pix)

Use Protective Earth where applicable.

Ground the DMX connection

cable and the Ethernet cable.

Ground each cable separately.

5 Network conguration

The conguration of the e:cue SYMPL pro Node (e:pix) is completely done via e:cue SYMPHOLIGHT. See the

SYMPHOLIGHT System Manual for details on conguration, available at www.ecue.com.

The network properties of the device are precongured. The successful installation of the power supply is

required for changing the network conguration. You can either adjust the network settings with

SYMPHOLIGHT or using the web interface of the device. Via the web interface extended DMX / RDM

settings are congurable.

5.1 Default network properties

The SYMPL pro Node (e:pix) has as factory setting the default IP address 192.168.123.1.

Subnet mask: 255.255.255.0.

DHCP is enabled by default.

The default password is: ecue

To change the network conguration use either SYMPHOLIGHT or the web interface of the device:

5.2 NetworkcongurationwithSYMPHOLIGHT

1. Open the context menu of the SYMPL pro Node (e:pix) in the Setup tab of SYMPHOLIGHT by a right-

click on the device.

2. Select “Congure Network”:

3. Dene the IP address, the subnet mask and the DHCP settings to your needs:

Connect the SYMPL pro Node (e:pix)’s Portective Earth to

earth when at least one connected cable runs outdoors.

SYMPL pro Node (e:pix) — Information for Use | Network conguration



content

4. Click “Apply” to submit the changes.

The network conguration of the device is completed.

5.3 Networkcongurationwiththewebinterface

1. Open a common web browser on a connected PC. Enter the SYMPL pro Node (e:pix)’s IP address into

the address bar:

e.g. http://192.168.123.1.

The web interface of the device is displayed:

2. On the left side, select “Settings” and enter the default password ecue:

3. Click “Apply”. The Settings page is displayed:

4. Dene the network settings at “Device Basics” to your needs. You can also change the password for

entry to the web interfaces of the device here. Entering an empty value disables the password protection.

5. Click “Submit” to apply the settings.

The network conguration of the device is completed.

SYMPL pro Node (e:pix) — Information for Use | Network conguration



content

6 Extended DMX/RDM settings

DMX/RDM settings are congured via SYMPHOLIGHT at the properties of the SYMPL pro Node (e:pix) in

the Setup Tab. Is the Node not connected to SYMPHOLIGHT, extended DMX/RDM settings take eect.

Over the web interface of the SYMPL pro Node (e:pix) you can dene the DMX/RDM properties for

ythe period of powering up until a show takes over (Startup Setting)

ythe time of no e:net connection (Oine Setting) - after prior connection to a show

yDMX and RDM Break time and Mark

yDMX to RDM wait Switch time (RDM Packet Space)

yminimum frame distance

yRDM discovery timeout (RDM DISC Timeout).

These properties are only congurable when the device is not assigned to a show. SYMPHOLIGHT must have

had control once over the Node for the settings to take eect.

To access the web interface, open a common web browser on a connected PC. Enter the device's IP address

into the address bar:

e.g. http://192.168.123.1.

At Startup Setting and Oine Setting, the setting “send MARK” sends a MARK (a logical one) on the bus: no

data are sent to the xtures and the DMX port awaits further commands.

You can also capture content (snapshots) and use it for Startup and Oine Settings:

By assigning a Group ID to multiple SYMPL pro Nodes (e:pix), the content of all identically assigned

SYMPL pro Nodes (e:pix) is captured and likewise displayed on these devices.

— The employment of a discrete network is recommended.

— Note down all employed and, if applicable, reserved IP

addresses. Keep the information for future network

congurations.

— You can change the login password to the

SYMPL pro Node (e:pix)'s conguration page and its

device name at “Settings” page. Do not forget the new

password.

— The SYMPL pro Node (e:pix) should be only accessed

from one browser tab at a time.

In case there is no response please wait a while or reopen

the browser to end pending connections.

— Please note that after changing the IP address, the device

currently will lose its connection and needs to be

reconnected under the new IP address.

2. Employ

1. Capture

SYMPL pro Node (e:pix) — Information for Use | Extended DMX/RDM settings



content

Tabla de contenidos

Otros manuales de Equipo de iluminación de Traxon

Traxon

Traxon ProPoint Vista Series Manual de usuario

Traxon

Traxon Allegro Dot M Manual de instrucciones de instalación

Traxon

Traxon Cove Light AC DIM Manual de instrucciones de instalación

Traxon

Traxon Allegro Dot S Direct View Manual de usuario

Traxon

Traxon Media Tube HO Manual de instrucciones de instalación

Traxon

Traxon RGB 50 144PXL Manual de usuario

Traxon

Traxon Media Tube HO Manual de usuario

Traxon

Traxon Mesh Manual de instrucciones de instalación

Traxon

Traxon Allegro Media Tube Lite Manual de usuario

Traxon

Traxon e cue Osram ProPoint KR.MA.01.10001 Manual de instrucciones de instalación

Traxon

Traxon Allegro Media Tube Lite Manual de instrucciones de instalación

Traxon

Traxon ARCHISHAPE Dot 2.0 S CE Manual de usuario

Traxon

Traxon e:cue Genius AM38213003I Hoja de especificaciones

Traxon

Traxon Allegro Dot M/L Direct View Manual de usuario

Traxon

Traxon ProPoint Vista 100W Manual de usuario

Traxon

Traxon Allegro Dot S Direct View Manual de usuario

Traxon

Traxon ARCHISHAPE Tube Ultra Slim Manual de usuario

Traxon

Traxon Osram Media Tube Go Manual de usuario

Traxon

Traxon Pro Washer Pro Nano Manual de usuario

Traxon

Traxon Washer Quattro AC XB Manual de instrucciones de instalación

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario

Traxon e:cue SYMPL pro Node Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas
