Traxon 64PXL Manual de usuario

64PXL Board RGB

INSTALLATION GUIDE

V1.3

Cover:

64PXL Board RGB

8PXL Add-On Strip

16PXL Add-On Board

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 2 of 18

CONTENT

1. INTRODUCTION 3

2. INSTALLATION 5

3. SAFETY AND OPERATION 7

4. SYSTEM CONFIGURATION 8

5. CARE AND MAINTENANCE 12

6. TECHNICAL SPECIFICATION 13

7. TROUBLESHOOTING 14

8. WARRANTY STATEMENT 14

9. ADD-ON FIXTURES 15

For your own safety and that of the product, please read this installation guide

carefully before beginning setup and installation.

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 3 of 18

INTRODUCTION1.

General1.1

64PXL Board RGB features 64 ultra bright RGB SMD LEDs on a 8 x 8matrix with a

31.25mm/1.23” pitch. Although the LEDs provide ultra brightness, high resolution videos

and graphic replays can be created by combining multiple boards. The 64PXL Board is DMX

compatible which allows daisy chaining with the Traxon TX Connect™ system. On-board

SMART CHIP™ technology with the powerful feature of auto-addressing enables easy setup

and installation.

Features:

64 Ultra Bright RGB SMD LEDs

t

TX Connect™ Systemt

DMX512 / e:pix / DVI capablet

Auto-Addressingt

SMART CHIP™ Technologyt

Indoor Applicationst

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 4 of 18

Dimensions1.2

64PXL Board RGB DimensionsFIG.1:

240mm/9.45”

31.25mm/1.23” (typ.)

4.32mm/0.17”

16.00mm/0.63”

31.25mm/1.23” (typ.)

222mm/8.74”

180mm/7.09” (2x)

125mm/4.92” (2x)

222mm/8.74”

Packing Contents1.3

Packing ContentsFIG.2:

1 x TX Connect Smart Interconnection Cable (300mm/11.82”)

4 x Mounting Spacers

1 x 64PXL Board RGB 4 x Mounting Screws

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 5 of 18

INSTALLATION2.

Points To Consider2.1

Plan your installation before mounting the String. The following should be considered for a

successful installation.

Installation distances and appropriate cable lengths. Please consult your local Traxon™

t

ofﬁce or authorized agent for necessary aid.

The number of 64PXL Board RGBs and appropriate LED Engines.

t

Any DMX512 controllers to be used with the products.t

On-Site Installation2.2

ALWAYS keep the cables protected from sharp objects and ensure not

damage is generated on the cables.

Failure to keep the product within the operating temperature range of 0°Ct

to 50°C (+32°F to +122°F) and storage temperature range of −20°C to

+70°C (–4°F to +158°F) will void the product’s warranty.

Mounting2.2.1

To mount the board, ﬁrst ﬁt the nylon spacers into the mounting holes from the rear of1.

the board. Then use the screws to ﬁrmly fasten the board to a ﬂat surface. Careful not to

over-tighten the screws, see below diagram.

Board MountingFIG.3:

125mm/4.92”

SCREW (4x)

MOUNTING SPACER (4x)

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 6 of 18

To keep a consistent LED pitch when mounting multiple boards, use the dimensions2.

shown in below diagram.

Mounting Multiple BoardsFIG.4:

180mm/7.09”30mm/1.81” 70mm/2.76”

10mm/0.39”

31.25mm/1.23”

180mm/7.09”

125mm/4.92” 125mm/4.92” 125mm/4.92” 57.5mm/2.26”

10mm/0.39”

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 7 of 18

SAFETY AND OPERATION3.

CAUTION - Unplug the power supply from the mains power before connecting any cablest

as this can damage the products.

CAUTION - Avoid looking directly into the LED light source at close range for your ownt

safety.

Persons installing this products should make sure:t

The installation complies with all applicable codes, state and local laws,1.

ordinances, standards and safety regulations.

The installation environment is carefully studied and suitable surge protection2.

measure(s) is taken.

He or she is qualiﬁed for the handling of electrical equipment.3.

Do not attempt to install or use the product until installation instructions and safety labels

t

are fully understood. This product is designed for indoor use only.

Ensure product operates within the speciﬁed temperature range. (Refer to 6. TECHNICALt

SPECIFICATION for more details.)

Do not attempt to open the product. Not user serviceable.t

Do not use the product if any part of it, or the power cables are damaged.t

Only use product for speciﬁed voltage, do not exceed. (Refer to 6. TECHNICALt

SPECIFICATION for more details.)

If the product has been subjected to drastic temperature variances, for example, followingt

transportation, do not connect the ﬁxture until it has reached room temperature, as

moisture condensation may cause electric shock and product damages.

When installing the products and system power supplies, please ensure they will not bet

exposed to moisture and extreme heat. Besides, keep a clean operating environment for

the ﬁxtures and system power supplies.

Please study this Installation Guide thoroughly and check the latest Technical Speciﬁcationt

Sheets available from the Traxon website www.traxontechnologies.com before setup.

Any non-compliance of the Installation Guide will void the Traxon warranty.

t

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 8 of 18

SYSTEM CONFIGURATION4.

TYPICAL CONNECTION COMPONENTS4.1

TX Connect System is a interconnection system that combines power and DMX data on

a single connector cables so that only one connection is required between light ﬁxutres.

The Board uses TX Connect System for all interconnections. Below diagram shows some

components for the TX Connect System

TX Connect System ComponentsFIG.5:

Butler S2

DMX/RDM Output Engine

EN.BU.0000001

TX Connect Smart Interconnection Cable

TI.IC.0008000 0.08m

Part No.:

TI.IC.0030000 0.3m

TI.IC.0060000 0.6m

TX Connect Smart Extension Cable

TI.EC.0050000 0.5m

Part No.:

TI.EC.0100000 1m

TI.EC.0300000 3m TI.EC.0500000 5m

TI.EC.1000000 10m

TX Connect Data Cable

DI.IC.0020000 0.2m

Part No.:

DI.IC.0100000 1m

DI.IC.0300000 3m DI.IC.0500000 5m

DI.IC.1000000 10m DI.IC.2000000 20m

TX Connect Smart

Power/Data Injector Box

Part No.: TI.ZI.0000100

TX Connect Smart

Data Extractor Box

Part No.: TI.DO.0000100

LED Engine Smart 100W Indoor

Part No.: PS.IA.0010000

TX Connect Smart Power Injector Cable

Part No.: TI.PI.0000100

Video Micro Converter

Part No.: 160185

Butler S2

Part No.: EN.BU.0000001

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 9 of 18

System Diagram - Butler S2FIG.6:

A to B: 100 meters

CONTROLLER to ﬁrst FIXTURE.

C to D: 30 meters

POWER SUPPLY to last FIXTURE in chain.

CABLING LENGTHS

2x 64PXL BOARD RGB CAN BE DAISY CHAINED

PER CONTROLLER OUTPUT (512 DMX CHANNELS).

4x 64PXL BOARD RGB CAN BE POWERED BY

ONE LED ENGINE SMART 100W INDOOR.

CONTROLLER

512 DMX Channels per output

TX Connect Data Cable

POWER SUPPLY

LED Engine Smart

100W Indoor

TX Connect Smart

Power/Data Injector Box

TX Connect Smart

Interconnection Cable

TX Connect Smart Interconnection Cable

TX Connect Smart Extension Cable

Back

64PXL Board RGB

AC Power Cord

TX Connect Smart

Power Injector Cable

Butler S2

Discontinued

www.traxontechnologies.com

PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide 05/15 V1.3 10 of 18

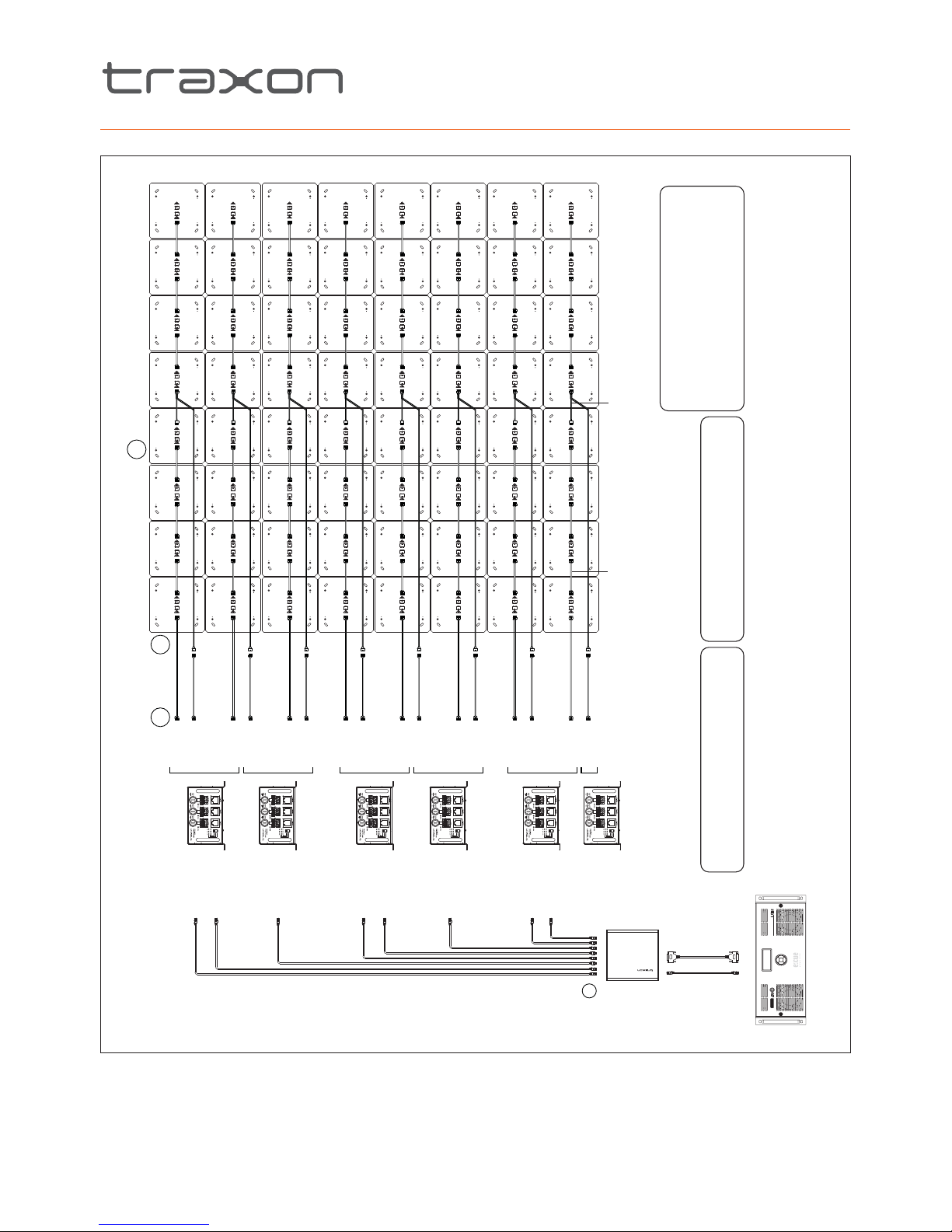

System Diagram - VMCFIG.7:

A to B: 100 meters

CONTROLLER to ﬁrst FIXTURE.

C to D: 30 meters

POWER SUPPLY to last FIXTURE in chain.

CABLING LENGTHS

UP TO EIGHT 64PXL BOARD RGBs CAN BE DAISY

CHAINED PER VMC OUTPUT.

UP TO FOUR 64PXL BOARD RGBs CAN BE POWERED

BY ONE O/P OF LED ENGINE SMART 300W INDOOR.

DVI

Source

Video Micro Converter (VMC)

LED Engine Smart 300W Indoor

64PXL Board RGB

PSU1 O/P1

PSU1 DMX IN 1

PSU1 DMX IN 3

PSU2 DMX IN 2

PSU3 DMX IN 1

PSU3 DMX IN 3

PSU4 DMX IN 2

PSU5 DMX IN 1

PSU5 DMX IN 3

PSU1 O/P2

PSU1 O/P3

PSU2 O/P1

PSU2 O/P2

PSU2 O/P3

PSU3 O/P1

PSU3 O/P2

PSU3 O/P3

PSU4 O/P1

PSU4 O/P2

PSU4 O/P3

PSU5 O/P1

PSU5 O/P2

PSU5 O/P3

PSU6 O/P1

TX Connect Smart Interconnection Cable

(300mm length included with each board)

TX Connect Smart Power Injector Cable

Conﬁgured to grab 4096 pixels

from DVI input.

Back View

TX Connect Data Cable

PSU1

PSU2

PSU3

PSU4

PSU5

PSU6

Conﬁguration

via Ethernet

LCE2 fx

Discontinued
