OWNER'S MANUAL

PREPARATION, INSTALLATION, OPERATION AND MAINTENANCE

KEEP THIS MANUAL

November, 1992

¥ Residential Freestanding Stove

¥ Masonry Fireplace Insert

Model Flex-95

(E.P.A. Phase II Approved)

Tested to U.L. 127, U.L. 1482, U.L. 907 Standards by:

Warnock Hersey Professional Services, LTD

Manufactured by:

10850 117th Place N.E. Kirkland, WA 98033

Page 2

SAFETY PRECAUTIONS

¥ VIEWING DOOR MUST BE CLOSED AND

LATCHED DURING OPERATION.

¥ THE APPLIANCE IS DESIGNED AND

APPROVED FOR BURNING OF WOOD ONLY.

THE BURNING OF ANY TYPE FUEL OTHER

THAN WOOD WILL VOID ALL WARRANTIES

AND SAFETY LISTING OF THE APPLIANCE.

DO NOT ATTEMPT TO BURN ANY OTHER

FUEL THAN SPECIFIED IN THIS MANUAL.

¥ THIS APPLIANCE MUST BE PROPERLY

INSTALLED IN ORDER TO PREVENT THE

POSSIBILITY OF A HOUSE FIRE. FOR YOUR

SAFETY THE INSTALLATION

INSTRUCTIONS MUST BE STRICTLY

ADHERED TO. DO NOT USE MAKESHIFT

METHODS OR COMPROMISE IN

INSTALLATION.

¥ THE FLUE SYSTEM SHOULD BE CHECKED

TWICE A YEAR MINIMUM FOR ANY BUILD-

UP OF SOOT OR CREOSOTE.

¥ CONTACT YOUR LOCAL BUILDING

OFFICIALS TO OBTAIN A PERMIT AND

INFORMATION ON ANY INSTALLATION

RESTRICTIONS OR INSPECTION

REQUIREMENTS IN YOUR AREA. ALSO,

NOTIFY YOUR INSURANCE COMPANY THAT

YOU ARE INSTALLING YOUR WARNOCK

HERSEY LISTED STOVE OR INSERT.

¥ GASOLINE OR OTHER FLAMMABLE LIQUIDS

MUST NEVER BE USED TO START THE FIRE

OR "FRESHEN-UP" THE FIRE. DO NOT

STORE OR USE GASOLINE OR OTHER

FLAMMABLE LIQUIDS IN THE VICINITY OF

THIS APPLIANCE.

¥ THIS APPLIANCE MUST BE CONNECTED TO

A LISTED HIGH TEMPERATURE

RESIDENTIAL TYPE CHIMNEY OR AN

APPROVED MASONRY CHIMNEY WITH A

STANDARD CLAY, TILE, OR STAINLESS

STEEL LINER.

¥ NEVER BLOCK FREE AIRFLOW THROUGH

OPEN VENTS.

¥ ASHES MUST BE DISPOSED OF IN A METAL

CONTAINER WITH A TIGHT FITTING LID, AND

PLACED ON A NON-COMBUSTIBLE

SURFACE BEFORE FINAL DISPOSAL.

¥ NEVER TRY TO REPAIR OR REPLACE ANY

PART OF THE APPLIANCE UNLESS

INSTRUCTIONS ARE GIVEN IN THIS

MANUAL. ALL OTHER WORK SHOULD BE

DONE BY A TRAINED TECHNICIAN.

¥ DO NOT MAKE ANY CHANGES OR

MODIFICATIONS TO THE APPLIANCE OR AN

EXISTING MASONRY FIREPLACE OR

CHIMNEY TO INSTALL THIS APPLIANCE.

¥ WAIT UNTIL THE APPLIANCE HAS COOLED

BEFORE CARRYING OUT MAINTENANCE

PROCEDURES.

¥ TRAVIS INDUSTRIES, INC. GRANTS NO

WARRANTY, IMPLIED OR STATED, FOR THE

INSTALLATION OR MAINTENANCE OF YOUR

APPLIANCE, AND ASSUMES NO

RESPONSIBILITY FOR ANY

CONSEQUENTIAL DAMAGE(S).

¥ ALWAYS FOLLOW THE INSTRUCTIONS IN

THE OWNER'S MANUAL.

¥ KEEP THIS MANUAL FOR LATER USE.

¥ DO NOT INSTALL IN A SLEEPING ROOM

WHEN INSTALLING IN A MOBILE HOME.

¥ DO NOT CONNECT THIS APPLIANCE TO

ANY CHIMNEY SERVING ANOTHER

APPLIANCE.

¥ KEEP FURNITURE, DRAPES, CURTAINS,

WOOD, PAPER AND OTHER

COMBUSTIBLES A MINIMUM OF 36" AWAY

FROM THE APPLIANCE.

Page 3

TABLE OF CONTENTS Page

IMPORTANT INFORMATION

INTRODUCTION......................................................................................................................................1

SAFETY PRECAUTIONS...........................................................................................................................2

FEATURES AND SPECIFICATIONS ............................................................................................................4

CHIMNEY INFORMATION & REGULATIONS .................................................................................................5

The 3-Foot, 2-Foot, 10-Foot Rule ..........................................................................................................5

Factory-Built Chimneys ......................................................................................................................6

Determining the Distance Between the Chimney and Combustibles..............................................................6

Masonry Chimneys............................................................................................................................7

FREESTANDING INSTALLATION

FREESTANDING OPTIONAL EQUIPMENT ...................................................................................................8

PREPARATION FOR INSTALLATION ..........................................................................................................12

FREESTANDING INSTALLATION - SPECIFICATIONS ....................................................................................13

FREESTANDING INSTALLATION ...............................................................................................................15

Standard Ceiling Installation................................................................................................................15

Cathedral Ceiling Installation ...............................................................................................................16

Horizontal Installation Into Factory-Built Chimney....................................................................................17

Hearth Stove Installation Using a Positive Connection..............................................................................18

Hearth Stove Installation Using a Direct Connection.................................................................................20

Hearth Stove Installation Using a Horizontal Connection ...........................................................................22

INSERT INSTALLATION

INSERT OPTIONAL EQUIPMENT ...............................................................................................................24

PREPARATION FOR INSTALLATION ..........................................................................................................31

FIREPLACE INSERT - SPECIFICATIONS .....................................................................................................32

MASONRY FIREPLACE INSERT INSTALLATION ...........................................................................................34

Installation Using a Direct Connection ...................................................................................................34

Installation Using a Positive Connection ................................................................................................36

Installation Using a Face Seal Connection..............................................................................................38

INSTALLATION OF A FIREPLACE BLOCK-OFF PLATE ...................................................................................39

OPERATING YOUR APPLIANCE

OPERATING YOUR APPLIANCE................................................................................................................41

Location and Use of Controls...............................................................................................................41

Burning Procedure.............................................................................................................................42

Maintaining Catalytic Light-Off.............................................................................................................43

Burning Your Appliance Efficiently........................................................................................................44

Daily Use of Your Appliance.................................................................................................................44

Wood ..............................................................................................................................................45

Seasoning Wood...............................................................................................................................46

Storing Wood....................................................................................................................................48

CARE AND MAINTENANCE

CARE AND MAINTENANCE .......................................................................................................................51

Maintenance Schedule.......................................................................................................................51

Maintenance Instructions ...................................................................................................................51

BEFORE CALLING FOR SERVICE

BEFORE CALLING FOR SERVICE ..............................................................................................................55

REPLACEMENT PARTS AND REMOVAL INSTRUCTIONS

Replacement Parts............................................................................................................................56

Removal Instructions.........................................................................................................................56

5-YEAR WARRANTY ................................................................................................................................63

SAFETY LABEL ......................................................................................................................................64

Page 4

FEATURES AND SPECIFICATIONS

* EPA Phase II Approved

* Firebox Capacity of 2.9 cu. ft.

* 1/4 and 5/16" Steel Plate Construction

* Long Burn time - Up to 12 Hours

* Heavy Duty Firebrick Lining

* Conveniently Located Single Push-Pull

Combustion Air Control

* 22" Log Length Capacity

CONVENIENT

HIGH HEAT OUTPUT

VERSATILE

CLOSE CLEARANCES

DURABLE

Heating Capacity

Freestanding Stove or Extended Insert................................1,500 to 2,500 sq. ft.

Flush Insert or Bay Window Insert .........................................1,200 to 2,100 sq. ft.

Maximum B.T.U.'s/hr ......................................................................74,000 (Cord Wood)

Overall Efficiency ............................................................................78.1 % (Oregon Method)

Emissions grams/hr........................................................................4.1 (EPA Method)

Maximum Burning Time (Hours)..................................................12

Flue Opening Diameter ................................................................8 in.

Height from floor to top of stove on:

Steel Legs..................................................................................29 3/4 in.

Brass Legs .................................................................................31 1/4 in.

Cast Legs ...................................................................................31 1/4 in.

Pedestal......................................................................................35 in.

Overall Width ...................................................................................29 7/8 in.

Overall Depth...................................................................................23 3/4 in. (Not Including Ashlip)

Weight...............................................................................................516 lbs. (On Pedestal)

Fuel....................................................................................................Solid Wood Only

Emissions, Efficiency, Heating Capacity and Burn Times may vary depending on actual

home floor plan, type of fuel used, and moisture content of wood. Emissions and

efficiency numbers are those that have been certified by the U.S. E.P.A. and the Oregon

Department of Environmental Quality.

Page 5

CHIMNEY INFORMATION & REGULATIONS

Whether you install your wood heating appliance with a factory-built chimney or masonry chimney, there

are certain rules that must be followed. The following guidelines for chimney installation are included in

this manual to augment the information supplied with either the manufacturer's information for factory-built

chimneys or to insure that your present masonry chimney is suitable for this wood heating appliance. Do

not use makeshift methods or compromise in installation of any chimney equipment.

The 3-Foot, 2-Foot, 10-Foot Rule

The 3-foot, 2-foot, 10-foot rule states that all chimneys (factory-built or masonry) must be:

1. At least 3 feet higher than the highest part of the roof opening through which it passes;

2. And at least 2 feet higher than any part of the roof within 10 feet, measured horizontally. A chimney

must meet requirement #1 and requirement #2. This rule, required by all building codes, applies to

both factory-built and masonry chimneys.

Minimum Chimney Height on a Sloped Roof

2' Minimum

10' 3' Minimum

Ridge

Minimum Chimney Height on a Flat Roof

42"

24"

18"

Less

Than 10'

36"

10' or Greater

Wall or

Parapet

"A" "B"

These minimum chimney heights are required by building codes for safety purposes, to allow time for

sparks exiting a chimney to cool before they land on the roof. In some problematic situations, additional

chimney height above the specified minimums may be necessary to reduce wind-induced down drafting

and back puffing, or to increase draft, thereby improving appliance operating characteristics.

Page 6

CHIMNEY INFORMATION & REGULATIONS (Cont.)

Factory-Built Chimneys

Depending on the manufacturer and where the chimney is to be installed, special supports, roof

assemblies, radiation shields, or locking bands may be supplied as a part of the chimney system. The

manufacturer's installation instructions, which are reviewed by the listing agency, specifies when and

where each of these components must be used.

There are three standard installations with factory-built chimneys. Each type of installation should use

flashing and an adjustable storm collar at the roof line to prevent water from entering the house.

Manufacturers require that chimneys extending beyond a certain height above the roof (frequently above

5 feet) must also be braced.

A chimney cap keeps out rain, birds and other animals, and may reduce down drafts. Spark arresters,

wire mesh devices designed to catch sparks and burning particles emitted with the smoke, may be

included with factory-built chimney caps. These spark arresters may become encrusted with creosote,

blocking the proper flow of flue gases out of the chimney. When burning wood, it is recommended that the

spark arrester be cleaned regularly, or removed entirely unless individual conditions or local codes

require their use.

Determining the Distance Between the Chimney and Combustibles

The chimney must be kept a minimum distance of 2" away from combustibles (e.g., drywall, wood framing,

etc.). The distance between the outside surface of a chimney and combustibles is measured horizontally,

at right angles to the chimney. The pitch of the platform (e.g., the roof) must be considered in calculating

the size of the hole that is cut.

Calculating the Cut-Out on a Slanted Roof

Combustible Roof

Factory-Built Chimney with

Required 2" Clearance

Length of Cut-Out in Roof

2" Min.

90û

Width of Cut-Out in roof

= 4" + chimney width

Length of Cut-Out in Roof

= "c" times 2 + chimney width

Width of

Cut-Out in Roof

Page 7

CHIMNEY INFORMATION & REGULATIONS (Cont.)

Determining the Distance Between the Chimney and Combustibles (Continued)

Installers may find it convenient to create hole cut-out templates for pitches common to their area rather

than performing the calculations or using a trial "cut and measure" system for each installation.

Carefully read the specifications, as minimum clearances other than 2 inches are sometimes required by

the manufacturer. Maintain a minimum clearance of 2" or what the manufacturer requires, whichever is

greater.

Masonry Chimneys

If you are going to use an existing masonry chimney for your wood heating appliance make sure the

chimney is inspected and found in good and safe condition. If the existing chimney is not in good

condition repairs should be made before installation.

WARNING:

Do not connect this unit to a chimney flue serving another appliance.

Do not use makeshift compromises in the installation.

Page 8

FREESTANDING OPTIONAL EQUIPMENT

Your Lopi Flex-95 appliance comes completely assembled. The optional items available for the

freestanding method of installation are listed below and require assembly. THE TOP KIT IS

MANDATORY FOR FREESTANDING INSTALLATIONS.

1. Top Kit (Includes the top panel and a flue extender)

2. Pedestal

3. Leg Kit, Steel

4. Leg Kit, Brass

5. Leg Kit, Cast

6. Blower, Front

7. Outside Air (Available with Pedestal or Outside Air Boot and Legs)

1. Top Kit

The top kit is mandatory for freestanding installations and contains both a top panel and flue extender.

The directions below detail the installation of this kit.

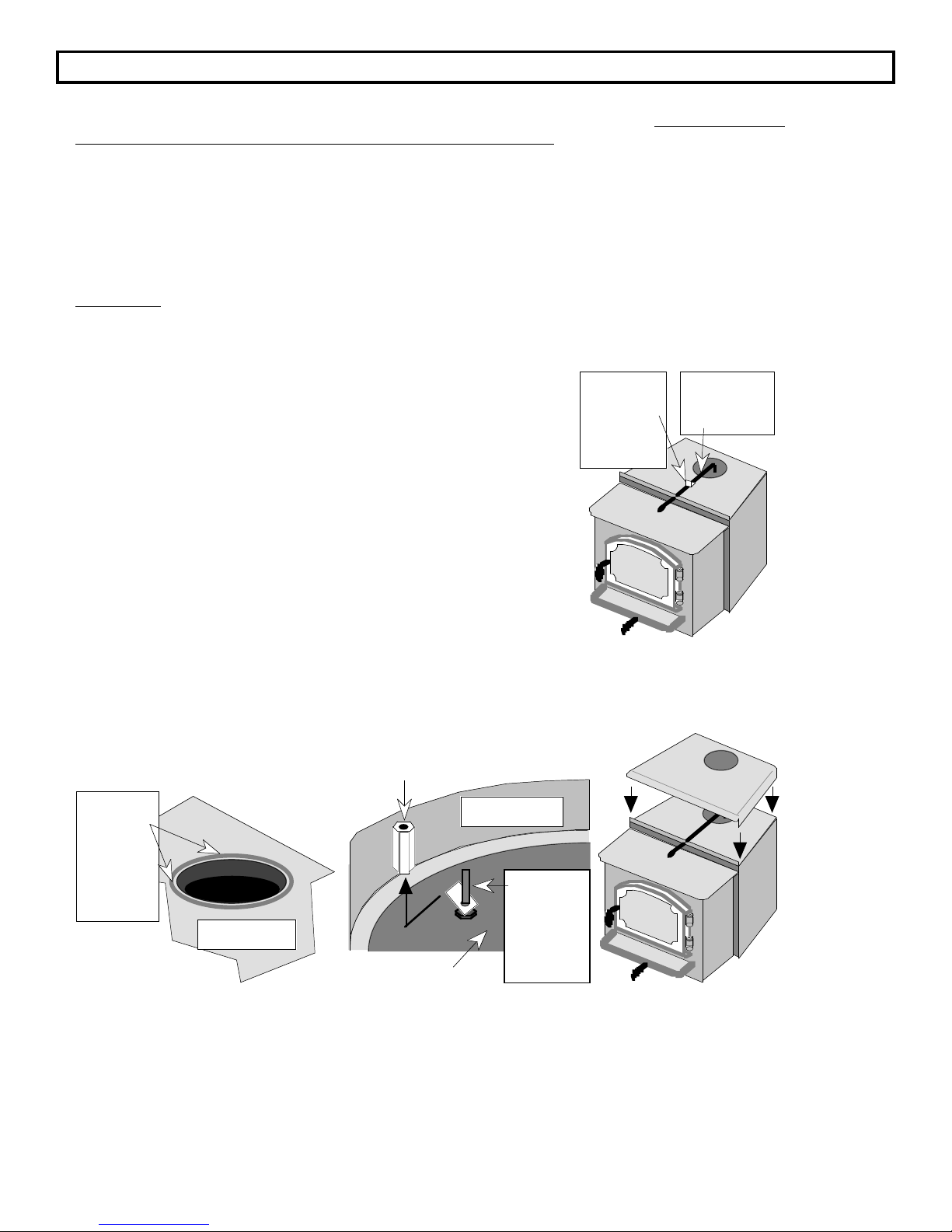

1. Unscrew the damper rod where it connects near the flue and

remove it from the stove (see the illustration to the right).

Next, remove the damper rod guide located in the center of

the damper rod by unscrewing the two screws that hold it in

place with a 5/16" nutdriver.

2. Included with the flue extender is a roll of self-adhesive glass

tape. Attach this tape along the top of the stove around the

perimeter of the flue (see the illustration below). This tape

acts as a gasket between the flue extender and the stove.

3. Place the flue extender over the flue so it is centered over the

opening and the hole for the bypass damper rod is facing

forwards. The flue extender is held in place with three bolts

and tabs that attach to a threaded shaft on the inside the flue

extender. With the flue extender centered over the flue,

place a bolt with a tab inserted over it, into the threaded shaft

from below so the tab extends outwards from the flue

opening (see

Unscrew the

damper rod

here.

Remove the

damper rod

guide with

a 5/16"

nutdriver.

the illustration below). Tighten the bolt until the tab contacts the stove. Do not fully

tighten this bolt at this point. Repeat for the remaining two bolts and tabs.

Top of Stove

Place the

glass tape

on top of

the stove

around the

perimeter

of the flue.

The bolt

goes

through the

threaded

shaft from

the bottom.

Threaded shaft on

the flue extender.

Flue extender

Inside of flue

4. Re-attach the damper rod that was removed in step one by inserting it through the hole in the front

and flue extender and screwing it into the rod it was removed from.

5. Attach the top panel to the stove by placing it over the flue extender and carefully pushing it down until

it is secure. See the above right illustration. Before tightening the bolts that hold the flue extender in

place, make sure the flue extender is aligned properly and that the damper bypass goes in and out

freely.

Page 9

FREESTANDING OPTIONAL EQUIPMENT (Continued)

2. Pedestal Assembly:

Open the box marked Pedestal and

remove the pedestal and the two

attachment bolts and washers (3/8"

diameter - 16 x 3/4" hex. head bolts).

Included with the pedestal kit is a

rodent screen and a roll of insulation.

These items are used for an outside air

connection. Refer to the isntructions

included with the kit if installing the

outside air option.

Optional Air Intake Port

Attach the pedestal

to the stove here

Lift the stove onto the pedestal. Line up the threaded bolt holes in the bottom of the stove with the two

holes in the tabs that stick out of the side of the pedestal. Using an open-end or socket wrench, fasten the

pedestal to the stove with the supplied bolts and washers.

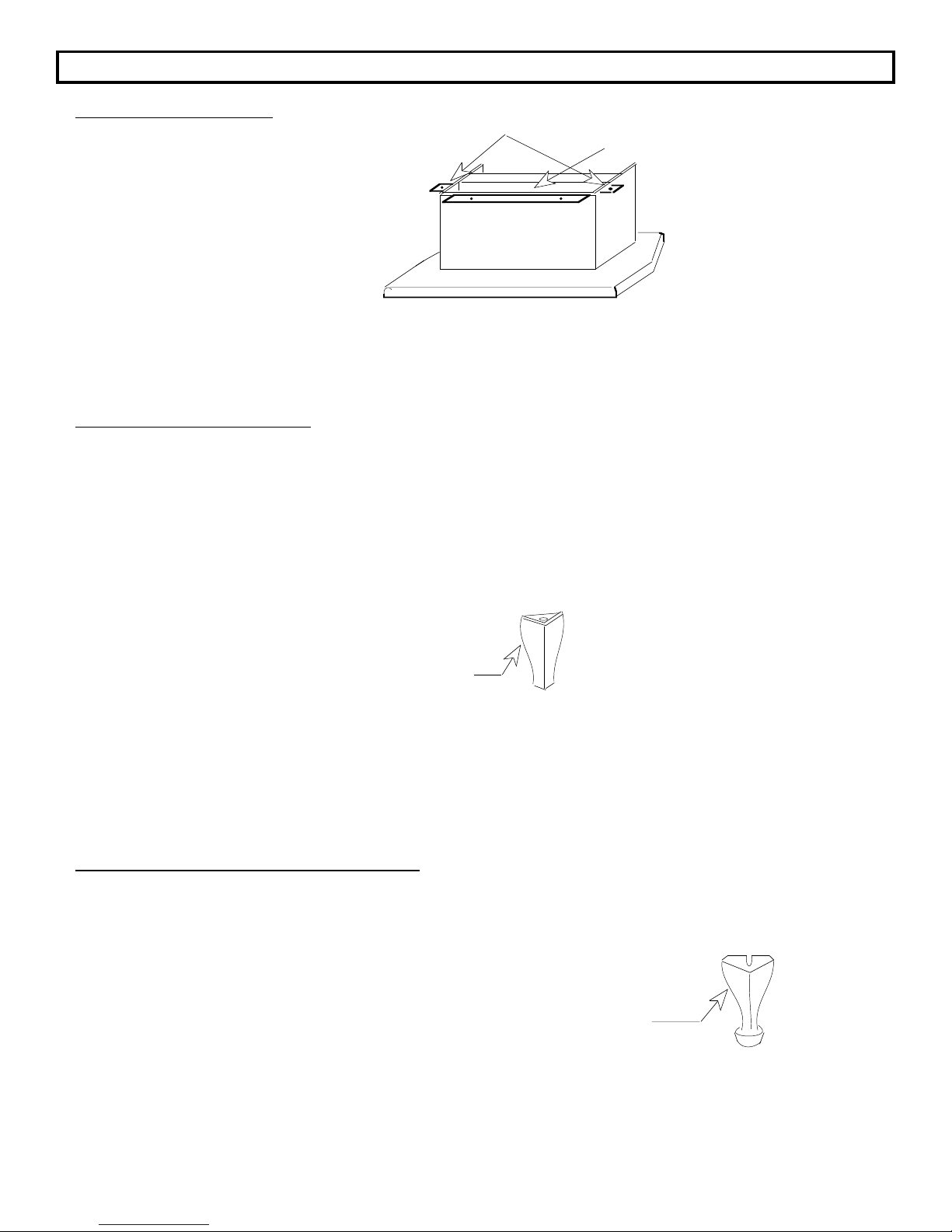

3. Steel Leg Kit Assembly:

Open the box marked Steel Leg Kit and remove the four 6 1/2" high black steel legs, complete with

rubber-tipped leveling bolts, the four attachment bolts (3/8" diameter - 16 x 3/4" hex. head bolts) and the

washers.

Raise the stove on some pieces of lumber to a height of about 7". Line up the hole in the top of the leg

with the threaded bolt hole in each corner of the stove bottom. Using a 9/16" open end or socket wrench,

fasten the leg to the stove with the supplied attachment bolts and washers, making sure the legs are flush

with the corners of the stove.

Attach Bolt (with

washer) to Stove

From Below

To level the stove, first make sure the leveling bolts with the rubber ends (some models come with steel

bolts -- the same directions apply) are screwed into position and backed off just enough to penetrate

below the steel portion of the leg. Unscrew each leveling bolt just enough so each leveling bolt is an

equal distance from the floor. You may wish to use a piece of wood or other spacer to measure this

distance. Next, lower the stove onto the ground and check for a level position. If slight adjustments need

to be made, make sure to first raise the stove before turning the leveling bolts or moving the stove. The

rubber tips of the leveling bolts will tear if they are adjusted or slid while weight is applied to them.

4. & 5. Brass and Cast Legs Assembly:

Open the box marked Brass (or Cast) Leg Kit and remove the four 7 7/8" high legs, complete with rubber-

tipped leveling bolts, the four attachment bolts (3/8" diameter - 16 x 3/4" hex. head bolts) and the washers.

Use the same directions listed above for the steel legs

assembly. The one difference is that the brass (or cast) legs

are taller, and the stove should be lifted approximately 8 1/2"

above the floor before attachment. Attach Bolt (with

washer) to Stove

From Below

Page 10

FREESTANDING OPTIONAL EQUIPMENT (Continued)

6. Blower, Front

The front blower is

designed to

improve the natural

convection of the

stove by pushing air

through the

convection

chamber of the

stove and causing

the heated air to

exit through the

vents along the top

of the stove. It also

has a thermodisk

which turns the

blower on and off

automatically.

Refer to the

illustration to the

right while following

the directions to

attach the blower.

1. Remove the two

screws below

the ashlip with

a 3/8" nutdriver.

The front

blower fits

underneath

the ashlip.

Use a 3/8" nutdriver to attach

the two screws that hold the

front blower to the appliance.

Plug the

blower into

a 110 volt

grounded

outlet.

2. Place the blower under the ashlip and align the two slots in the back mounting bar with the two holes

in the face of the appliance.

3. Insert one of the screws in each hole. Pull the blower assembly up as far as it will go to eliminate any

space between the blower and ashlip.

4. Tighten both screws securely. Insert the plug into a grounded outlet.

FRONT BLOWER OPERATION

The blower controls are located on the switch box

that is connected by a cord to the blower. There

are two rocker switches that determine the speed

and mode (automatic or manual) of the blower.

The two speeds are RUN (slower) and STARTUP

(faster). The two modes are AUTO (the

thermodisk controls the switch and the

temperature of the firebox will determine when the

blower starts or stops) and MAN (manual Ð the

blower will run on the speed setting selected).

The blower should be switched "OFF" for

approximately 30 minutes after each reload of the

stove. This is to allow the stove to reach

operating temperature.

Speed Control Rocker Switch

(If OFF is selected, the blower

will always be off, even if on

automatic)

Mode Rocker Switch (If OFF

is selected, the blower will

always be off, no matter what

the speed setting is at)

RUN OFF STARTUP

AUTO OFF MAN

Tabla de contenidos

Otros manuales de Cocina de Travis Industries

Travis Industries

Travis Industries Allegiance Manual de usuario

Travis Industries

Travis Industries Lopi Northfield Manual de usuario

Travis Industries

Travis Industries Lopi GreenField GS Manual de usuario

Travis Industries

Travis Industries AGP FS Manual de usuario

Travis Industries

Travis Industries Spirit DV Manual de usuario

Travis Industries

Travis Industries AVALON 1196 Manual de usuario

Travis Industries

Travis Industries Deerfield Manual de usuario

Travis Industries

Travis Industries 99000154 Manual de usuario

Travis Industries

Travis Industries Avalon Tree of Life GS2 Manual de usuario

Travis Industries

Travis Industries Avalon Cedar Manual de usuario

Travis Industries

Travis Industries 520-96 Manual de usuario

Travis Industries

Travis Industries Northfield GS2 Manual de usuario

Travis Industries

Travis Industries 99200139 Manual de usuario

Travis Industries

Travis Industries 99300687 Manual de usuario

Travis Industries

Travis Industries Avalon Prairie Manual de usuario

Travis Industries

Travis Industries Avalon Manual de usuario

Travis Industries

Travis Industries heritage bay Manual de usuario

Travis Industries

Travis Industries Lopi 99000123 Manual de usuario

Manuales populares de Cocina de otras marcas

Arada

Arada Cassette Stove Manual de usuario

Parmco

Parmco FS 600 Manual de usuario

MCZ

MCZ SUITE AIR 10 M2 Manual de usuario

HearthStone

HearthStone Stowe DV 8321 Guía de solución de problemas

Cattara

Cattara FAMILY Manual de usuario

Stanley

Stanley Argon F500 OVAL Manual de usuario

Avalon

Avalon B-VENT Manual de usuario

Nordpeis

Nordpeis Vega Manual de usuario

Exquisit

Exquisit EKC601-5 Manual de operación

Stanley

Stanley Oisin Oil MK II Manual del propietario

Thermocet

Thermocet Brookfield S/CC Manual de usuario

HASE

HASE delhi Manual de usuario

Vermont Castings

Vermont Castings Intrepid 2 Manual de usuario

Italiana Camini

Italiana Camini CLASSICA Guía de inicio rápido

Avalon

Avalon Vashon Avanti DVS FS Manual de usuario

Spartherm

Spartherm ambiente a1 Manual de usuario

Dimplex

Dimplex MCFSTV12AU Manual de usuario

Warmlite

Warmlite WL46040 Manual de usuario
