User’s Guide

SSDTF10xx-10x

Stand-Alone Devices

•T1 / E1 with Remote Management

• Copper to Fiber

Transition Networks SSDTF10xx-10x series

Devices encode and decode T1 or E1 twisted-pair

copper signals over fiber optic cable to extend the

distance and transmission reliability of high-speed

T1 or E1 data traffic. The device is framing independent (as ESF vs. D4) and supports all

common line codes (e.g., AMI, B8ZS, HDB3).

The SSDTF10xx-10x is designed to be installed in pairs. For example, install one

SSDTF1011-105 as the “local ” Device and another SSDTF1011-105 as the “remote ”

Device.

SSDTF10xx-10x

(TX) = transmit (RX) = receive

* Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network.

** SSDTF1029-105 and -106 are intended to be installed in the same network where

one is the local device and the other is the remote device.

*** SSDTF1029-107 and -108 are intended to be installed in the same network where

one is the local device and the other is the remote device.

Note: The chassis version of the device is CSDTF10xx-10x. For more information, see

the CSDTF10xx-10x user’s guide on-line at: www.transition.com

Optional Accessories (sold separately)

Part Number Port One - Copper Port Two - Single Fiber Optic

SSDTF1029-105 ** RJ-45

1.5 km (5,000 feet)*

SC, 1310 mn (TX)/1550 nm (RX)

single mode, 20 km (12.4 miles)*

SSDTF1029-106 ** RJ-45

1.5 km (5,000 feet)*

SC, 1550 mn (TX)/1310 nm (RX)

single mode, 20 km (12.4 miles)*

SSDTF1029-107 *** RJ-45

1.5 km (5,000 feet)*

SC, 1310 mn (TX)/1550 nm (RX)

single mode, 40 km (24.8 miles)*

SSDTF1029-108 *** RJ-45

1.5 km (5,000 feet)*

SC, 1550 mn (TX)/1310 nm (RX)

single mode, 40 km (24.8 miles)*

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-back;

Output: 12.6VDC, 1.0 A

E-MCR-04 -Slot Device Rack (includes universal internal power supply) 17 x

15 x 5 in. (432 x 381 x 127 mm)

WMBL Optional Wall Mount Brackets

Length: 4.0 in. (102 mm), Fits Device length: 4.7 in. (119 mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-F Optional DIN Rail Mount Bracket (flat); 3.3in. (84 mm)

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge precautions

when setting the jumper and switches. Failure to observe this caution could result in

damage to, and subsequent failure of, the device.

Set the hardware/software jumper

The hardware/software jumper is located on the circuit board inside the device

housing.

Hardware: The device mode is determined by the

switch settings.

Software: The device mode is determined by the

most-recently saved, on-board

microprocessor settings.

To set the two-position jumper:

1. Using a small screwdriver, remove the four (4) screws that secure the cover and

carefully remove the cover from the device.

2. The jumper is located on the circuit board and is labeled “H” and “S”.

3. Using small needle-nosed pliers or similar device, move the jumper to the

desired position. (Refer to the above drawing.)

4. Carefully replace the cover on the device and replace the four (4) screws that

secure the cover to the device.

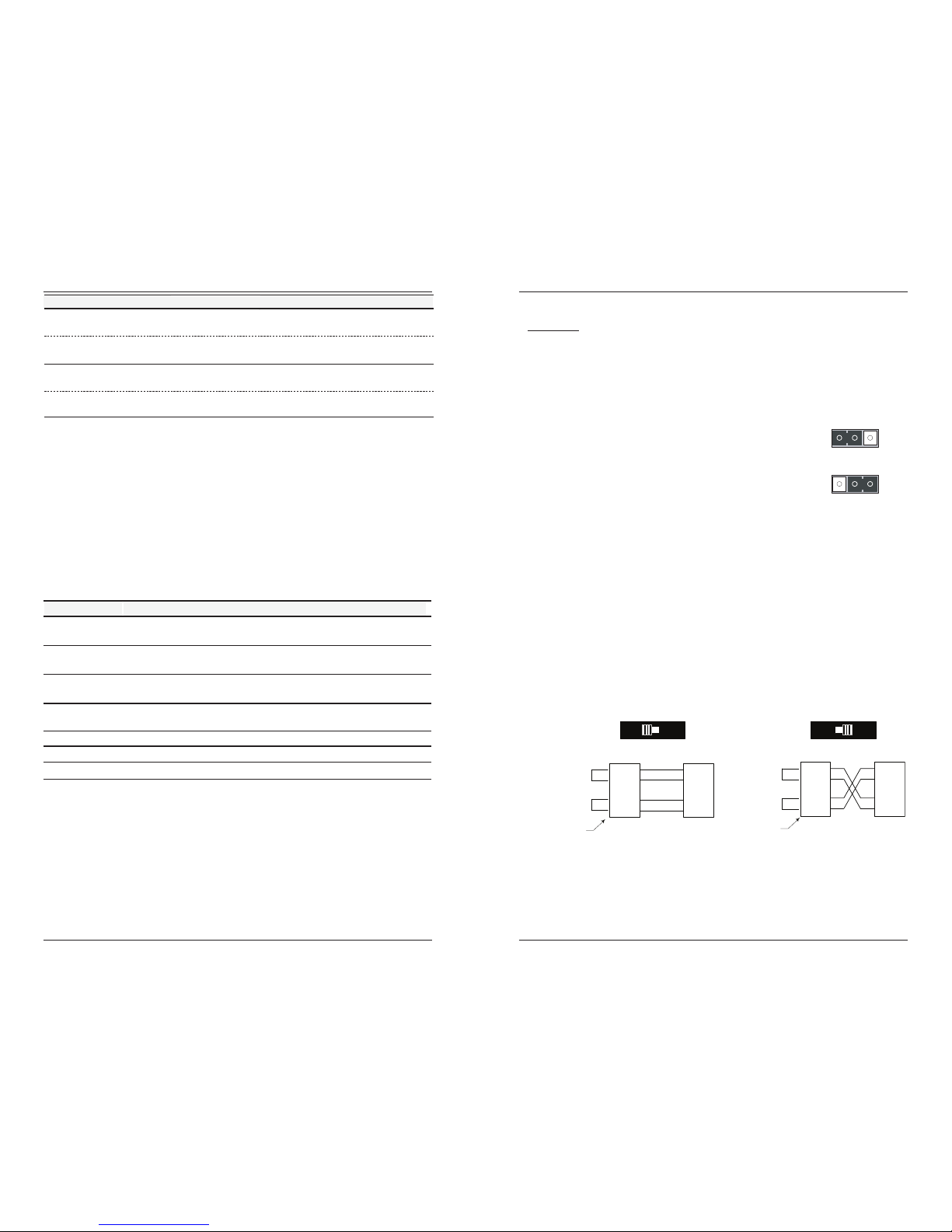

Set the MDI/MDI-X switch (hardware mode only)

The MDI/MDI-X switch is located on the side of the device. This switch allows the

network administrator to use straight-through cable in installations where crossover

configuration cable is required. Use a small flat-blade screwdriver or a similar device

to set the recessed switch.

Set the switch to MDI if using

straight-through copper cable to

connect two unlike devices.

Set the switch to MDI-X if using

crossover copper cable to connect

two like devices.

Hardware Mode

Software Mode

MDI MDI-X

RTIP

RRING

TTIP

TRING

TTIP

TRING

RTIP

RRING

RTIP

RRING

TTIP

TRING

TTIP

TRING

RTIP

RRING

Straight-Through Cable Crossover Cable

secivedekilnurofrotcennoCsecivedekilnurofrotcennoC

Twisted Pair #1

Twisted Pair #2

Twisted Pair #1

Twisted Pair #2

TN Device TN Device

SSDTF10xx-10x

Installation -- Continued

Set the loop-back switch

Hardware mode:

The loop-back switch is located on the front panel of the device and is used for

installation and network debugging procedures.

To set the switch, use a small flat-blade screwdriver or a

similar device (see the drawing to the right).

CL (Copper loop-back) Enable loop-back on the

local copper interface.

-- (Center Position) Normal operation.

FL (Fiber loop-back) Enable loop-back on the local fiber interface.

Software mode:

If both Devices are under software control, the network administrator can initiate

the loop-back test function on the copper interface (local or remote) or on the fiber

interface (local or remote). These four loop-back test scenarios are described in

detail on page 14.

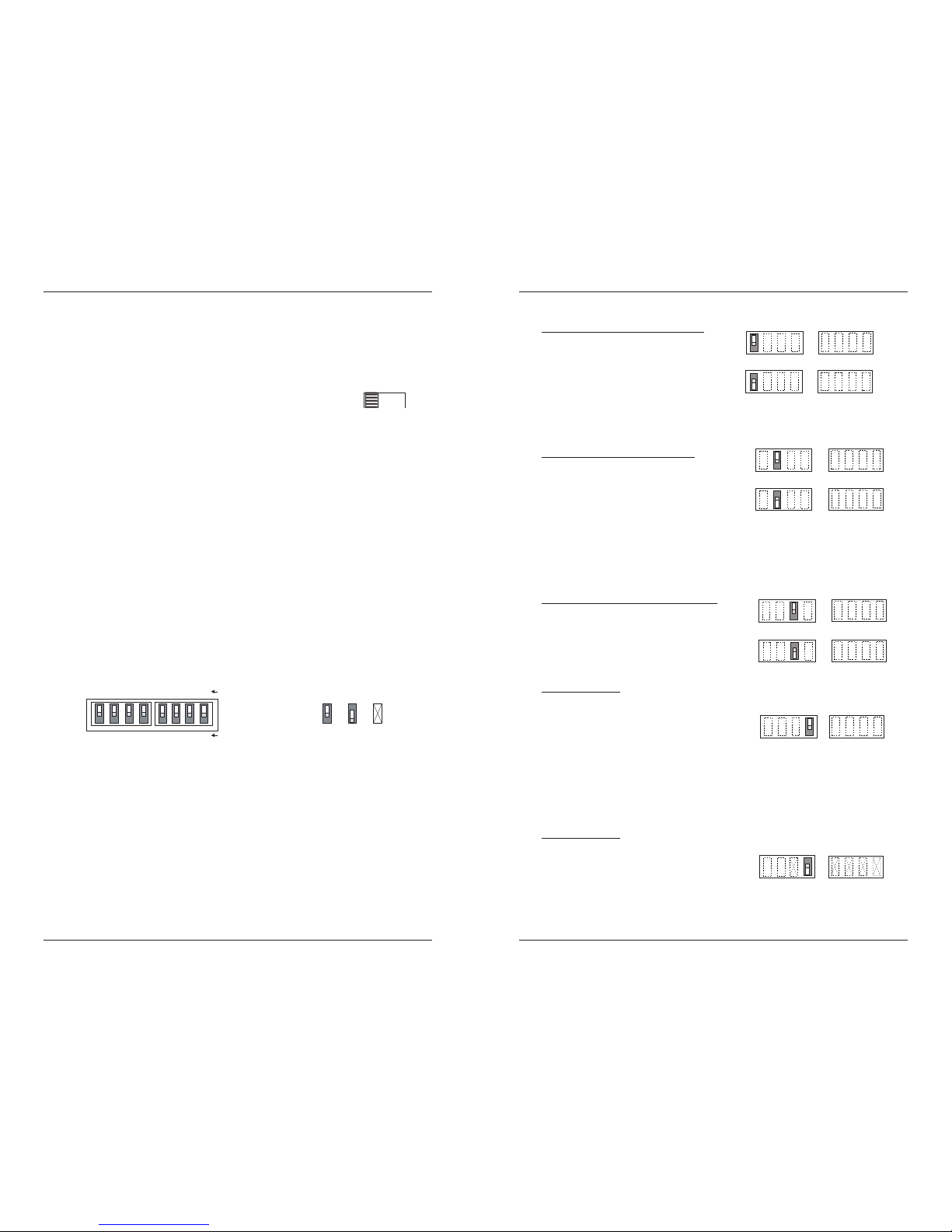

Set the configuration switches

The configuration switches are located on the side of the device and are used to

configure the device for various network conditions.

The switches are labeled 1 through 8 on the device housing top. There are two sets

(a “left, SW 2” and a “right, SW 1”) each with four switches labeled 1 through 4

(see the drawing below).

Use a small, flat-blade screwdriver or a similar device to set the recessed switches.

Transmit all ones (switches 1 & 2, left set, SW 2)

The Transmit All Ones function allows the insertion of an “all ones” pattern on the

copper and/or fiber interface when the signal detect is lost, creating an alarm

condition at the device connected to the interface.

CL FL

SW 2 SW 1

ear Cable End

Cover Top

Config

Switches

1234 1234 SwitchNumbers

56781234

Key: UP

DOWN

Not Use

Installation -- Continued

Switch 1, Copper -- transmit all ones

UP - Disables the transmit all ones

function on the copper interface.

DOWN - Transmits an “all ones” pattern

on the copper interface when the signal

detect on the fiber interface is lost.

Switch 2, Fiber -- transmit all ones

UP - Disables the transmit all ones function

on the fiber interface.

DOWN - Transmits an “all ones” pattern on

the fiber interface when the signal detect on

the copper interface is lost.

Select T1 configuration (switches 3 & 4, left set, SW2)

Use switches 3 and 4 to configure the device for T1 configuration.

Switch 3, long haul/short haul (T1 only)

UP - Short haul.

DOWN - Long haul.

Switch 4, T1 / E1

UP - T1 configuration.

Set switches 1, 2, 3, and 4 on the right set

for the required network cable settings (see

pages 6 and 7).

Select E1 configuration (switch 4, left set, SW 2)

Use switch 4 to configure the device for E1 configuration.

Switch 4, T1 / E1

DOWN- E1 configuration.

The default network cable setting is 3.0 V,

120 ohm.

Switch 3 on the left set and switches 1, 2, 3,

and 4 on the right set are disabled.

Fiber -Transmit All Ones - Disable

Fiber -Transmit All Ones - Enabled

Short Haul (T1 only)

Long Haul (T1 only)

T1 Configuration

43412

1 -- 3.0V 120 ohm cable

34 3412

Copper -Transmit All Ones - Disable

Copper -Transmit All Ones - Enabled

SSDTF10xx-10x

Installation -- Continued

Settings forT1 configuration (right switch set, SW 1)

T1/long-haul signal

Use switches 3 and 4 on the left switch set to select T1/long-haul signal (see the

drawing below).

Use switches 1 and 2 on the right switch set to select the proper network cable

settings. The drawing below lists the four options.

-15.0 db 100 ohm cab

-7.5 db 100 ohm cabl

-22.5 db 100 ohm cab

34 12

0.0 db 100 ohm cable

(T1/Long-Haul)

(Switches 3 and 4 on the right switch

set are not used for configuring

T1/long- haul signals.)

Installation -- Continued

T1/short-haul signal

Use switches 3 and 4 on the left switch set to select T1/short-haul signal (see the

drawing below).

Use switches 1, 2, and 3 on the right switch set to select the proper network cable

settings. The drawing below lists the seven options.

DSX-1 121.6 - 162.5 m

(399 - 533') 100 ohm cable

DSX-1 81 - 121.6 m

(266 - 399') 100 ohm cable

DSX-1 40.5 - 81 m

(133 - 266') 100 ohm cable

DSX-1 0 - 40.5 m

(0 - 133') ANSI T1.403

100 ohm cable

DSX-1 6.0V

100 ohm cable

DSX-1 0 - 40.5 m

(0 - 133') 100 ohm cable

DSX-1 162.5 - 200 m

(533 - 655') 100 ohm cable

34 123

(T1/Short Haul)

(Switch 4 on the right switch set is

not used for configuring T1/short-

haul signals.)

SSDTF10xx-10x

Installation -- Continued

Install the copper cable

1. Locate or build twisted-pair copper cables that are compliant with the

specifications on page 11 with RJ-45 connectors at both ends.

2. Ensure that the MDI/MDI-X switch is set according to the network conditions

(see page 3).

3. Connect the RJ-45 connector at one end of cable to the RJ-45 port on the

device.

4. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on

the other device (switch, workstation, etc.).

RJ-45 port

on the other device

(switch, work station, etc

RJ-45 port

on the media

converter

Install the fiber cable

1. Locate or build fiber cables with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the local SSDTF10xx-10xDevice as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the remote SSDTF10xx-10xDevice as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect fiber cable

to media converter

as shown.

Connect fiber cable

to other device

(media converter,

hub, etc.) as shown

RX TX

Operation

After installation, the device should function without operator intervention. Use the

status LEDs to monitor the device operation in the network.

SDC (Signal Detect/Copper) ON = the twisted-pair copper link is up.

SDF (Signal Detect/Fiber) ON = the fiber link is up.

PWR (Power) ON = the device is connected to external

power.

Dry-contact relay

The RJ-45 copper port has a dry-contact relay

that opens if the power, signal detect/copper, or

signal detect/fiber are lost. The operational

rating on pins 3 and 6 are 0-30 VDC, 100 mA

(maximum).

Remote management function

A remote, stand-alone device (revision SSDTF10xx-105 or higher) can be managed

when connected to a local CSDTF10xx-105 Device. Please note that in a managed

network, both the local and remote Devices must be set to “software” mode (see page

3). For more information, see the SNMP section in the CSDTF10xx-10x manual

online at: www.transition.com

Fiber

SDF

SDC

PWR

CL FL

UTP/STP

Installation -- Continued

Power the device

Note: The external power supply provided with this product is UL listed by the

power supply’s manufacturer.

1. Install the power adapter cord to the back of the device.

2. Connect the power adapter plug to AC power.

3. Verify that the device is powered by observing the illuminated LED power

indicator light.

For DC power, consult the user’s guide for the Transition Networks SPS1872-xx

DC external power supply for powering the device.

Relay

RJ-45 Connector

SSDTF10xx-10x

Cable Specifications

Fiber cable

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

SSDTF1011-105 850 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

SSDTF1012-105 1310 nm single mode

Fiber-optic Transmitter Power: min: -27.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm

Link Budget: 7.0 dB

SSDTF1013-105 850 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

SSDTF1014-105 1310 nm single mode

Fiber-optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -3.0 dBm

Link Budget: 15.0 dB

SSDTF1015-105 1310 nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber Optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm

Link Budget: 30.0 dB

SSDTF1016-105 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm

Link Budget: 33.0 dB

SSDTF1017-105 1550 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

SSDTF1018-105 1300 nm multimode

Fiber-optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.5 dBm max: -14.0 dBm

Link Budget: 14.5 dB

SSDTF1022-105 1310 nm single mode

Fiber Optic Transmitter Power: min: -15.0 dBm max: -5.0 dBm

Fiber Optic Receiver Sensitivity: min: -25.0 dBm max: -14.0 dBm

Link Budget: 10.0 dB

SSDTF1025-105 1310 nm single mode

Fiber-optic Transmitter Power: min: -11.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm

Link Budget: 9.0 dB

Cable Specifications -- Continued

Fiber cable

SSDTF1027-105 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

SSDTF1029-105 1310 nm (TX)/1550 nm (RX) simplex

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

SSDTF1029-106 1550 nm (TX)/1310 nm (RX) simplex

Fiber-optic Transmitter Power: min: -13.0 dBm max: -6.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

SSDTF1029-107 1310 nm (TX)/1550 nm (RX) simplex

SSDTF1029-108 1550 nm (TX)/1310 nm (RX) simplex

Fiber-optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 25.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements

per IEC-825/CDRH standards and comply with 21 CFR1040.10 and

21CFR1040.11.

Copper cable

Connector: RJ-45 / RJ-48C

Elec. network connection: Single 4-wire (Tip/Ring - Tip1/Ring1)

Mechanical arrangement: 8-position miniature modular jack

Usage: 1.544 Mb/s or 2.0478 Mb/s access lines

Interface codes: 04DU9 (any applicable)

Cable type:

Long Haul T1: 0db, -7.5dp, -15db, -22db

E1 (120 ohm): E1 3.0V, 120

J1 (110 ohm): 0-655’, 110

DSX-1 (100 ohm): 0-133’, 133-266’, 266-399’, 399-533’, 533-655’

Dry Contact B

Transmit

Dry Contact

Receive

(ring) R

(tip) T

(ring) R1

(tip) T1

(not used)

SSDTF10xx-10x

Technical Specifications

For use with Transition Networks Model SSDTF10xx-10x or equivalent

Standards: Emissions: CISPR A; Telecordia TR-NWT-001089

(designed to meet; NOT tested); FCC Part 68; T1/E1

Physical layer: ITU-T, ANSI, AT&T, and ETSI; European

Technical Standard: TBR 12; British Technical

Publication: PD 7024 : 1994 (NTR 4)

Dimensions: 3.25" x 4.7" x 1" (83 mm x 119 mm x 25 mm)

Weight: 10 oz. (283 g) approximately

Power consumption: 3.7 Watts

Power supply: 12VDC, 0.8A (North America, Europe, UK)

12VDC, 1.25A (NZ, Australia, S Africa, JP, Latin Am)

(The external power supply provided with this product

is UL listed by the power supply’s manufacturer.)

MTBF: 47,000 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

116,000 hours (Bellcore7 V5.0)

Environment: 0°C to 50°C (32°F to 122° F )

Storage Temp: -15°C to 65°C (5°F to 149°F)

Humidity: 10 to 90%, non condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

The information in this user’s guide is subject to change. For the most up-to-date

information on the SSDTF10xx-10x Device, view the user’s guide on-line at:

www.transition.com.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into the

beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other than

those specified herein may result in hazardous radiation exposure.

Troubleshooting

If the device fails, isolate and correct the failure by determining the answers to the

following questions and then taking the indicated action:

1. Is the PWR (Power) LED illuminated?

• Is the power adapter the proper type of voltage and cycle frequency for

the AC outlet? (See “Technical Specifications” on page 12.)

• Is the power adapter properly installed in the device and in the outlet?

• Does the grounded AC outlet provide power?

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the SDC (Signal Detect/Copper) LED illuminated?

• Check the twisted-pair copper cable for the proper connection.

• Check the MDI/MDI-X switch for the correct twisted-pair copper cable

configuration (see page 3).

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the SDF (Signal Detect/Fiber) LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the local device are connected to the

RX and TX ports, respectively, on the remote device.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 4.

SSDTF10xx-10x

4. Is data transfer failing?

YES

• Verify the local copper connection by starting a local copper loop-back

(hardware mode: set the loop-back switch on the local device to “CL”,

software mode: enter the local copper loop-back command) and then use a

bit error test unit to run a bit error test.

• Verify the local fiber connection by starting a remote fiber loop-back

(hardware mode: set the loop-back switch on the remote device to “FL”,

software mode: enter the remote fiber loop-back command) and then use a

bit error test unit to run a bit error test.

• Verify the remote copper connection by starting a remote copper loop-back

(hardware mode: set the loop-back switch on the remote device to “CL”,

software mode: enter the remote copper loop-back command) and then use

a bit error test unit to run a bit error test.

• Verify the remote fiber connection by starting a local copper loop-back

(hardware mode: set the loop-back switch on the local device to “FL”,

software mode: enter the local fiber loop-back command) and then use a bit

error test unit to run a bit error test.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

reppoCrebiFreppoC Local

Device

Remote

Device

Bit Error

Test Unit

Remote

Device

reppoCrebiFreppoC

Bit Error

Test Unit

Local

Device

Remote

Device

Local

Device

reppoCrebiFreppoC

Bit Error

Test Unit

Local

Device

Remote

Device

Local

Device

reppoCrebiFreppoC

Bit Error

Test Unit

Local

Device

Local

Device

Remote

Device

Technical support

Technical support is available 24 hours a day:

U.S.A. and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-based seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

10900 Red Circle Drive

Minnetonka, MN 55343, U.S.A.

Telephone: 952-941-7600

Toll free: 800-526-9267

Fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minnetonka MN 55343 U.S.A.

Model: SSDTF10xx-10x SeriesDevice

Part Number: SSDTF1011-105, SSDTF1012-105, SSDTF1013-105,

SSDTF1014-105, SSDTF1015-105, SSDTF1016-105,

SSDTF1017-105, SSDTF1018-105, SSDTF1022-105,

SSDTF1025-105, SSDTF1027-105, SSDTF1029-105,

SSDTF1029-106, SSDTF1029-107, SSDTF1029-108

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the SSDTF10xx-10x to which this declaration refers is in

conformity with the following standards.

CISPR 22:1993; EN 55022:1994+A1:1995+A2:1997 Class A; EN 55024:1998; FCC Part 15

Subpart B; EN 61000-3-2:1995+A14:2000; 61000-3-3:1995; CFR 21 subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

September 2008

Stephen Anderson, Vice-President of Engineering Date

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out

on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses

Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen

verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques

appropriées.

Trademark notice

All trademarks and registered trademarks are the property of their respective owners.

graphic, electronic, or mechanical - without written permission from Transition Networks.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

SSDTF10xx-10x

16 Printed in the U.S.A. 33246.H

In accordance with European Union Directive 2002/96/EC of the European

Parliament and of the Council of 27 January 2003, Transition Networks will accept

post usage returns of this product for proper disposal. The contact information for

this activity can be found in the 'Contact Us' portion of this document.

Otros manuales para SSDTF1011-105

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Transition Networks

Transition Networks

Transition Networks E-PSW-FX-03(LH) Manual de usuario

Transition Networks

Transition Networks E-100BTX-FX-05(10x) Manual de usuario

Transition Networks

Transition Networks S4110-4848 Manual de usuario

Transition Networks

Transition Networks C4TEF1011-100 Manual de usuario

Transition Networks

Transition Networks CMEFG1013-100 Manual de usuario

Transition Networks

Transition Networks E-TBT-FRL-03(L) Manual de usuario

Transition Networks

Transition Networks SPOEB10 105 Series Manual de usuario

Transition Networks

Transition Networks SSETF1011-205 Manual de usuario

Transition Networks

Transition Networks SISTF10xx-111-LR(T) Manual de usuario

Transition Networks

Transition Networks E-100BTX-FX-N-01 Manual de usuario

Transition Networks

Transition Networks M/E-TX-FX Series Manual de usuario

Transition Networks

Transition Networks SFEPE1011-100 Manual de usuario

Transition Networks

Transition Networks SBFTF10xx-1xx Manual de usuario

Transition Networks

Transition Networks CSETF1011 Manual de usuario

Transition Networks

Transition Networks SBFTF1011-140 Manual de usuario

Transition Networks

Transition Networks 10BASE-2 Manual de usuario

Transition Networks

Transition Networks SGPOE1013-100 Manual de usuario

Transition Networks

Transition Networks CFMFF1314-210 Manual de usuario

Transition Networks

Transition Networks SRS4F3211-100 Manual de usuario

Transition Networks

Transition Networks SBFTF10XX-10X Manual de usuario

Transition Networks

Transition Networks RS232-CF-01 Manual de usuario

Transition Networks

Transition Networks Stand-Alone Media Converter S4TEF10xx-11x Manual de usuario

Transition Networks

Transition Networks SPOEB1011-100 Manual de usuario

Transition Networks

Transition Networks CRS4Fxxxx-10x Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
