User’s Guide

CRS2F31xx-100

Slide-in-Module Media Converter

RS-232 to Fiber

Transition Networks CRS2F31xx-100

series media converters are designed to

be installed in the PointSystem™ chassis

and connect copper RS-232 cable to

fiber-optic cable at asynchronous data

rates up to 115 kB/s.

The CRS2F31xx-100 is designed to be

installed in pairs where one is the local

media converter and the other is the

remote.

* Typical maximum cable distance. Actual distance is dependent upon the

physical characteristics of the network installation.

The stand alone version of the media converter is SRS2F31xx-100. For more

information, see the SRS2F31xx-100 user’s guide on-line at:

www.transition.com.

Installation . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . .6

Cable Specifications . . . . . . . . . . .7

Technical Specifications . . . . . . . .8

Troubleshooting . . . . . . . . . . . . . .9

Compliance Information . . . . . . .12

Part Number Port One - Copper Port Two - Duplex Fiber-Optic

CRS2F3111-100 RS-232

15 m (50 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)*

CRS2F3113-100 RS-232

15 m (50 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)*

CRS2F3114-100 RS-232

15 m (50 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)*

CRS2F3115-100 RS-232

15 m (50 ft)*

SC, 1310 nm single mode

40 km (24.8 miles)*

224-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CRS2F31xx-100

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when setting the switches and jumper. Failure to observe this

caution could result in damage to, and subsequent failure of, the media

converter.

Set the DTE/DCE Switch

The DTE/DCE switch is located on the side of the media converter. How the

DTE/DCE switch is set depends on the type of device connected to the media

converter:

•DTE (Data Terminal Equipment).

•DCE (Data Communication Equipment).

... and the type of RS-232 cable:

•Straight-through configuration cable.

•Null-modem configuration cable.

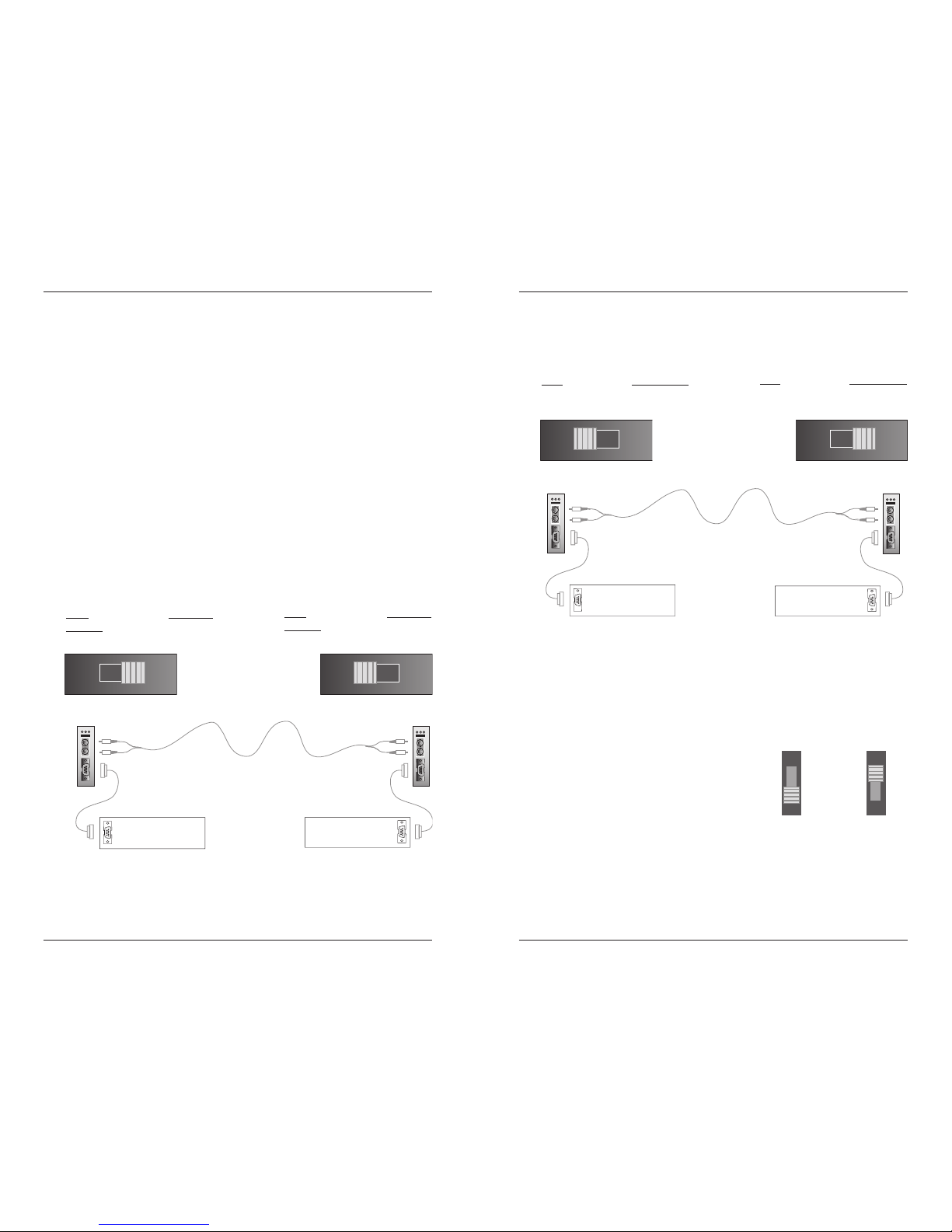

Using Straight-Through RS-232 Cable

DTE Configuration

SRS2F31xx-100

switch set to DTE

SRS2F31xx-100

switch set to DCE

DTE device

DCE device

straight-through

RS-232 cable

straight-through

RS-232 cable

Set the switch to DTE

configuration if the media

converter is connected to a

DCE device via a straight-

through RS-232 cable.

Set the switch to DCE

configuration if the media

converter is connected to a

DTE device via a straight-

through RS-232 cable.

DCE Configuration

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Set the Loop-Back Switch

The loop-back switch is located on the front panel of the media converter and

is used to debug network faults. (See page 10 in the “Troubleshooting”

section.)

To set the switch, use a small flat-blade

screwdriver or a similar device.

Norm Set the switch to “Norm” for

normal operation.

Loop Set the switch to “Loop” to

enable both fiber and copper

loop-back.

Normal

Operation:

Norm

Loop

Fiber and Coppe

Loop-Back:

Norm

Loop

Installation -- Continued

Using Null-Modem RS-232 Cable

DCE Configuration

SRS2F31xx-100

switch set to DCE

SRS2F31xx-100

switch set to DTE

DTE device

DCE device

null-modem

RS-232 cable

null-modem

RS-232 cable

Set the switch to DCE

configuration if the media

converter is connected to a

DCE device via a null-modem

RS-232 cable.

Set the switch to DTE

configuration if the media

converter is connected to a

DTE device via a null-modem

RS-232 cable.

DTE Configuration

424-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CRS2F31xx-100

Installation -- Continued

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when setting the hardware/software jumper and installing the media

converter. Failure to observe this caution could result in damage to, and

subsequent failure of, the media converter.

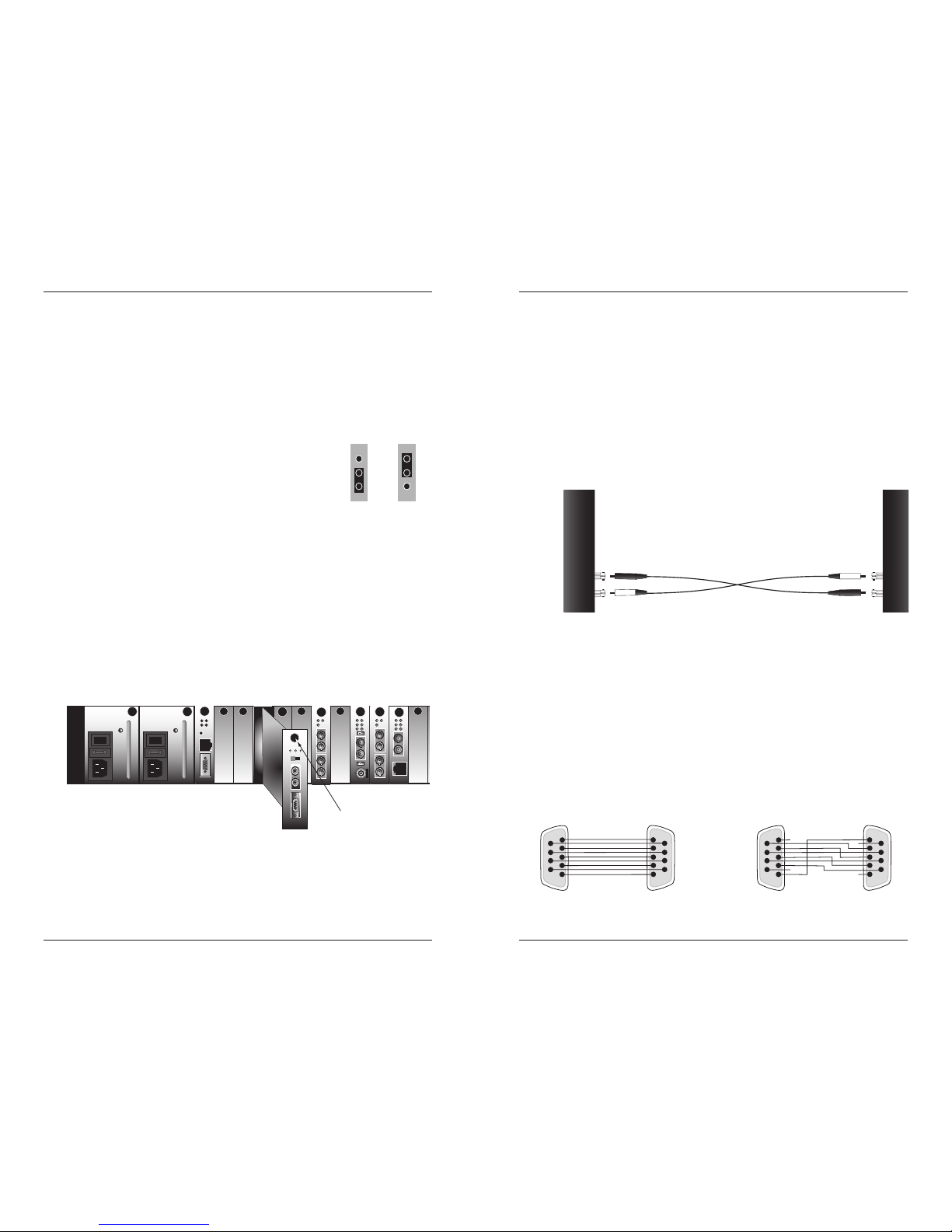

Set the Hardware/Software Jumper

• The jumper is located on the circuit board.

• Use small needle-nose pliers to set the jumper.

Hardware The media converter mode is determined by

the switch settings (see pages 2-3).

Software The media converter mode is determined by

the most-recently saved, on-board

microprocessor settings.

Installing the Slide-in-Module

To install the CRS2F31xx-100 media converter slide-in-module:

1. Locate an empty installation slot on the PointSystem™ chassis.

2. Carefully slide the slide-in-module into the installation slot, aligning the

module with the installation guides.

3. Ensure that the module is firmly seated inside the chassis.

4. Push in and rotate the attached panel fastener screw clockwise to secure

the module to the chassis front.

CFMFF100 CFMFF100

CETCF100 CFETF100

CFETF110

CFMFF100

SPD PWR

FRX

CRX

FLNK

CLNK

10/100TX

10/100SX

100BASE-TX

100BASE-FX

LinkAlert

050½

LA PWR

RXF

RXC

LNK

COL

LKS

PWR

LKM

10BASE-2

10BASE-FL

LKS

PWR

LKM

LKS

PWR

LKM

Multimode

Singlemode

Multimode

Singlemode

Multimode

Singlemode

TERM

INIT

LNK

PWR

CPSMM120

SERIAL

10BASE-T

Fiber RS-232

PRX FL

Loop

Norm

CRS2F

Panel Fastener Scre

software

mode hardware

mode

J2 J2

Power the Media Converter

The media converter is powered through the PointSystem™ chassis.

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Install the Copper Cable

NOTE: Shielded RS-232 cables are required for EMC compliance.

1. Locate or build RS-232 cables with a female connector for the media

converter end and the correct gender connector for the DTE/DCE device

at the other end. And with either straight-through or null-modem cable

configuration.

2. Connect the female RS-232 connector at one end of cable to the male

RS-232 port on the first CRS2F21-100 media converter.

3. Connect the RS-232 connector at the other end of the cable to the RS-232

port on the DTE/DCE device.

Null-modem configuration cable

with handshaking signaling

(Re

uirements for different e

ment ma

var

Straight-through configuration cable

with handshaking signals

tional confi

uration: no connect on

in 9.)

Installation -- Continued

Install the Fiber Cable

1. Locate or build fiber cable with male, two-stranded TX to RX connectors

installed at both ends.

2. Connect the fiber cables to the first CRS2F31xx-100 media converter as

described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other CRS2F31xx-100 media converter as

described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect the fiber cable

to the first media converter

as shown.

Connect the fiber cable

to the second media

converter, as shown

624-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CRS2F31xx-100

Operation

After installation, the media converter should function

without operator intervention. Use the status LEDs to

monitor the media converter operation in the network.

POn The media converter is connected

to external power.

FL On A link has been established with the

fiber connector.

Flashing The media converter is in loop-back

mode.

RX Flashing The RS-232 connector is receiving

data.

Fiber RS-232

PRX FL

Loop

Norm

CRS2F

SNMP

Use SNMP at an attached terminal or at a remote location to monitor the

media converter by monitoring:

• Local/remote fiber link status

• Local/remote hardware/software mode

• Local/remote loop-back

Also, use SNMP to enter network commands for:

• Local/remote loop-back

See the on-line documentation that comes with Transition Networks

FocalPoint™ software for applicable commands and usage at

www.transition.com.

Remote Management

The CRS2F31xx-100 can remotely manage the SRS2F31xx-100 (the stand-

alone version of the media converter) or another CRS2F31xx-100. For

example, a local CRS2F3111-100 converter (that is installed in a managed

Transition Networks PointSystem™ chassis) is connected, via fiber, to a remote

SRS2F3111-100 converter.

The SNMP section (below) lists the commands that can be used to monitor and

manage both the local and remote media converter.

NOTE: In a managed network, both the local and remote media converters

must be set to “software” mode (see page 4).

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Cable Specifications

Fiber Cable

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

CRS2F3111-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CRS2F3113-100 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CRS2F3114-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

CRS2F3115-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements

per IEC-825/CDRH standards and comply with 21 CFR1040.10 and

21CFR1040.11.

RS-232 Copper Cable

Gauge: 24 to 22 AWG

Maximum Data Rate (asynchronous): 115 kB/s

Maximum Cable Distance: 15 m (50 ft.)

RS-232 Signals:

Data SetReadyData CarrierDetect

Request to Send

Clearto Send

NotUsed

Receive Data

TransmitData

Data Terminal Ready

Signal Ground

Protective Ground

824-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CRS2F31xx-100

Technical Specifications

For use with Transition Networks Model CRS2F31xx-100 or equivalent

Data Rate 115 kB/s (asynchronous)

Dimensions 3.4" x 5.0" x 0.86" (86 mm x 127 mm x 22 mm)

Weight 3 oz. (91 g) (approximately)

Power Consumption 5 Watts

MTBF 2,613,860 hours (MIL217F2 V5.0) (MIL-HDBD-217F)

6,569,957 hours (Bellcore7 V5.0)

Environment Tmra*: 0 to 50°C (32° to 122° F )

Storage Temp: -15° to 65°C (5° to 149°F)

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature. Tmra range for this slide-in-module

depends on the physical characteristics and the installation configuration of the

Transition Networks PointSystem™ chassis in which this slide-in-module will be

installed.

The information in this user’s guide is subject to change. For the most up-to-date

information on the CRS2F31xx-100 media converter, view the user’s guide on-

line at: www.transition.com

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into

the beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the

answers to the following questions and then taking the indicated action:

1. Is the P(power) LED illuminated?

• Is the media converter inserted properly into the chassis?

• Is the power cord properly installed in the chassis and in the grounded AC

outlet?

• Does the grounded AC outlet provide power?

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the RX (copper) LED flashing?

• Disconnect and reconnect the RS-232 copper cable to restart the initialization

process.

• Restart the attached device on the other end of the RS-232 cable to restart the

initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the FL (fiber) LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to the

RX and TX ports, respectively, on the other media converter.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Is the FL (fiber) LED flashing?

YES

• The media converter is in loop-back mode. To disable the loop-back function

in “Hardware” mode, set the loop-back switch to the "Norm" position. In

“Software” mode, at the SNMP interface, select “disable loop-back” option.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

• Proceed to step 5.

10 24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CRS2F31xx-100

5. Is Data Transfer Failing?

YES

• Verify the local copper connection by starting a local copper loop-back

(hardware mode: set the loop-back switch on the local media converter to

“loop”, software mode: enter the local copper loop-back command) and then

use a bit error test unit to run a bit error test.

• Verify the local fiber connection by starting a remote fiber loop-back (hardware

mode: set the loop-back switch on the remote media converter to “loop”,

software mode: enter the remote fiber loop-back command) and then use a bit

error test unit to run a bit error test.

• Verify the remote copper connection by starting a remote copper loop-back

(hardware mode: set the loop-back switch on the remote media converter to

“loop”, software mode: enter the remote copper loop-back command) and

then use a bit error test unit on the remote end to run a bit error test.

• Verify remote fiber connection by starting a local copper loop-back (hardware

mode: setting the loop-back switch on the local media converter to “loop”,

software mode: enter the local fiber loop-back command) and then use a bit

error test unit on the remote end to run a bit error test.

• Contact Technical Support: US/Canada: 1-800-260-1312, International: 00-1-

952-941-7600.

Remote ConverterLocal Converter

Remote

Device

B it E rror Te s t

Equipment

w/SNMP Ma nagement

copper Fiber copper

Remote ConverterLocal Converter

Remote

Device

B it E rror Te s t

Equipment

w/SNMP Management

copper Fiber copper

Remote ConverterLocal Converter

Local

Device

B it E rror Te s t

Equipment

w/SNMP Management

copper Fiber copper

Remote ConverterLocal Converter

Local

Device

w/SNMP Management

copper Fiber copper

B it E rror Te s t

Equipment

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 U.S.A.

Model: CRS2F31xx-100 Series Media Converter

Part Number: CRS2F3111-100, CRS2F3113-100, CRS2F3114-100,

CRS2F3115-100

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the CRS2F31xx-100 to which this declaration refers is in

conformity with the following standards.

CISPR 22: 1993; EN 55022:1998 Class A; FCC Part 15 Subpart B; EN 55024: 1998;

21 CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

September 2007_____

Stephen Anderson, Vice-President of Engineering Date

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb

dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de

créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les

measures spécifiques appropriées.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from Transition

Networks.

Printed in the U.S.A. 33278.F

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Transition Networks

Transition Networks

Transition Networks SWITCHABLE ETHERNET AND FAST ETHERNET... Manual de usuario

Transition Networks

Transition Networks CFETF1029-205 Manual de usuario

Transition Networks

Transition Networks Stand-Alone Media Converter S4TEF10xx-11x Manual de usuario

Transition Networks

Transition Networks SBFTF10XX-15X Manual de usuario

Transition Networks

Transition Networks CRMFE1011-200 Manual de usuario

Transition Networks

Transition Networks SRS4F3211-100 Manual de usuario

Transition Networks

Transition Networks J/E-CX-TBT-01 Manual de usuario

Transition Networks

Transition Networks C/T1E1-CF-01 Manual de usuario

Transition Networks

Transition Networks SFEPE1011-100 Manual de usuario

Transition Networks

Transition Networks C/E-CX-FRL-04 Manual de usuario

Transition Networks

Transition Networks C/HSTR-CF-01(SC) Manual de usuario

Transition Networks

Transition Networks CMEFG1013-100 Manual de usuario

Transition Networks

Transition Networks C/A-CF-02(SM) Manual de usuario

Transition Networks

Transition Networks E-100BTX-FX-05 Manual de usuario

Transition Networks

Transition Networks SI-IES-111D-LRT Manual de usuario

Transition Networks

Transition Networks J/FE-CF-03(LH) Manual de usuario

Transition Networks

Transition Networks CRS2F31-100 Series Manual de usuario

Transition Networks

Transition Networks CETCT1020-100 Manual de usuario

Transition Networks

Transition Networks ARCNET AR-CF-02 Manual de usuario

Transition Networks

Transition Networks CCSF30XX-100 Manual de usuario

Transition Networks

Transition Networks B-CF-01(SC) Manual de usuario

Transition Networks

Transition Networks SSDTF3011-110 Manual de usuario

Transition Networks

Transition Networks SGFEB10 Series Manual de usuario

Transition Networks

Transition Networks CSEFE1012-100 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
