Transition Networks PointSystem CPSMC0100-200 Manual de usuario

User’s Guide

CPSMC0100-200

Single-Slot PointSystem™ Chassis

The Transition Networks CPSMC0100-

200 series single-slot PointSystem™

chassis is designed for installation of a

single, selectable Transition Networks

PointSystem™ media converter slide-

in-module.

Installation . . . . . . . . . . . . . . . . . .2

Technical Specifications . . . . . . . .4

Troubleshooting . . . . . . . . . . . . . .5

Compliance Information . . . . . . . .6

Part Number Description

CPSMC0100-200 Single-Slot PointSystem™ chassis intended for installation of

any PointSystem media converter slide-in-modules up to 6 W.

Optional Accessories (sold separately)

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

WMBP Optional Wall Mount Bracket; 5.0 in. (127 mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

Note: The following media converter families are not compatible with Transition

Networks CPSMC0100-200 single-slot PointSystem™ chassis: C4TEF,

CAPTF, CBFTF-120, CBFTF-140, CEMTF, CGFEG and the CMEFG.

224-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CPSMC0100-200

Installation

Installing a Slide-in-Module

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when installing the media converter slide-in-module in to the

single-slot chassis. Failure to observe this caution could result in damage to,

and subsequent failure of, the media converter slide-in-module.

The maximum power delivery capacity for the CPSMC0100-200 is 6 Watts.

To install a slide-in-module into the single-slot chassis:

1. Refer to the user’s guide that comes with the slide-in-module to ensure

that any switches or jumpers on the module’s circuit board are set

correctly for the site installation.

2. Carefully align the slide-in-module with the chassis installation guides

and slide the module into the installation slot.

3. Ensure that the slide-in-module is firmly seated inside the chassis.

4. Push in and rotate the attached panel fastener screw to secure the slide-

in-module to the chassis.

PWR

RXF

RXC

LKF

100BASE-TX

LKC

100BASE-FX

Panel Fastener Screw

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Power the Chassis

To supply AC power to the single-slot chassis:

1. Connect the barrel connector on the power adapter to the single-slot

chassis’ power port (located on the back of the chassis).

2. Connect the power adapter plug to AC power.

3. Verify that the single-slot chassis is powered by observing the illuminated

LED(s) on the installed slide-in-module.

To supply DC power to the single-slot chassis:

Consult the user's guide for the Transition Networks SPS1872-xx DC external

power supply for powering the single-slot chassis.

424-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CPSMC0100-200

Installation -- Continued

Grounding the Media Converter

The single-slot chassis comes equipped with grounding lugs located on the

back panel. They require a grounding conductor wire terminated with a two-

hole, compression-type, grounding connector. The grounding wire -- which

must be a copper conductor -- is not included with the chassis and must be

provided by the customer/installer.

The electrical conducting path from the single-slot chassis must:

• Flow via the grounding lugs to the common bonding network (CBN) for

telecom installations, or to an alternative approved grounding system (if

required) for non-telecom installations.

• Be of sufficiently low impedance to conduct fault currents likely to be

imposed on the media converter, and

• Enable proper operation of any over-current protection devices.

The conductor must be fastened to the grounding lugs with the enclosed anti-

rotation star-washers and lug-nut fasteners. The applied torque required to the

connector lug-nut fasteners is specified by the connector’s manufacturer.

To properly ground the single-slot chassis:

1. Obtain one (1) grounding conductor (12 AWG copper wire gauge or

larger) with a two-hole, compression-type, grounding connector.

2. Attach the grounding conductor to the converter by placing the two-hole

connector onto the grounding lugs and fasten with the enclosed lock-

washers / lug-nuts at the proper torque (per the manufacturer’s

specification).

3. Attach the opposite end of the

grounding conductor to the

common bonding network

(CBN) for telecom, or to earth

ground (if required) for non-

telecom installations.

rounding lugs

earth ground

grounding

connector

and wire

3/4-inch

spacing

Grounding lugs

(6-32, 1/8" diam.) 12 AWG copper wir

(not included)

Star washer (included)

Lug nuts (included)

Two-hole, compression-type

grounding connector

(not included)

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Technical Specifications

For use with Transition Networks Model CPSMC0100-200 or equivalent.

Note: The CPSMC0100-200 single-slot chassis is Class B compliant ONLY if

Class B compliant media converters are installed. Installation of a Class A

compliant media converter reduces the chassis to Class A compliance.

Compliance EN55022; Class A&B; CE Mark

Dimensions 3.875 x 5.5 x 1.0 in (98 x 140 x 25 mm)

Weight 13 oz. (369 g) approximately

MTBF

CPSMC0100-200: 22,394,241 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

233,811,224 hours (Bellcore7 V5.0)

Maximum power delivery capacity:

CPSMC0100-200: 6 Watts

Power Supply

CPSMC0100-200: 12VDC, 0.8 A (N. America, Europe, Japan, Latin Am.)

12VDC, 1.25 A (UK, Australia, South Africa)

Environment Tmra*: 0 to 50°C (32 to 122° F )

Storage Temp: -20 to 85°C

Humidity: 10 to 90%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature.

The information in this user’s guide is subject to change. For the most up-to-date

information on the CPSMC0100-200 single-slot chassis, view the user’s guide

on-line at: www.transition.com.

624-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

CPSMC0100-200

Troubleshooting

1. Is a media converter installed in the single-slot chassis?

• Install a slide-in-module media converter into the single-slot chassis.

See page 2 for installation instructions.

• Proceed to step 2.

YES

• Proceed to step 2.

2. Is the Power LED on the media converter illuminated?

• Is the power adapter the proper type of voltage and cycle frequency

for the AC outlet? (See “Power Supply” on page 5.)

• Is the power adapter properly installed in the media converter and in

the grounded AC outlet?

• Contact Technical Support: US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Check the power requirement for the installed media converter?

• If the power requirement is 6 W or less, either model chassis can be

used.

• For additional assistance, contact Technical Support: US/Canada: 1-

800-260-1312, International: 00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minneapolis MN 55343 U.S.A.

Model: CPSMC0100-200 Series Single-Slot PointSystem Chassis

Part Number: CPSMC0100-200

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the CPSMC0100-200to which this declaration refers is

in conformity with the following standards.

EN 55022:1998 Class A&B; EN 55024:1988; FCC Part 15 Subpart B;

EN 61000-3-2:1995; EN 61000-3-3:1995

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

June, 2008

Stephen Anderson, Vice-President of Engineering Date

Technical Support

Technical support is available 24 hours a day

United States: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

10900 Red Circle Drive

Minnetonka, MN 55343, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means – graphic, electronic or mechanical – without written permission from Transition

Networks.

Printed in the U.S.A. 33192.E

Compliance Information

CISPR/EN55022 Class A & B + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A & B digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference. In which case, the user will be required to correct the

interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A & B limits for radio noise for digital appa-

ratus set out on the radio interference regulations of the Canadian Department of

Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A & B prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

In accordance with European Union Directive 2002/96/EC of the European

Parliament and of the Council of 27 January 2003, Transition Networks will accept

post usage returns of this product for proper disposal. The contact information for this

activity can be found in the 'Contact Us' portion of this document.

Tabla de contenidos

Otros manuales de Chasis de Transition Networks

Transition Networks

Transition Networks PointSystem CPSMC0200-210 Manual de usuario

Transition Networks

Transition Networks ION219 Series Manual de usuario

Transition Networks

Transition Networks CPSMC0800-100 Manual de usuario

Transition Networks

Transition Networks E-MCC-01 Manual de usuario

Transition Networks

Transition Networks CPSMC0100-210 Manual de usuario

Transition Networks

Transition Networks PointSystem CPSMC0200-2x0 Manual de usuario

Transition Networks

Transition Networks PointSystem CPSMC0100-200 Manual de usuario

Transition Networks

Transition Networks PointSystem CPSMC0200-221 Manual de usuario

Transition Networks

Transition Networks CPSMC0800-100 Manual de usuario

Transition Networks

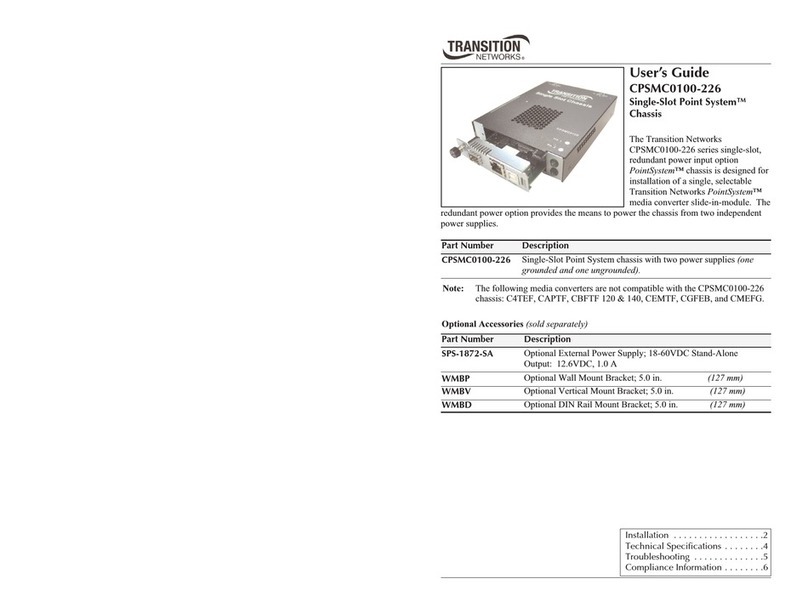

Transition Networks PointSystem CPSMC0100-226 Manual de usuario

Transition Networks

Transition Networks E-MCR-04 Manual de usuario

Transition Networks

Transition Networks PointSystem CPSMC1320-100 Manual de usuario

Transition Networks

Transition Networks PointSystem CPSMC1810-200 Manual de usuario

Transition Networks

Transition Networks PointSystem CPSMC1900-100 Manual de usuario

Manuales populares de Chasis de otras marcas

Advantech

Advantech IPC-623 Series Manual de usuario

IMC Networks

IMC Networks iMcV/18 Manual de usuario

Chenbro

Chenbro RB13804N4WFT Manual de usuario

Lenovo

Lenovo ThinkSystem SR665 V3 Manual de usuario

Wuntronic

Wuntronic PCI4DRQ Manual de usuario

EtherWAN

EtherWAN EMC400 Manual de usuario

Overland Storage

Overland Storage SnapSAN S1000 Guía

Philips

Philips LC4.1E A Manual de usuario

Supermicro

Supermicro SCF418 Series Manual de usuario

Chenbro

Chenbro RM437 Series Manual de usuario

Pickering

Pickering 40-914 Manual de usuario

HP A7503-S Instrucciones de montaje

Supermicro

Supermicro SC823MTQ-R700LPB Manual de usuario

SilverStone

SilverStone RMS08 Series Manual de usuario

NI cRIO-FRC II Manual de usuario

Pickering

Pickering 65-200 Manual de usuario

Allied Telesis

Allied Telesis AT-MMCR18 Manual de usuario

Hisense

Hisense MSD6586 Manual de usuario
