TRANSDUCTION

USER’S MANUAL

Version 1.0

06/26/15

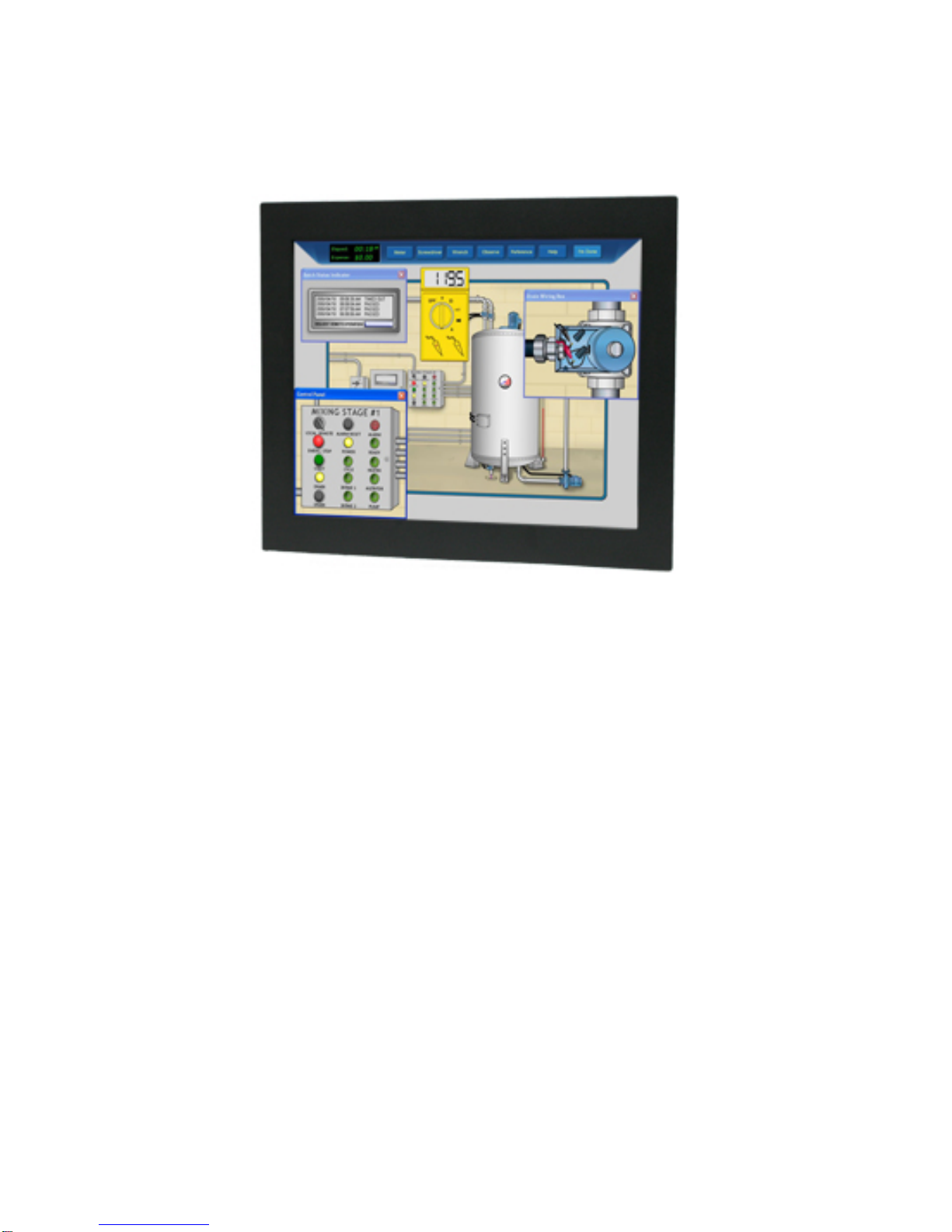

TR-LCD1900-ITX-7 INDUSTRIAL PANEL/RACK

MOUNT PC WITH INTEL DUAL ATOM PROCESSOR

AND 19” LCD TOUCH SCREEN DISPLAY

5155 Spectrum Way, Mississauga, ON, Canada L4W 5A1

TEL: 1-800-268-0427, 905-625-1907

FAX: 905-625-0531

Email: [email protected]

Table of Contents

Important Information.............................................................................4

Product Description & Warranty .............................................................5

Chapter 1 - Introduction...........................................................................6

TR-LCD1900-ITX-7Specifications...........................................................

LCD Display Operation .......................................................................... 9

TR-LCD1900-ITX-7SBC Features..........................................................10

TR-LCD1900-ITX-7SBC Specifications..................................................11

Chapter 2 – TR-LCD1ϵ00-ITX-7SBC Jumpers & Connectors ..................14

Section 1 – Jumpers on the TR-LCD1900-ITX-7SBC ............................15

Jumper Locations on the TR-LCD1900-ITX-7SBC............................16

JP1, JP2: COM Power Selection.......................................................17

JP3: Clear CMOS RAM Data.............................................................17

JP4: CF Card Mode Selection .......................................................... 18

JP5: COM1 Power Pin (Pin9) ...........................................................18

AT MODE: AT Mode Selection ........................................................18

LCDPWR: LCD PANEL Power Selection............................................19

COM2MODE: RS232/RS422/RS485.................................................19

Section 2 – Connectors on the TR-LCD1900-ITX-7..............................20

Connector Locations on the TR-LCD1900-ITX-7..............................21

Front Panel Connector....................................................................22

BACKLIGHT Connector ....................................................................23

IRDA Connector............................................................................... 23

IDE Connectors................................................................................24

COM1 Serial Port.............................................................................25

TR-LCD1900-ITX-7User Manual

Table of Contents

Section 2 – Connectors on the TR-LCD1900-ITX-7(Cont’d)

COM2 Serial Port.............................................................................25

COM3, COM4, COM5, COM6 Serial Ports.......................................26

PWROUT1 Connector...................................................................... 26

PWROUT2 Connector......................................................................26

LPT Port...........................................................................................27

PS/2 Keyboard & Mouse Connector ............................................... 28

PS2KBMS Connector .......................................................................28

VGA Connector ............................................................................... 29

VGA1 Connector .............................................................................29

VGA2 Connector .............................................................................30

DCIN Connector .............................................................................. 30

DCIN2 Power Connector .................................................................31

CPU Fan Power Connector..............................................................31

FAN1 Power Connector................................................................... 31

FAN2 Power Connector................................................................... 31

USB12 USB34 Connectors...............................................................32

LANGbE+USBx2 Connectors............................................................32

LAN-GBE Connectors.......................................................................33

LAN RJ45 LED1, 2.............................................................................33

Audio Connectors............................................................................34

Audio 1 Pin Headers........................................................................34

Audio 2 Pin Headers........................................................................34

SATA1, SATA2, SATA3 Connectors ..................................................35

TR-LCD1900-ITX-7User Manual

Table of Contents

Section 2 – Connectors on the TR-LCD1900-ITX-7(Cont’d)

DIO Pin Header................................................................................35

LVDS Connector ..............................................................................36

CF-II Connector ...............................................................................37

Chapter 3 – BIOS Setup ..........................................................................37

Main Menu..........................................................................................43

Standard CMOS Features....................................................................46

Advanced BIOS Features .....................................................................51

Advanced Chipset Features.................................................................56

Integrated Peripherals ........................................................................59

Power Management Setup .................................................................71

PnP/PCI Configuration.........................................................................73

PC Health Status..................................................................................77

Load Fail-Safe Defaults........................................................................79

Load Optimized Defaults.....................................................................79

Set Supervisor/User Password............................................................80

Save & Exit Setup ................................................................................82

Exit Without Saving ............................................................................. 82

Chapter 4 – Appendix.............................................................................83

AC Power Adapter...........................................................................84

I/O Port Address Map .....................................................................85

Interrupt Request Lines (IRQ) ......................................................... 86

POST Beep.......................................................................................87

Resistive Touch Screen Option ....................................................... 88

TR-LCD1900-ITX-7Mechanical Drawings ........................................95

TR-LCD1900-ITX-7User Manual

Important Information

The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an

omission or any questionable item in this document, please feel free to notify Transduction.

Regardless of the foregoing statement, Transduction assumes no responsibility for any errors that may

appear in this document nor for results obtained by the user as a result of using this product.

This document is protected by copyright. No part of this document may be reproduced, copied or

translated in any form or means without prior written permission from Transduction.

All other trademarks, brand and product names are the property of their respective owners.

Return policy

Warranty is 3 years for the whole system from the date of purchase. Products returned for repair must be

accompanied by a Return Material Authorization (RMA) number, obtained from Transduction prior to return.

Freight on all returned items must be prepaid by the customer. The customer is responsible for any loss or

damage caused by the carrier in transit.

To obtain an RMA number, call us at 905-625-1907. We will need the following information:

· Return company address and contract

· Model name, model number and serial number

· Description of the failure

Mark the RMA number clearly on the outside of each box, include a failure report and return the product

to:

Transduction

5155 – 23 Spectrum Way

Mississauga ON Canada L4W 5A1

Attn: RMA Department

TR-LCD1900-ITX-7User Manual

Product Description

TR-LCD1900-ITX-7 is a NEMA 4 Panel/Rack

Mount Industrial Computer.

TR-LCD1900-ITX-7 industrial computer with or without touch screen has

been designed to provide many years of reliable operation in industrial

environments. The warranty is 3 years but MTBF based on serivice

records is in excess of 100,000 hours.

Based on the Intel Dual ATOM 1.8GHz processor, TR-LCD1900-ITX-7 provides

a low cost alternative to comparable products offered by our competitors costing

3 times more.

the same high quality standards that we use for military and nuclear clients.

Warranty

Warranty is unconditional for 3 years from the date of Transduction invoice,

FOB our plant in Mississauga. Transduction Return Material Authorization

(RMA) number must be obtained prior to return of any goods for service and

clearly shown on the shipping label. For RMA number call 905-625-1907

ext. 12, 9AM to 5PM Eastern Time Zone.

TR-LCD1900-ITX-7User Manual

Introduction

This manual is designed to give you information on the

TR-LCD1900-ITX-7industrial PC.The topics covered in this

chapter are as follows:

TR-LCD1900-ITX-7Specifications ............................. 7-8

LCD Display Operation ............................................... 9

TR-LCD1900-ITX-7SBC Features ...............................10

TR-LCD1900-ITX-7SBC Specifications .................... 11-13

TR-LCD1900-ITX-7User Manual

TR-LCD1900-ITX-7 Specifications

Model TR-LCD1900-ITX-7Industrial

Panel/Rack Computer

Processor 1.8GHz Intel Atom D525 with four

threads

Cooling 3 x cooling fans with speed control

One CPU cooler and two for system fans

Chipset Intel ICH8M 64-Bit

BIOS Award PnP Ver. 6.0

8Mbit FlashROM with BootBlock for fail-

safe

Display 19” TFT LCD, resolution 1280 x 1024

(SXGA)

Backlight MTBF > 150,000 hours

Brightness - 350cd/m², Contrast ratio -

700:1 (brightness and contrast software

adjustable)

USB resistive touch screen

Memory Up to 4GB SO-DIMM DDR3 800MHz

Display Intel D525 integrated GMA3150 Graphic

Engine Interface

DB15 SVGA connector

Dual VGA display supported - display

devices can be selected by BIOS or

graphics drivers

Ethernet 2 x Realtek RT8111E Gigabit LAN

External RJ45 connectors

PXE Boot ROM and WOL supported

Green Function Power saving mode includes doze,

standby and suspend modes

External I/O 1 x SVGA DB15 - mirror of LCD

2 x serial ports

1 x parallel port

4 x USB 2.0 ports

2 x audio jacks

Disk I/O Optional SLIM CD-R/W-DVD

One or two 2.5” SATA hard drives 500

or 1000GB

Optional high speed ash 64GB ~ 256GB

with S.M.A.R.T. and SUPERCAP features

Optional RAID1

Green Function Power saving mode includes doze,

standby and suspend modes

Audio Realtek ALC888 high denition

7.1 channel surrounding audio support

Watchdog Timer System reset programmable watchdog

timer with 1 ~ 255sec time-out value

Operating Temperature 0 ~ 50ºC (32º ~ 122ºF) with hard drive

0 ~ 60ºC (32º ~ 140ºF) for 2 hours with

SSD

Storage Temperature -20 ~ 85ºC (-4º ~ 185ºF)

Humidity Relative humidity 10 ~ 90%,

non-condensing

Storage: Relative humidity 45% max.

non-condensing

TR-LCD1900-ITX-7User Manual 7

TR-LCD1900-ITX-7 Specifications

Shock and Vibration Shock - 25G, Vibration - 5G

Power Requirement DC 12V input with 4-pins Mini-DIN

connector

Includes universal AC 12VDC 100W

power adapter

Optional DC input 12, 24, 48, 125 and

250V

Compliance: Electrical Safety

Approval, CE and FCC Class B

Compatible with Windows 10 32/64-

bit, Windows 7 32/64-bit, Windows

Vista, Windows XP, Windows 2000,

QNX, LINUX and DOS 6.22

Warranty 3 years

Dimensions Panel mount version - 3.943” (4.625”

with CD/DVD) (H) x 15.250” (D) x

17.750” (W)

Rack mount version - 3.943” (4.625”

with CD/DVD) (H) x 13.980” (D) x

18.960” (W)

Weight 10.5kg (23.15lbs)

TR-LCD1900-ITX-7User Manual 8

1. LCD Monitor screen is always connected via internal LVDS

interface. It can be disabled in the BIOS set-up.

2. External analog SVGA port is the "mirror" of the LCD screen

for connection of the external monitor.

3. LCD display settings can be changed in SET-UP section of the

video driver.

4. For touch screen installation and calibration is "Resistive Touch

Screen Option" section in the appendix of the manual.

LCD Display Operation

TR-LCD1900-ITX-7User Manual 9

Tabla de contenidos

Otros manuales de PC industrial de Transduction

Transduction

Transduction TR-LCD1500-ITX-7 Manual de usuario

Manuales populares de PC industrial de otras marcas

Chipsee

Chipsee PPC-A72-101 Manual de usuario

Advantech

Advantech UNO-2184G Manual de usuario

MSI

MSI MS-9A76 Manual de usuario

Stackrack

Stackrack THOR200 Manual de usuario

Moxa Technologies

Moxa Technologies DA-682C Series Manual de usuario

Nodka

Nodka eBOX-3000-ETC Manual de usuario

Siemens

Siemens SIMATIC IPC627E Manual de usuario

MSI

MSI MS-9A89 Manual de usuario

Artila

Artila Matrix-516 Manual de usuario

Siemens

Siemens SIMATIC Rack PC 840 V2 Manual de usuario

Advantech

Advantech IPPC-6152A Manual de usuario

Beckhoff

Beckhoff CX9020 Manual de usuario

Dell

Dell Embedded Box PC 5000 Manual de usuario

IBASE Technology

IBASE Technology ASB200-918 Series Manual de usuario

Lenovo

Lenovo ThinkCentre M90q Manual del propietario

IXXAT

IXXAT Econ 100 Manual de usuario

Kontron

Kontron KBox A-151-TGL Manual de usuario

AXIOMTEK

AXIOMTEK ICO500-518 Series Manual de usuario
