TS-ACA1

USERS MANUAL

Intel ® Pentium® II / III Series

Your Supplier, Your Partner,

Your Friend.

Transcend

All manuals and user guides at all-guides.com

all-guides.com

TS-ACA1 Motherboard

Supporting Intel ® Slot 1 Pentium ® II,Pentium® III Series Processor

100/133MHz Front Side Bus

Intel® 820 hipset

elcome !!

ongratulations on your purchase of this great value motherboard, with its range of special features

and innovative onboard functions, built around the advanced architecture of the new Intel® 820

hipset. More details to follow later in this manual.

Our ebsite

Please come and visit us at our website at http://www.transcendusa.com/. Youll find plenty of

interesting information about this and many other quality Transcend products.

Your Users Manual

This Users Manual is designed to help end users and system manufacturers to set up and install

the motherboard. All of the information within has been carefully checked for accuracy. However,

Transcend Information, Inc. (hereafter referred to as Transcend) carries no responsibility or

liability for any errors or inaccuracies which this manual may contain. This includes references to

products and software. In addition, the information and specifications are subject to change

without prior notice.

Disclaimer

Transcend provides this manual as is without any warranty of any kind, either expressed or

implied, including  but not limited to  the implied warranties, conditions of merchantability or

fitness for a particular purpose. Transcend, its management, employees, distributors and agents

are in no way liable for any indirect special, incidental or consequential damages, including loss

of profits, loss of business and the like. This is even if Transcend has been advised of the possibility

of such damages arising from any defect or error in this manual or product.

Trademarks

All brands, product names and trademarks mentioned in this document are the property of their

respective owners or companies and are used solely for identification or explanation. It is

Transcend policy to respect all product rights.

This manual may not, in whole or in part, be photocopied, reproduced, transcribed, translated or

transmitted, in whatever form or language, without the written consent of the manufacturer, except

for copies retained by the purchaser for personal archiving purposes.

Manual Version: 1.0

Release Date: Feb. 2000

opyright © Jan 2000 Transcend Information, Inc.

All manuals and user guides at all-guides.com

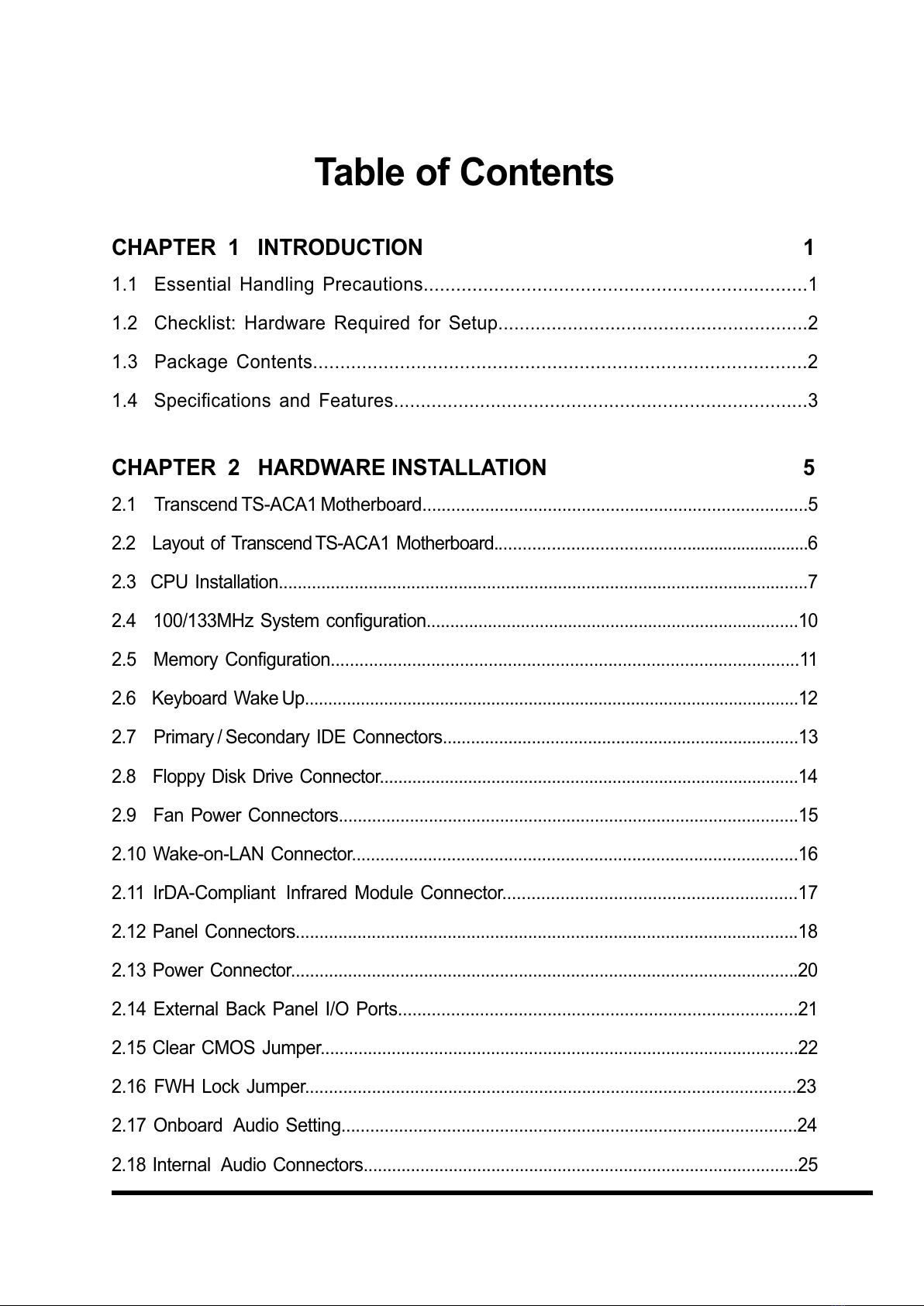

Table of Contents

CHAPTER 1 INTRODUCTION 1

1.1 Essential Handling Precautions.......................................................................1

1.2 hecklist: Hardware Required for Setup..........................................................2

1.3 Package ontents...........................................................................................2

1.4 Specifications and Features.............................................................................3

CHAPTER 2 HARD ARE INSTALLATION 5

2.1 Transcend TS-A A1 Motherboard................................................................................5

2.2 Layout of Transcend TS-A A1 Motherboard...................................................................6

2.3 PU Installation................................................................................................................7

2.4 100/133MHz System configuration...............................................................................10

2.5 Memory onfiguration..................................................................................................11

2.6 Keyboard Wake Up..........................................................................................................12

2.7 Primary / Secondary IDE onnectors............................................................................13

2.8 Floppy Disk Drive onnector..........................................................................................14

2.9 Fan Power onnectors.................................................................................................15

2.10 Wake-on-LAN onnector..............................................................................................16

2.11 IrDA- ompliant Infrared Module onnector.............................................................17

2.12 Panel onnectors..........................................................................................................18

2.13 Power onnector...........................................................................................................20

2.14 External Back Panel I/O Ports...................................................................................21

2.15 lear MOS Jumper.....................................................................................................22

2.16 FWH Lock Jumper.......................................................................................................23

2.17 Onboard Audio Setting...............................................................................................24

2.18 Internal Audio onnectors............................................................................................25

All manuals and user guides at all-guides.com

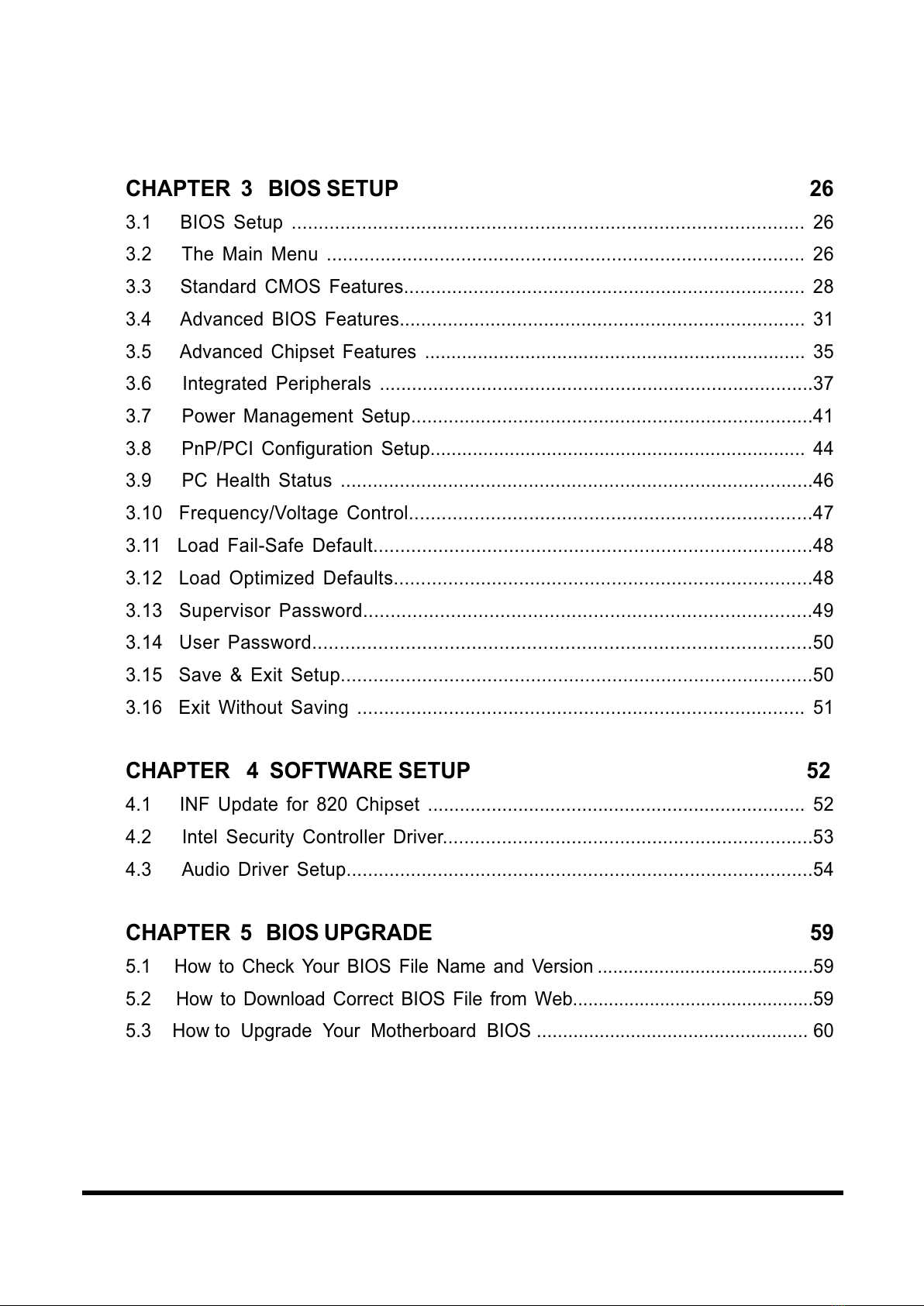

CHAPTER 3 BIOS SETUP 26

3.1 BIOS Setup ............................................................................................... 26

3.2 The Main Menu ......................................................................................... 26

3.3 Standard MOS Features........................................................................... 28

3.4 Advanced BIOS Features............................................................................ 31

3.5 Advanced hipset Features ........................................................................ 35

3.6 Integrated Peripherals .................................................................................37

3.7 Power Management Setup...........................................................................41

3.8 PnP/P I onfiguration Setup....................................................................... 44

3.9 P Health Status ........................................................................................46

3.10 Frequency/Voltage ontrol..........................................................................47

3.11 Load Fail-Safe Default.................................................................................48

3.12 Load Optimized Defaults.............................................................................48

3.13 Supervisor Password..................................................................................49

3.14 User Password...........................................................................................50

3.15 Save & Exit Setup.......................................................................................50

3.16 Exit Without Saving ................................................................................... 51

CHAPTER 4 SOFT ARE SETUP 52

4.1 INF Update for 820 hipset ....................................................................... 52

4.2 Intel Security ontroller Driver.....................................................................53

4.3 Audio Driver Setup.......................................................................................54

CHAPTER 5 BIOS UPGRADE 59

5.1 How to heck Your BIOS File Name and Version ..........................................59

5.2 How to Download orrect BIOS File from Web...............................................59

5.3 How to Upgrade Your Motherboard BIOS .................................................... 60

All manuals and user guides at all-guides.com

INTRODUCTION 1

CHAPTER 1 INTRODUCTION

1.1 Essential Handling Precautions

IMPORTANT. Read this page before unpacking your motherboard!

• Power Supply

Be careful! Always ensure that the computer is disconnected from the power supply when working

on the motherboard and its components.

• Static

Static electricity may cause damage to the delicate integrated circuit chips on your motherboard.

Before handling the motherboard outside of its protective packaging, ensure that there is no

static electric charge in your body. To avoid this risk, please observe these simple precautions

while handling the motherboard and other computer components:

1. If possible, wear an anti-static wrist strap. This fits around your wrist and is connected to

a natural earth ground.

2. Touch a grounded or anti-static surface, or a metal fixture such as a pipe or the chassis of

your system, before touching the motherboard.

3. When you have removed the motherboard from its anti-static packaging, try to hold it only by

the edges, without touching any components.

4. Avoid contacting the components on add-on cards, motherboards, and modules with the

golden fingers (gold-colored connectors) which plug into the expansion slots.

5. It is safest to handle system components only by their mounting brackets.

6. Keep components which are not connected to the system in the anti-static packaging

whenever possible.

These precautions help to reduce the risk of static build-up and ensure any static discharge is

harmless to your equipment.

••

• Battery Replacement

The battery which holds the system settings memory on your motherboard should not require

replacement for at least five years, and probably much longer. In picture 2.2(Page 6), it is

located near the bottom right hand corner.

All manuals and user guides at all-guides.com

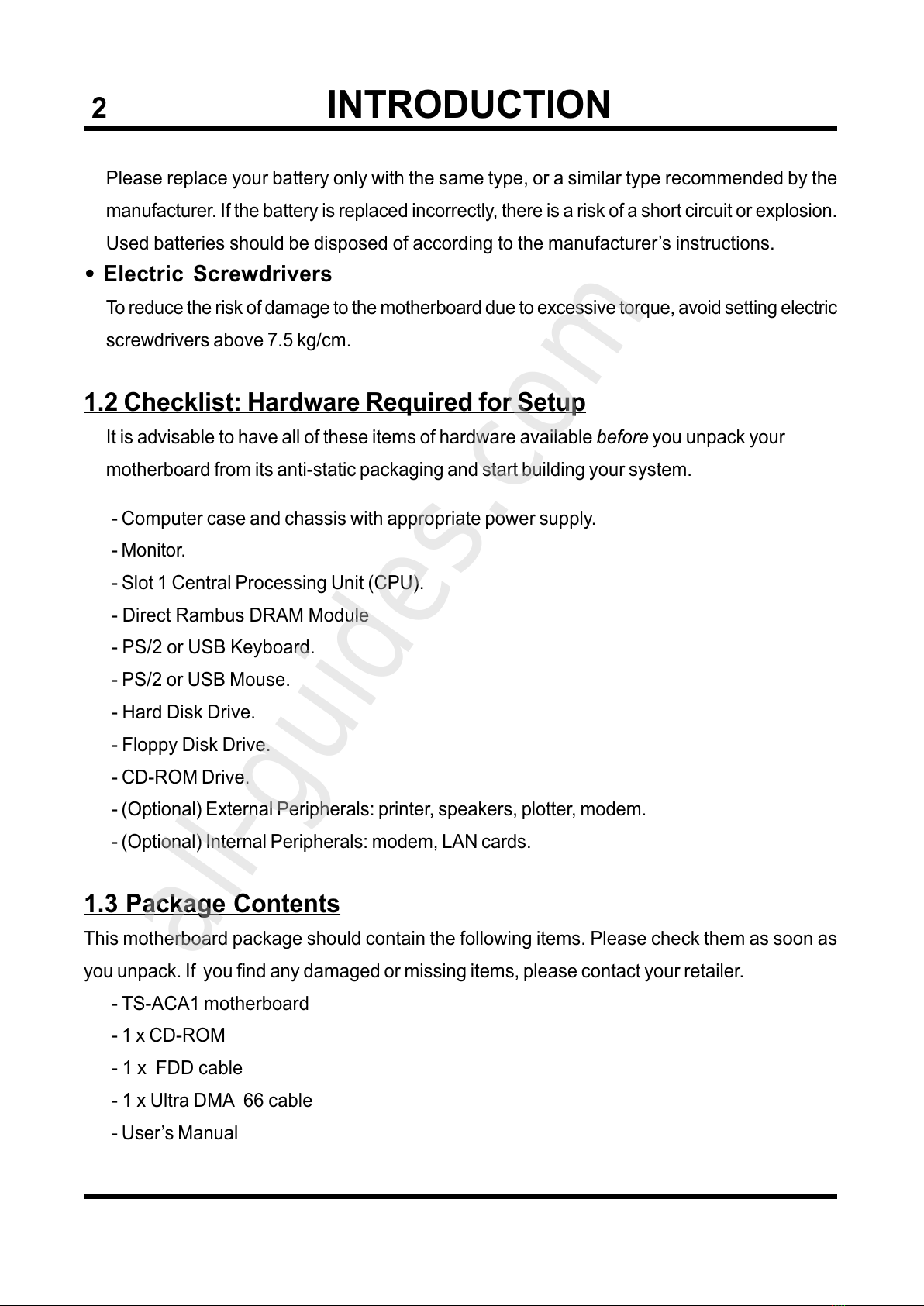

Please replace your battery only with the same type, or a similar type recommended by the

manufacturer. If the battery is replaced incorrectly, there is a risk of a short circuit or explosion.

Used batteries should be disposed of according to the manufacturers instructions.

••

• Electric Screwdrivers

To reduce the risk of damage to the motherboard due to excessive torque, avoid setting electric

screwdrivers above 7.5 kg/cm.

1.2 Checklist: Hardware Required for Setup

It is advisable to have all of these items of hardware available before you unpack your

motherboard from its anti-static packaging and start building your system.

- omputer case and chassis with appropriate power supply.

- Monitor.

- Slot 1 entral Processing Unit ( PU).

- Direct Rambus DRAM Module

- PS/2 or USB Keyboard.

- PS/2 or USB Mouse.

- Hard Disk Drive.

- Floppy Disk Drive.

- D-ROM Drive.

- (Optional) External Peripherals: printer, speakers, plotter, modem.

- (Optional) Internal Peripherals: modem, LAN cards.

1.3 Package Contents

This motherboard package should contain the following items. Please check them as soon as

you unpack. If you find any damaged or missing items, please contact your retailer.

- TS-A A1 motherboard

- 1 x D-ROM

- 1 x FDD cable

- 1 x Ultra DMA 66 cable

- Users Manual

2 INTRODUCTION

All manuals and user guides at all-guides.com

all-guides.com

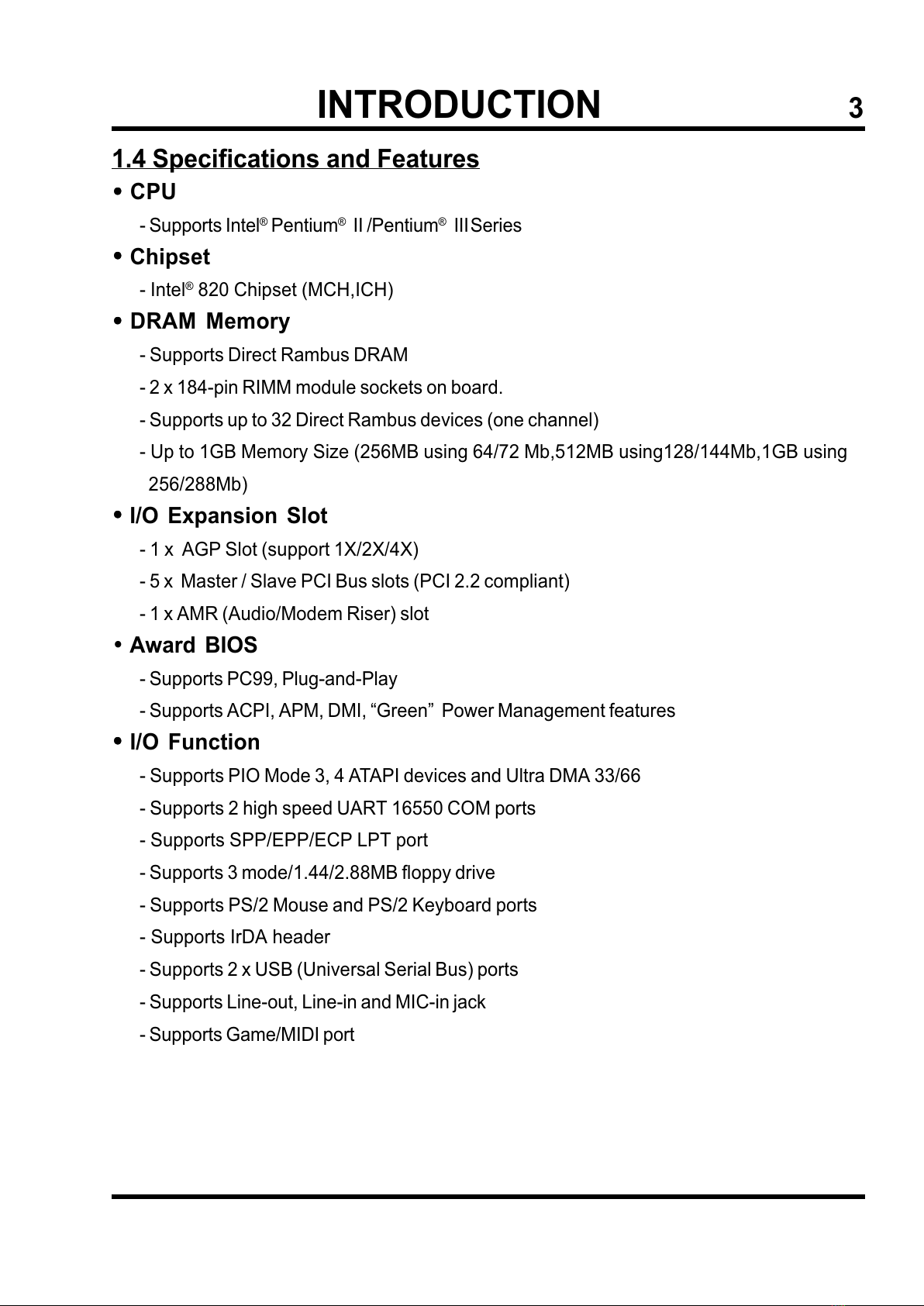

1.4 Specifications and Features

• •

• CPU

- Supports Intel® Pentium® II /Pentium® III Series

• •

• Chipset

- Intel® 820 hipset (M H,I H)

• •

• DRAM Memory

- Supports Direct Rambus DRAM

- 2 x 184-pin RIMM module sockets on board.

- Supports up to 32 Direct Rambus devices (one channel)

- Up to 1GB Memory Size (256MB using 64/72 Mb,512MB using128/144Mb,1GB using

256/288Mb)

• •

• I/O Expansion Slot

- 1 x AGP Slot (support 1X/2X/4X)

- 5 x Master / Slave P I Bus slots (P I 2.2 compliant)

- 1 x AMR (Audio/Modem Riser) slot

•

Award BIOS

- Supports P 99, Plug-and-Play

- Supports A PI, APM, DMI, Green Power Management features

• •

• I/O Function

- Supports PIO Mode 3, 4 ATAPI devices and Ultra DMA 33/66

- Supports 2 high speed UART 16550 OM ports

- Supports SPP/EPP/E P LPT port

- Supports 3 mode/1.44/2.88MB floppy drive

- Supports PS/2 Mouse and PS/2 Keyboard ports

- Supports IrDA header

- Supports 2 x USB (Universal Serial Bus) ports

- Supports Line-out, Line-in and MI -in jack

- Supports Game/MIDI port

INTRODUCTION 3

All manuals and user guides at all-guides.com

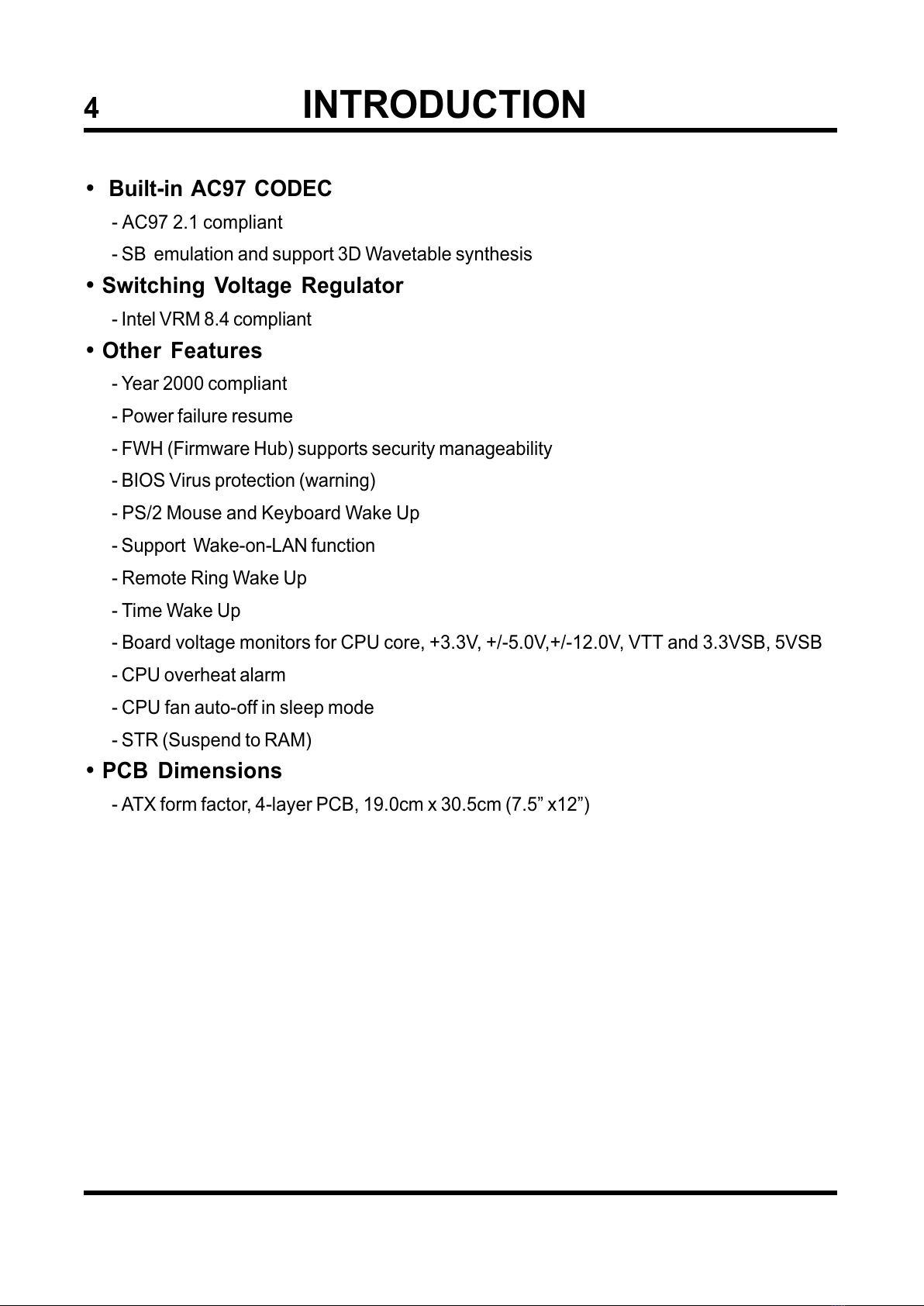

4 INTRODUCTION

•

Built-in AC97 CODEC

- A 97 2.1 compliant

- SB emulation and support 3D Wavetable synthesis

•

Switching Voltage Regulator

- Intel VRM 8.4 compliant

•

Other Features

- Year 2000 compliant

- Power failure resume

- FWH (Firmware Hub) supports security manageability

- BIOS Virus protection (warning)

- PS/2 Mouse and Keyboard Wake Up

- Support Wake-on-LAN function

- Remote Ring Wake Up

- Time Wake Up

- Board voltage monitors for PU core, +3.3V, +/-5.0V,+/-12.0V, VTT and 3.3VSB, 5VSB

- PU overheat alarm

- PU fan auto-off in sleep mode

- STR (Suspend to RAM)

•

PCB Dimensions

- ATX form factor, 4-layer P B, 19.0cm x 30.5cm (7.5 x12)

All manuals and user guides at all-guides.com

HARD ARE INSTALLATION 5

CHAPTER 2 HARD ARE INSTALLATION

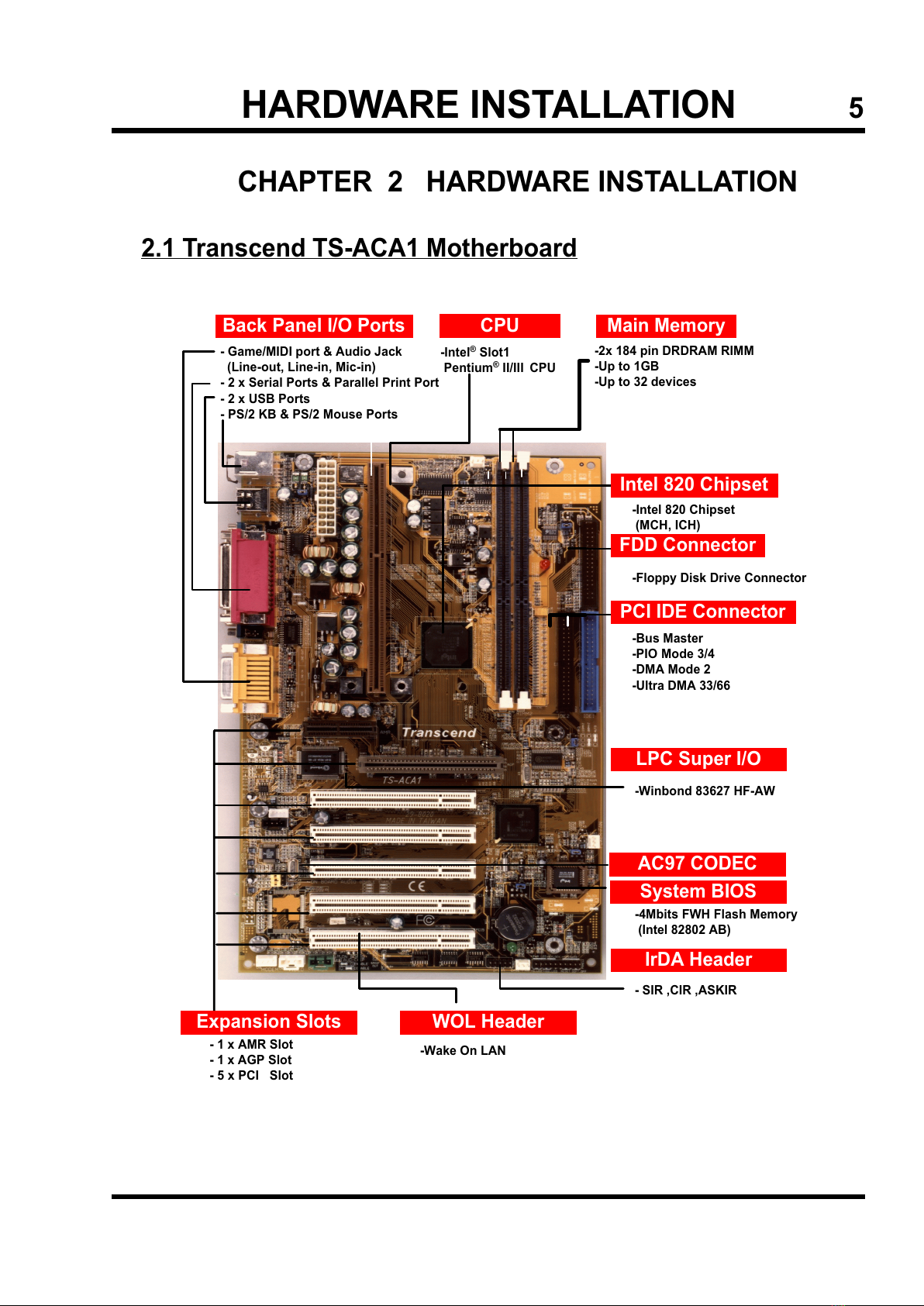

2.1 Transcend TS-ACA1 Motherboard

-4Mbits FWH Flash Memory

(Intel 82802 AB)

- Game/MIDI ort & Audio Jack

(Line-out, Line-in, Mic-in)

- 2 x Serial Ports & Parallel Print Port

- 2 x USB Ports

- PS/2 KB & PS/2 Mouse Ports

Back Panel I/O Ports CPU

-Intel® Slot1

Pentium® II/III CPU

Main Memory

-2x 184 in DRDRAM RIMM

-U to 1GB

-U to 32 devices

Intel 820 Chipset

-Intel 820 Chi set

(MCH, ICH)

FDD Connector

-Flo y Disk Drive Connector

PCI IDE Connector

-Bus Master

-PIO Mode 3/4

-DMA Mode 2

-Ultra DMA 33/66

LPC uper I/O

-Winbond 83627 HF-AW

AC97 CODEC

ystem BIO

IrDA Header

- SIR ,CIR ,ASKIR

WOL Header

-Wake On LAN

Expansion lots

- 1 x AMR Slot

- 1 x AGP Slot

- 5 x PCI Slot

All manuals and user guides at all-guides.com

6 HARD ARE INSTALLATION

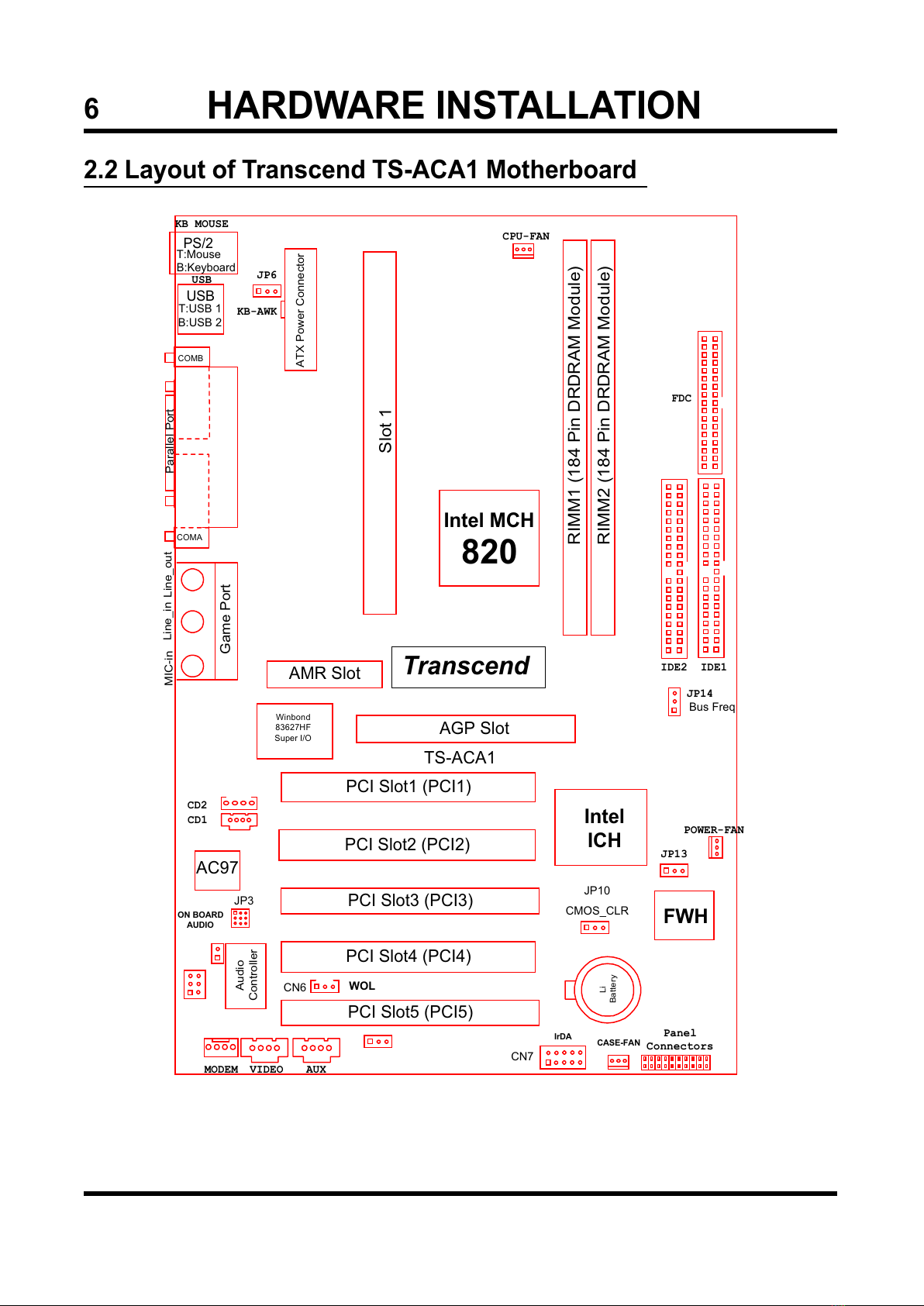

2.2 Layout of Transcend TS-ACA1 Motherboard

ATX Power Connector

Slot 1

IDE1IDE2

FDC

AGP Slot

PCI Slot1 (PCI1)

PCI Slot2 (PCI2)

PCI Slot4 (PCI4)

PCI Slot5 (PCI5)

PCI Slot3 (PCI3)

Intel

ICH

Battery

Winbond

83627HF

Super I/O

Intel MCH

& 

ON BOARD

AUDIO

AMR Slot

RIMM1 (184 Pin DRDRAM Module)

RIMM2 (184 Pin DRDRAM Module)

Bus Freq

CPU-FAN

POWER-FAN

Panel

Connectors

JP14

JP13

FWH

CASE-FAN

JP10

IrDA

CMOS_CLR

CD1

MODEM VIDEO AUX

CD2

AC97

JP3

JP6

PS/2

T:Mouse

B:Keyboard

USB

T:USB 1

B:USB 2

B MOUSE

USB

Game Port

Li e_i

MIC-i Li e_out

COMA

Parallel Port

COMB

Transcend

CN7

Audio

Co troller

TS-ACA1

B-AW

CN6 WOL

All manuals and user guides at all-guides.com

Otros manuales para TS-ACA1

Tabla de contenidos

Otros manuales de Placa madre de Transcend

Transcend

Transcend TS-AVE3/B Manual de usuario

Transcend

Transcend TS-ASP3 Manual de usuario

Transcend

Transcend TS-ASL3 Manual de usuario

Transcend

Transcend TS-ABX31 Manual de usuario

Transcend

Transcend TS-APM3 Manual de usuario

Transcend

Transcend TS-AKT4 Series Manual de usuario

Transcend

Transcend TS-ABD4 Series Manual de usuario

Transcend

Transcend TS-AKT4 Series Manual de usuario

Transcend

Transcend TS-AAP12 Manual de usuario

Transcend

Transcend TS-ASL3 Manual de usuario

Transcend

Transcend TS-ABX11 Manual de usuario

Transcend

Transcend TS-ABX11 Manual de usuario

Transcend

Transcend TS-AWE3 Manual de usuario

Transcend

Transcend TS-UWL31 Manual de usuario

Transcend

Transcend TS-ABX31 Manual de usuario

Transcend

Transcend TS-UWL31 Manual de usuario

Transcend

Transcend TS-APR3 Manual de usuario

Transcend

Transcend TS-AKXA Manual de usuario

Transcend

Transcend TS-AVE3 Manual de usuario

Transcend

Transcend TS-AVD3 Manual de usuario

Transcend

Transcend TS-ALR4 Manual de usuario

Transcend

Transcend TS-AWH1 Manual de usuario

Transcend

Transcend TS-USL3 Manual de usuario

Transcend

Transcend TS-ABX31A Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
