I. Foreword
Dear customer:
Welcome and thank you for using our fan cooling supermarket display refrigerator. As a new
product with advanced international level researched and developed by the company according to
the market needs, this product fully absorbs the advantages of similar domestic and foreign
products and has the structure optimized based on the original knock-out products of the company,
so that the product is more concise and generous and can be used to sell food and decorate the
commodity section.
This series of supermarket refrigerators may be normally used under 30℃ environment
temperature and 60%RH relative humidity and is very suitable for Chinese conditions. It is the first
choice for various supermarkets, multiple shops and subsidiary food markets to display and sell
cooked food, beverage, fruit and vegetables and for the hotels and collective meal units for cold
storage and fresh-keeping of food.
With good exhibition, the supermarket refrigerator adopts cyclopentane foaming with excellent
thermal insulation performance, copper tube finned evaporator, high EER horizontal rotary unit and
single-layer multistage optimization air curtain, effectively reducing heat exchange with the outside
world, so as to guarantee high product performance and achieve significant energy saving effect!
★The main components are of well-known domestic and foreign brands and reliable performance.
★Integrated design, simple structure and convenient maintenance.
★Ultra-large capacity size, much placement space and good displayperformance.
★Single-layer multistage optimization air curtain, back air outlet technology application, quick
cooling and uniform refrigerator temperature.
★Each layer is designed with LED goods shelf light, which increases the display effect and is more
energy-saving than ordinary fluorescent lamp.
★The trim strips have many colors for choice to show different effects as needed.
★The microcomputer temperature controller may accurately control the refrigerator temperature,
defrosting and other parameters and store the food with high freshness.
For better services, please carefully read this manual before use.
II. Main structure
This series of supermarket refrigerator mainly consists of the refrigerator body, foam end plate,
evaporator, fan unit, front and top decorative parts, exhaust system, temperature control parts,
thermostatic expansion valve or capillary tube, bottom unit parts, end plate parts, shelves and other

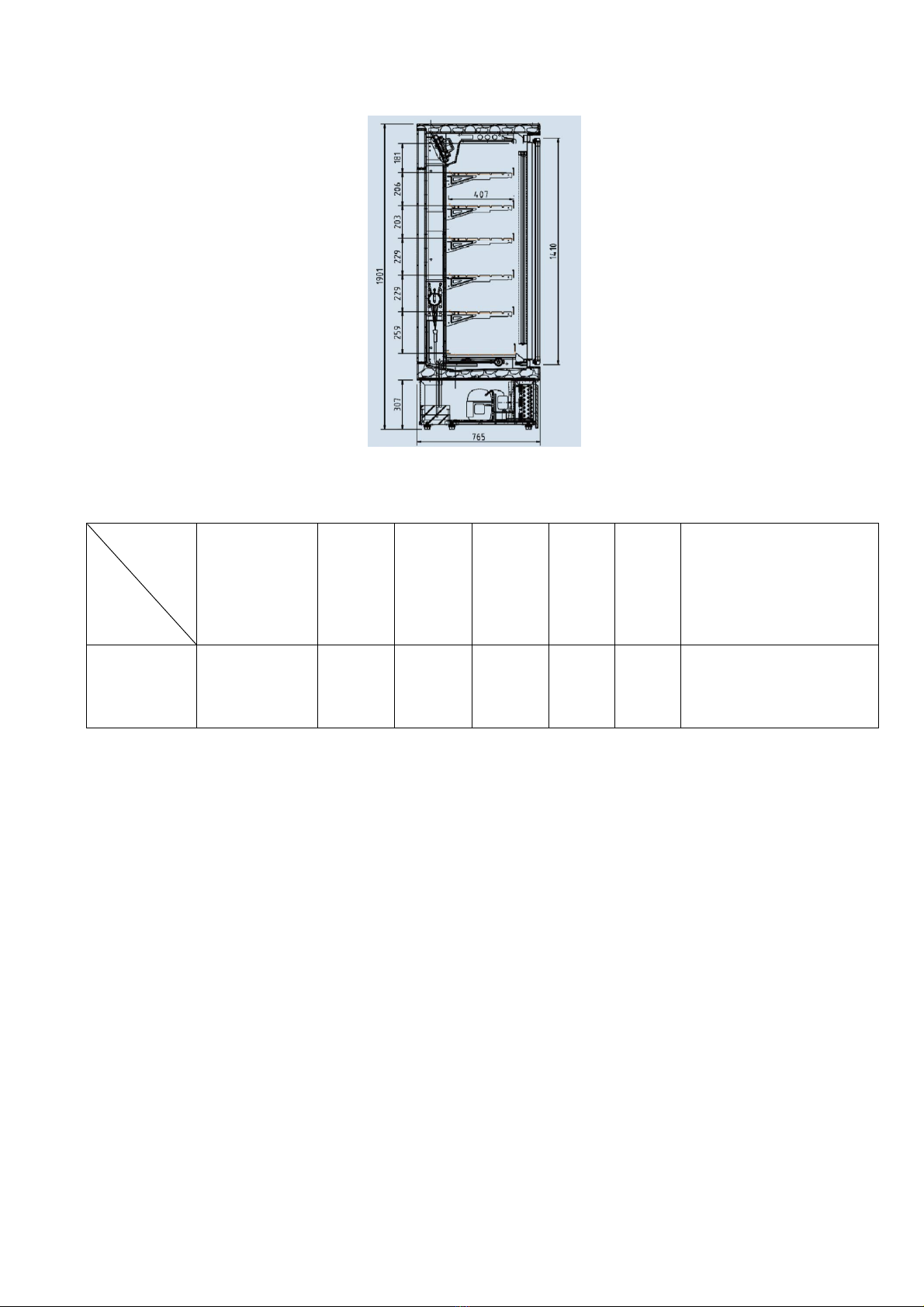

accessories. The specific structural layout is shown in the following sectional view:
