TP active fun TP291 Guía rápida
Build Time
2 Hrs
THIS PRODUCT IS NOT SUITABLE FOR CHILDREN UNDER 36
MONTHS. CONTAINS SMALL PARTS. CHOKING HAZARD.
ONLY FOR DOMESTIC USE. FOR OUTDOOR USE.
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
ADULT SUPERVISION IS REQUIRED.
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL
PROPERLY INSTALLED.
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR
CHILDREN.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST
BE FITTED BEFORE USE.
THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM
AGES 3 TO 10 YEARS.
MAXIMUM COMBINED PLATFORM USER WEIGHT 150KGS
MAXIMUM USER WEIGHT 45KGS PER SEAT
WARNING!
x2
TP291
Forest Double Mulitplay with
Wavy Slide
Instructions for assembly, maintenance and safe use.
Please retain for future reference.
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 1 05/04/2018 09:53
Important advice for assembly, maintenance and safe use
1. Toys must be assembled by an adult before use exactly in accordance with the instructions.
2. Check all parts are present before you start to assemble the product.
3. Place small parts on a tray or similar, to ensure they are not lost.
4. If any parts are missing do not use the product until the replacement parts are fitted.
5. Remove all packaging before giving to your children or allowing them to play with this product.
6. Ensure your product is sited on level ground. Failure to do this may put additional stress on connections and joints
and in time could cause them to fail.
7. Ensure your product is located on a soft impact surface like grass. Never locate your product on hard surfaces like
concrete or asphalt.
8. Children must not use this product until properly installed.
9. Adult supervision is required at all times to ensure children play safely. Ensure children’s clothing is appropriate for
the play activity.
10. Equipment should be checked by an adult at the beginning of each season and at regular intervals during the
usage season to ensure it is safe.
11. Pay special attention to all connections and fastenings.
12. Parts may need to be replaced if they show signs of wear and tear. Replace any defective parts in accordance
with these instructions.
13. Any changes to this toy, e.g. changing or adding an accessory, must be done in accordance with our instructions.
Failure to do this will render your guarantee null and void and may make your product unsafe.
14. The age recommendation for this product is clearly stated on the packaging and these instructions. Please adhere
to it at all times.
15. When you dispose of this equipment please do so responsibly.
Safe play free space area
The safe play area refers to the zone extending 200cm
around the toys on all sides and 250cm above the toy.
The safe play area must be free from all obstacles.
Dimensions
289cm
110cm170cm 196cm57cm
198cm
89cm
2m 2m
2m 2m
2m
2m
Forest Double Multiplay with Forest Green Wavy Slide
3
2
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 2 05/04/2018 09:53

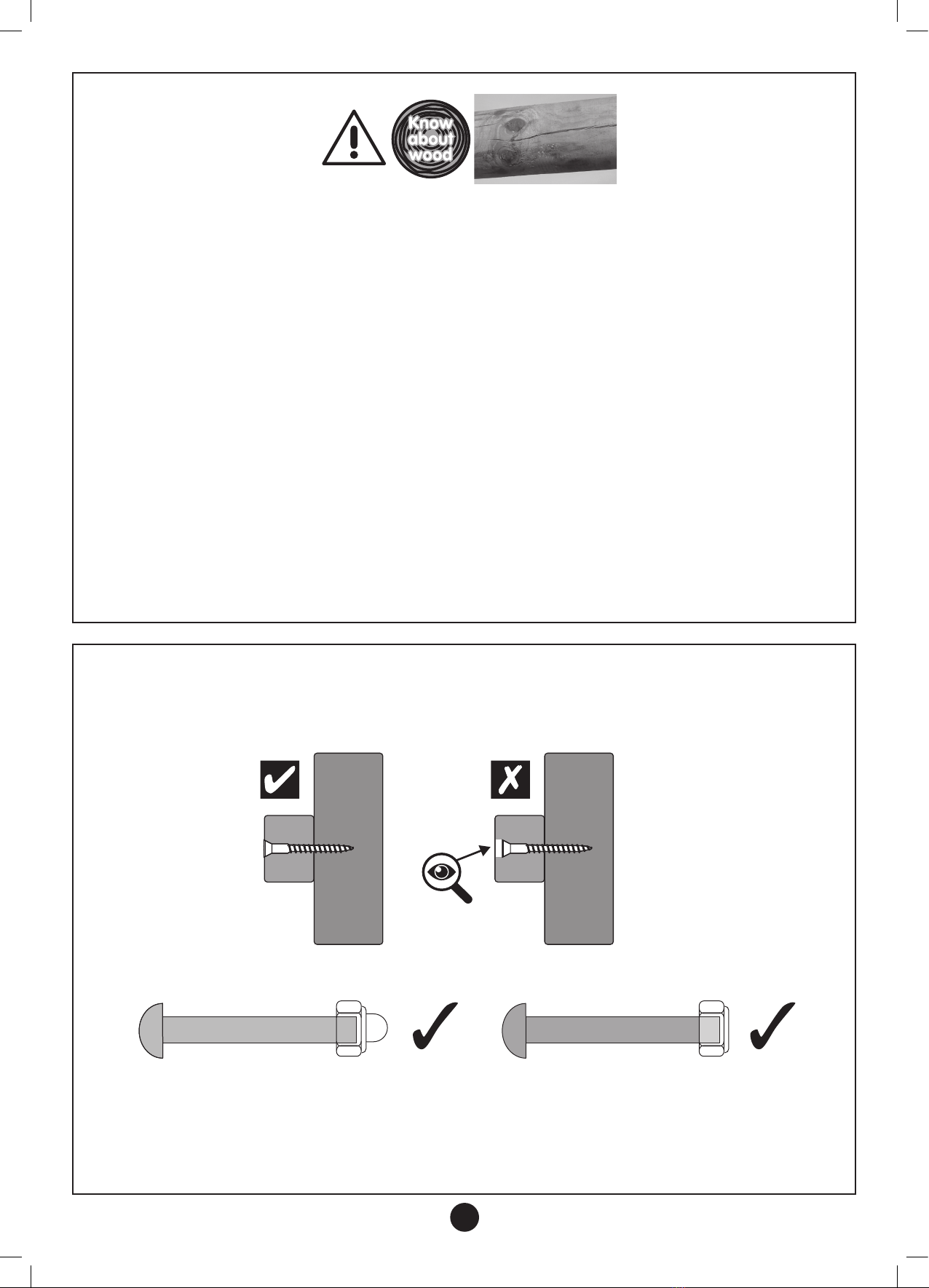

Know About Wood
Unlike steel, wood is a natural, organic material and each piece will be unique, bearing its own knots, cracks and
variations in colour and, unlike steel, wood will react significantly to changes in atmospheric conditions.
Wood will expand and contract as fluctuations of temperature and humidity affect the water content of the cell structure.
In warm sunny weather it will shrink and in wet weather it will expand. As these physical changes do not, necessarily,
take place uniformly throughout a piece of wood, forces are set up which cause cracks and splits to arise.
It is not necessary to stain your Wooden frame.
It is made from selected wood which has been pressure treated. This is a process by which preservatives are forced
under pressure into the fabric of the timber to protect it from decay and insect damage.
If you do wish to stain your Wooden frame for aesthetic reasons, please use a water-based stain, which is available from
any good DIY store.
Forest Double Multiplay with Forest Green Wavy Slide
3
2
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 3 05/04/2018 09:53
10 20 30 40 50 60 70 80 90 100 110 120 130
Dimensions in mm
Frame Fixings SP1031
M6 x 100 4
FA5186
Allen Key 1
Spanner 2
M6 x 110 6
FA5106
7 x 50mm Screw 16
FA8660
M8
Washer
FA9766
14
M6
Washer
FA9764
12
M6 x 25mm
Large washer
FA5095
14
M6 Domed
Nyloc nut
FA5192
24
M8 Nyloc
Lock nut
FA5174
5
M6 Nyloc
Lock nut
FA5175
2
M4 x 22mm 4
FA8444
M6 x 35 2
FA5164 PM8387
2
Components - Pack 1
MW1070 Top bar 2245mm 1
MW1003 3-Hole swing leg 2055mm 2
MW1010 6-Hole swing leg 2030mm 2
MW1006 3-Hole swing leg 2030mm 2
MW1136 Horizontal side brace
685mm 1MW1009
Platform end 475mm 2
MW1059 Ladder Rungs 570mm 3
MW1008 Platform deck 525mm 6
PM2001 Ground peg 6
MW1007 Platform Support 986mm 2
PM2011
90° Corner
bracket
2
Mallet
3mm
Drill bit
7mm
Drill bit Screwdriver
TP968 Slide 1
TP928 Swing Seat 2
M8 Hook Bolt short 4
FA9791

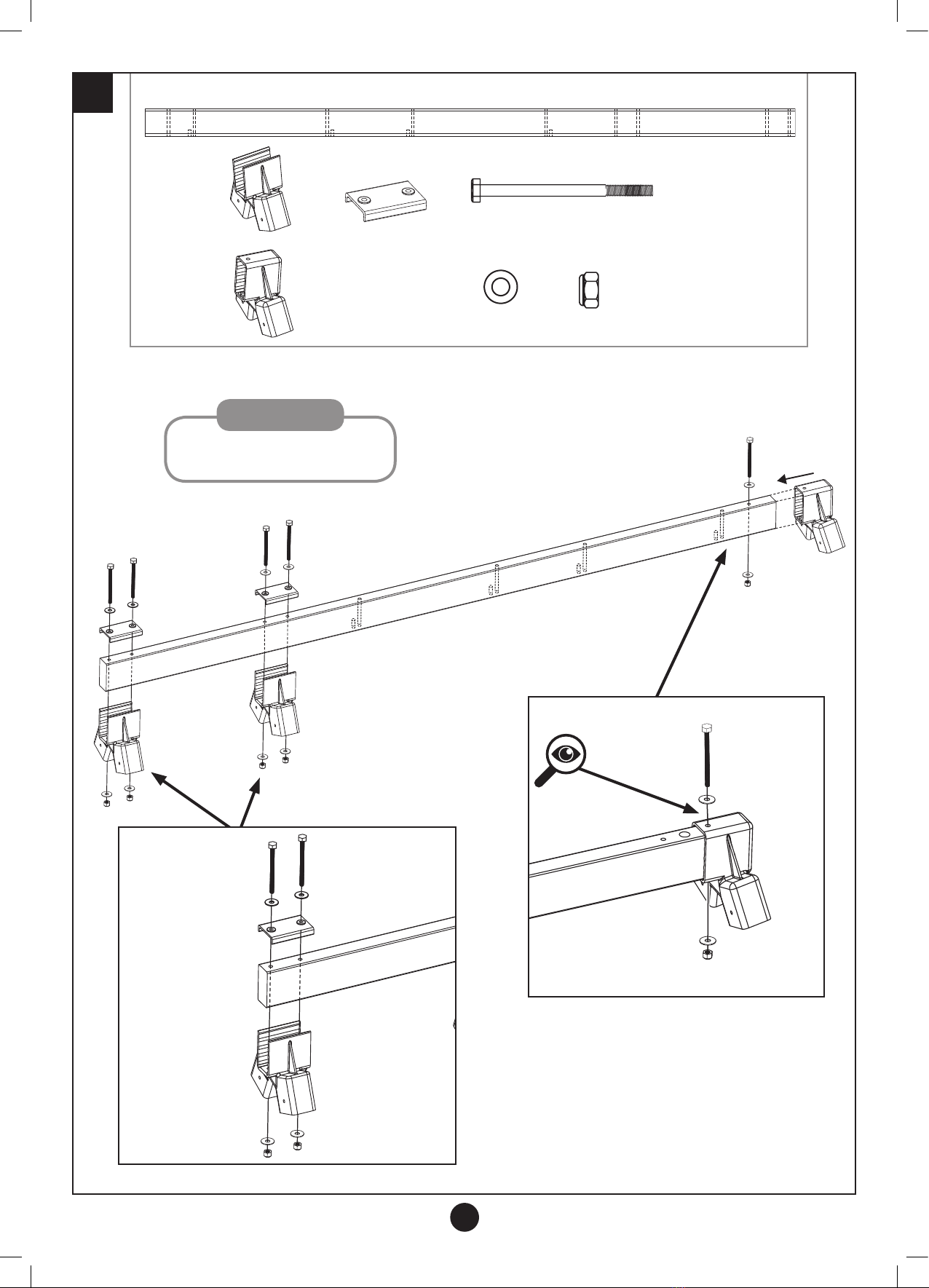

M8 x 120 5
FA5431
M6 x 75 8
FA7302
M6 x 65 6
FA5694
PM2010
Bracket cover
2
Components - Pack 3
Components - Pack 2
PM2012
10° Corner
bracket
1
M8
Nylon Insert
Dome Nut
FA8163
4
Combi Drill
Tools - You will need:
Not
Supplied
Also required:
4 x 16mm x2
FA4527
PM1968 x1
PM1007
Flag x1
Shovel
Scissors
Forest Double Multiplay with Forest Green Wavy Slide
5
4
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 4 05/04/2018 09:53
M8 x 120 5
FA5431
M8 Nyloc
Lock nut
FA5174
5
M8
Washer
FA9766
10
MW1070
PM2010
Bracket cover
2
ASSEMBLY TIP
Ensure plastic brackets are at room
temperature to ease assembly.
PM2011
90° Corner
bracket 2
PM2012
10° Corner
bracket 1
M8 x 120
M8 Washer
M8 Washer
M8 Nut
MW1070 Top bar 2245mm 1
1
M8 x 120
M8 Washer
M8
Washer M8 Nut
Forest Double Multiplay with Forest Green Wavy Slide
5
4
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 5 05/04/2018 09:53
M8 Hook bolt short 4
FA9791
TP928 Swing Seat 2
M8
Washer
FA9766
4
M8 Nylon Insert Dome Nut
M8 Washer
M8 Nylon Insert Dome Nut
M8 Washer
Use Mallet to
firmly locate hook
bolt in pilot hole
Hook Bolt
M8 Nylon Insert
Dome Nut
FA8163
4
ASSEMBLY TIP
Do not screw hook bolt in
2
ASSEMBLY TIP
Attach swing seat (‘S’ hook)
to M8 Hook bolt before
inserting Hook bolt to top bar
(see left)
‘S’ hook
Hook Bolt
Forest Double Multiplay with Forest Green Wavy Slide
7
6
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 6 05/04/2018 09:53
MW1003 3-Hole swing leg 2055mm 2
MW1010 6-Hole swing leg 2030mm 2
MW1006 3-Hole swing leg 2030mm 2
MW1003
M6
Washer
FA9764
6
M6 x 65 6
FA5694
MW1010 MW1010
MW1006
MW1006
M6 Domed
Nyloc nut
FA5192
6
ASSEMBLY TIP
3
M6 x 65 M6
Washer
M6
Domed
Nut
M6 x 65 M6
Washer
M6
Domed Nut
Forest Double Multiplay with Forest Green Wavy Slide
7
6
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 7 05/04/2018 09:53
MW1136 Horizontal side brace 685mm 1M6 x 25mm
Large washer
FA5095
6
M6 Domed
Nyloc nut
FA5192
6
M6 x 75 2
FA7302
M6 x 100 4
FA5186
MW1007 Platform Support 986mm 2
4
M6 x 75
M6 x 25
Washer
M6
Domed Nut
M6 x 100
M6
Domed Nut
&
M6 x 25
Washer
Forest Double Multiplay with Forest Green Wavy Slide
9
8
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 8 05/04/2018 09:54
MW1009 Platform end 475mm 2
MW1008 Platform deck 525mm 6
7 x 50mm Screw 16
FA8660
1
2
3
MW1009
MW1009
MW1009
MW1008 x6
50mm
50mm
5
3mm
3mm
Forest Double Multiplay with Forest Green Wavy Slide
9
8
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 9 05/04/2018 09:54
MW1059 Ladder Rungs 570mm 3M6 x 25mm
Large washer
FA5095
6
M6 x 110 6
FA5106
M6 Domed
Nyloc nut
FA5192
6
M6 x 110
M6 x 25 Washer
M6 Domed Nut
350mm
min.
6
7
Forest Double Multiplay with Forest Green Wavy Slide
11
10
TP291 Double Multiplay IN4040-J 05.04.18 A4.indd 10 05/04/2018 09:54
