Toyota PZQ85-33270 Guía de instalación

COROLLA HATCH BACK

PZQ85

33270

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Fitting Time: 30 minutes

Dash Camera

Fitting Instruction

COROLLA HATCH BACK

PZQ85

33270

Issue

/18

Pag

JUNE 2018 PRODUCTION

ONWARDS Part No: PZQ85-33270

General Notes

- Read through the fitting instructions before installation of accessory.

- Always install the accessory following the fitting instructions. Failure to do so JUNE cause damage to the vehicle

or the accessory.

- Ensure all recyclable discarded vehicle accessory components and packaging are recycled following local

recycling regulations.

- It is always recommended that this accessory is fitted by a qualified Toyota Technician.

- Safely store and protect any removed vehicle components.

- Ensure all bare metal surfaces are protected using Automotive Bare Metal Primer and touch-up paint.

- Remove all metal swarf and dust from all vehicle surfaces if surface is used for accessory installation.

Safety Notes

- Check that all work practices comply with safety standards.

- Please wear appropriate clothing and use safety equipment.

Fitting Time

30 minutes

Parts Supplied

A B C D E F

G H I J K L

M N O

Cable guide cord x 1

Dash camera wire

harness x 1

Cable ties x 18

Dash camera

module x 1

End cap x 1

Micro SD card x 1

Protection tape x 3

(NO TUSED)

Harness

tape x 2

Wire harness clip x 1

(NOT USED)

Blue splice connector,

red wire (0.3) x 1

Blue splice connector,

yellow wire (0.3) x 1

White

splice connector,

red wire (0.85)

x 1

(NOT USED)

Alcohol wipe x 1

White

splice connector,

yellow wire (0.85) x 1

(NOT USED)

Owner Manual

COROLLA HATCH BACK

PZQ85

33270

Issue

/18

Pag

JUNE 2018 PRODUCTION

ONWARDS Part No: PZQ85-33270

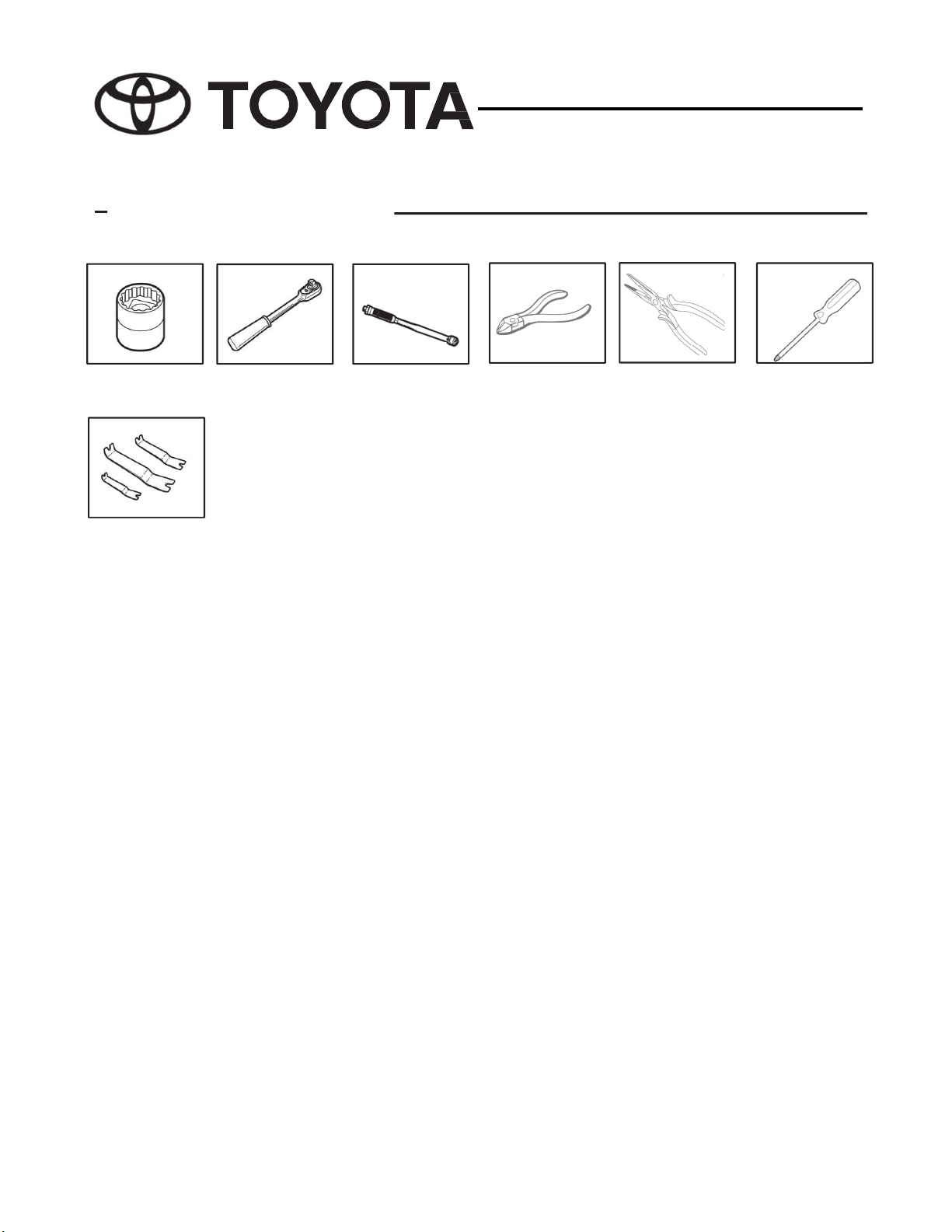

Tools and Material Required

8mm and 10mm

Rachet

10mm Torque Wrench

(pre-set to 8.5Nm)

Side cutter

Plier

Phillip head screw

Trim removal tool

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 1

For Petrol engine vehicle

• Disconnect the negative battery terminal

• For petrol engine vehicle go straight to

Step 3. Step 2 is for hybrid engine vehicle.

Step 2

For Hybrid engine vehicle

• Under the right-hand side rear seat,

remove the screw type clip from the

panel.

• Remove the panel to access the orange

isolator switch

• Removal method:

①

Pull down the orange isolator switch

lever

②

Pull up the lever

③

Then pull and take out the switch

from the panel.

• Disconnect the negative battery terminal

Always refer to the vehicle’s

Workshop Manual when

removing vehicle components.

Always refer to the vehicle’s

Workshop Manual when

removing vehicle components.

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 3

• Disconnect the negative battery terminal.

• Remove the weather strip from left hand

side A pillar panel.

• Loosen the left hand side A pillar panel

• Remove left hand side A pillar panel by

removing the teaser clip as shown.

 To restore the teaser clip, put back the

teaser clip into original position.

 Make sure the clip is attached properly.

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 4

• Remove the indash side cover left hand

side

Step 5

•

Remove glovebox

Step 6

•

Remove glove box under cover

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 7

• Remove front door scuff plate left hand

side

Step 8

•

Remove cowl side trim left hand side

Step 9

• Remove the lower console panel.

• Remove the AUX/USB adapter connector

and light connector (if available)

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 10

• Prepare 3 harness tape (40mm x 80mm).

• Cover the dash camera wire as shown.

Step 11

• Untighten the adjustment screw of the Dash

camera

• Adjust the camera lens position to the 2nd

mark from the left as per instruction

Step 12

• Install the dash camera end cap

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 13

 Prepare fitting template and adjust the

template to the roof headliner edge and

Toyota Safety Sense sensor as shown.

 Use sticky tape to hold the template.

 Peel out the adhesive tape on the dash

camera.

 Stick the dash camera, by adjusting it to the

template next to “arrow” mark as shown.

Step 14

 Route the dash camera wire inside the roof

headliner

 Prepare the cord guide and measure the

length from the larger end to the dash

camera

 Mark the desire length.

 Please see the side view and top view of

the cord guide installation for reference.

Prior to installing, clean inside of

the windscreen in the area to be

installed using alcohol wipe

cleaner

COROLLA HATCH BACK

PZQ85

33270F

Issue

/18

Pag

JUNE 2018 PRODUCTION ONWARDS

Part No: PZQ85-33270

Step 15

 After the measuring, cut the adjusted

length of the cord guide.

Step 16

• Insert the Dash camera wire into the cord

guide

• Install the cord guide to the roof

headliner as shown.

Step 17

 Route the dash camera wire to the left

hand side A pillar area.
