QUICK REFERENCE GUIDE

SIENNA

2017

SIENNA

2017

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for

the Owner’s Manual located in your vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and

supplementary manuals so you will have a better understanding

of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,

6.S.A., Inc. wish you many years of satismed driving in your new

Sienna.

A word about safe vehicle operations

This Quick Reference Guide is not a full description of Sienna operations.

Every Sienna owner should review the Owner’s Manual that accompanies this

vehicle.

Pay special attention to the boxed information highlighted in color throughout

the Owner’s Manual. Each box contains safe operating instructions to help you

avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing.

Toyota reserves the right to make changes at any time without notice.

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

INDEX

Engine maintenance 9

Fuel tank door release and cap 8

Hood release 8

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16-7

Light control-Instrument panel 9

Smart Key system1,2 7

1Visit your Toyota dealer for information on customizing this feature.

2Programmable by customer. Refer to the Owner’s Manual for instructions and more information.

3HomeLink®is a registered trademark of Gentex Corporation.

OVERVIEW

FEATURES & OPERATIONS

FEATURES & OPERATIONS (continued)

SAFETY & EMERGENCY FEATURES

Air conditioning/heating 24

Audio 22

Auto lock/unlock210

Automatic transmission 10

Blind Spot Monitor (BSM) 20

Bottle holders 28

Cruise control 20

Cup holders 30

Door-Power back 18

Door locks 10

Doors-Power sliding 17

Driver Easy Speak 20

Dynamic Radar

Cruise Control (DRCC) 21

Enhanced VSC OFF button 26

Garage door

opener (HomeLink®)2,3 27

Hill-start Assist Control (HAC) 27

Lights1& turn signals 11-12

Moon roof 19

Parking brake 10

Power outlets-12V DC 29

Power outlets-120V AC 29

Pre-Collision System (PCS) 28

Rear seat entertainment system 26

Rear view monitor system 25

Seat adjustments-Front 14

Seat adjustments-Rear 14

Seat heaters 25

Seats-Head restraints 13

Seats-Removing

2nd row center seat 15

Seats-Removing

2nd row outside seats 15

Seats-Stowing 3rd row seats 16

Steering wheel switches

& telephone controls 23

Sunshade-Side 19

Tilt & telescopic steering wheel 11

Windows 18

Windows-Quarter 18

Windshield wipers & washers 13

Child restraint anchors 31

Doors-Child safety locks 31

Floor mat installation 35

Seat belts 32

Seat belts-Shoulder belt anchor 31

Spare tire & tools 33

Star Safety SystemTM 34-35

Tire Pressure Monitoring

(warning) System (TPMS) 32

BLUETOOTH®DEVICE

PAIRING SECTION 36-45

OVERVIEW

Instrument panel

Steering wheel controls

Audio control switches1,2

Telephone switches2

Meter control switches1

Dynamic Radar Cruise

Control (DRCC)

vehicle-to-vehicle

distance button1

Cruise control switch

“DISP” switch1

Audio control

switches1,2

Talk switch2

Headlight, turn signal and

front fog light1controls

Gauges and meters Wiper and washer controls

Wiper and washer controls

Pre-Collision System (PCS) braking off switch1

Manual headlight leveling dial1

Power quarter window switch1

Intuitive parking assist switch1

Enhanced VSC OFF switch

Heated steering wheel switch

Blind Spot Monitor

(BSM) main switch1Power sliding door1/

Power back door main switch1

Tire pressure warning reset switch

Ignition switch1

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

Audio system1,2/

Navigation system1,2

Blu-Ray/DVD player1

Power outlets (12V)

Emergency flasher button

Air Conditioning controls

Seat heater switches1

Outside rearview mirrors1/

Rear window defogger button/

Windshield wiper de-icer1

1If equipped

2For details, refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio

Quick Reference Guide.”

OVERVIEW

Instrument cluster

For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s

Manual.

Tachometer

Speedometer

Multi-Information Display

Engine coolant temperature

Odometer and trip

meter display

Odometer and trip

meter display

Odometer/Trip meter

display change button

Odometer/Trip meter

display change button

Fuel gauge

Vehicles with a monochrome display

Vehicles with a color display

Malfunction/Check Engine indicator1

Master warning light1

Low fuel level warning light

Indicator symbols

Service indicators and reminders

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

For details, refer to “Indicators and warning lights,” Section 2-2, 2017Owner’s

Manual.

Driver seat belt reminder

(alarm will sound if speed is over 12 mph)

Open door warning7

SRS AIR BAG ON-OFF indicator

Airbag SRS warning1

1If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.

Have vehicle inspected by your Toyota dealer.

2If this light flashes, refer to “Cruise control,” Section 4-5, 2017 Owner’s Manual.

3 If this light flashes, refer to “Dynamic Radar Cruise Control,” Section 4-5, 2017 Owner’s Manual.

4The indicator flashes to indicate a malfunction.

5The indicator flashes to indicate that the system is operating.

6The indicator flashes faster than usual to indicate that the system is operating.

7 If equipped.

Headlight low/high beam indicator

Turn signal indicator

Automatic High Beam indicator4

Fog light indicator

Charging system warning1,7

Low engine oil pressure warning1,7

Low Tire Pressure Warning1

Brake system warning1

Anti-lock Brake System warning1

Third seat fold incomplete warning7

Electric power steering system

warning light1

Cruise control indicator2,4

Cruise control SET indicator

Security indicator

ECO Driving Indicator Light1

ICE warning indicator

Arrow direction indicates fuel

tank door position

Vehicle Stability Control OFF

indicator1,5,7

Blind Spot Monitor warning/Blind Spot

Monitor outside rearview mirror indicators7

Pre-Collision System indicator1,6

Slip indicator/Hill-start Assist

Control indicator1,5

Dynamic Radar Cruise Control

indicator3,4

Service indicators and reminders

2017_Sienna_QRG_D6_2.indd 5 7/13/16 5:08 PM

Keyless entry

OVERVIEW

NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for

safety.

Type A

Type B

Type C

ACCESSORY

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch

will change the operation mode in succession from:

* Driver door unlocking function can be programmed to unlock driver side doors

only, or all doors. Grasping any passenger door handle will unlock all doors.

Push

ONCE: Driver door

TWICE: All doors

Carry remote Type C

Smart key feature

Front door lock

Touch

Carry remote Type C

Smart key feature

Pull

Carry remote Type C

Smart key feature

Grasp

Front door unlock*

Push

Type B Type C

LOCKING OPERATION

UNLOCKING OPERATION

START FUNCTION

POWER (WITHOUT STARTING ENGINE)

POWER SLIDING DOOR OPERATION (IF EQUIPPED)

Type B

POWER BACK DOOR OPERATION (IF EQUIPPED)

PANIC BUTTON (IF EQUIPPED)

Push

Unlock

Push

Lock

Carry remote Type C

Smart key feature

BACK DOOR LOCK/UNLOCK

Push and hold

Right

side

Left

side

Push and hold

Right

side

Left

side

2017_Sienna_QRG.r1.indd 6 7/15/16 4:03 PM

OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES

Smart Key system (if equipped)

NOTE: If a door is not opened within 30 seconds of unlocking, all doors will relock for

safety.

Push and hold

Accessories such as the radio will operate.

Power ON; the engine is not running.

All systems OFF.

ACCESSORY

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress

brake pedal

Indicator light ON

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch

will change the operation mode in succession from:

* Driver door unlocking function can be programmed to unlock driver side doors

only, or all doors. Grasping any passenger door handle will unlock all doors.

Carry remote Type C

Smart key feature

Carry remote Type C

Smart key feature

Carry remote Type C

Smart key feature

Front door unlock*

Push and hold

START FUNCTION

POWER (WITHOUT STARTING ENGINE)

Push and hold

Type B Type C

POWER BACK DOOR OPERATION (IF EQUIPPED)

PANIC BUTTON (IF EQUIPPED)

Carry remote Type C

Smart key feature

All-door unlock

and lock

2017_Sienna_QRG_D6_2.indd 7 7/13/16 5:09 PM

OVERVIEW

Pull up

Store

Turn to close

NOTE: Tighten until one click is

heard. If the cap is not tightened

enough, Check Engine “ ”

indicator may illuminate.

Pull up latch and

raise hood

Pull

Insert rod to hold

hood open

Turn to open

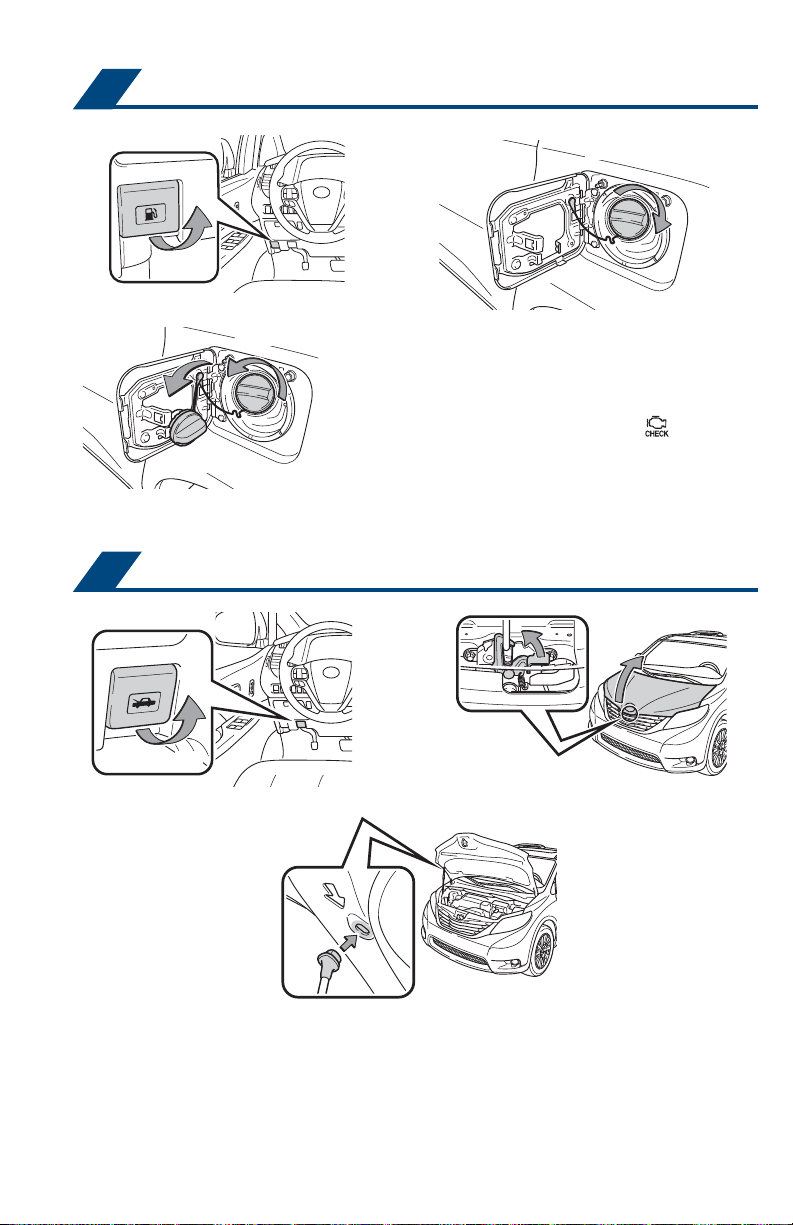

Fuel tank door release and cap

Hood release

Tabla de contenidos

Otros manuales de Automóvil de Toyota

Toyota

Toyota 2015 Prius Manual de usuario

Toyota

Toyota tundra 2016 Manual de usuario

Toyota

Toyota 2016 Highlander Manual de usuario

Toyota

Toyota 2008 Camry Manual de usuario

Toyota

Toyota 4runner 2016 Manual de usuario

Toyota

Toyota 2012 RAV4 EV infotainment system Manual

Toyota

Toyota Tundra 2003 Manual de usuario

Toyota

Toyota AVALON 2008 Manual de usuario

Toyota

Toyota Prius 2007 Manual de usuario

Toyota

Toyota Tacoma guide Manual de usuario

Toyota

Toyota 4Runner 2004 Manual de usuario

Toyota

Toyota 1998 Celica Manual de usuario

Toyota

Toyota highlander 2015 Manual de usuario

Toyota

Toyota 2015 Sequoia Manual de usuario

Toyota

Toyota GR Supra 2019 Manual de usuario

Toyota

Toyota Prius 2010 Manual de usuario

Toyota

Toyota HILUX Guía de configuración

Toyota

Toyota RAV4 Hybrid 2018 Manual de usuario

Toyota

Toyota AVALON 2008 Manual de usuario

Toyota

Toyota RAV4 EE Manual de usuario

Toyota

Toyota 2010 AURIS HYBRID Manual de usuario

Toyota

Toyota corolla 1996 Manual de usuario

Toyota

Toyota SIENNA MN 00452-PRG06-SIE Manual de usuario

Toyota

Toyota Sequoia 2020 Manual de usuario

Manuales populares de Automóvil de otras marcas

CITROËN

CITROËN DS4 DSign Manual de usuario

Lexus

Lexus 2015 CT 200h Manual de usuario

Cadillac

Cadillac CTS 2008 Manual de usuario

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manual de usuario

Porsche

Porsche Boxster S Manual de usuario

GMC

GMC 2010 Savana 1500 Cargo Manual de usuario

KIAM

KIAM SPORTAGE 2014 Manual de lista de piezas

GMC

GMC 2013 Terrain Instrucciones de montaje

GMC

GMC T-Series 1999 Manual de usuario

Mercury

Mercury 1998 Mystique Manual de usuario

Mercury

Mercury 2007 Mariner Manual de usuario

Mazda

Mazda 2007 Mazdaspeed 3 Guía

Mazda

Mazda 2014 CX-5 Manual de usuario

GMC

GMC Chevrolet Express 2022 Manual de usuario

GMC

GMC 1997 Jimmy Manual de usuario

Chevrolet

Chevrolet 2012 Malibu Manual de usuario

Cadillac

Cadillac 2010 Escalade Manual de usuario

Skoda

Skoda FABIA RS - ANNEXE 118 Manual de usuario
