Toyota RAV4 2009 Manual de usuario
2009 Quick Reference Guide
412xxxM1.qxd 7/31/08 1:40 PM Page 1
2009
RAV4
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4.
This Quick Reference Guide is not a full description of RAV4
operations. Every RAV4 owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
412xxxM1.qxd 7/31/08 1:40 PM Page 2
1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance
9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Smart Key system* 7
Active torque control 4WD (4WD models) 11
Air Conditioning/Heating 18-19
Audio 20-21
Automatic Transmission 10
Clock 19
Cruise control 23
Door locks
16
Downhill Assist Control system (DAC) 22
Hill-start Assist Control (HAC) 23
Light control-Instrument panel
19
Lights & turn signals 14
Moonroof 16
Parking brake 10
Power outlets-12V DC 22
Power outlets-120V AC 22
Seat adjustments-Front 12
Seat adjustments-Second row seats 12
Seat heaters
18
Seats-Head restraints 11
Seats-Folding down second row seats 13
Seats-Stowing third row seats 13
Te l e p h o n e controls (Bluetooth®)17
Tilt and telescopic steering wheel 17
VSC OFF button 16
Windows 15
Windshield wipers & washers
15
Doors-Child safety locks 24
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
* Visit your Toyota dealer for information on customizing this feature.
412xxxM2.qxd 7/31/08 1:35 PM Page 1

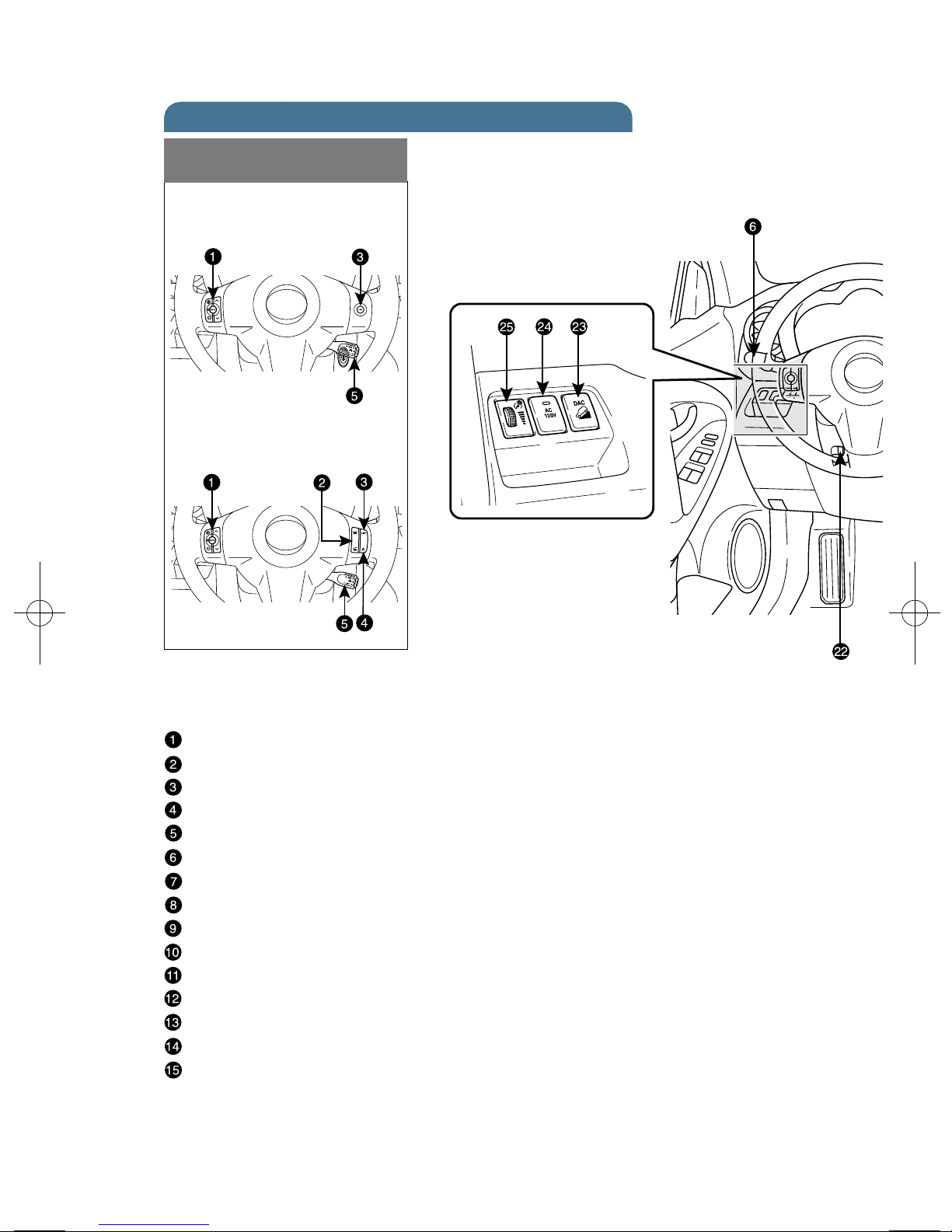

2
OVERVIEW
Instrument panel
Steering wheel
controls
Steering wheel audio controls1
Telephone controls1
Multi-information display switch
Speech command button1
Cruise control
Headlight, turn signal and front fog light1 control
Wiper and washer controls
Four-wheel drive lock switch (4WD models)
Audio system/Navigation system1,2
Emergency flasher switch
Air Conditioning controls
“ENGINE START STOP” button (Smart Key)1
Engine immobilizer indicator
Front passenger seat belt reminder light
Clock and Air Conditioning display
Without telephone
controls
With telephone controls
412xxxM2.qxd 7/31/08 1:35 PM Page 2

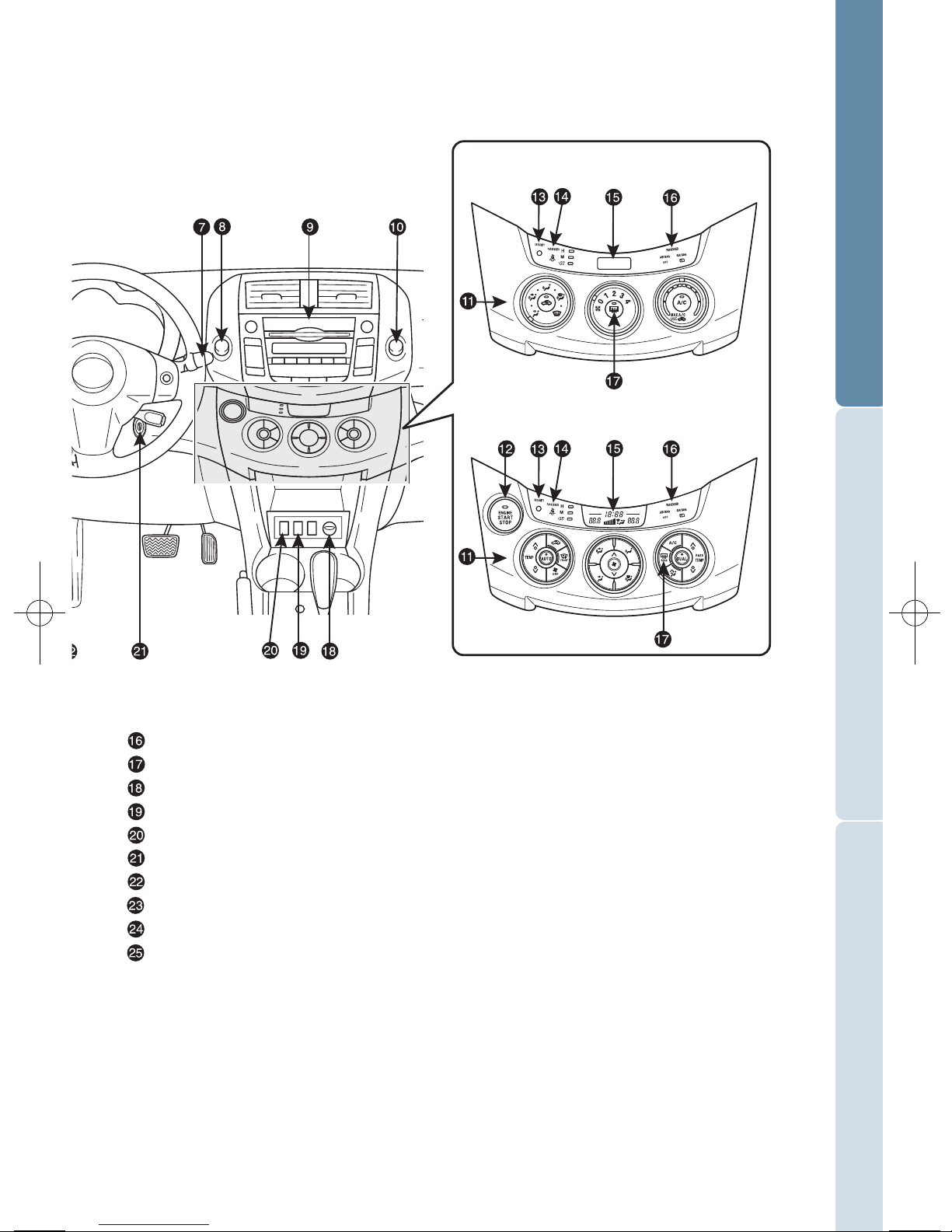

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
With manual
Air Conditioning system
With automatic
Air Conditioning system
Front passenger occupant classification indicator
Rear window and outside rearview mirror defogger switch1
12V DC Power outlet
Seat heater switch1
VSC OFF switch
Engine switch (standard key)
Tilt and telescopic steering release
Downhill Assist Control switch1
120V AC Power outlet ON/OFF switch1
Instrument panel light control
1 If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
412xxxM2.qxd 7/31/08 1:35 PM Page 3
4
OVERVIEW
Open door warning
Tachometer
Service indicator and reminder
Speedometer
Engine coolant temperature
Fuel gauge
Odometer, two trip meters and trip information display
Trip meter reset knob
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low fuel level warning
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2For details, refer to “Four-wheel drive lock switch,” Section 2-4, 2009 Owner’s Manual.
412xxxM2.qxd 7/31/08 1:36 PM Page 4

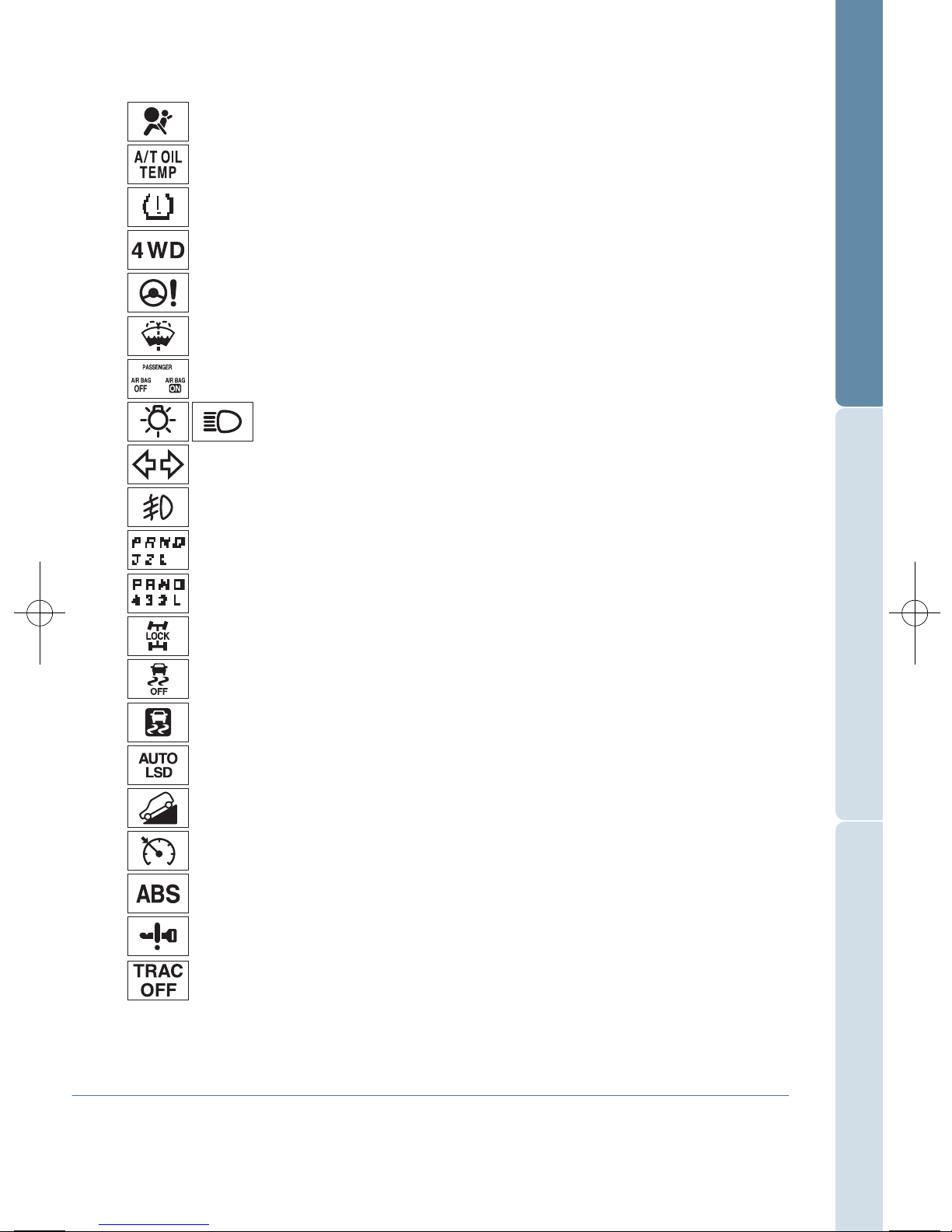

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Automatic Transmission indicator (4-speed)
Turn signal indicator
Front fog light indicator
Low windshield washer fluid level warning
Airbag SRS warning1
Headlight low/high beam indicator
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
4WD warning1
Electric power steering system warning1
Four-wheel drive lock indicator1,2
Slip indicator/Hill-start Assist Control indicator/Downhill Assist
Control indicator1
Downhill Assist Control indicator1
AUTO Limited Slip Differential indicator1
Cruise control indicator3
Anti-lock Brake System warning1
Automatic Transmission indicator (5-speed)
3If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.
Vehicle Stability Control OFF indicator1
Smart Key system warning
Traction Control OFF indicator1
F
ront passenger occupant classification indicator
1
412xxxM2.qxd 7/31/08 1:36 PM Page 5
6
OVERVIEW

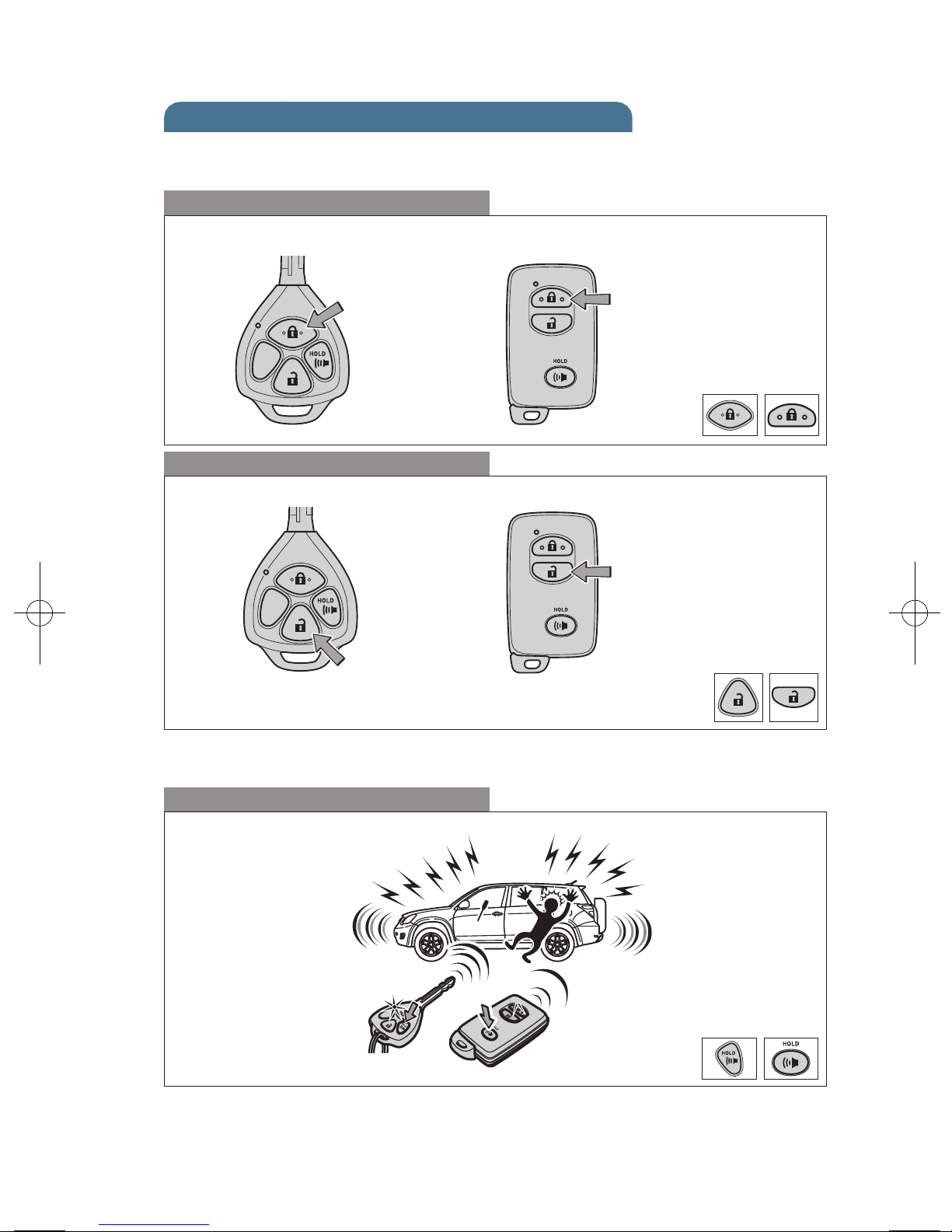

Keyless entry
Locking operation
Unlocking operation
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for
more details.
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
412xxxM2.qxd 7/31/08 1:36 PM Page 6
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key system* (if equipped)
Start function
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operation Unlocking operation
Carry remote to lock/unlock Carry remote to lock/unlock
Front door lock Front door unlock*
Push
Grasp
Push
Grasp
Carry remote
to lock/unlock
412xxxM2.qxd 7/31/08 1:36 PM Page 7
8
OVERVIEW

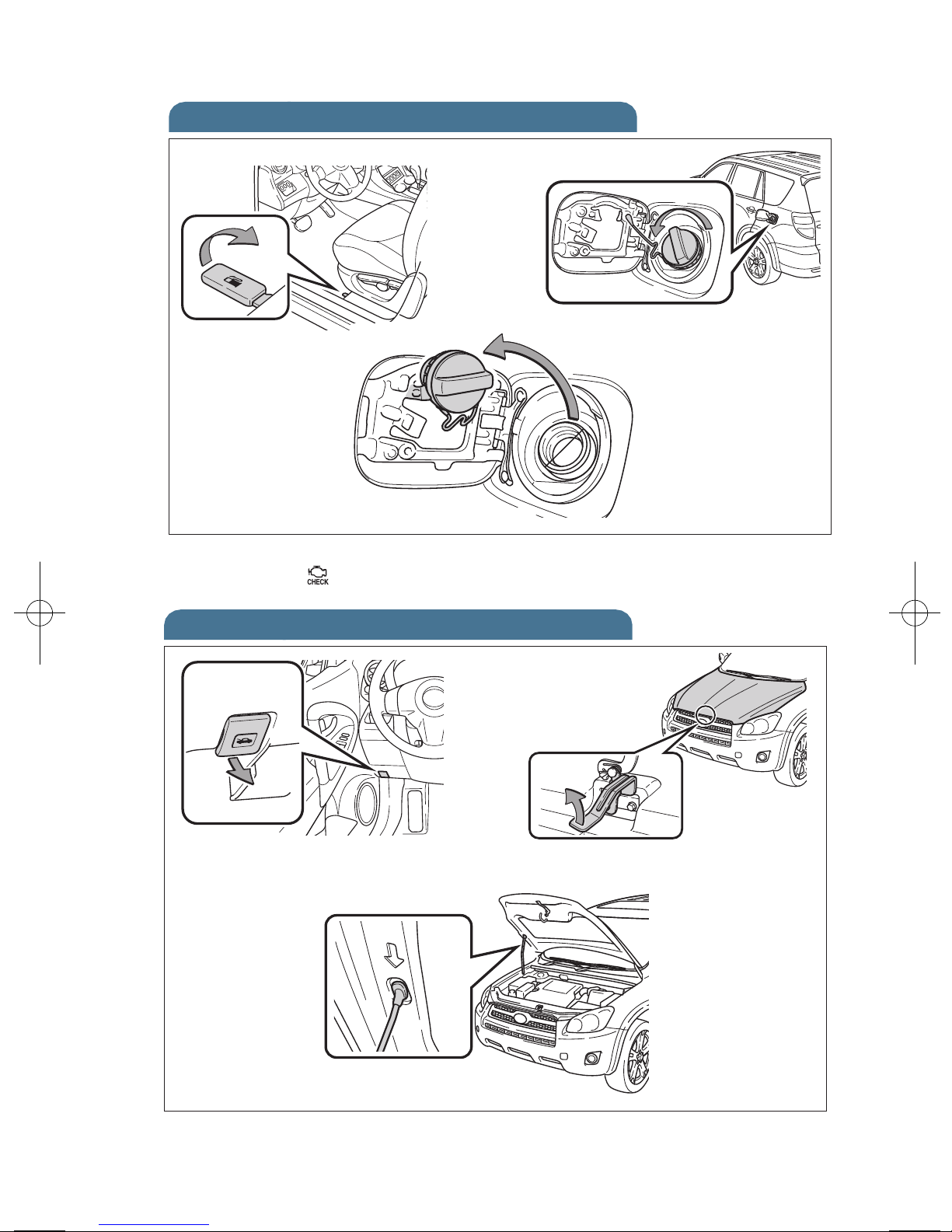

NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Fuel tank door release and cap
Pull up
Tu r n
Store
Driver seat
Hood release
Pull
Pull up latch
and raise hood
Engage support rod
412xxxM2.qxd 7/31/08 1:36 PM Page 8
