To remove the spare tire, turn the wheel nuts

counterclockwise with the wheel nut wrench and

remove.

Spare tire & tools

Tool location

Removing the spare tire

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

To remove the spare tire cover,* open the back

door. Unhook the latch on the bottom of the

cover. After closing the back door, remove the

cover.

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc. wish you many years

of satisfied driving in your new RAV4.

This Pocket Reference Guide is not a full

description of RAV4 operations. Every

RAV4 owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed

“ ” information highlighted in

this reference guide and throughout the

Owner’s Manual.Each box contains safe

operating instructions to help you avoid

injury or equipment malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

This utility vehicle has a significantly higher

rollover rate than other types of vehicles. Refer to

the Owner’s Manual for important rollover

information.

2007

RAV4

Luggage compartment

Inside left side box

Refer to the Owner’s Manual for tire changing and

jack positioning procedures.

NOTE:To prevent theft, the latch can only be

released when the back door is opened.

Luggage compartment

Inside right side box

Jack

Tool bag

*If equipped

07 Rav4 PRG Cover.qxd 9/25/06 11:49 AM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 8

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16-7

FEATURES/OPERATIONS

Active torque control 4WD 10

Air Conditioning/Heating 16-17

Audio 18-19

Auto LSD (Limited Slip Differential) 21

Automatic transmission 9

Bottle holders 17

Clock 17

Cruise control 23

Cup holders 23

Door locks 21

Light control-Instrument panel 22

Lights & turn signals 14

Moonroof 20

Parking brake 15

Power outlets 22

Rear seat entertainment system 20

Seat adjustments-Front 10

Seat adjustments-Second row seats 11

Seat heaters 16

Seats-Head restraints 11

Seats-Folding down second row seats 12

Seats-Stowing third row seats 13

Telephone controls (Bluetooth®) 21

Tilt and telescopic steering wheel 15

Windows 15

Windshield wiper & washer 13

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks 24

Seat belts 24

Seat belts-Shoulder belt anchor 24

Spare tire & tools 25

Tire Pressure Warning System 24

1Visit your Toyota dealer for information on

customizing this feature.

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Clock and Air Conditioning display

12V DC Power outlet

Seat heater switch1

Downhill Assist Control (DAC) switch

Front passenger seat belt reminder light

Engine immobilizer indicator1

Ignition switch

Tilt and telescopic steering release

115V AC Power outlet ON/OFF switch1

1If equipped

OVERVIEW

Instrument panel

Steering wheel audio control

Telephone controls1

Speech command button1

Cruise control

Instrument panel light control

Headlight, turn signal and front fog light1control

Wiper and washer controls

Four-wheel drive lock switch (4WD models) or

“AUTO LSD” switch (2WD models)

Audio system

Emergency flasher switch

Front passenger occupant classification indicator

Air Conditioning controls

Rear window and outside rear view mirror defogger

switch1

With manual Air

Conditioning system

Steering wheel

controls

With automatic Air

Conditioning system

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

3If this light flashes, refer to “Cruise control,” Section 1-7, 2007

Owner’s Manual.

Automatic transmission indicator (4-speed)1

Front passenger occupant classification indicator

Turn signal indicator

Front fog light indicator

Low windshield washer fluid level warning1

Open door warning1

Airbag SRS warning1

•Vehicle Stability Control warning1

•“AUTOLSD” warning1

•Traction Control warning1

•Downhill Assist Control warning1

•Hill-start Assist Control warning1

Headlight high beam indicator

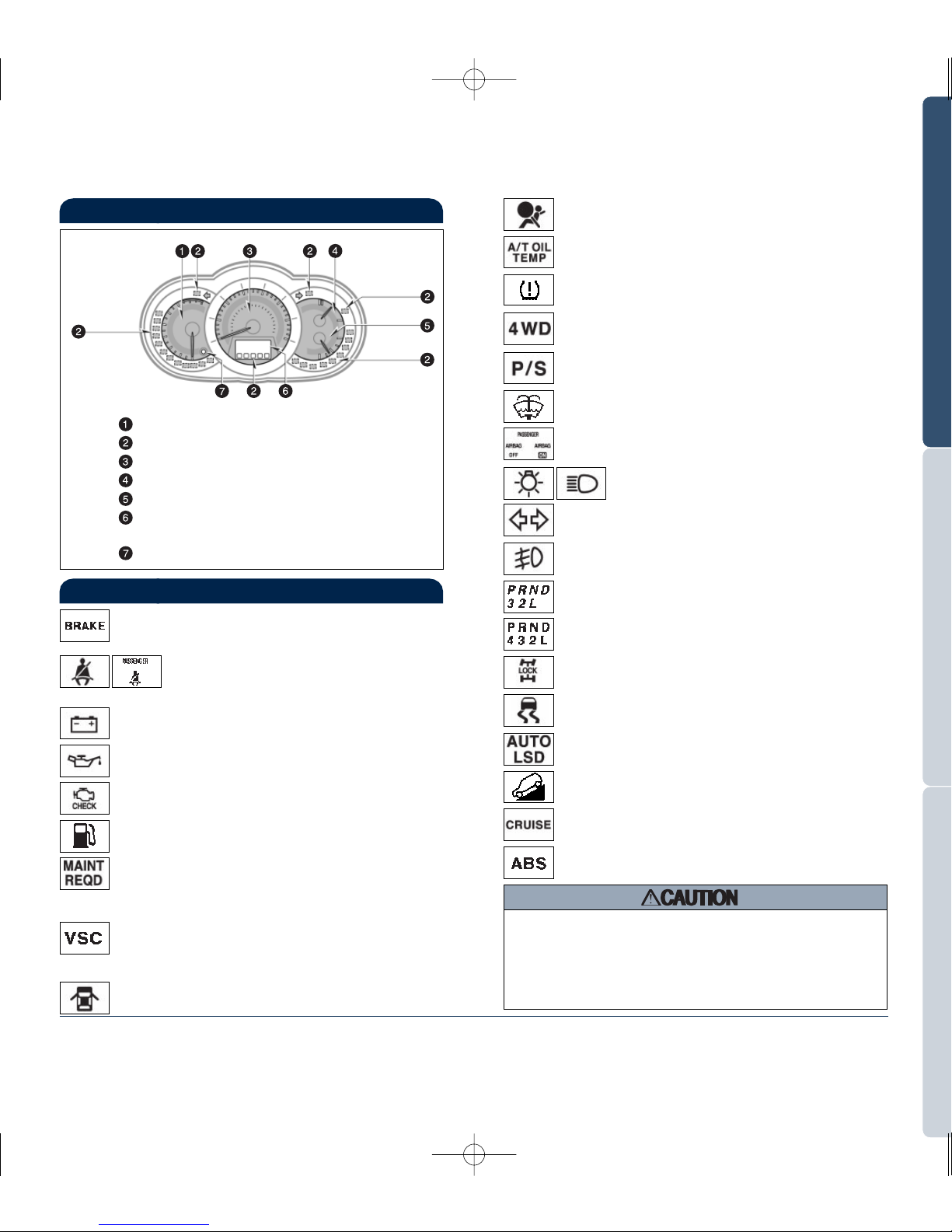

OVERVIEW

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2007 Owner’s Manual.

2For details, refer to “Active torque control 4WD system,”

Section 1-7, 2007 Owner’s Manual.

Tachometer

Service indicator and reminder

Speedometer

Engine coolant temperature

Fuel gauge

Odometer, two trip meters and outside

temperature display

Trip meter reset knob

Instrument cluster

Charging system warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

Indicator symbols

Driver/Front passenger seat belt

reminder1(alarm will sound if speed

is over 12mph)

Low fuel level warning1

Automatic Transmission fluid temperature

warning1

Low Tire Pressure Warning1

“4WD” warning2

Electric power steering system warning1

Four-wheel drive lock indicator2

Slip indicator

Downhill Assist Control indicator

“AUTO LSD” indicator

Cruise control indicator3

Anti-lock Brake System warning1

Automatic transmission indicator (5-speed)1

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

Hood release

Pull

Pull up latch

and raise hood

NOTE: Tighten until one click is heard. If the cap is

not tightened enough, Check Engine “ ” indicator

may illuminate.

Fuel tank door release and cap

Pull up

Turn

Store

NOTE: After unlocking, if a door is not opened within

30 seconds, all doors will relock for safety.

Alarm operation

Keyless entry

Locking operation Unlocking operation

Push

Push and hold

Push ONCE: Driver door

TWICE: All doors

Driver seat

Beep sound can be switched “ON” or “OFF.” Refer to

the Owner’s Manual for more details.

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 6

FEATURES/OPERATIONS

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Automatic transmission

1The ignition switch must be ON, and the brake

pedal depressed to shift from “Park.”

Downshifting increases power going uphill, or

provides engine braking downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

OVERVIEW

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

4-speed models

5-speed models

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fourth gear

Engine coolant reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield and back window washer fluid tank

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’sManual

Supplement.”

6cylinder (2GR-FE) engine

Engine maintenance

4cylinder (2AZ-FE) engine

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 8

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Position

Height crank (driver side only)

Seatback angle

Driver seat: position and cushion angle/height

Passenger seat: position only

Seatback angle

Lumbar support

Seat adjustments-Front

Manual seat Power seat

Seats-Head restraints

Front seats Second row seats

Third row seats

Lock release button

Auto lock functionsActive torque control 4WD (4WD models)

Four-wheel drive lock switch

Push the switch to ensure that the engine torque is

applied to the 4 wheels.

NOTE: It should ONLY be used when wheel spinning

occurs on loose or unpaved surfaces.

Refer to the Owner’s Manual for more details.

Seat adjustments-Second row seats

Position

Seatback angle

Seatback lock release

Vehicles with

third row seats

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 10

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

(2) Lower

(3) Pull down

Seats-Folding down second row seats

Right side

remote seat release

Left side

remote seat release

Vehicles with third row seats

Vehicles without third row seats

Windshield wiper & washer

Rear

Front

Pull to wash and wipe

Adjust interval

Interval wipe

Slow

Fast

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Seats-Stowing third row seats (if equipped)

(2) Lower

(1) Push

(5) Pull up

(7) Push

down

(8) Push to lock in

(4) Fold down

(3) Pull

(9) Push to lock in

(1) Push

(6) Lift up

Single wipe

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 12

FEATURES/OPERATIONS

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tilt and telescopic steering wheel

Hold wheel, push lever down, set angle and length,

then return lever.

NOTE: Do not attempt to adjust while the vehicle

is in motion.

Lock

release

lever

Length

Angle

Lights & turn signals

Turn signals

Headlights

High beam flasher

Low beams

Front fog lights (if equipped)

Headlights

-Daytime Running Light system (if equipped)

Automatically turns on the headlights at a reduced

intensity.

-Automatic light cut off system Will automatically

turn lights off after a delay of 30 seconds,or the

lock switch on remote may be pushed.

Front fog lights come on only when the headlights

are on low beam.

Parking lights

Right turn

Turn

Lane change

Left turn

Windows

Driver side

Automatic operation (Driver side only) Push the

switch completely down or pull it completely up and

release to fully open or close. To stop window

midway,lightly push the switch in the opposite

direction.

Window lock switch Deactivates all passenger

windows. Driver’s window remains operable.

Down

Windows

lock button

Down

NOTE: If the battery is disconnected, the window

needs to be reinitialized. Refer to the Owner’s

Manual for more details.

Parking brake

Pull

(2) Push

(1) Pull slightly

(3) Lower

Set Release

High beams

07 Rav4 PRG Inside.qxd 9/25/06 12:11 PM Page 14

Otros manuales para RAV4 2007

Tabla de contenidos

Otros manuales de Automóvil de Toyota

Toyota

Toyota Sequoia 2020 Manual de usuario

Toyota

Toyota Prius 2009 Manual de usuario

Toyota

Toyota FJ Cruiser 2014 Manual de usuario

Toyota

Toyota 2004 HIGHLANDER Manual de usuario

Toyota

Toyota Highlander Hybrid 2017 Manual de usuario

Toyota

Toyota RAV4 2001 Manual de usuario

Toyota

Toyota Corolla iM 207 Manual de usuario

Toyota

Toyota Tundra 2003 Guía de inicio rápido

Toyota

Toyota COROLLA 2011 Manual de usuario

Toyota

Toyota 2014 Prius V Manual de usuario

Toyota

Toyota CAMRY 2007 Manual de usuario

Toyota

Toyota COROLLA 2010 - Manual de usuario

Toyota

Toyota PASEO 1999 Manual de usuario

Toyota

Toyota 2013 Land Cruiser Manual de usuario

Toyota

Toyota CAMRY 1999 Manual de programación

Toyota

Toyota 2014 Land Cruiser Manual de usuario

Toyota

Toyota AVENSIS - S Manual de usuario

Toyota

Toyota Tacoma U 2001 Manual de usuario

Toyota

Toyota HIGHLANDER 2014 Manual de usuario

Toyota

Toyota COROLLA CROSS 2022 Manual de usuario

Toyota

Toyota Sienna 2006 Manual de usuario

Toyota

Toyota AVALON Manual de usuario

Toyota

Toyota Tundra guide Manual de usuario

Toyota

Toyota Prius 2007 Manual de usuario

Manuales populares de Automóvil de otras marcas

CITROËN

CITROËN DS4 DSign Manual de usuario

Lexus

Lexus 2015 CT 200h Manual de usuario

Cadillac

Cadillac CTS 2008 Manual de usuario

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manual de usuario

Porsche

Porsche Boxster S Manual de usuario

GMC

GMC 2010 Savana 1500 Cargo Manual de usuario

KIAM

KIAM SPORTAGE 2014 Manual de lista de piezas

GMC

GMC 2013 Terrain Instrucciones de montaje

GMC

GMC T-Series 1999 Manual de usuario

Mercury

Mercury 1998 Mystique Manual de usuario

Mercury

Mercury 2007 Mariner Manual de usuario

Mazda

Mazda 2007 Mazdaspeed 3 Guía

Mazda

Mazda 2014 CX-5 Manual de usuario

GMC

GMC Chevrolet Express 2022 Manual de usuario

GMC

GMC 1997 Jimmy Manual de usuario

Chevrolet

Chevrolet 2012 Malibu Manual de usuario

Cadillac

Cadillac 2010 Escalade Manual de usuario

Skoda

Skoda FABIA RS - ANNEXE 118 Manual de usuario
