Toyota Avensis Verso Manual de usuario

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Avensis Verso

Brief guide

Index

Introducing Avensis Verso....................................... 2

Lock system............................................................ 3

Seats and seat belts ................................................ 4

Bonnet and fuel tank opening................................ 5

Dashboard.............................................................. 6

Lights and wipers ................................................... 9

Heating and A/C control ........................................ 10

Power windows...................................................... 11

Gear change........................................................... 11

Tyre change ......................................................... 12

Service.................................................................. 12

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Introducing

Avensis Verso

Congratulations on selecting a new

Avensis Verso!

Now you can begin enjoying this outstanding vehicle

immediately with this brief guide to basic vehicle

operations.

This brief guide contains a summary description of

basic operations so that you can locate and use the

vehicle’s main equipment and features, quickly and

easily.

This brief guide does not replace or substitute the

owner’s manual which you will find in the vehicle’s

glove compartment. It is important that you review

the full owner’s manual as well as any further

supplementary manuals. This will allow you to

familiarise yourself with the operating and safety

instructions and to handle the vehicle within its

limitations.

Your authorised Toyota centre and the entire staff of

Toyota wish you many years of satisfied driving in your

new Avensis Verso.

PS: All information contained in this brief guide is current at the time of printing.

Toyota reserves the right to make changes at any time without notice.

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Fit child seat

in the back

Stow loose objects

safely in the boot

Adjust seat and

head restraint

Fasten front and

rear seatbelts

at all times

10 seconds... that can save your life

Think before you drive !

European Road Safety Campaign

with the support of the European Commission

Lock system

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Your key number is shown on

the plate. If you should lose

your keys or if you need

additional keys, duplicates can

be made using the key number.

The engine immobiliser system

is a theft prevention system.

The engine will start only when

the electronic code in the chip

inside the key corresponds to

the registered ID code of the

vehicle.

Locking operation. Your

vehicle has a wireless remote

control system that can lock or

unlock all the side doors and

back door from a distance

within approximately 1m (3ft)

of the vehicle.

Double locking. All new

Avensis Verso models have high

security double locks. To double

lock the doors, push the lock

button on the key twice.

Locking wheel nuts. All new

Avensis Verso models are

specified with locking wheel

nuts to protect all your wheels

(including spare) from theft.

TVSS Alarm. The Avensis Verso

is fitted with a perimeter alarm

and battery-backed siren for the

long term benefit of your car.

International Security Register.

Your new Avensis Verso has a

unique number etched into all

window glass. The ISR operates a

24 hour service which can provide

peace of mind for your purchase.

Key number plate

Engine immobiliser system

Wireless remote control

Locking operation

Unlocking operation

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

(A) Baby seat:

equal to Group 0 and

0+ of ECE No.44

(B) Child seat:

equal to Group 0+,

I and II of ECE No.44

equal to Group III of

ECE No.44

Adjusting front seats

1. Seat position adjusting lever

Hold the centre of the lever and pull it

up. Then slide the seat to the desired

position with slight body pressure and

release the lever.

2. Seat cushion height adjusting knob

(drivers seat only)

Turn the knob either way.

3. Seatback angle adjusting lever

Lean forward and pull the lever up.

Then lean back to the desired angle and

release the lever.

Child restraint system

The Avensis Verso features an ISOFIX child restraint system on the centre seats

of the middle row.

Child restraint systems are classified into the following 5 groups according

to the regulation ECE No.44:

Group 0: Up to 10 kg (0-9 months) Group 0+: Up to 13 kg (0-2 years)

Group I: 9-18 kg (9 months-4 years) Group II: 15-25 kg (4 years-7 years)

Group III:22-36 kg (6 years-12 years)

Second row seat Third row seat

Seats and seat belts

Adjusting rear seats

1. Seat position adjusting lever (2nd

row only)

Pull the lever up. Then slide the seat

to the desired position with slight

body pressure and release the lever.

2. Seatback angle adusting lever Lean

forward and pull the lever up. Then

lean back to the desired angle and

release the lever.

Seat belts

Adjust the seat as needed and sit up

straight and well back in the seat. To

fasten your belt, pull it out of the

retractor and insert the tab into the

buckle.

You will hear a click when the tab locks

into the buckle.

The seat belt length automatically adjusts

to your size and the seat position.

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Bonnet and

fuel tank opening

Bonnet

To open the bonnet:

1. Pull the bonnet lock release lever.

The bonnet will spring up slightly.

2. In front of the vehicle, pull up the

auxiliary catch lever and lift the

bonnet.

3. Hold the bonnet open by inserting

the support rod into the slot.

Fuel tank cap

1. To open the fuel filler door, pull

the lever up. When refuelling, turn

off the engine.

2. To remove the fuel tank cap, turn

the cap slowly counterclockwise,

then pause slightly before

removing it. After removing the

cap, hang it on the cap hanger.

Fuel type and tank capacity

Petrol engine:

Fuel type:

unleaded petrol with a RON of 95

or higher.

Tank capacity: 60 litres.

Diesel engine:

Fuel type:

Diesel fuel with a cetane number

of 48 or higher.

Tank capacity: 60 litres.

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Dashboard

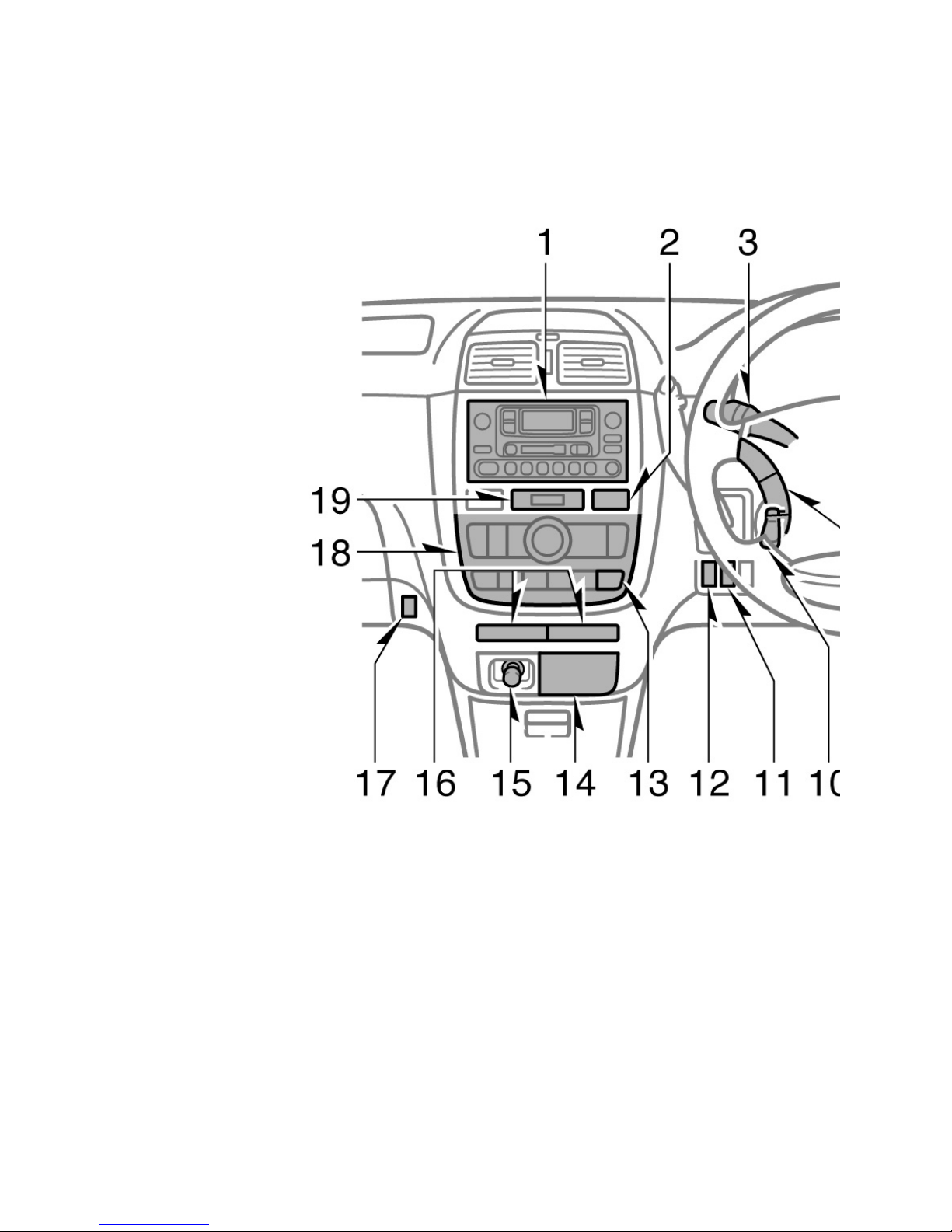

Instrument panel overview

1. Car audio

2. Emergency flasher switch

3. Headlight, turn signal and

fog light switches

4. Wiper and washer

switches

5. Power rear view mirror

control switches

6. Headlight beam level

control switch

7. "TRC OFF" switch*

8. Ignition switch

9. Audio remote controls

10. Tilt steering wheel lock

release lever

11. Heater idle up switch*

12. Rear heater switch*

13. Rear window and outside

rear view mirror defogger

switch

14. Ashtray

15. Cigarette lighter

16. Cup holders

17. Grocery bag hook.

18. Air conditioning controls

19. Clock

*on some models

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

To change the steering wheel

angle, hold the steering wheel,

push down the lock release

lever, tilt the steering wheel to

the desired angle and return

the lever to its original

position.

Tilt steering wheel

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Instrument cluster overview

Indicator symbols on the instrument panel

1. Tachometer

2. Service reminder indicators

and indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Trip meter reset knob/

instrument panel light

control knob

7. Odometer and two trip

meters

Brake system

warning light

Discharge

warning light

Low engine oil

pressure

warning light

Low engine oil

level warning

light (Diesel

models only)

Malfunction

indicator lamp

SRS warning

light

Low engine

coolant

temperature

indicator light

High engine

coolant

temperature

warning light

Anti-lock brake

system warning

light

Open door

warning light

Engine

immobiliser/theft

deterant system

indicator light

Headlight high

beam indicator

light

Turn signal

indicator lights

Rear fog light

indicator light

Front fog light

indicator light*

Tail light

indicator light

Overdrive-off

indicator light*

Fuel filter

warning light

(Diesel models

only)

Engine

preheating

indicator light

(Diesel models

only)

Vehicle stability

control system/

traction control

system warning

light*

Slip indicator

light*

Traction control

system off

indicator light*

*on some models

Lights and wipers

AVV11-0502ENUK-03-00 AVV11-0502ENUK-03-00

Windscreen wipers and

washer

Rear window wiper and

washer

To turn on the windscreen wipers,

move the lever to the desired setting.

The key must be in the

“ ON “ position.

Position 1: mist function

Position 2: intermittent

Position 3: slow

Position 4: fast

For a single sweep of the windshield,

push the lever up and release it.

To spray washer fluid, pull the lever

toward you.

To turn on the following lights:

twist the headlight/indicator lever.

Position 1: Parking, side, number

plate and instrument panel lights

Position 2: Headlights and all of the

above

High-Low beams

For high beams, turn the headlights

on and push the lever away from you

(position 1). Pull the lever toward

you (position 2) for low beams.

Flashing the high beam headlights

(position 3): pull the lever all the way

back. The high beam headlights turn

off when you release the lever.

To turn on the rear window wiper,

twist the lever knob upward.

The key must be in the “ ON “

position

Position 1: Intermittent

Position 2: Normal

To spray washer fluid on the rear

window, twist the knob upward or

downward as far as it will go

(position 3 or 4). The knob

automatically returns from these

positions after you release it.

Headlights

Tabla de contenidos

Otros manuales de Automóvil de Toyota

Toyota

Toyota SEQUOIA 2011 - Manual de usuario

Toyota

Toyota 2005 4Runner Navi_U Manual de usuario

Toyota

Toyota Land Cruiser 2000 Manual de usuario

Toyota

Toyota Tacoma 2002 Manual de usuario

Toyota

Toyota AVALON 2008 Manual de usuario

Toyota

Toyota Corolla 2022 Manual de usuario

Toyota

Toyota SIENNA U Manual de usuario

Toyota

Toyota SEQUOIA 2019 Manual de usuario

Toyota

Toyota RAV4 2019 Manual de usuario

Toyota

Toyota Prius 2023 Manual de usuario

Toyota

Toyota Prius 2007 Manual de usuario

Toyota

Toyota 2012 Sequoia Manual de usuario

Toyota

Toyota AVALON - 2011 Manual de usuario

Toyota

Toyota 2016 RAV4 Manual de usuario

Toyota

Toyota 4RUNNER BROCHURE 2011 Manual de usuario

Toyota

Toyota Solara 2005 Manual de usuario

Toyota

Toyota Prius 2007 Manual de usuario

Toyota

Toyota Yaris 2014 Manual de usuario

Toyota

Toyota 2010 AURIS HYBRID Manual de usuario

Toyota

Toyota AVALON HYBRID Manual de funcionamiento

Toyota

Toyota SIENNA 2005 Manual de usuario

Toyota

Toyota 2016 Prius Manual de usuario

Toyota

Toyota Land Cruiser 200 2018 Manual de usuario

Toyota

Toyota Corolla guide Manual de usuario

Manuales populares de Automóvil de otras marcas

CITROËN

CITROËN DS4 DSign Manual de usuario

Lexus

Lexus 2015 CT 200h Manual de usuario

Cadillac

Cadillac CTS 2008 Manual de usuario

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manual de usuario

Porsche

Porsche Boxster S Manual de usuario

GMC

GMC 2010 Savana 1500 Cargo Manual de usuario

KIAM

KIAM SPORTAGE 2014 Manual de lista de piezas

GMC

GMC 2013 Terrain Instrucciones de montaje

GMC

GMC T-Series 1999 Manual de usuario

Mercury

Mercury 1998 Mystique Manual de usuario

Mercury

Mercury 2007 Mariner Manual de usuario

Mazda

Mazda 2007 Mazdaspeed 3 Guía

Mazda

Mazda 2014 CX-5 Manual de usuario

GMC

GMC Chevrolet Express 2022 Manual de usuario

GMC

GMC 1997 Jimmy Manual de usuario

Chevrolet

Chevrolet 2012 Malibu Manual de usuario

Cadillac

Cadillac 2010 Escalade Manual de usuario

Skoda

Skoda FABIA RS - ANNEXE 118 Manual de usuario
