Toyota 4RUNNER 2012 Manual de usuario

QUICK REFERENCE GUIDE

CUSTOMER EXPERIENCE CENTER

1-800 -331- 4331

00505-QRG12-4RUN

Printed in U.S.A. 1 0 / 11

11- TCS-04980

4RUNNER

2 0 1 2

11-TCS-04980_QRG_4Runner_2_0F_lm.indd 1 10/5/11 11:31 PM

!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental operations

so you can locate and use the vehicle’s main equipment quickly

and easily.

The Quick Reference Guide is not intended as a substitute for the

Owner’s Manual located in the vehicle’s glove box. We strongly

encourage you to review the Owner’s Manual and supplementary

manuals so you will have a better understanding of the vehicle’s

capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,

Inc. wish you many years of satisfied driving in your new 4Runner.

This Quick Reference Guide is not a full description of 4Runner

operations. Every 4Runner owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual.Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at the

time of printing. Toyota reserves the right to make changes at any

time without notice.

2012

4Runner

resize-20114Runner.qxd 10/6/11 12:07 AM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance

Fuel tank door and cap 6

Hood release 8

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry

Smart Key system17

Air Conditioning/Heating 18-19

Audio 20-21

Auto lock/unlock1,2

Automatic running boards 19

Automatic Transmission 9

Bluetooth

audio 23

Clock 14

Cruise control 17

Four-wheel drive 10

Garage door opener (HomeLink

)

iPod

/USB/AUX port 21

Light control-Instrument panel

Lights1&turn signals 16

Moonroof114

Parking brake 9

Power outlets-12V DC 23

Power outlets-120V AC 22

Seat adjustments-Front 11

Seat adjustments-Second row seats 11

Seat heaters

Seats-Folding down second row seats 12

Seats-Head restraints 13

Seats-Returning third row seats 13

Seats-Stowing third row seats 13

Telephone controls (Bluetooth

) 22

Tilt and telescopic steering wheel 10

VSC OFF button 15

Windows114

Window-Back window115

Windshield wipers & washers

Door locks

Doors-Child safety locks 25

Floor mat installation 27

Seat belts 24

Seat belts-Shoulder belt anchor 24

Spare tire & tools 25

Star Safety System

Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

1Visit your Toyota dealer for information on customizing this feature.

2 Programmable by customer. Refer to the Owner’s Manual for instructions and more

information.

3HomeLink®is a registered trademark of Johnson Controls, Inc.

resize-20114Runner.qxd 10/6/11 12:08 AM Page 1

Power outside rearview mirror controls

Instrument panel light control

Intuitive parking assist switch and indicator1

Tilt and telescopic steering lock release

“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch

120V AC Power outlet ON/OFF switch1

Automatic running boards switch1

Windshield wiper de-icer switch1

Headlight, turn signal and front fog light controls

Wiper and washer controls

Accessory meter/Outside temperature display

Emergency flasher switch

Audio system1/navigation system1,2/Display audio system1,3

Back window and outside rearview mirror defogger switch

Front passenger seat belt reminder light

Front passenger occupant classification indicator

Engine immobilizer/Theft deterrent system indicator

OVERVIEW

Instrument panel

Steering wheel controls

Center console box

Without Smart Key system

With Smart Key system

Manual Air Con

resize-20114Runner.qxd 10/6/11 12:10 AM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

12V DC Power outlet

USB port1

AUX port

Four-wheel drive selector1

Hood release

Steering wheel audio controls1,2,3

Voice command button1,2,3

Telephone switches1,2,3

Ignition switch (standard key)1/“ENGINE START STOP” button (Smart Key)1

Party mode switch

Cruise control

Seat heater switch1

120V AC Power outlet1

Power back window switch

1 If equipped

2 For details, refer to the “Navigation System Owner’s Manual.”

3 For details, refer to the “Display Audio System Owner’s Manual.”

ir Conditioning Automatic Air Conditioning 2WD

Part-time 4WD

Full-time 4WD

resize-20114Runner.qxd 10/6/11 12:10 AM Page 3

OVERVIEW

Low Tire Pressure Warning1

Open door warning1

Airbag SRS warning1

Tachometer

Speedometer

Display change button

Engine coolant temperature

Fuel gauge

Eco driving indicator zone display

Odometer, trip meter and average fuel consumption display

Shift position and shift range indicators

Voltmeter

Instrument cluster

Charging system warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Indicator symbols

Driver/Front passenger seat belt reminder1

(alarm will sound if speed is over 12 mph)

Optitron type meters

AIR BAG ON and AIR BAG OFF indicator

Turn signal indicator

Front fog light indicator

Headlight low/high beam indicator

1For details, refer to “If a warning light turns on or a warning buzzer sounds” Section 5-2, 2012

Owner’s Manual.

2For details, see “SRS airbags” Section 1-7, 2012 Owner’s Manual.

Low fuel level warning1

Non-Optitron type meters

resize-20114Runner.qxd 10/6/11 12:11 AM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Automatic Transmission fluid temperature warning1

Crawl Control indicator

Four-wheel drive indicator3

Low speed four-wheel drive indicator3

Center differential lock indicator3

Slip indicator1

Vehicle Stability Control OFF indicator

Downhill Assist Control indicator

AUTO Limited Slip Differential indicator

Cruise control/Cruise control SET indicator4

Roll Sensing of Curtain shield Airbag OFF indicator2

Engine immobilizer/Theft deterrent system indicator

Anti-lock Brake System warning1

3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2012 Owner’s Manual.

4If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.

Multi-terrain select

Rear differential lock indicator

Active traction control indicator

Power steering system warning

Kinetic Dynamic Suspension System indicator1

Unengaged Park warning light

Smart Key system warning1

Intuitive parking assist indicator

Eco driving indicator light

Traction Control OFF indicator

Automatic running boards indicator

resize-20114Runner.qxd 10/6/11 12:11 AM Page 5

OVERVIEW

Fuel tank door and cap

Pull

Turn to open

NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check

Engine “ ” indicator may illuminate.

Keyless entry

Locking

Unlocking

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for

safety.

Push ONCE: Driver door

TWICE: All doors

Push

Without Smart Key system With Smart Key system

resize-20114Runner.qxd 10/6/11 1:24 AM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

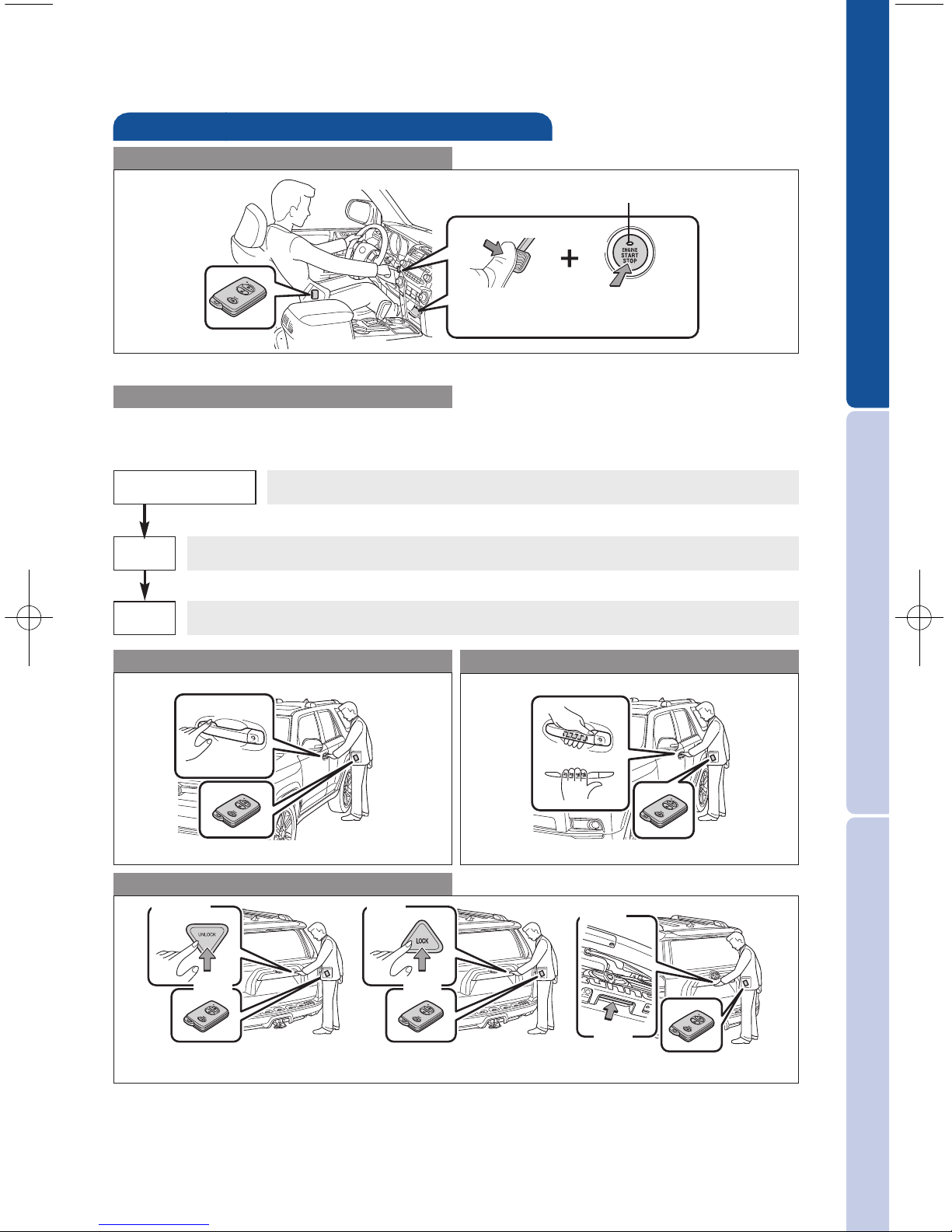

Smart Key system (if equipped)

Start function

Accessories such as the radio will operate.

Power ON; the engine not running.

All systems OFF.

ACCESSORY

OFF

NOTE: Gear shift lever must be in Park and brake pedal depressed.

Push

Depress

brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will

change the operation mode in succession from:

NOTE: Doors may also be locked/unlocked using remote.

Power (without starting engine)

Push

Unlock

Push

Lock

Locking Unlocking

Carry remote to unlock

Front door lock Front door unlock

Grasp

Carry remote to lock/unlock/open

Back door lock/unlock/open

Carry remote to lock

Touch

Open

Push

resize-20114Runner.qxd 10/6/11 1:25 AM Page 7

Windshield and back window washer fluid tank

Power steering fluid reservoir

Engine oil level dipstick

Engine coolant reservoir

Engine oil filler cap

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer

to the “Warranty Maintenance Guide.”

Engine maintenance

Hood release

Pull

Pull up latch and

raise hood

OVERVIEW

resize-20114Runner.qxd 10/6/11 12:13 AM Page 8
