Toyota 2013 RAV4 Manual de usuario
QUICK REFERENCE GUIDE
2013
RAV4
This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new RAV4.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of RAV4
operations. Every RAV4 owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
RAV4
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance
9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry* 6
Smart Key system* 7
Active torque control AWD (AWD models) 11
Air Conditioning/Heating 18-19
Audio 20-21
Auto lock/unlock* 10
Automatic Transmission 10
Bottle holders 25
Blind Spot Monitor (BSM) with Rear Cross Traffic Alert 24
Clock 19
Cruise control 23
Cup holders 25
Door locks
16
Door-Power back 14
Light control-Instrument panel
19
Lights & turn signals 13
Moonroof 16
Parking brake 11
Power outlets-12V DC 22
Seat adjustments-Front 12
Seat adjustments-Rear 12
Seat heaters
18
Seats-Head restraints 11
Telephone controls (Bluetooth®) 17
Tilt and telescopic steering wheel 17
VSC OFF button 22
Windows-Power 15
Windshield wipers & washers
15
Doors-Child safety locks 27
Floor mat installation 29
Seat belts 26
Seat belts-Shoulder belt anchor 27
Spare tire & tools 27
Star Safety SystemTM 28-29
Tire Pressure Monitoring (warning) System 26
* Visit your Toyota dealer for information on customizing this feature.
2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls2
Telephone controls2
Voice command button1,2
Multi-Information Display switch2
Cruise control
Ignition switch (standard key)1
Tilt and telescopic steering release
Headlight, turn signal and fog light1 control
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)1
Emergency flasher switch
Intuitive parking assist switch1
Clock
Engine immobilizer indicator
Front passenger occupant classification indicator
Display Audio system2
Air Conditioning controls
Rear window and outside rearview mirror defogger switch
Display Audio system
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
With manual
Air Conditioning system
With automatic
Air Conditioning system
Power back door main switch1
12V DC power outlet
USB/AUX port2
Seat heater switches1
Driving mode select switches
Tire pressure warning reset switch
Fuel filler door opener
Hood lock release lever
Power back door switch1
All-Wheel Drive lock switch (AWD models)
BSM (
Blind Spot Monitor with Rear Cross Traffic Alert)
main switch1
VSC OFF switch
Instrument panel light control
Outside rear view mirror switches
1 If equipped
2For details, refer to the “Display Audio System Owner’s Manual.”
4
OVERVIEW
Open door warning
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Automatic Transmission shift position/shift range indicator
Multi-Information Display
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Low fuel level warning
Airbag warning1
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Dynamic Torque Control AWD system warning light1
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2For details, refer to “All-wheel drive lock switch,” Section 4-5, 2013 Owner’s Manual.
3The indicator flashes to indicate that the system is operating.
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5

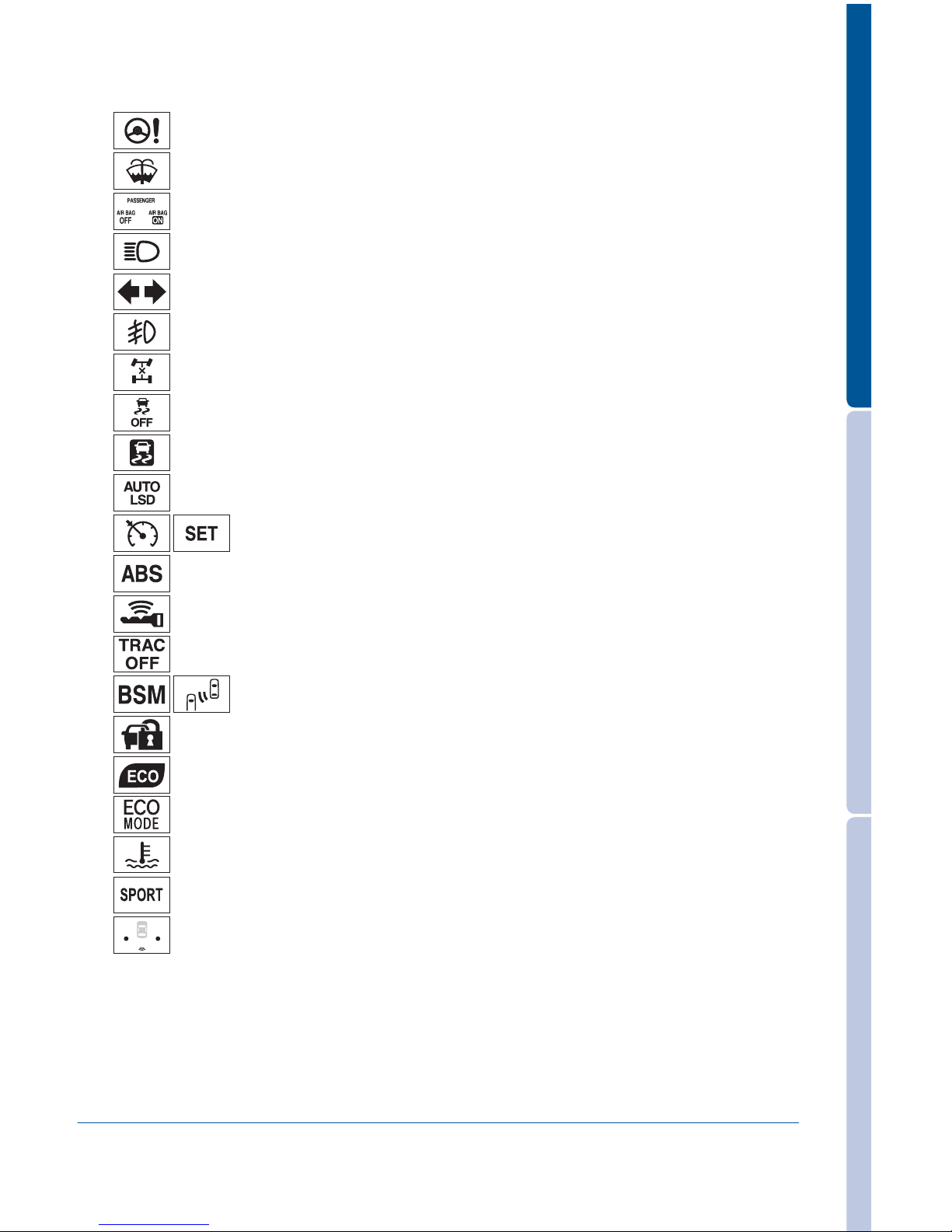

Turn signal indicator
Fog light indicator
Low windshield washer fluid level warning1
Headlight high beam indicator
Electric power steering system warning1
All-Wheel Drive lock indicator1,2
AUTO Limited Slip Differential indicator1
Cruise control indicator4/Cruise control SET indicator4
Anti-lock Brake System warning1
4If this light flashes, refer to “Cruise control,” Section 4-5, 2013 Owner’s Manual.
5Light flashes in yellow to indicate a malfunction. Light flashes quickly in green to indicate that
the steering lock has not been released.
6The indicator flashes to indicate a malfunction.
Vehicle Stability Control (VSC) OFF indicator1
Smart Key system indicator5
Traction Control OFF indicator1
F
ront passenger occupant classification indicator
Theft deterrent/Engine immobilizer system indicator
Eco Driving Indicator Light
ECO mode indicator
High coolant temperature warning1
Blind Spot Monitor warning1/Blind Spot Monitor outside
rearview mirror indicators
Slip indicator1,3
SPORT indicator
Intuitive parking assist indicator6
6
OVERVIEW
Keyless entry
Locking
Unlocking
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more
details.
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
Power back door (if equipped)
Push and hold
Without Smart Key system With Smart Key system
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Smart Key system (if equipped)
Start function
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
Back door lock/unlock
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
Front door lock Front door unlock*
Touch Grasp
Push to
lock
Push to unlock
Carry remote
to lock/unlock
8
OVERVIEW
NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.

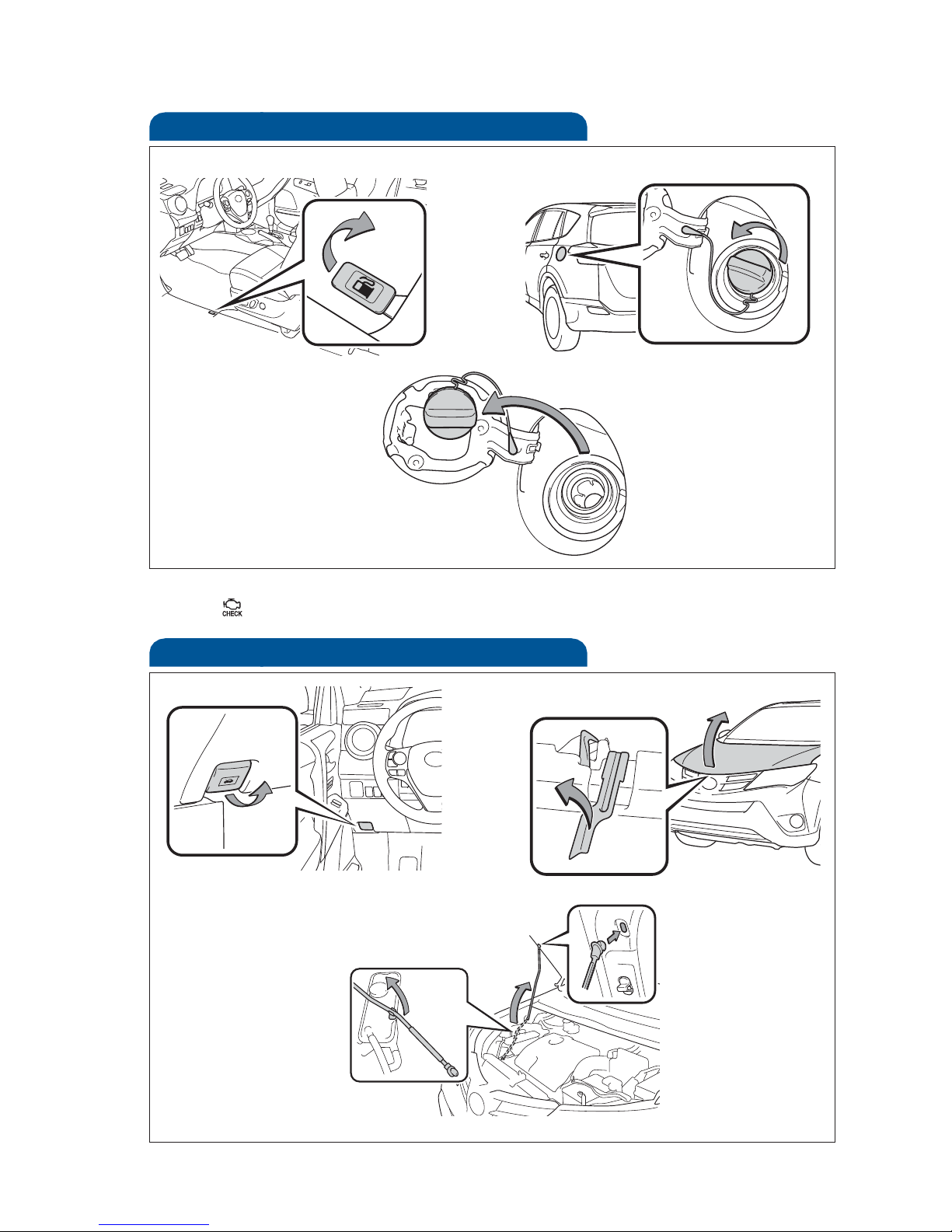

Fuel tank door release and cap
Pull up
Turn to open
Store
Driver seat
Hood release
Pull
Pull up latch
and raise hood
Engage support rod
