Toyota 2007 Highlander Manual de usuario

MN 00452-PRG07-HL

Printed in USA 07/06

2007 Pocket Reference Guide

Customer Experience Center 1-800-331-4331

2007 Highlander

The Ultimate

Interactive Owner’s Guide

Flip over to see your

Pocket Reference Guide.

Open This and Really Get into

Your New Toyota

Flip over to see your

iGuide.

07 Highlander iGuide Cover 9/25/06 2:16 PM Page 1

2007

Highlander

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended as a substitute for

the Owner’s Manual located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and

supplementary manuals so you will have a better understanding

of the vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,

U.S.A., Inc. wish you many years of satisfied driving in your

new Highlander.

This Pocket Reference Guide is not a full description of

Highlander operations. Every Highlander owner should

review the Owner’sManual that accompanies this vehicle.

Pay special attention to the boxed “ ” information

highlighted in this reference guide and throughout the

Owner’s Manual.Each box contains safe operatin

instructions to help you avoid injury or equipment

malfunction.

All information in this Pocket Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

Highlander

iGuide

WINDOWS 98

PENTIUM III 600MHZ

64MB OF RAM

800 X 600 MONITOR

16-BIT COLOR

CD-ROM DRIVE

MACINTOSH

SYSTEM 9.X,

OS X 10.2

POWERPC

64MB OF RAM

24-BIT COLOR

CD-ROM DRIVE

MINIMUM REQUIREMENTS

This iGuide is designed to be played on

anycomputer—PC or Macintosh.

This utility vehicle has a significantly higher rollover rate than other

types of vehicles. Refer to the Owner’s Manual for important rollover

information.

07 Highlander iGuide Cover 9/25/06 2:16 PM Page 2

INDEX

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry1,2 6

Light control-Instrument panel 7

Air Conditioning/Heating 16-17

Audio 14-15

Automatic Transmission 8

Bottle holders 11

Clock 12

Cruise control 13

Cup holders 11

Door locks211

Garage door opener (HomeLink®)317

Lights2&turn signals 12

Moonroof 17

Parking brake 11

Power outlets 10

Rear seat entertainment system 15

Seat adjustments-Front 9

Seat adjustments-Rear 9

Seat heaters 10

Seats-Head restraints 10

Tilt steering wheel 8

Windows 13

Windshield wiper & washer 13

Doors-Child safety locks 19

Seat belts 18

Seat belts-Shoulder belt anchor 18

Spare tire & tools 19

Tire Pressure Warning System reset 18

1Programmable by customers. Refer to the the Owner’s Manual for

instructions and more information.

2Visit your Toyota dealer for information on customizing this feature.

3HomeLink®is a registered trademark of Johnson Controls, Inc.

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 1

OVERVIEW

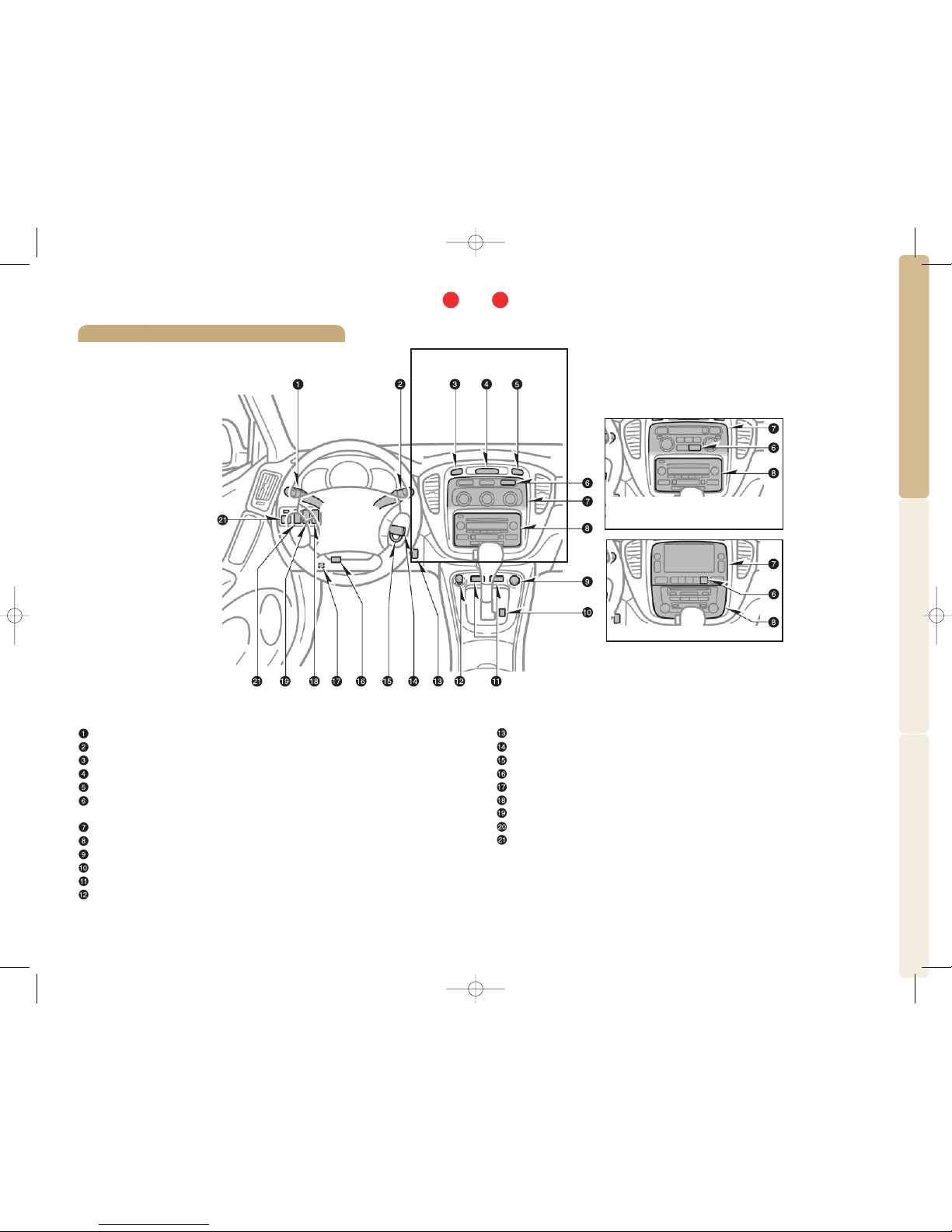

Instrument panel

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

With automatic Air Conditioning

system

With navigation system

“TRAC OFF” (Traction Control “OFF”) switch1

Cruise control

Ignition switch

Tilt steering lock release

Tire Pressure Warning System reset

115V Power outlet ON/OFF switch1

Rear heater main switch1

Theft deterrent system/Engine immobilizer indicator1

Power rear view mirror controls

1If equipped

2For vehicles equipped with Navigation system, refer to the Navigation

system Owner’s Manual

Headlight, turn signal and front fog light1controls

Wiper and washer controls

Emergency flasher switch

Clock2

Front passenger seat belt reminder light

Rear window and outside rear view mirror defogger1and windshield

wiper de-icer1switch

Air Conditioning controls2and/or Navigation system2

Audio system2

“AIRBAG ON” and “AIRBAG OFF” indicator

Snow mode button

Seat heater switches1

12V DC Power outlet/Cigarette lighter

With manual Air Conditioning

system

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 2

OVERVIEW

When the Anti-lock Brake System (ABS) function is in action, you may feel the

brake pedal pulsating and hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal down more firmly. Do not

pump the brake as this will result in reduced braking performance.

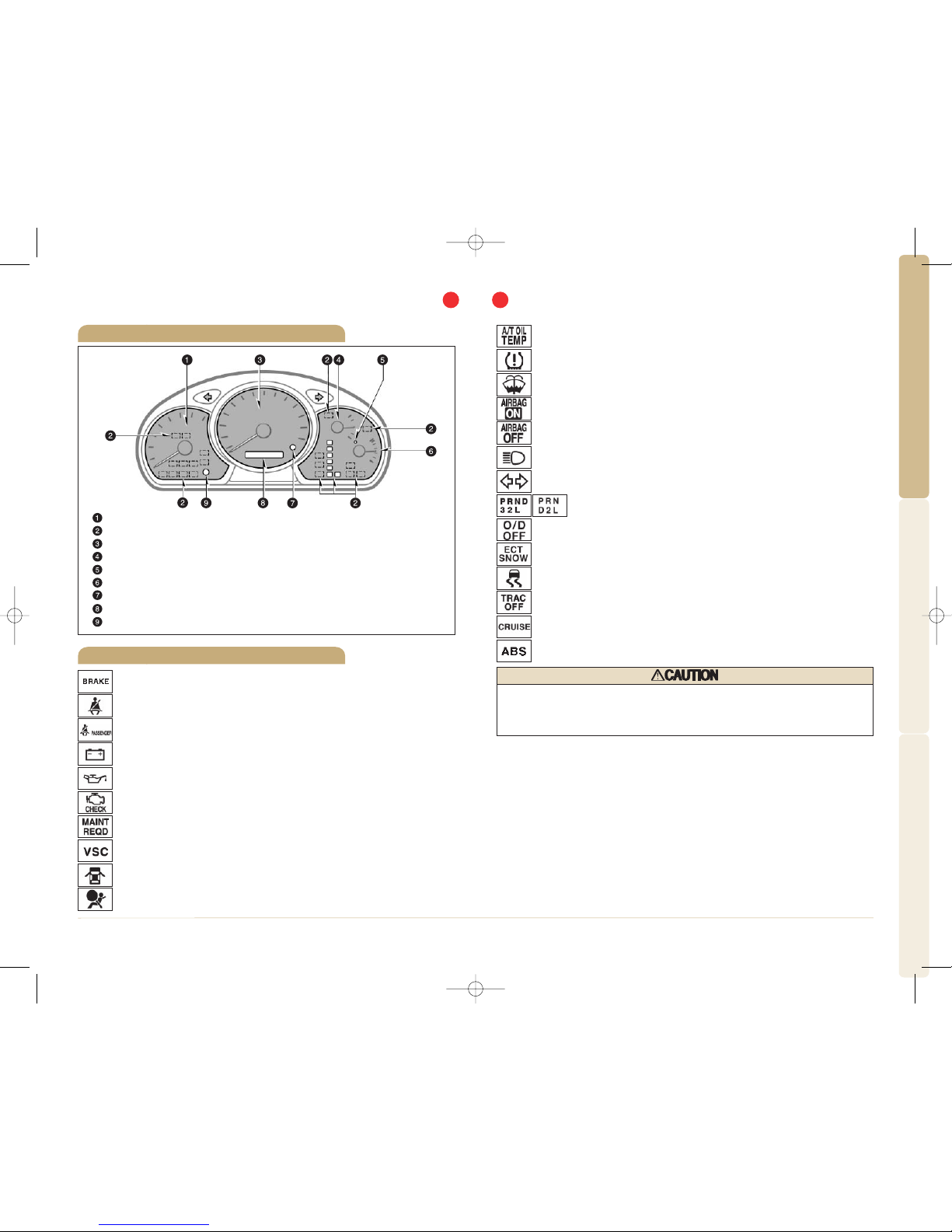

Indicator symbols

Instrument cluster

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tachometer

Service indicator and reminder

Speedometer

Fuel gauge

Low fuel level warning

Engine coolant temperature

Trip meter reset knob

Odometer and two trip meters

Instrument panel light control

Driver seat belt reminder1

Front passenger seat belt reminder1

Charging system warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Vehicle Stability Control warning1

Open door warning1

Airbag SRS warning1

1For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6, 2007

Owner’

sManual.

2If this light flashes, refer to “Cruise control,” Section 1-7, 2007 Owner’s Manual.

Anti-lock Brake System warning1

Headlight high beam indicator

Turn signal indicator

Automatic Transmission fluid temperature

warning1

Low Tire Pressure Warning1

“AIRBAG ON” indicator

“AIRBAG OFF” indicator

Low windshield washer fluid level warning1

Automatic Transmission indicators

(5-speed)/(4-speed)

Overdrive “OFF” indicator

Snow mode indicator

Slip indicator

Traction Control “OFF” indicator

Cruise control indicator2

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 4

OVERVIEW

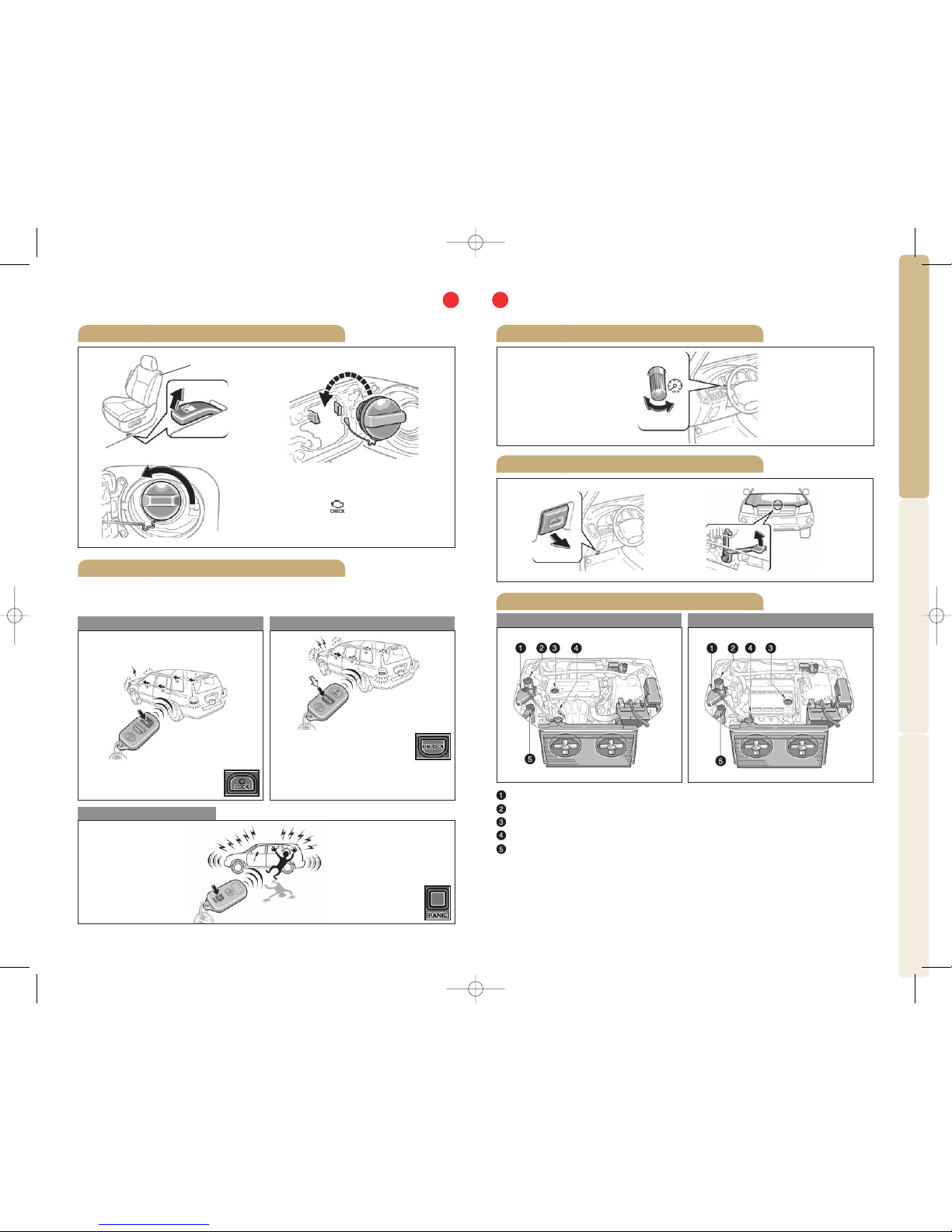

Fuel tank door release and cap

Keyless entry (if equipped)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Turn

Store

Pull up

Alarm operation

Beep sound can be switched “ON” or “OFF.” Refer to the Owner’s Manual

for more details.

Push and hold

Locking operation Unlocking operation

Push ONCE: Driver door

TWICE: All doors

Push

Hood release

Pull Pull up latch and

raise hood

Engine maintenance

4cylinder (2AZ-FE) engine 6 cylinder (3MZ-FE) engine

Engine coolant reservoir

Power steering fluid reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield and rear window washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will

help extend the life of your vehicle and maintain performance.

Please refer to the “Owner’s Warranty Information Booklet,”

“Scheduled Maintenance Guide” or “Owner’sManual

Supplement.”

Light control-Instrument panel

Brightness

control

Driver seat

NOTE: Tighten until one click is heard.

If the cap is not tightened enough,

Check Engine “ ” indicator may

illuminate.

NOTE:

After unlocking, if a door is not

opened within 30 seconds, all doors

will relock for safety.

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 6

FEATURES/OPERATIONS

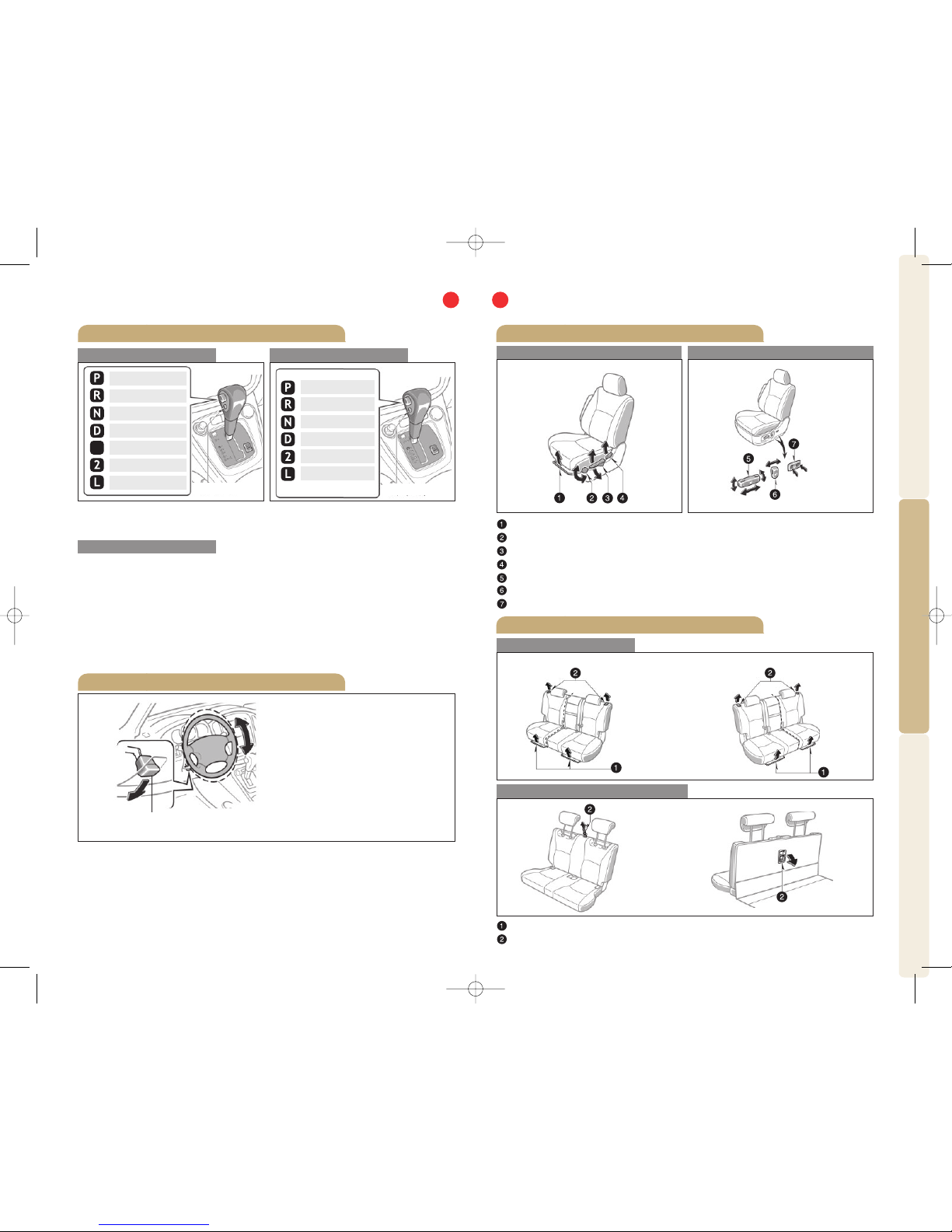

Automatic Transmission

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

1The ignition switch must be ON and the brake pedal depressed to shift

from “Park.”

Overdrive switch

5-speed models

Overdrive switch

5-speed models ··· “OFF”

“ON”

4-speed models ··· “OFF”

“ON”

During normal driving conditions, always drive with overdrive “ON;” this

allows the transmission to shift automatically, increasing fuel economy. If

the “O/D OFF” indicator light on the instrument cluster is illuminated,

overdrive is “OFF.”

:Fourth gear

: Fifth gear

: Third gear

: Fourth gear

Seat adjustments-Front

Manual seat Power seat

Position

Cushion angle

Height crank (driver side only)

Seatback angle

Position and height

Seatback angle

Lumbar support

Second row seats

With third seat

Position

Seatback angle

Third row seats (if equipped)

Without third seat

From front From rear

Seat adjustments-Rear

4-speed models

Park1

Reverse

Neutral

Drive

Second gear

First gear

Overdrive switch

Tilt steering wheel

Note: Do not attempt to

adjust while the

vehicle is in motion.

Lock release lever

Angle

Hold wheel, push lever down,

set angle, then return lever.

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 8

FEATURES/OPERATIONS

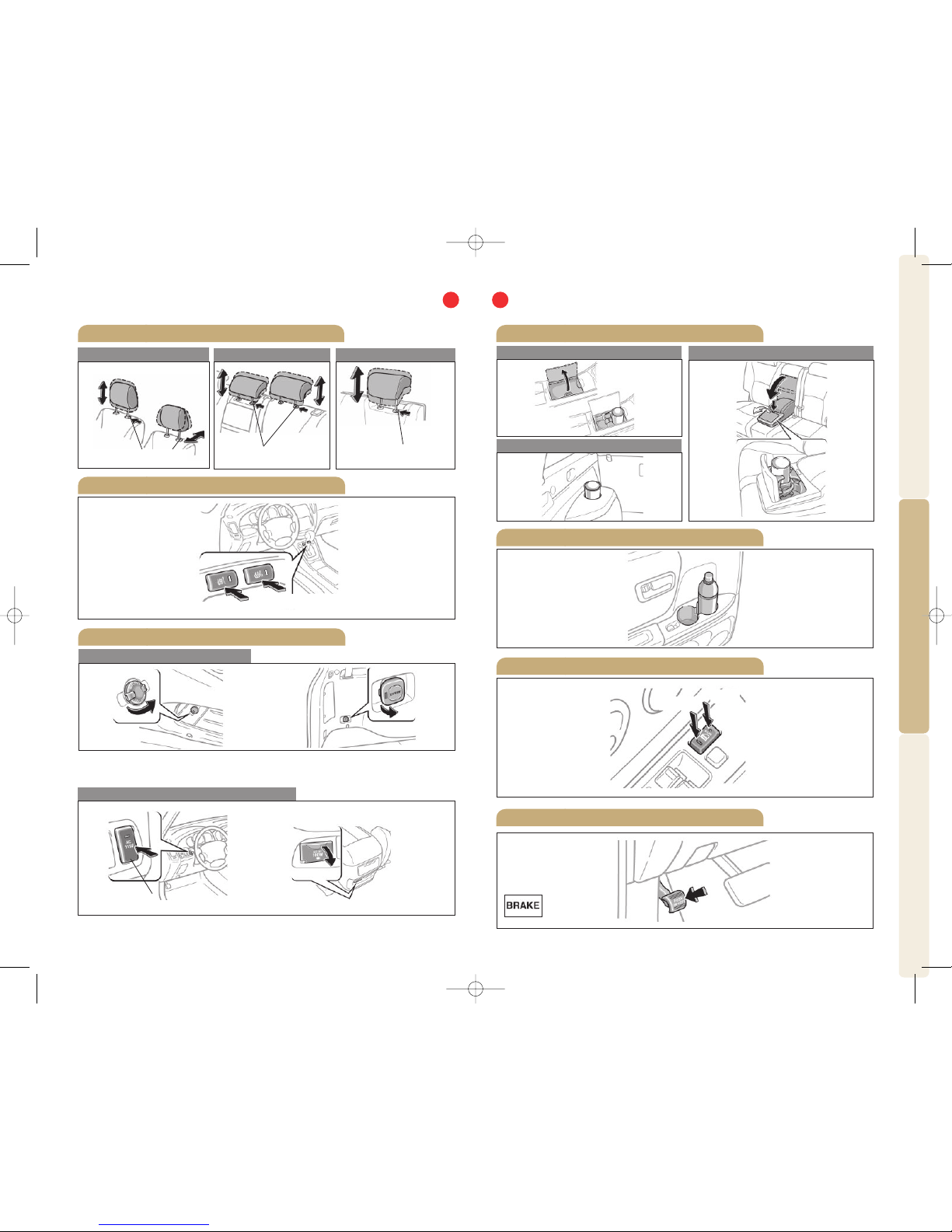

Seats-Head restraints

Front seat

Cup holders

Second row seat

1110

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Bottle holders

Lock release button Lock release button

Angle

(if equipped)

Lock release button

Height

Second row seats

Front seats Third row seats

Seat heaters (if equipped)

Left front seat Right front seat

Third row seat

Door locks

Lock

Unlock

Parking brake

Set: Depress

Release: Depress again

115V AC (if equipped)

12V DC

Designed for car accessories. Key must be in the “ACC” or “ON”

position to be used.

Front Rear

Power outlets

ON/OFF switch

Key must be in the “ON” position to be used.

Rear console

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 10

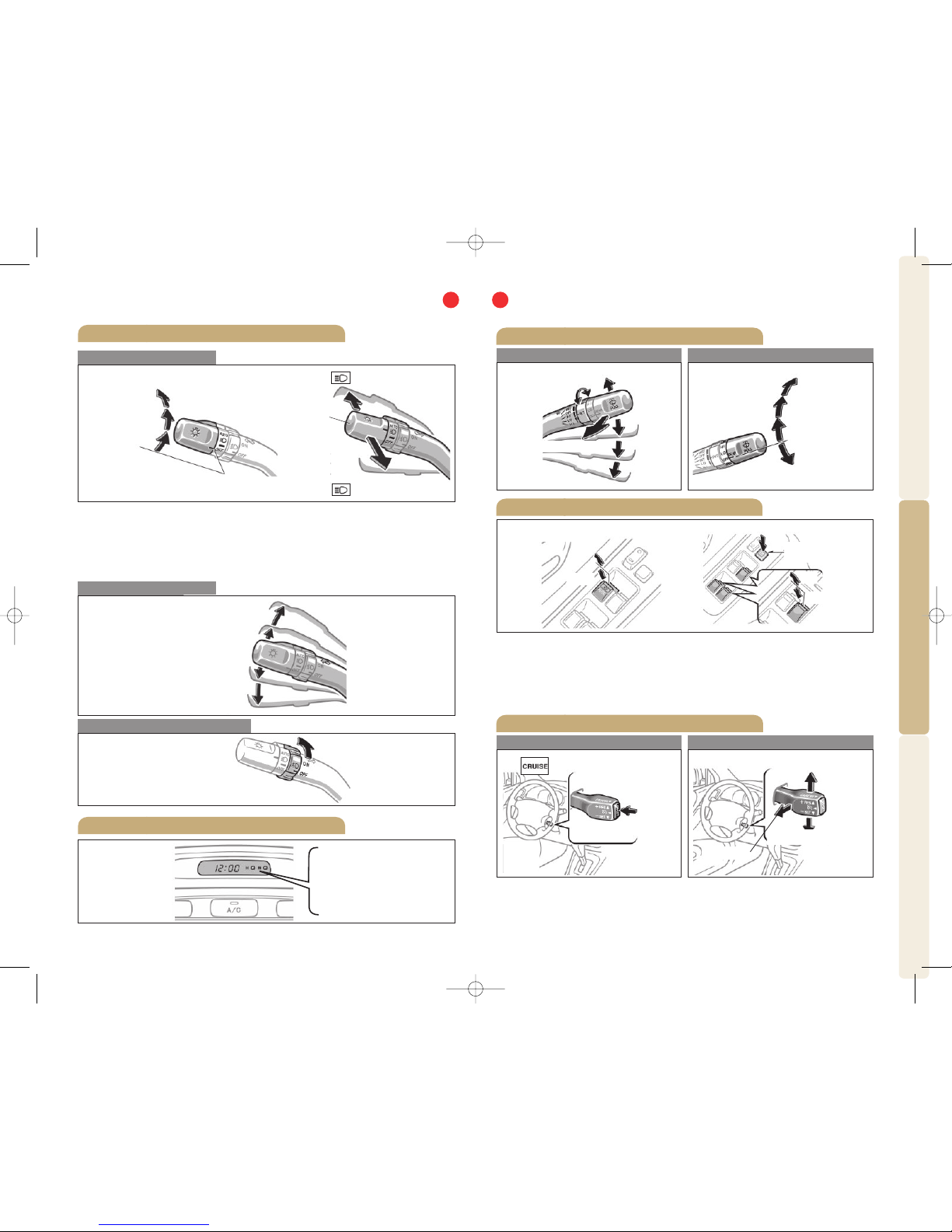

Lights & turn signals

FEATURES/OPERATIONS

Windows

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Windshield wiper & washer

Front Rear

Headlights

Turn signals

AUTO*

Parking lights

High beam flasher

*If equipped

High beam

Low beam

Headlights

-Automatic light cutoff system Automatically turns off the lights when

the driver’s door is opened and the ignition is in the “ACC” or “LOCK”

position.

-Daytime Running Light system (if equipped) Automatically turns on the

headlights at a reduced intensity.

Front fog lights (if equipped)

Right turn

Left turn

Turn

Lane change

Front fog lights come on only

when the headlights are on low beam.

Interval

wipe

Slow

Fast

Pull to wash and wipe

Single wipe

Adjust interval Wash and wipe

Wipe

Interval wipe

Wash and wipe

Window

lock switch

Driver side

Automatic operation (Driver side only) Push the switch completely down

or pull it completely up and release to fully open or close. To stop window

mid-way, lightly push the switch in the opposite direction.

Window lock switch Deactivates all passenger windows. Driver’s window

remains operable.

Down Up

Down

Clock

H-Hour set

M-Minute set

Cruise control

Turning system ON/OFF Functions

1The set speed may also be cancelled by depressing the brake pedal.

2The set speed may be resumed once vehicle speed exceeds 25 mph.

Refer to the Owner’s Manual for more details.

System

ON/OFF

Resume2/Increase speed

Set/Decrease speed

Cancel1

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 12

1514

FEATURES/OPERATIONS

Audio

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

View CD information

Eject CD

Push to turn

ON/OFF

Push to adjust

tone & balance

Seek station/

CD track select

Station/CD track

scan

Mode

Load CD(s)

Type 2 additional functions

Eject cassette tape

Traffic

information

View genre with

RDS system

View radio and

CD information

Preset buttons - functions in CD/cassette

modes indicated above number.

CASSETTE TAPE PLAYER

CD PLAYER

To fast forward Push “ .”

To rewind Push “ .”

To change direction Push “ .”

To scan tracks on a disc Push “SCAN.” Push again to hold selection.

CD Changer (Type 2 only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until you hear a beep.

Insert one disc. Shutter will close and then re-open for next disc.

RADIO

To preset stations Tune in the desired station and hold down a preset

button (1-6) until you hear a beep. Push desired preset button (1-6) to

select.

To scan stations Push “SCAN.” Push and hold to scan preset stations. Push

again to hold selection.

RDS (Radio Data System-FM, Type 2 only)

-Push TYPE “ ” or “ ” to view current program genre. Push again within

6 seconds to select new genre.

-Push “SEEK/TRACK” or “SCAN” to find same genre programs.

-Push “TEXT” to receive information transmitted from radio stations.

“- +”

Volume control

“ ”

-In radio mode Push to select a preset station; push and hold to seek

the next strong station.

-In tape mode Push to skip up or down to the next/previous track;

push and hold to fast forward or reverse.

-In CD mode Push to skip up or down to the next/previous track.

“MODE”

Push to turn audio “ON” and select an audio mode. Push and hold to

turn the audio system “OFF.”

Steering wheel switches (if equipped)

Type 1

Headphone volume control

Headphone jacks

DVD player

DVD screen

Remote control

A/V input adapter

Power outlet

Power outlet ON/OFF

switch

Front audio system

Rear seat entertainment system

(if equipped)

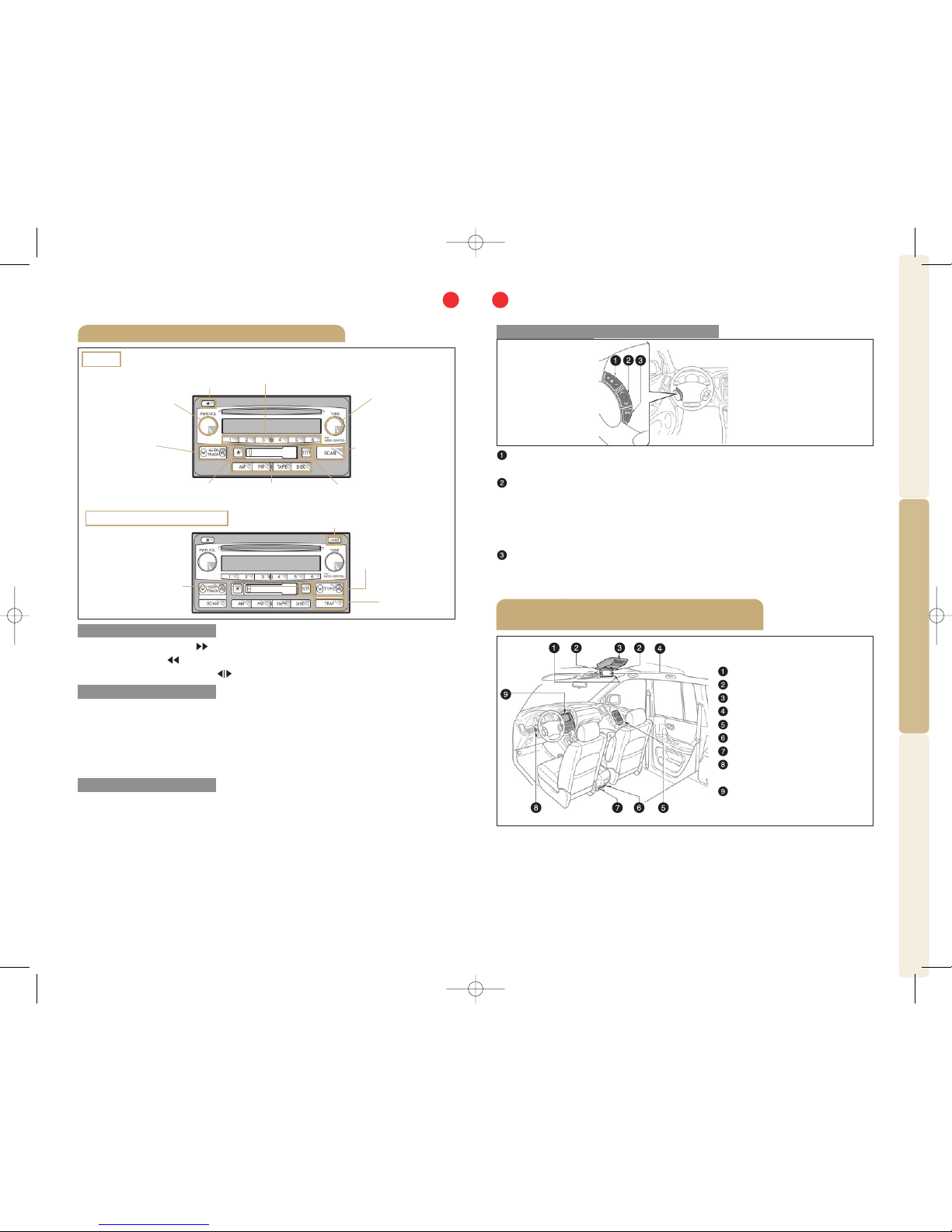

07 Highlander iGuide Inside 9/25/06 2:22 PM Page 14

Otros manuales para 2007 Highlander

Tabla de contenidos

Otros manuales de Automóvil de Toyota

Toyota

Toyota 2014 Prius V Manual de usuario

Toyota

Toyota Avanza Manual de usuario

Toyota

Toyota 2007 Highlander Manual de usuario

Toyota

Toyota Highlander guide Manual de usuario

Toyota

Toyota PRIUS 2008 Manual de usuario

Toyota

Toyota 2013 Venza Manual

Toyota

Toyota AVENSIS - S Manual de usuario

Toyota

Toyota YARIS SEDAN 2019 Manual de usuario

Toyota

Toyota COROLLA VERSO ZZE121L Manual de usuario

Toyota

Toyota Sienna Manual de usuario

Toyota

Toyota PRIUS C 2019 Manual de usuario

Toyota

Toyota Tacoma 2014 Manual de usuario

Toyota

Toyota 2003 HIGHLANDER Manual de usuario

Toyota

Toyota Matrix 2012 Manual de usuario

Toyota

Toyota Prius 2010 Manual de usuario

Toyota

Toyota RAV4 2011 Manual de usuario

Toyota

Toyota Corolla FR AE86L Series 1987 Guía de inicio rápido

Toyota

Toyota Corolla 2004 Manual de usuario

Toyota

Toyota 2010 Camry Hybrid Manual de usuario

Toyota

Toyota 4Runner 2003 Manual de usuario

Toyota

Toyota 2015 Prius Manual de usuario

Toyota

Toyota 2011 HILUX VSS 3 Manual de usuario

Toyota

Toyota 2015 Venza Manual de usuario

Toyota

Toyota 2005 Yaris Manual de usuario

Manuales populares de Automóvil de otras marcas

CITROËN

CITROËN DS4 DSign Manual de usuario

Lexus

Lexus 2015 CT 200h Manual de usuario

Cadillac

Cadillac CTS 2008 Manual de usuario

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manual de usuario

Porsche

Porsche Boxster S Manual de usuario

GMC

GMC 2010 Savana 1500 Cargo Manual de usuario

KIAM

KIAM SPORTAGE 2014 Manual de lista de piezas

GMC

GMC 2013 Terrain Instrucciones de montaje

GMC

GMC T-Series 1999 Manual de usuario

Mercury

Mercury 1998 Mystique Manual de usuario

Mercury

Mercury 2007 Mariner Manual de usuario

Mazda

Mazda 2007 Mazdaspeed 3 Guía

Mazda

Mazda 2014 CX-5 Manual de usuario

GMC

GMC Chevrolet Express 2022 Manual de usuario

GMC

GMC 1997 Jimmy Manual de usuario

Chevrolet

Chevrolet 2012 Malibu Manual de usuario

Cadillac

Cadillac 2010 Escalade Manual de usuario

Skoda

Skoda FABIA RS - ANNEXE 118 Manual de usuario
